XWDGM Web Guide Frame for Precision Web Alignment and EPC Guiding Systems

XWDGM Web Guide Frame

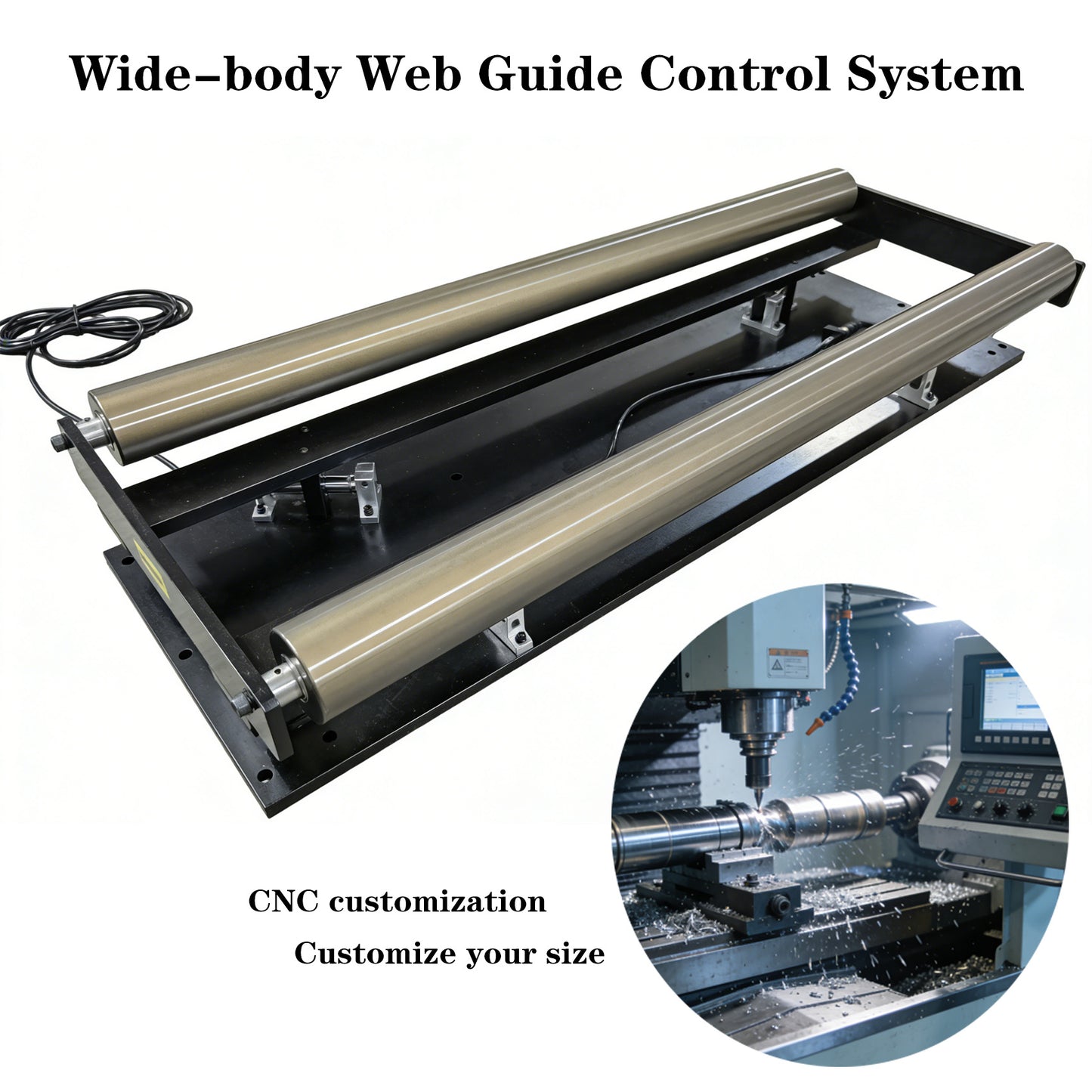

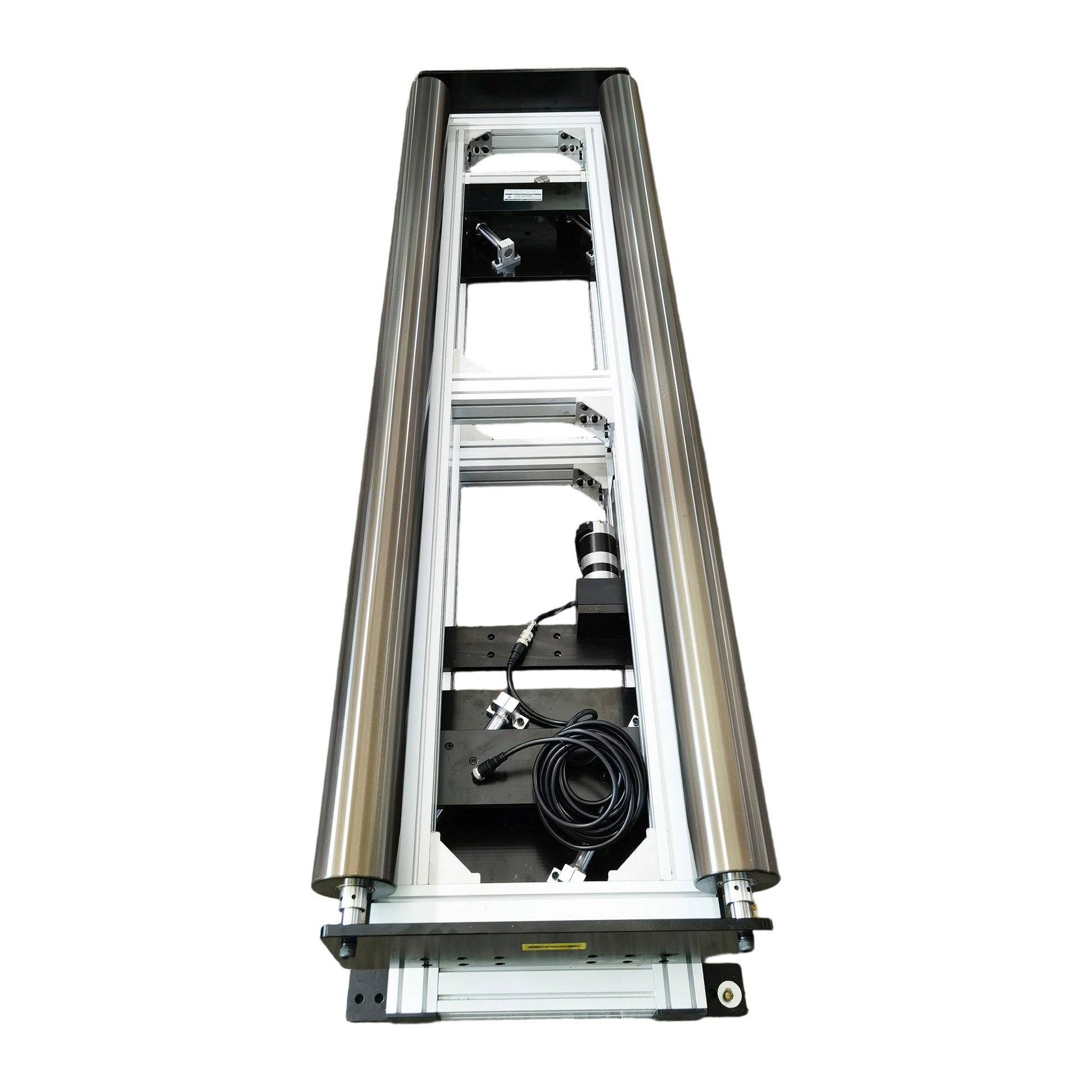

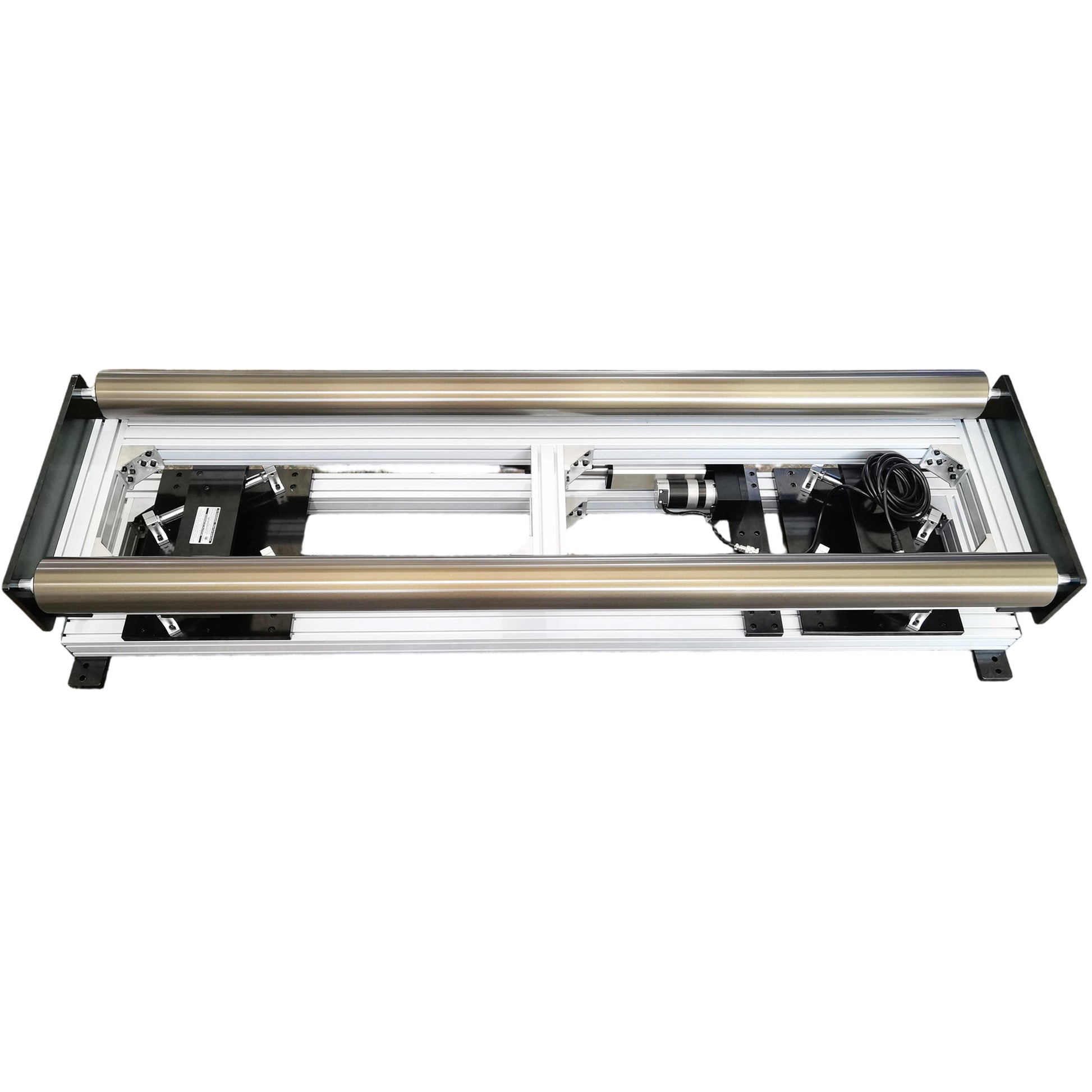

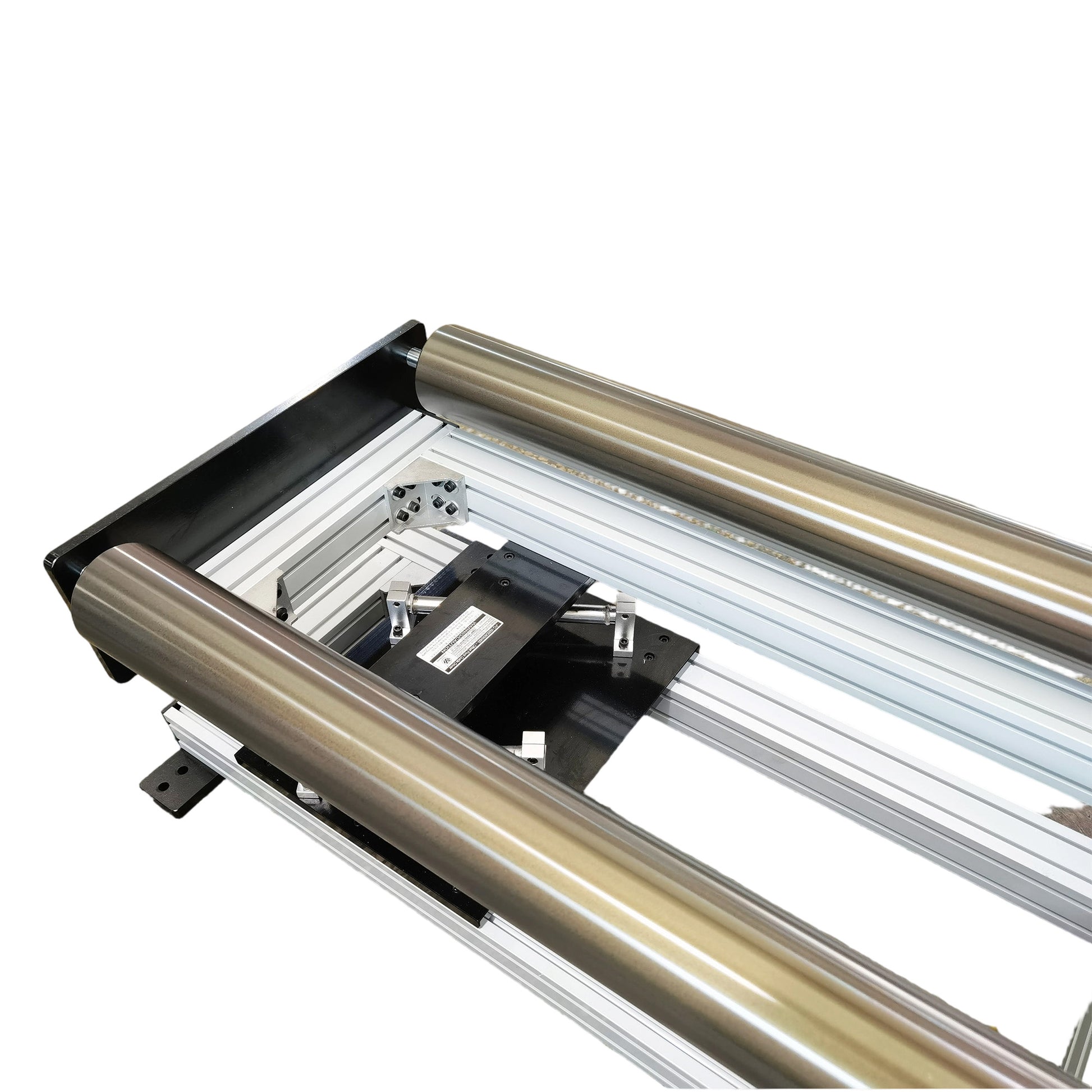

The XWDGM Web Guide Frame is a precision-engineered guiding platform designed for automatic web alignment and edge position control systems. As the mechanical foundation of an EPC (Edge Position Control) system, the guide frame provides smooth lateral movement and stable web tracking for high-speed roll-to-roll production lines.

Designed for slitting machines, rewinding machines, printing presses, laminating equipment, coating lines, flexible packaging machinery, paper converting systems, textile processing equipment, and lithium battery manufacturing plants, the XWDGM Web Guide Frame helps eliminate web wandering, edge deviation, wrinkles, and tracking errors while improving production efficiency and finished product quality.

When integrated with a [Web Guide Sensor], [Web Guide Controller], and

 [Web Guide Actuator], the guide frame automatically adjusts web position in real time, ensuring accurate material alignment throughout the entire production process.

What Is a Web Guide Frame?

A Web Guide Frame is the movable mechanical assembly used in automatic web guiding systems. It supports guide rollers and shifts laterally according to correction signals generated by the EPC control system.

The frame acts as the positioning mechanism that physically corrects material tracking errors and maintains precise web alignment during winding, unwinding, slitting, coating, laminating, and printing operations.

A high-quality web guide frame is critical for achieving stable web handling, reducing material waste, and maintaining accurate registration.

Key Features

High-Precision Mechanical Structure

Provides smooth and accurate lateral correction movement.

Heavy-Duty Industrial Design

Built for continuous operation in demanding industrial environments.

High Guiding Accuracy

Maintains precise web positioning during high-speed production.

Smooth Linear Motion

Reduces vibration and improves correction stability.

Compact Installation Design

Easy integration into new machines and retrofit projects.

Strong Load Capacity

Suitable for lightweight films as well as heavy paper and foil rolls.

Long Service Life

Manufactured using high-strength materials and precision machining technology.

Easy Maintenance

Designed for simple installation, adjustment, and servicing.

Advantages of XWDGM Web Guide Frames

Improve Web Alignment

Maintains accurate material positioning throughout production.

Reduce Material Waste

Minimizes edge wandering, wrinkles, and registration defects.

Increase Production Efficiency

Reduces downtime caused by manual adjustments.

Improve Product Quality

Ensures stable tracking for consistent converting and printing results.

Support High-Speed Production

Provides reliable correction performance at elevated line speeds.

Flexible System Integration

Compatible with most EPC guiding systems and industrial automation equipment.

How Does a Web Guide Frame Work?

The XWDGM Web Guide Frame functions as the mechanical correction platform within a closed-loop web guiding system.

Working Principle

1. The [Web Guide Sensor] continuously monitors material position.
2. Position information is transmitted to the [Web Guide Controller].
3. The controller calculates correction requirements.
4. The [Web Guide Actuator] receives adjustment commands.
5. The actuator moves the guide frame laterally.
6. The material path is corrected automatically.
7. Continuous feedback maintains precise web alignment.

This process occurs continuously during production, ensuring stable web tracking and improved product quality.

Typical Applications

Slitting Machines

Improve cutting accuracy and finished roll quality.

Rewinding Machines

Maintain stable winding alignment and roll hardness consistency.

Printing Presses

Enhance print registration accuracy and reduce waste.

Laminating Equipment

Ensure accurate layer alignment during lamination.

Coating Machines

Maintain substrate positioning for uniform coating thickness.

Flexible Packaging Machinery

Improve material tracking and reduce production defects.

Lithium Battery Production Lines

Suitable for electrode coating, separator processing, copper foil, and aluminum foil manufacturing.

Textile Processing Equipment

Maintain accurate fabric tracking during production.

Paper Converting Machinery

Improve alignment stability and production efficiency.

Available Guide Frame Configurations

Pivoting Guide Frame

Suitable for compact installations and medium-speed production lines.

Linear Guide Frame

Provides high guiding precision and smooth correction movement.

Heavy-Duty Guide Frame

Designed for wide-width materials and high-tension applications.

Compact Web Guide Frame

Ideal for limited installation space and narrow web processing equipment.

Custom Guide Frame Solutions

Available according to machine dimensions, web width, correction travel, and production requirements.

Suitable Materials

The XWDGM Web Guide Frame is suitable for:

• Plastic Film
• BOPP Film
• PET Film
• CPP Film
• PE Film
• Paper
• Aluminum Foil
• Copper Foil
• Nonwoven Fabric
• Textile Materials
• Flexible Packaging Materials
• Adhesive Labels
• Release Liners
• Battery Electrode Materials
• Specialty Web Materials

Compatible System Components

The XWDGM Web Guide Frame can be integrated with:

• [Web Guide Sensor]
• [Contrast Sensor]
• [CCD Sensor]
• [Ultrasonic Sensor]
• [Web Guide Controller]
• [Web Guide Actuator]
• [Web Guiding System]
• [Tension Control System]
• [Automatic Tension Controller]
• [Through-Shaft Tension Detector]
• [Magnetic Particle Brake]
• [Magnetic Particle Clutch]
• [Air Expanding Shaft]
• [Differential Shaft]
• [Slitting Machine Solutions]

Together, these components create a complete web handling, tension control, and automatic web alignment solution.

Industries Served

Printing & Packaging

Improve registration accuracy and product consistency.

Flexible Packaging

Maintain precise film tracking and reduce waste.

Lithium Battery Manufacturing

Support high-precision roll-to-roll processing.

Paper Converting

Improve alignment and production efficiency.

Textile & Nonwoven Production

Enhance material tracking stability.

Electronics Materials Processing

Suitable for copper foil, aluminum foil, and advanced industrial materials.

Industrial Automation

Integrates seamlessly into modern automated production systems.

Why Choose XWDGM?

ISO9001 Certified Manufacturing

Strict quality control ensures reliable long-term performance.

Complete EPC System Supplier

One-stop source for sensors, controllers, actuators, and guide frames.

OEM & ODM Support

Customized frame widths, correction travel, roller configurations, and mounting solutions available.

Professional Engineering Support

Technical assistance for system design, installation, and commissioning.

Global Export Experience

Trusted by manufacturers in printing, packaging, battery production, converting, and automation industries worldwide.

Fast Worldwide Delivery

Responsive service and reliable logistics support.

Whether you need a compact guide frame for a narrow-web slitting machine or a heavy-duty guiding platform for a lithium battery production line, the XWDGM Web Guide Frame delivers exceptional alignment accuracy, structural reliability, and industrial performance.
