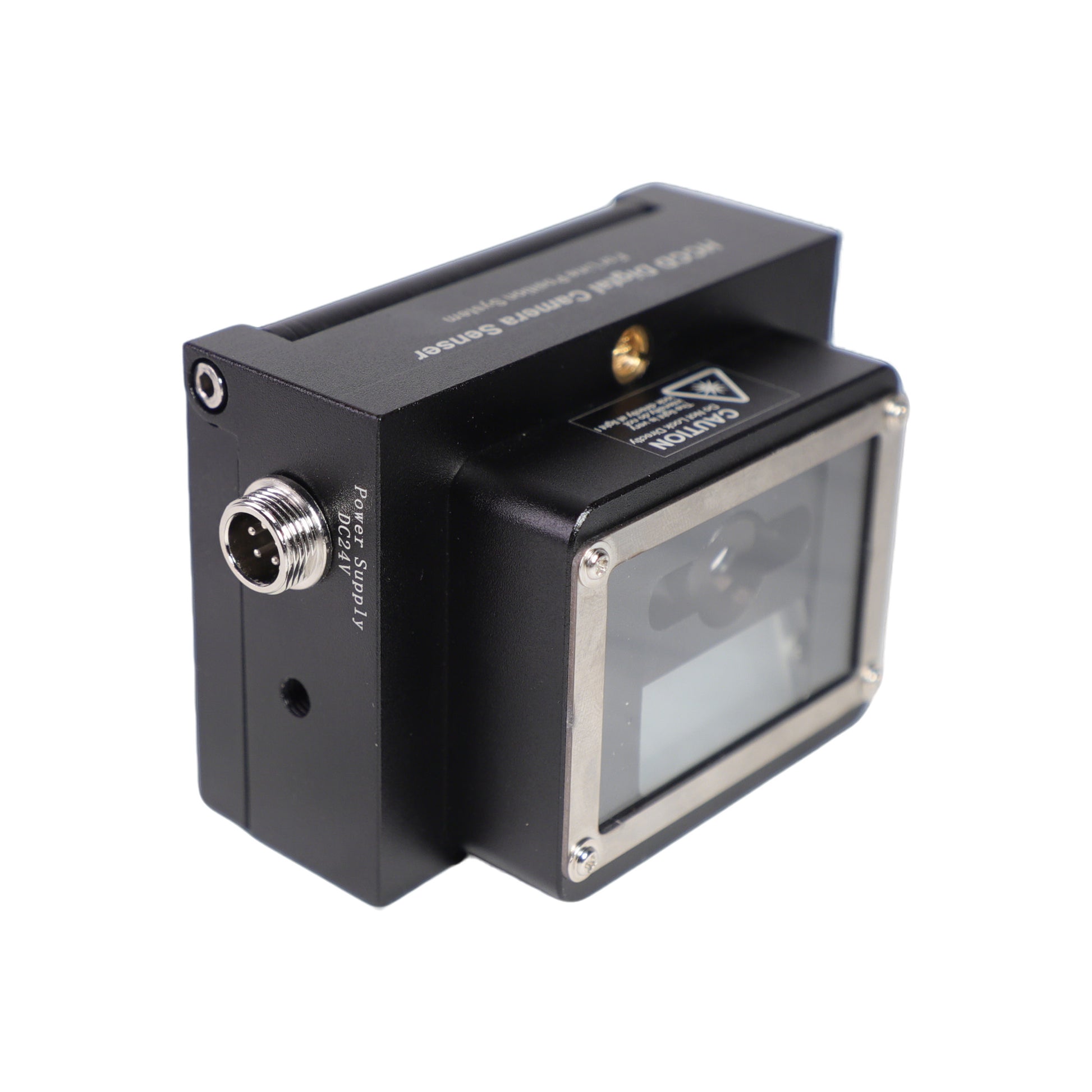

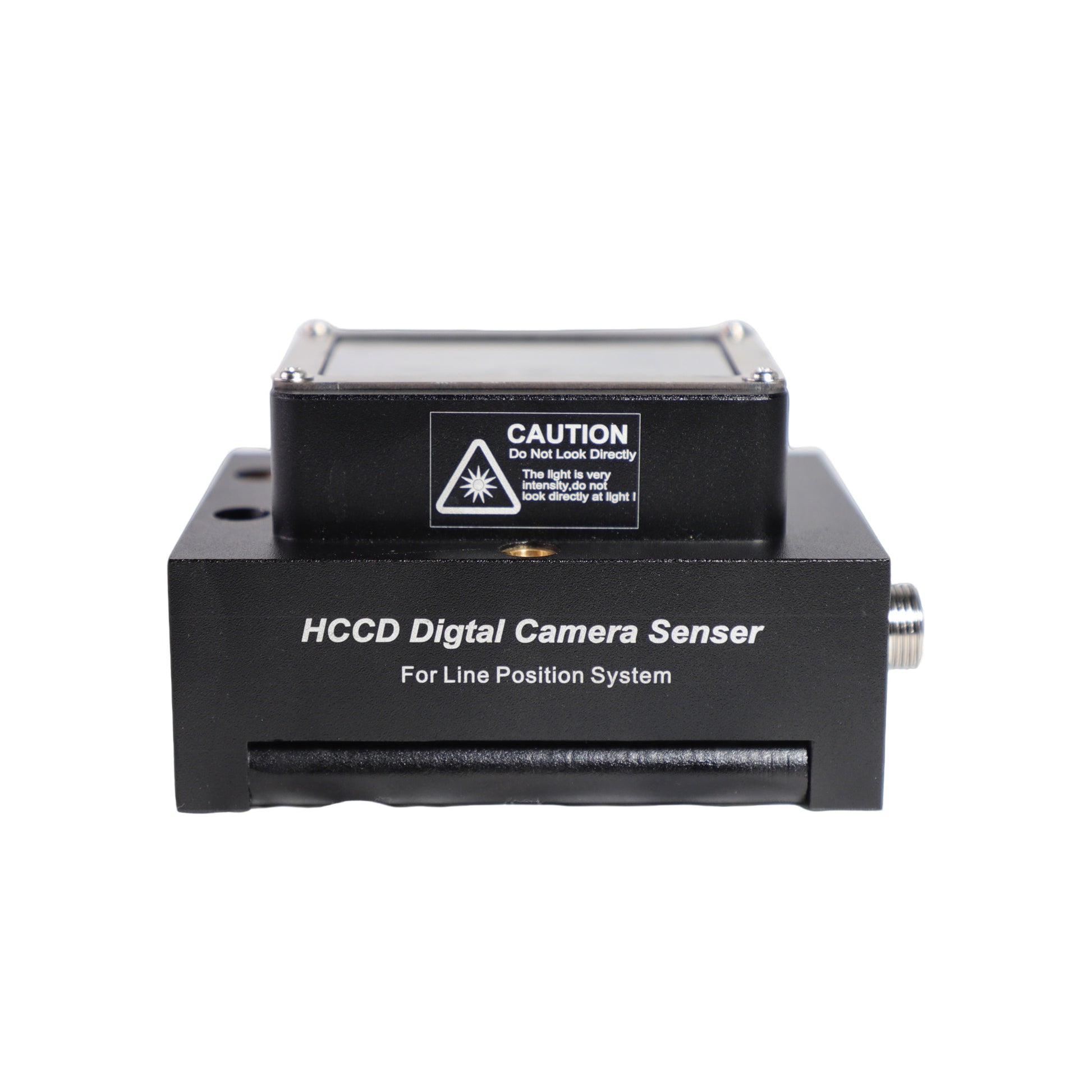

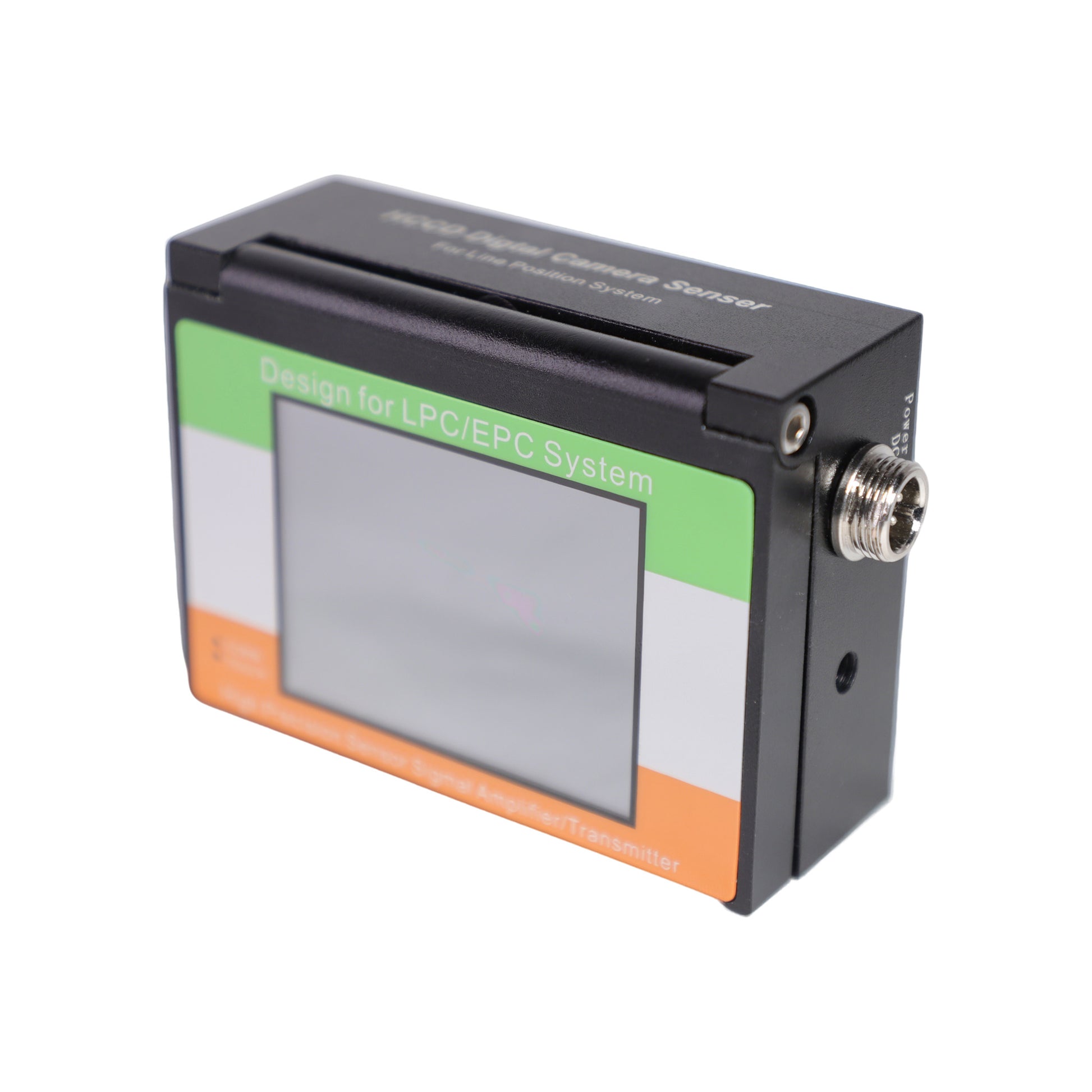

CCD Linear Sensor for Web Guiding and Precise Edge Position Control

The XWDGM CCD Linear Sensor for Web Guiding is a high-precision web position detection sensor designed for automatic web guiding systems, EPC systems, edge position control systems, and industrial web handling equipment. Utilizing advanced CCD imaging technology, the sensor accurately detects web edges, lines, and material positions, ensuring precise web alignment throughout the production process.

Designed for demanding applications in slitting, rewinding, printing, coating, laminating, flexible packaging, paper converting, nonwoven processing, and lithium battery manufacturing, the CCD Linear Sensor continuously monitors web position and provides real-time feedback to the web guide controller. This enables automatic correction of lateral web movement and ensures consistent product quality.

Compared with conventional photoelectric sensors, CCD linear sensors provide higher resolution, faster response speed, improved detection accuracy, and superior performance when processing transparent, reflective, printed, or high-speed materials.

Key Features

• High-precision CCD Linear Sensor
• Advanced edge position detection technology
• Fast response for high-speed production lines
• High-resolution web edge tracking
• Stable performance under varying material conditions
• Excellent anti-interference capability
• Supports edge guiding and line guiding applications
• Suitable for transparent and printed materials
• Compact industrial design
• Long service life and reliable operation

Benefits of CCD Web Guiding Technology

Accurate web positioning is critical for maintaining production efficiency and reducing material waste. The XWDGM CCD Linear Sensor helps manufacturers:

• Improve web alignment accuracy
• Reduce edge deviation
• Minimize material waste
• Prevent tracking errors
• Improve slitting precision
• Enhance printing registration accuracy
• Improve coating consistency
• Increase production efficiency
• Reduce operator intervention

By continuously monitoring web position, the sensor ensures stable web tracking and precise material handling throughout the entire production process.

Applications

The XWDGM CCD Linear Sensor for Web Guiding is widely used in:

• Slitting Machines
• Rewinding Machines
• Flexographic Printing Machines
• Rotogravure Printing Machines
• Coating Machines
• Laminating Machines
• Flexible Packaging Equipment
• Paper Converting Machinery
• Film Processing Lines
• Label Production Equipment
• Textile Machinery
• Nonwoven Production Lines
• Lithium Battery Electrode Production Equipment

High-Precision Edge Detection

The CCD Linear Sensor uses advanced optical scanning technology to accurately identify web edges and position references. The sensor continuously sends position signals to the web guide controller, enabling automatic correction through guide actuators and ensuring precise material alignment.

This technology is particularly effective for applications requiring high positioning accuracy and stable web tracking performance.

Compatible Web Guiding Applications

The XWDGM CCD Linear Sensor supports:

• Edge Guiding Systems
• Line Guiding Systems
• Center Guiding Systems
• Web Position Control Systems
• EPC Systems (Edge Position Control)
• Automatic Web Alignment Systems
• Roll-to-Roll Processing Equipment
• Continuous Web Handling Systems

System Integration

The CCD Linear Sensor can be integrated with:

[Web Guiding System]

Creates a complete automatic web guiding solution.

[Web Guide Controller]

Processes sensor signals and controls guide correction.

[Web Guide Actuator]

Provides precise lateral movement correction.

[Automatic Web Tension Controller]

Improves overall web handling stability.

[Through-Shaft Tension Sensor]

Provides accurate tension feedback for integrated web control systems.

[Tension Control System]

Combines tension regulation and web alignment management.

Why Choose XWDGM

XWDGM specializes in manufacturing web guiding systems, tension control systems, web guide sensors, tension sensors, magnetic powder brakes, magnetic powder clutches, air shafts, and web handling components for global converting industries.

Our advantages include:

• Professional engineering support
• OEM and ODM manufacturing capability
• Strict quality management
• Competitive factory pricing
• Fast worldwide shipping
• Comprehensive technical assistance
• Industrial automation integration support
• Long-term product reliability

Frequently Asked Questions

What is a CCD Linear Sensor for Web Guiding?

A CCD Linear Sensor is an optical web guide sensor used to detect web edges, lines, or position references and provide feedback for automatic web alignment systems.

How does a CCD Linear Sensor work?

The sensor scans the material surface using CCD technology, identifies the web edge or reference line, and sends position signals to the web guide controller for automatic correction.

What materials can be detected?

The sensor can detect paper, film, foil, nonwoven materials, flexible packaging materials, coated materials, and printed webs.

What is the advantage of CCD technology?

CCD technology provides higher accuracy, better resolution, faster response speed, and more stable performance compared with conventional photoelectric sensors.

Can the sensor work with web guide controllers?

Yes. The XWDGM CCD Linear Sensor is specifically designed to work with web guide controllers, actuators, and complete web guiding systems.

Is it suitable for high-speed production lines?

Yes. The sensor offers high-speed signal processing and excellent tracking accuracy, making it ideal for high-speed converting and printing equipment.
