XWDGM Through-Shaft Tension Detector for Precision Web Tension Measurement

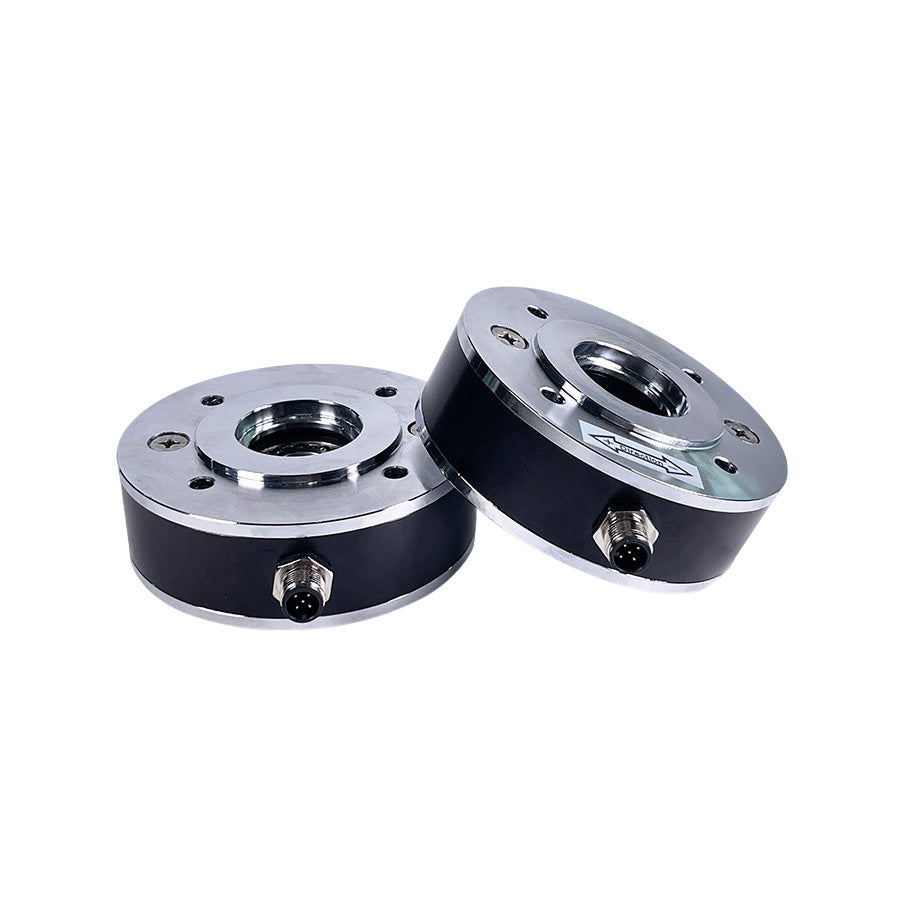

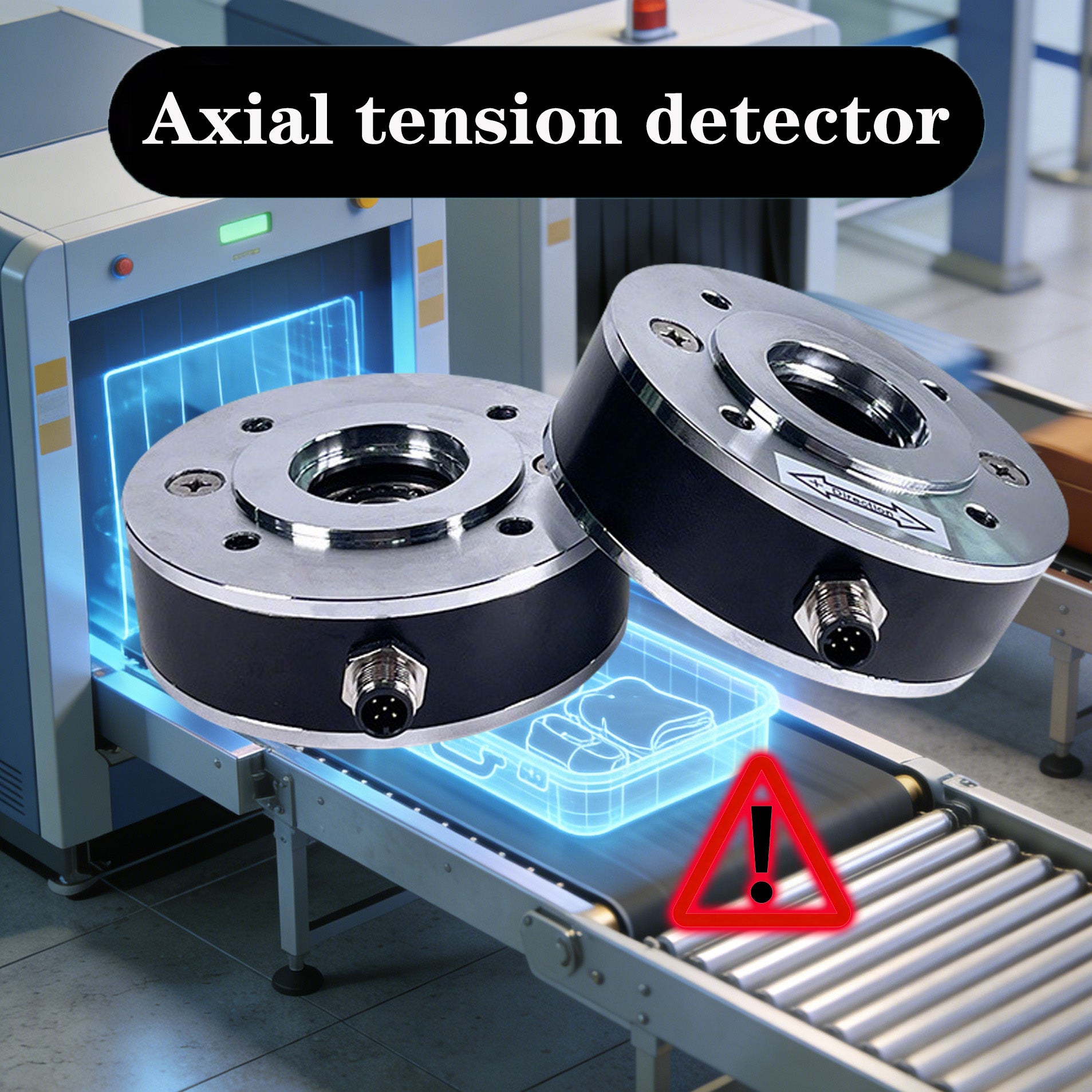

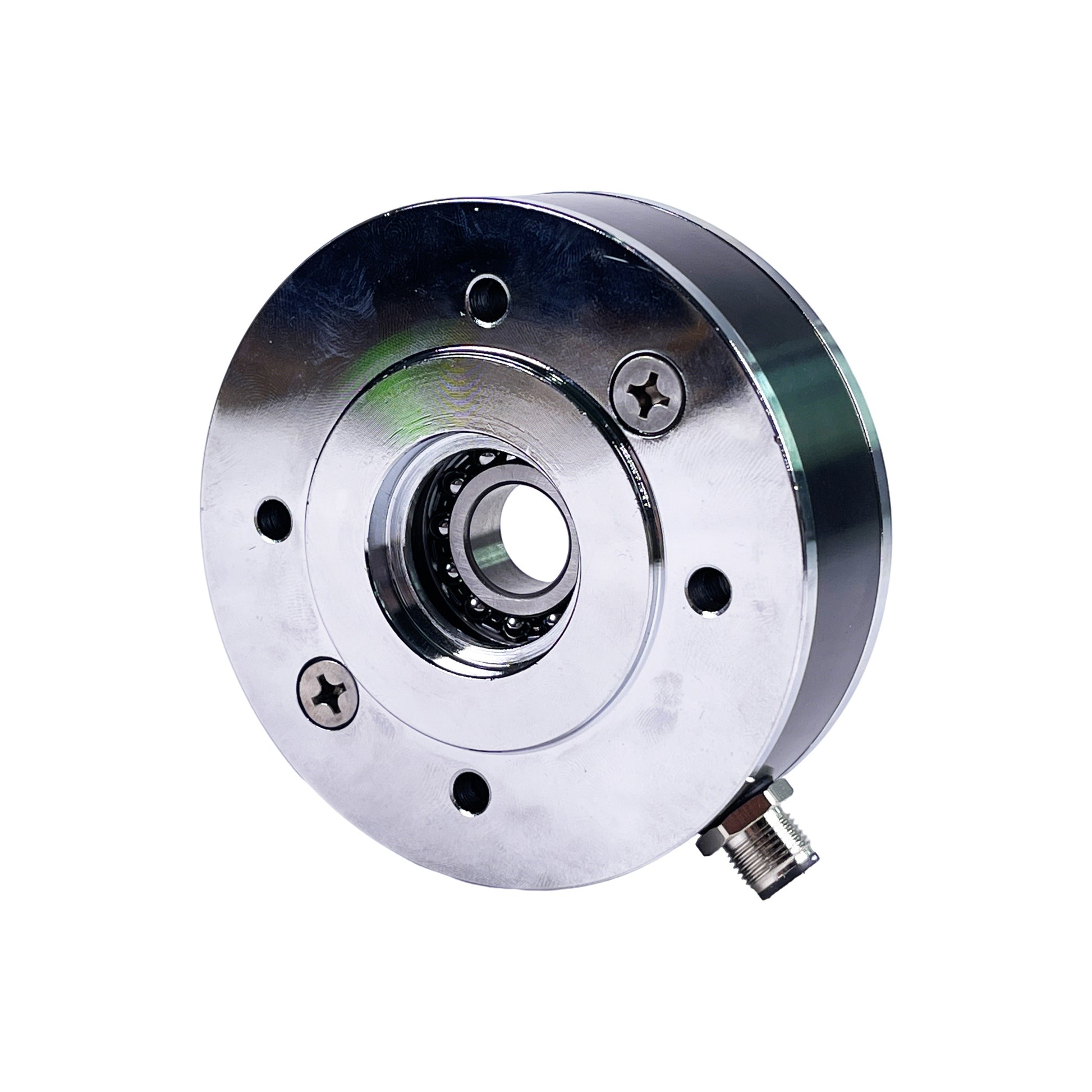

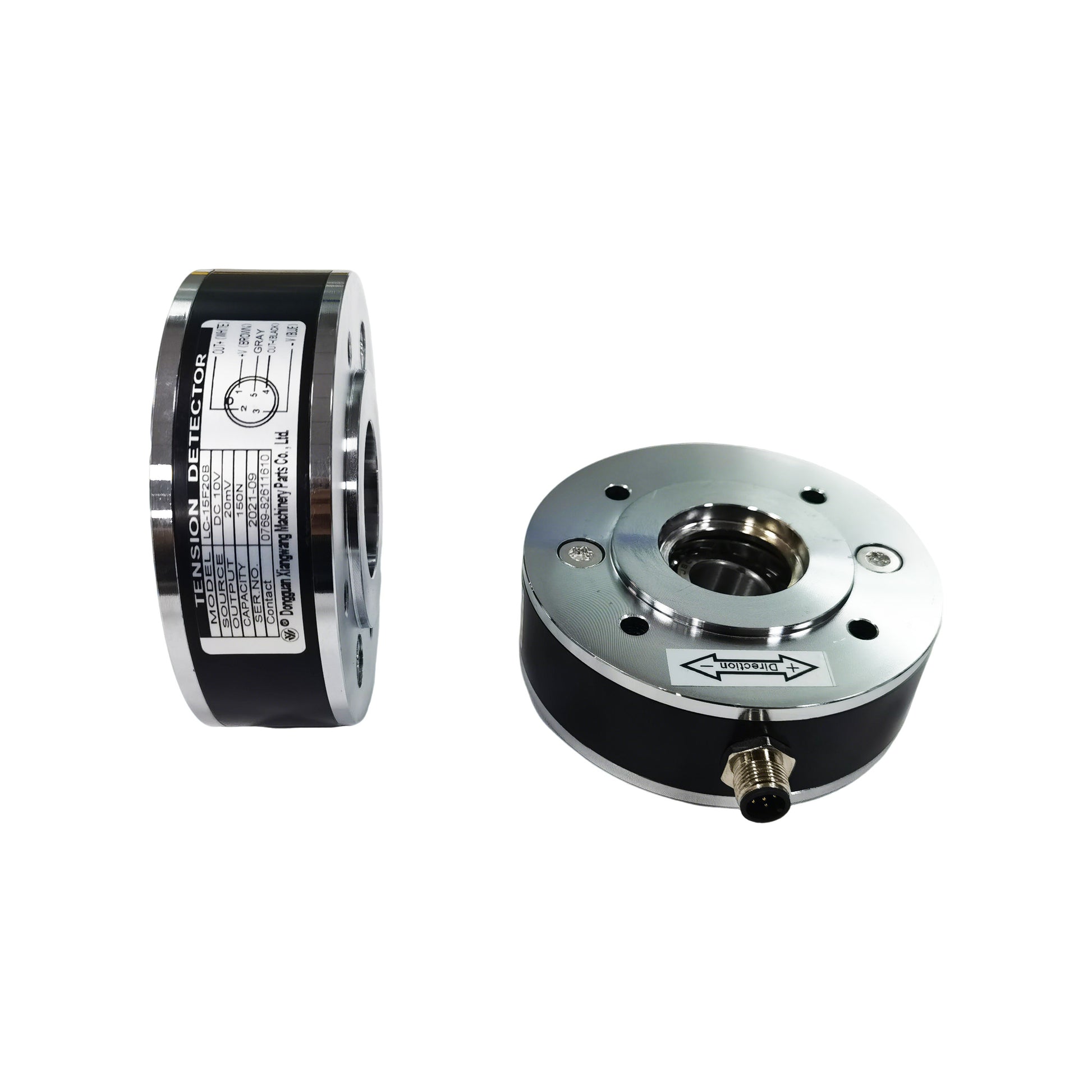

XWDGM Through-Shaft Tension Detector

The XWDGM Through-Shaft Tension Detector is a high-precision web tension measurement device designed for modern roll-to-roll processing systems. Utilizing advanced strain gauge sensing technology, this industrial tension detector continuously measures web tension through the guide roller shaft and converts mechanical force into stable electrical signals for automatic tension control systems.

Engineered for high-speed and high-accuracy production environments, the XWDGM Through-Shaft Tension Detector delivers exceptional measurement precision, excellent linearity, fast response speed, and long-term operational stability.

Widely used in slitting machines, rewinding machines, printing presses, coating lines, laminating equipment, flexible packaging systems, textile processing machinery, paper converting equipment, and lithium battery manufacturing lines, the detector plays a critical role in maintaining consistent web tension and improving overall production quality.

For complete web handling solutions, the detector can be integrated with a Tension Control System, Web Guiding System, Automatic Tension Controller, Magnetic Particle Brake, Magnetic Particle Clutch, Air Expanding Shaft, and Differential Shaft.

High-Precision Web Tension Measurement for Industrial Automation

Accurate web tension measurement is essential for maintaining product quality during roll-to-roll processing.

The XWDGM Through-Shaft Tension Detector provides real-time feedback to automatic tension control systems, helping manufacturers:

• Eliminate wrinkles
• Prevent telescoping rolls
• Reduce material stretching
• Minimize web wandering
• Improve winding consistency
• Reduce production waste
• Increase line efficiency
• Improve finished product quality

By continuously monitoring web force, the detector enables precise closed-loop tension regulation throughout the production process.

Key Features

High-Precision Tension Measurement

Advanced strain gauge technology provides highly accurate and repeatable tension measurement.

Stable Signal Output

Generates reliable electrical signals for automatic tension control systems.

Fast Response Performance

Instantly detects tension fluctuations during high-speed operation.

Excellent Linearity

Provides consistent measurement accuracy across the full operating range.

Low Temperature Drift

Maintains stable performance under varying production conditions.

Strong Anti-Interference Capability

Industrial-grade design minimizes signal noise and improves measurement reliability.

Compact Industrial Structure

Space-saving design simplifies machine integration and installation.

Continuous Duty Operation

Designed for long-term industrial production environments.

Automatic Controller Compatibility

Works seamlessly with modern automatic tension controllers and PLC-based systems.

Advantages of Through-Shaft Tension Detector Design

Compared with conventional tension sensing solutions, the through-shaft structure provides several advantages:

Higher Measurement Accuracy

Direct force transmission through the shaft improves sensing precision.

Improved Linearity

Provides more consistent signal output throughout the measuring range.

Better Overload Protection

Robust mechanical design protects sensitive sensing components.

Easier Installation

Simplifies integration into new and existing production lines.

Lower Maintenance Requirements

Durable construction ensures long-term operational reliability.

Long-Term Stability

Maintains measurement consistency even under continuous industrial operation.

How Does a Through-Shaft Tension Detector Work?

The detector measures the force applied to an idler roller or guide roller by the moving web material.

Working Principle

1. The moving web applies force to the guide roller.
2. The roller transmits the force through the shaft.
3. High-sensitivity strain gauges detect shaft deformation.
4. Mechanical force is converted into electrical signals.
5. The signal is transmitted to the tension controller.
6. The control system automatically adjusts brake or clutch torque.
7. Stable web tension is maintained throughout production.

This closed-loop control process is essential for modern high-speed web handling systems.

Typical Applications

Slitting Machines

Provides accurate tension feedback to ensure stable cutting quality and roll formation.

Rewinding Machines

Maintains consistent roll hardness and winding tension.

Printing Presses

Improves print registration and material tracking accuracy.

Coating Lines

Ensures stable substrate tension for uniform coating quality.

Laminating Equipment

Provides precise tension measurement during multilayer material processing.

Flexible Packaging Production

Reduces material waste and improves production efficiency.

Lithium Battery Manufacturing

Suitable for electrode coating, separator winding, copper foil processing, and aluminum foil production.

Textile Processing Machinery

Maintains stable fabric tension throughout production processes.

Paper & Film Converting

Supports high-speed converting operations requiring precise tension control.

Suitable Materials

The XWDGM Through-Shaft Tension Detector is suitable for measuring tension in:

• Plastic Film
• PET Film
• BOPP Film
• CPP Film
• Paper
• Aluminum Foil
• Copper Foil
• Nonwoven Fabric
• Textile Materials
• Adhesive Labels
• Pressure-Sensitive Tapes
• Flexible Packaging Materials
• Battery Electrode Materials
• Wire and Cable Products

Technical Advantages

High Sensitivity Measurement

Accurately detects even minor tension variations.

Stable Closed-Loop Control Support

Provides reliable feedback for automatic tension regulation systems.

Excellent Dynamic Performance

Maintains measurement accuracy during acceleration and deceleration.

Industrial Reliability

Built for continuous operation in demanding manufacturing environments.

Superior Signal Stability

Ensures accurate control of magnetic particle brakes and clutches.

Easy System Integration

Compatible with most industrial web handling and automation systems.

Compatible System Components

This detector works seamlessly with:

• Tension Control System
• Web Guiding System
• Automatic Tension Controller
• Magnetic Particle Brake
• Magnetic Particle Clutch
• Air Expanding Shaft
• Differential Shaft
• Slitting Machine Tension Control System
• Roll-to-Roll Processing Equipment

Together, these components form a complete web tension and web guiding solution for industrial automation applications.

Why Choose XWDGM?

ISO9001 Certified Manufacturing

Strict quality control ensures stable product performance and reliability.

Advanced Sensor Technology

High-precision strain gauge sensing for accurate tension measurement.

OEM & Custom Solutions

Customized shaft dimensions, load capacities, mounting configurations, and signal outputs available.

Professional Technical Support

Experienced engineering team provides product selection and system integration assistance.

Global Export Experience

Trusted by manufacturers in printing, packaging, battery production, textile processing, and converting industries worldwide.

Worldwide Delivery

Reliable logistics and responsive customer service.

Whether you require accurate tension measurement for a high-speed slitting machine, a lithium battery production line, or a precision roll-to-roll converting system, the XWDGM Through-Shaft Tension Detector delivers exceptional accuracy, reliability, and long-term performance.
