XWDGM Web Guiding System for Precision Web Alignment & Roll-to-Roll Processing

XWDGM Web Guiding System

The XWDGM Web Guiding System is a high-precision automatic web alignment solution designed to continuously monitor and correct web deviation during roll-to-roll processing. By combining advanced sensing technology, intelligent control algorithms, and high-response actuators, the system ensures accurate material tracking throughout production.

Widely used in slitting machines, rewinding machines, printing presses, laminating equipment, coating lines, flexible packaging machinery, textile processing systems, paper converting machines, nonwoven production lines, and lithium battery manufacturing equipment, the XWDGM Web Guiding System significantly improves production efficiency, product quality, and material utilization.

The system automatically detects web edge position and continuously adjusts the guide frame, ensuring stable alignment even at high production speeds. This helps eliminate web wandering, edge deviation, registration errors, wrinkles, and material waste.

Complete EPC Web Guiding Solution

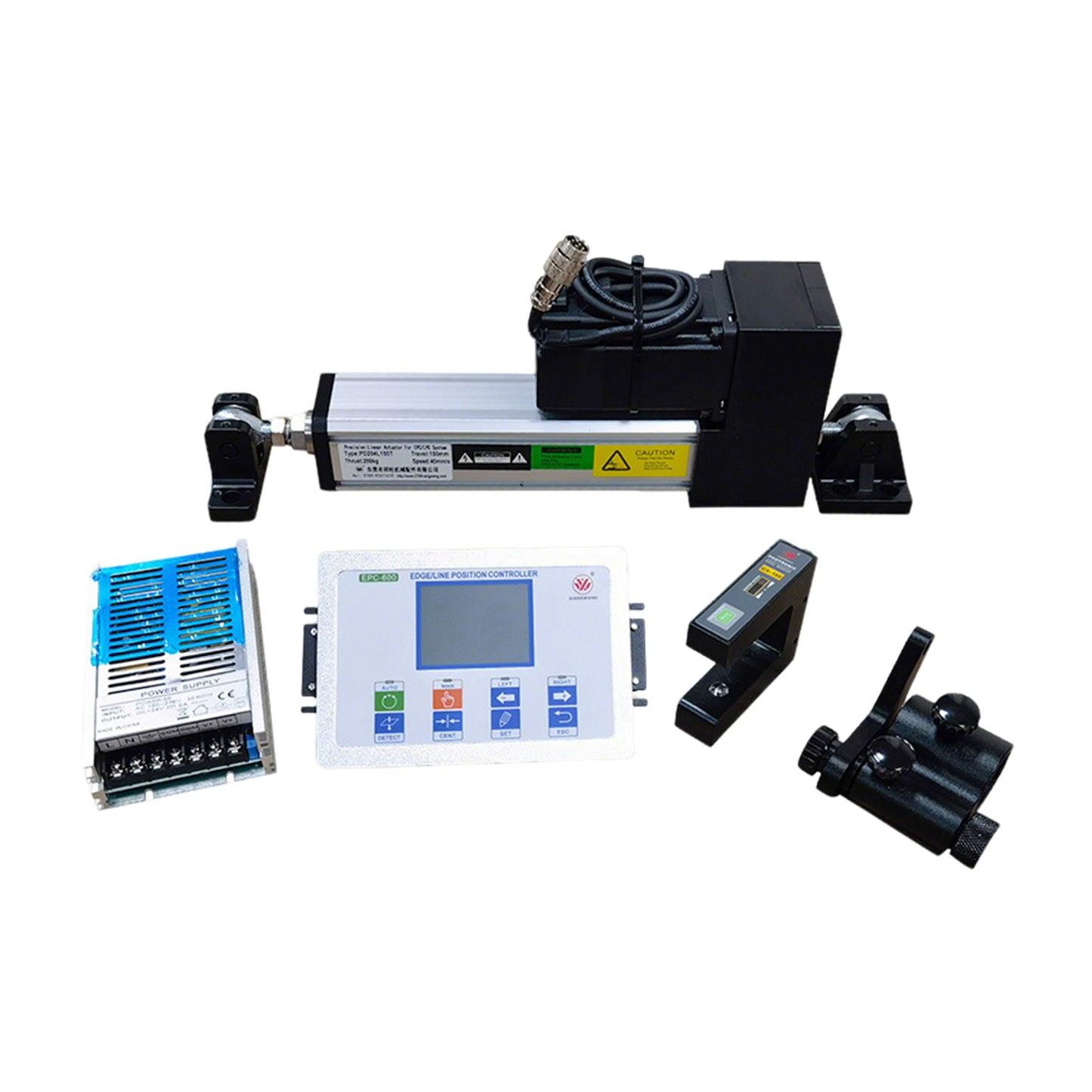

A complete XWDGM Web Guiding System typically includes:

• Web Guide Sensor
• Web Guide Controller
• Web Guide Actuator
• Guide Frame Assembly
• Position Feedback System
• Industrial Power Supply

Working together, these components create a closed-loop automatic web alignment system that continuously corrects web position during operation.

Why Accurate Web Guiding Matters

In modern roll-to-roll production, even minor web deviation can cause:

• Material waste
• Edge trimming losses
• Registration defects
• Uneven winding
• Wrinkles and folds
• Reduced production speed
• Product quality issues

The XWDGM Web Guiding System eliminates these problems through continuous automatic correction and precise web positioning.

Key Features

High-Precision Web Alignment

Continuously maintains accurate material position throughout production.

Automatic Edge Position Control

Detects and corrects web deviation in real time.

Fast Response Speed

Provides rapid correction for high-speed production lines.

Closed-Loop Control Technology

Ensures stable web tracking and long-term accuracy.

Intelligent Control Algorithms

Optimize correction performance and minimize oscillation.

Strong Anti-Interference Capability

Reliable operation in demanding industrial environments.

User-Friendly Operation

Simple setup, parameter adjustment, and maintenance.

Industrial-Grade Reliability

Designed for continuous 24/7 production environments.

Advantages of XWDGM Web Guiding Systems

Improve Product Quality

Accurate web alignment reduces defects and improves finished product consistency.

Reduce Material Waste

Minimizes scrap caused by web wandering and edge misalignment.

Increase Production Efficiency

Reduces downtime and manual adjustment requirements.

Support High-Speed Manufacturing

Maintains stable tracking at elevated production speeds.

Improve Registration Accuracy

Critical for printing, coating, laminating, and battery manufacturing processes.

Lower Operating Costs

Reduces waste, maintenance, and production interruptions.

How Does a Web Guiding System Work?

The XWDGM Web Guiding System operates through a fully automatic closed-loop process.

Working Principle

1. The Web Guide Sensor continuously detects web edge position.
2. Position data is transmitted to the Web Guide Controller.
3. The controller calculates deviation from the target position.
4. Correction commands are sent to the Web Guide Actuator.
5. The actuator moves the guide frame laterally.
6. Material alignment is automatically corrected.
7. Continuous feedback ensures stable web tracking.

This process occurs in real time, maintaining precise web alignment throughout production.

Available Guiding Modes

Edge Position Control (EPC)

Tracks a single web edge and maintains a constant edge position.

Center Position Control (CPC)

Maintains the centerline of the web regardless of width variation.

Line Guiding Control

Tracks printed lines, registration marks, or reference patterns.

Contrast Guiding

Detects color differences for accurate web positioning.

Typical Applications

Slitting Machines

Ensure accurate web tracking and improved roll quality.

Rewinding Machines

Maintain consistent winding alignment and roll hardness.

Printing Machines

Improve print registration accuracy and color consistency.

Coating Lines

Maintain substrate positioning for uniform coating thickness.

Laminating Equipment

Provide precise alignment during multilayer lamination.

Flexible Packaging Machinery

Reduce material waste and improve production quality.

Lithium Battery Manufacturing

Suitable for electrode coating, separator processing, copper foil, and aluminum foil production lines.

Textile Processing Equipment

Maintain stable fabric tracking during winding and processing.

Paper Converting Machinery

Improve alignment and reduce waste during paper processing.

Suitable Materials

The XWDGM Web Guiding System is suitable for:

• BOPP Film
• PET Film
• CPP Film
• PE Film
• Paper
• Aluminum Foil
• Copper Foil
• Nonwoven Fabric
• Textile Materials
• Flexible Packaging Materials
• Battery Electrode Materials
• Adhesive Labels
• Release Liners
• Tapes and Specialty Materials

Compatible System Components

The system integrates seamlessly with:

• Web Guide Sensor
• Web Guide Controller
• Web Guide Actuator
• Tension Control System
• Automatic Tension Controller
• Through-Shaft Tension Detector
• Magnetic Particle Brake
• Magnetic Particle Clutch
• Air Expanding Shaft
• Differential Shaft
• Slitting Machine Solutions

Together, these components create a complete web handling and tension control solution for advanced manufacturing environments.

Suitable Industries

Flexible Packaging

Improve film alignment and reduce production waste.

Printing & Packaging

Enhance print registration and product consistency.

Lithium Battery Manufacturing

Support high-precision electrode and separator processing.

Textile & Nonwoven Production

Maintain stable fabric tracking and winding quality.

Paper Converting

Improve web alignment and production efficiency.

Electronics Materials Processing

Suitable for copper foil, aluminum foil, and advanced material manufacturing.

Industrial Automation

Integrates into modern Industry 4.0 production systems.

Why Choose XWDGM?

ISO9001 Certified Manufacturing

Strict quality control ensures stable performance and reliability.

Complete EPC System Supplier

One-stop solution including sensors, controllers, actuators, and guide frames.

Advanced Web Guiding Technology

Provides exceptional tracking accuracy and response speed.

OEM & ODM Support

Customized dimensions, sensors, communication protocols, and machine integration solutions available.

Professional Engineering Support

Technical assistance for system design, installation, and commissioning.

Global Export Experience

Trusted by manufacturers worldwide in packaging, printing, battery production, converting, and automation industries.

Fast Worldwide Delivery

Reliable logistics and responsive after-sales service.

Whether you need precise web alignment for a slitting machine, a high-speed printing press, or a lithium battery production line, the XWDGM Web Guiding System delivers exceptional tracking accuracy, intelligent automation, and long-term industrial reliability.
