XWDGM Contrast Sensor for Precise Mark Detection and Web Guiding Systems

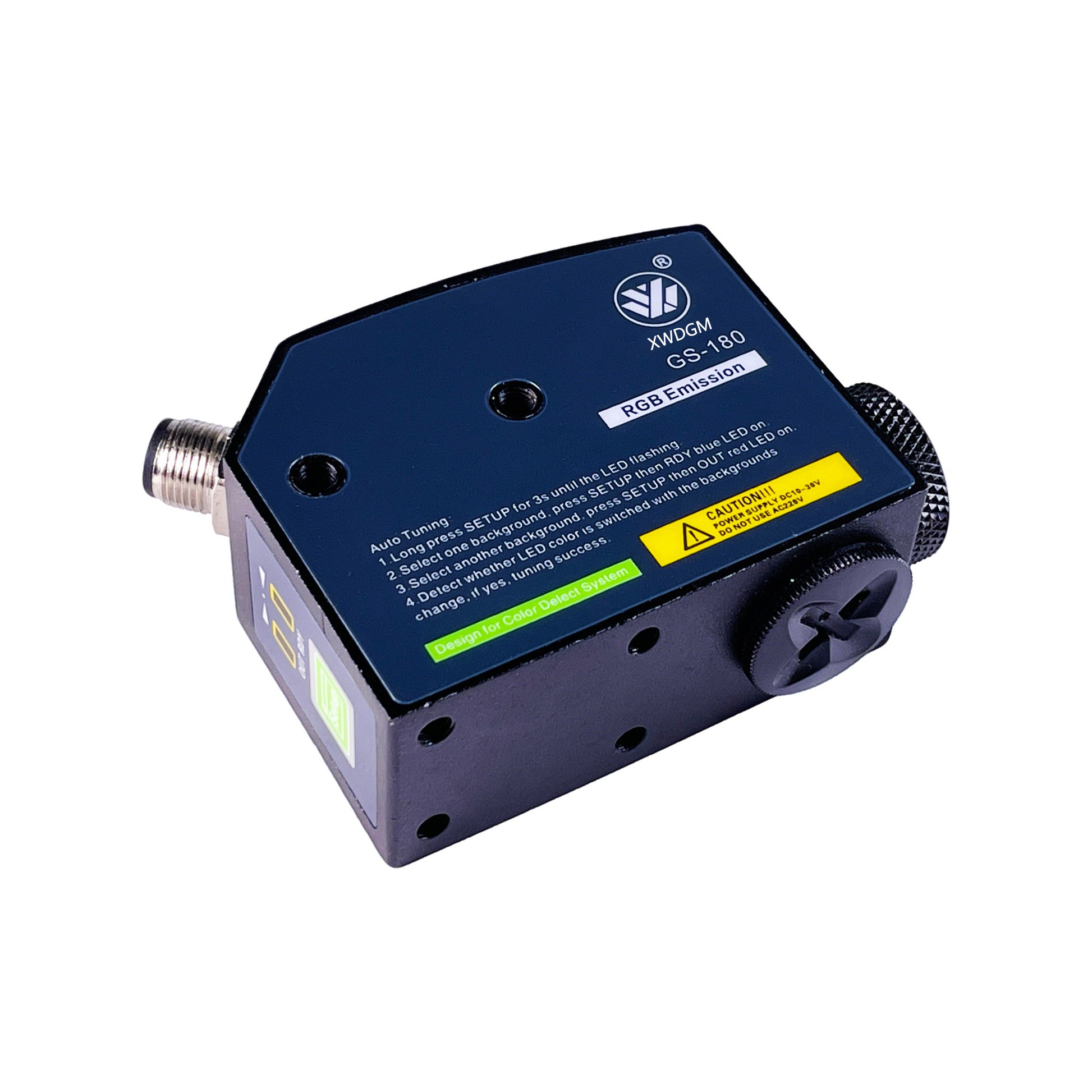

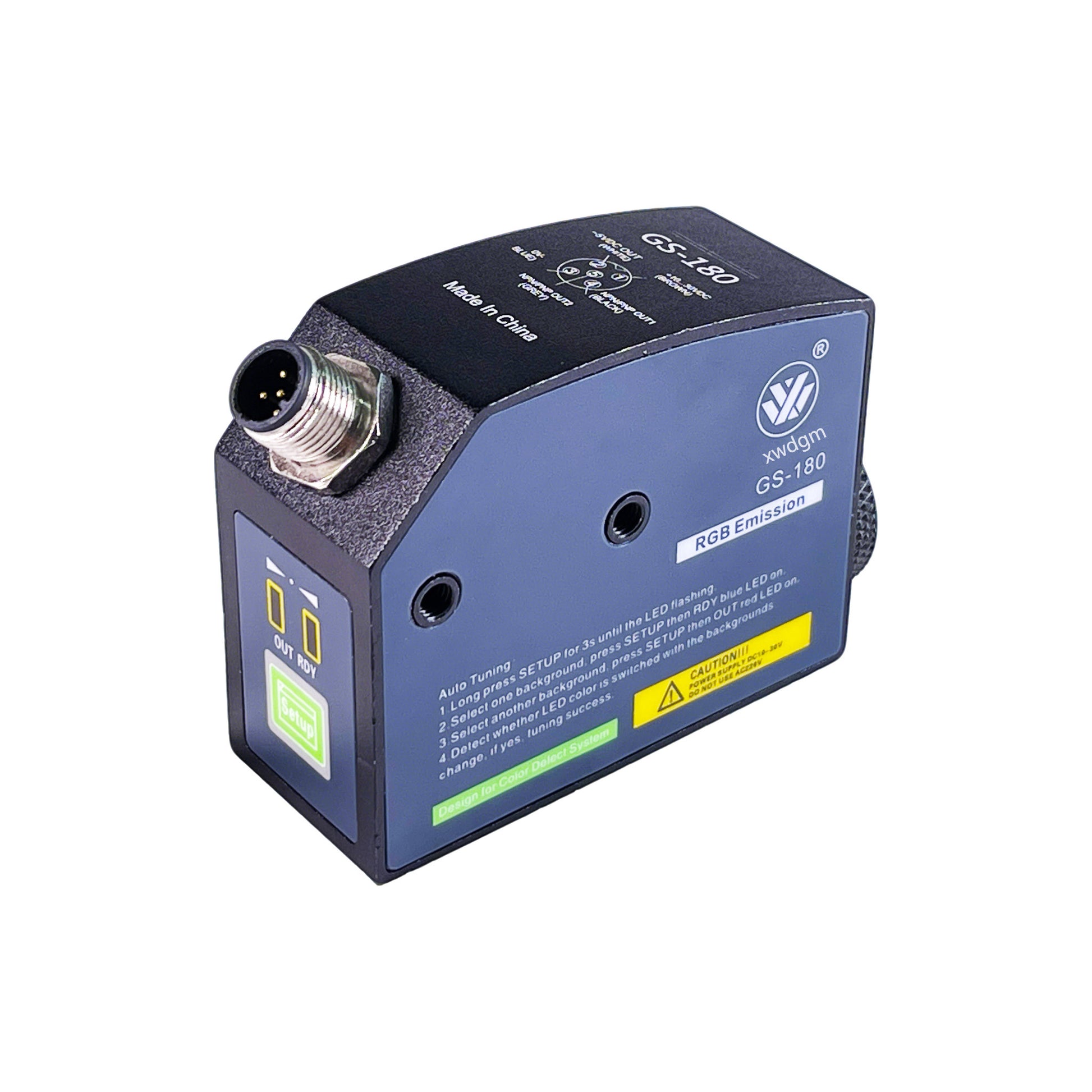

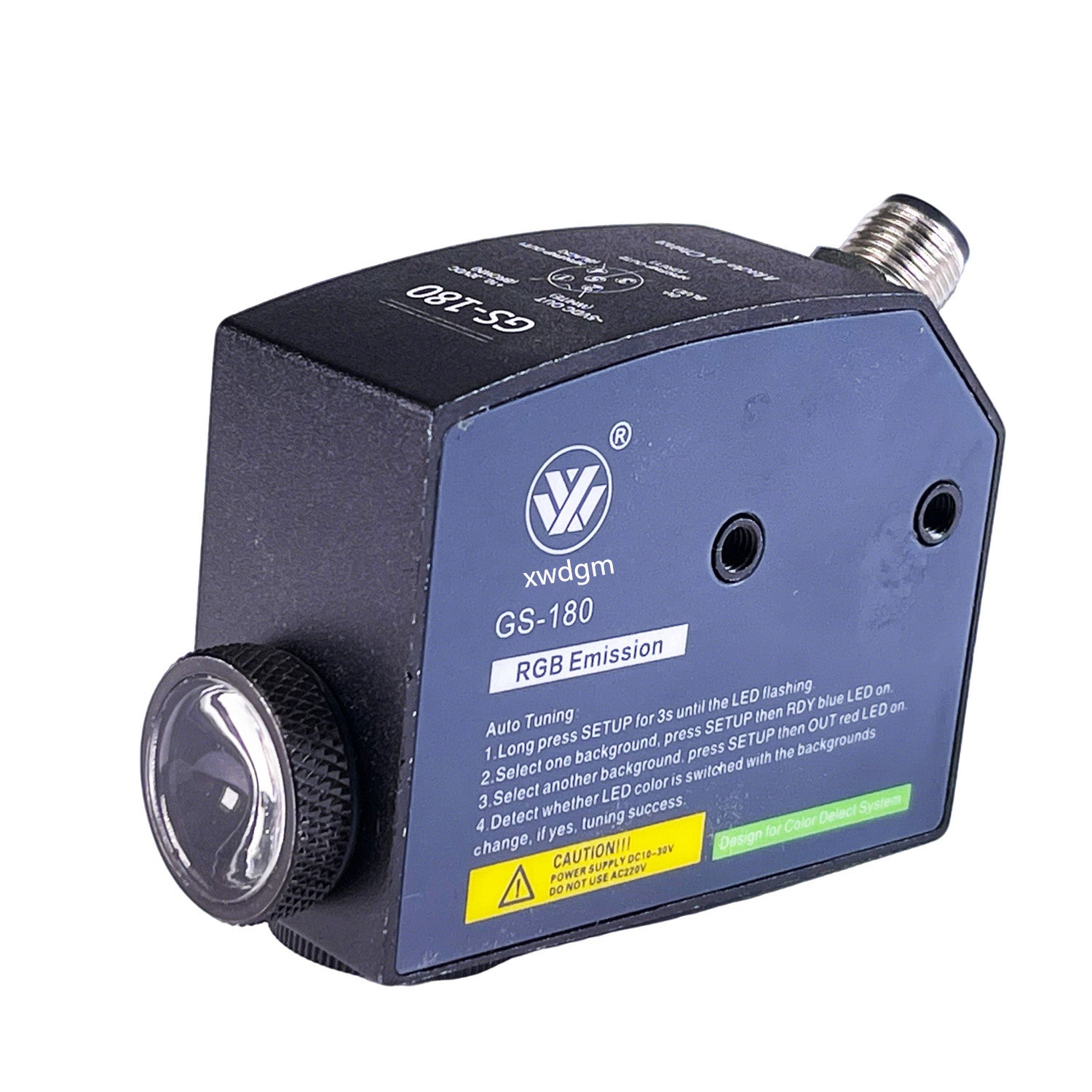

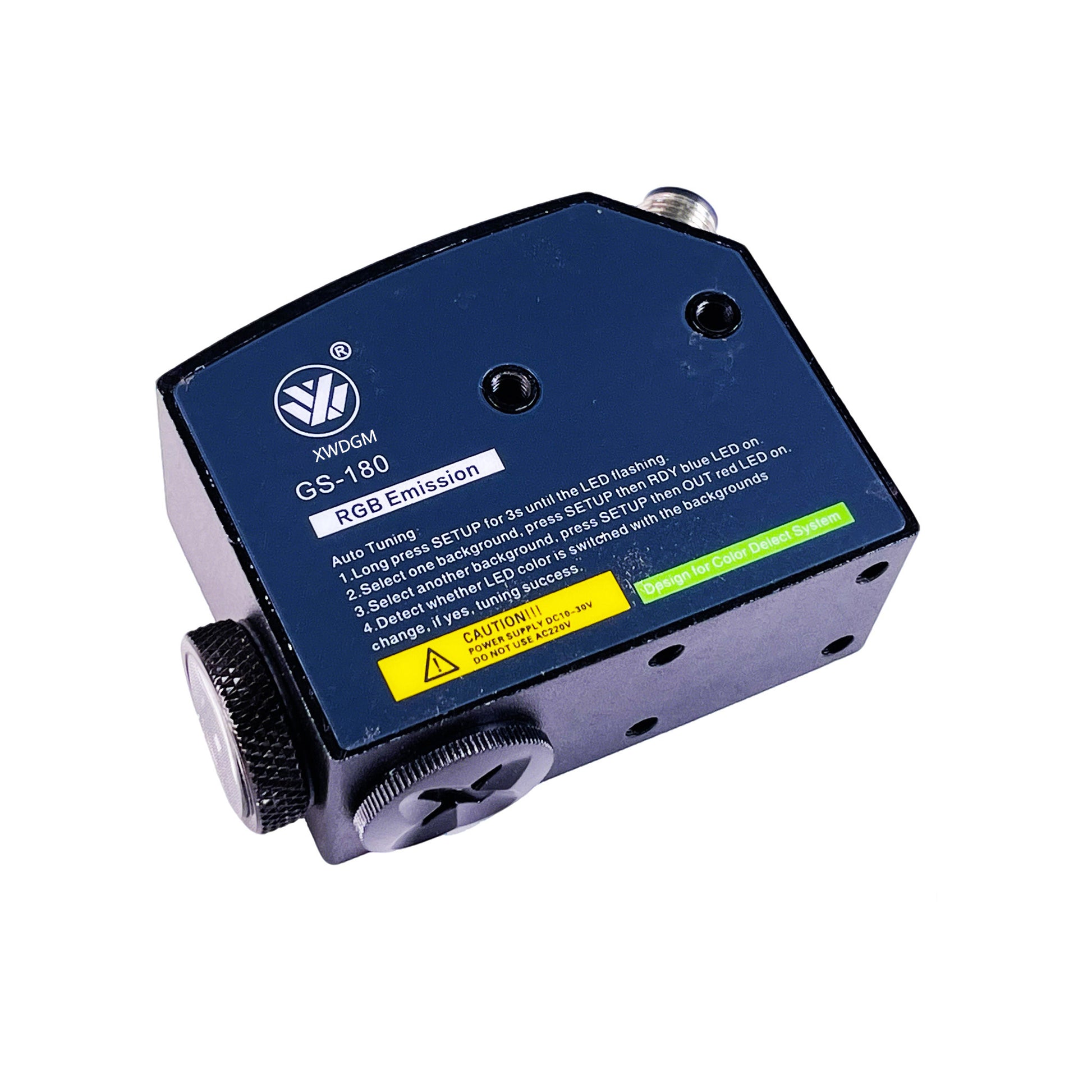

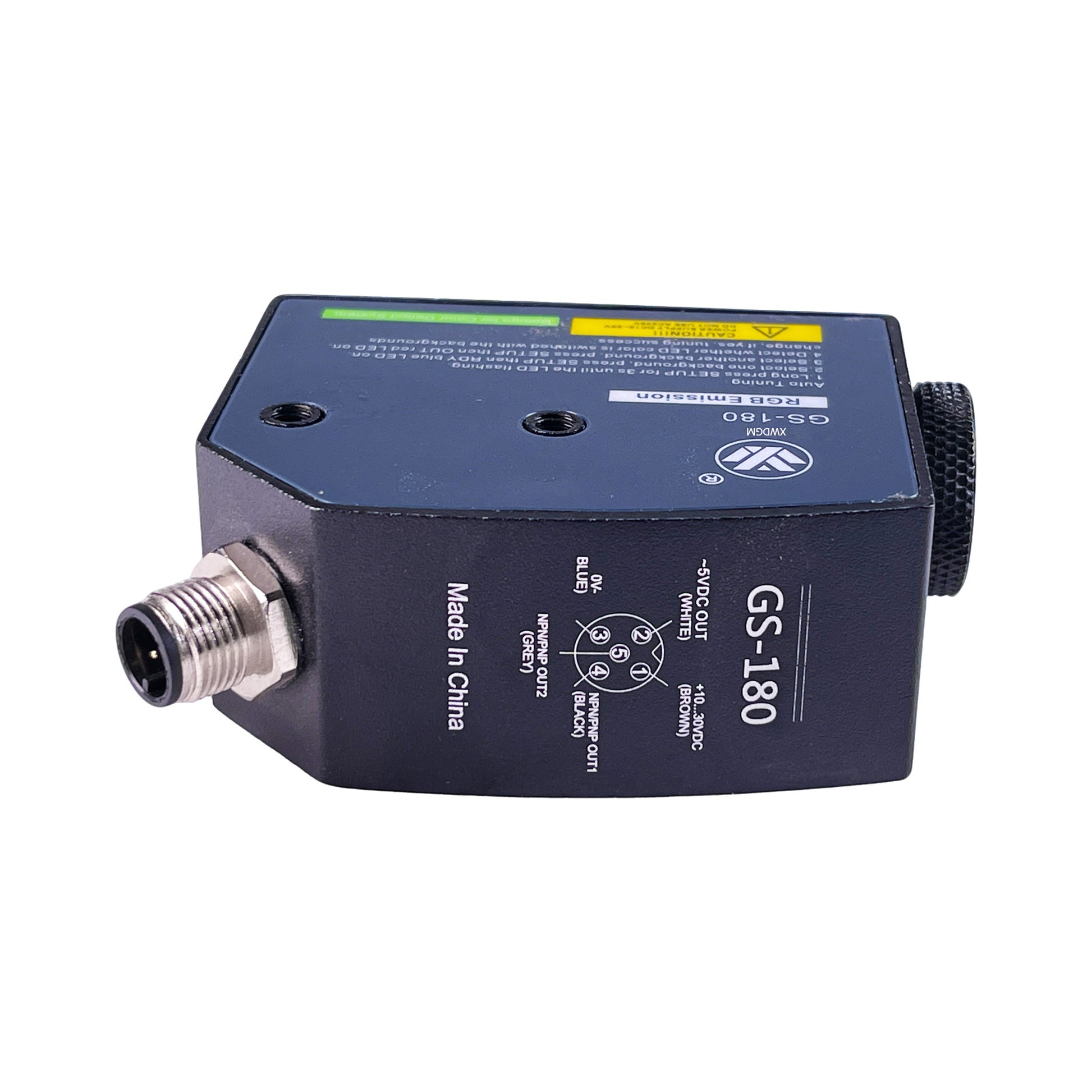

XWDGM Contrast Sensor

The XWDGM Contrast Sensor is a high-precision photoelectric mark detection sensor designed for automatic web guiding, registration control, label positioning, printing alignment, and packaging automation applications. Utilizing advanced optical sensing technology, the sensor accurately detects color marks, registration marks, printed patterns, labels, and contrast differences on moving materials, ensuring precise positioning and reliable machine control.

Widely used in printing machines, slitting machines, rewinding machines, label converting equipment, packaging machinery, laminating systems, coating lines, flexible packaging production, and lithium battery manufacturing, the XWDGM Contrast Sensor delivers fast response speed, high detection accuracy, and stable operation even in high-speed production environments.

As a key component of modern web handling systems, the sensor helps improve registration accuracy, reduce material waste, enhance production efficiency, and support fully automated manufacturing processes.

For complete automation solutions, the sensor can be integrated with our Web Guide Controller, Web Guide Actuator, Web Guiding System, Tension Control System, Through-Shaft Tension Detector, Magnetic Particle Brake, and Magnetic Particle Clutch.

What Is a Contrast Sensor?

A contrast sensor is an optical sensor that detects differences in color, brightness, grayscale, or printed marks on a moving web material.

Unlike standard photoelectric sensors, contrast sensors can accurately identify registration marks, color blocks, labels, eye marks, and printed reference points regardless of machine speed.

The XWDGM Contrast Sensor is ideal for applications requiring precise mark tracking, print registration, cutting position control, and automatic web alignment.

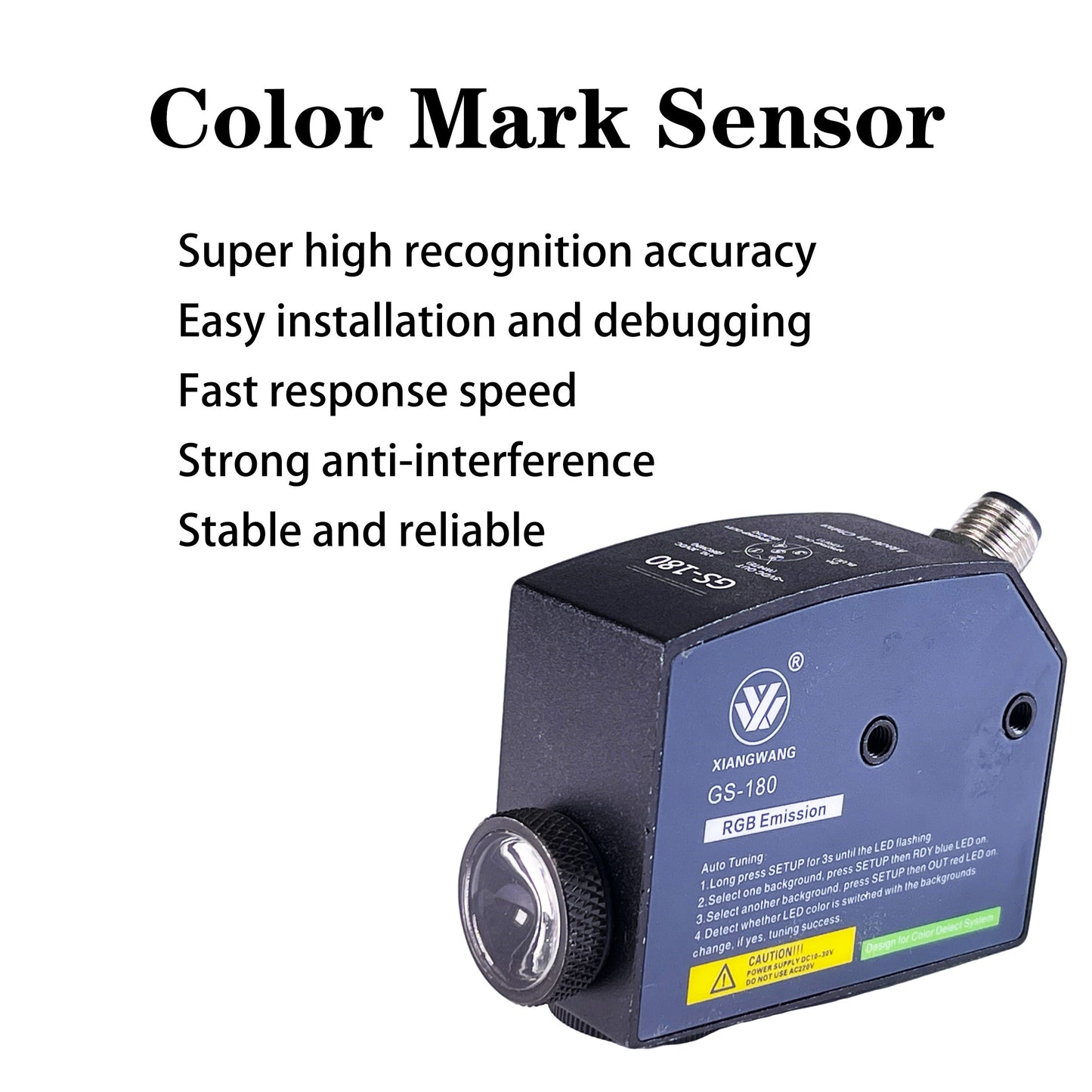

Key Features

High-Speed Mark Detection

Accurately detects registration marks during high-speed production.

High Contrast Recognition

Detects subtle differences between printed marks and background materials.

Fast Response Time

Suitable for high-speed printing, packaging, and converting lines.

Multi-Color Detection Capability

Supports black, white, red, blue, yellow, and other color mark recognition.

Stable Signal Output

Provides reliable feedback signals for industrial automation systems.

Compact Industrial Design

Easy installation in limited machine spaces.

Strong Anti-Interference Performance

Stable operation under varying ambient lighting conditions.

Long Service Life

Designed for continuous industrial production environments.

Advantages of XWDGM Contrast Sensors

Improve Registration Accuracy

Ensures precise print-to-cut and print-to-lamination alignment.

Reduce Material Waste

Minimizes positioning errors and registration defects.

Increase Production Efficiency

Supports high-speed automatic production lines.

Improve Product Quality

Maintains consistent positioning and cutting accuracy.

Easy System Integration

Compatible with PLCs, motion controllers, and web guiding systems.

Reliable Industrial Performance

Stable operation in demanding manufacturing environments.

How Does a Contrast Sensor Work?

The XWDGM Contrast Sensor emits a focused light beam onto the moving material surface.

Working Principle

1. The sensor projects light onto the web material.
2. Printed marks reflect light differently from the background.
3. The sensor detects contrast changes.
4. Signals are converted into electrical outputs.
5. The controller processes the detection signal.
6. Registration correction or positioning actions are triggered.
7. Precise web positioning is maintained.

This enables accurate mark tracking during high-speed production processes.

Typical Applications

Printing Machines

Detect registration marks for precise print alignment.

Label Converting Machines

Ensure accurate label cutting and positioning.

Packaging Machinery

Track eye marks and registration marks for packaging production.

Slitting Machines

Improve cut positioning and material alignment.

Rewinding Machines

Maintain accurate roll positioning and tracking.

Laminating Equipment

Synchronize multilayer material positioning.

Coating Machines

Control substrate position during coating processes.

Lithium Battery Production

Detect electrode marks and alignment references during roll-to-roll manufacturing.

Flexible Packaging Production

Provide accurate registration control for film processing.

Suitable Materials

The XWDGM Contrast Sensor is suitable for:

• Printed Film
• Plastic Film
• BOPP Film
• PET Film
• CPP Film
• PE Film
• Paper
• Labels
• Adhesive Tapes
• Aluminum Foil
• Copper Foil
• Flexible Packaging Materials
• Battery Electrode Materials
• Nonwoven Fabric
• Textile Materials

Compatible System Components

The XWDGM Contrast Sensor can work together with:

• [Web Guide Controller]
• [Web Guide Actuator]
• [Web Guiding System]
• [Web Guide Sensor]
• [CCD Sensor]
• [Ultrasonic Sensor]
• [Tension Control System]
• [Automatic Tension Controller]
• [Through-Shaft Tension Detector]
• [Magnetic Particle Brake]
• [Magnetic Particle Clutch]
• [Air Expanding Shaft]
• [Differential Shaft]
• [Slitting Machine Solutions]

Together, these components create a complete web handling, registration control, and automation solution.

Industries Served

Printing & Packaging

Improve print registration and product consistency.

Label Manufacturing

Ensure accurate label detection and cutting.

Flexible Packaging

Maintain reliable mark tracking during film processing.

Lithium Battery Manufacturing

Support electrode coating and roll-to-roll alignment systems.

Electronics Materials Processing

Suitable for copper foil, aluminum foil, and specialty materials.

Paper Converting

Improve registration control and production accuracy.

Textile & Nonwoven Production

Provide reliable positioning and tracking.

Why Choose XWDGM?

ISO9001 Certified Manufacturing

Strict quality management ensures consistent product performance.

Advanced Optical Detection Technology

High sensitivity and exceptional detection accuracy.

OEM & ODM Support

Customized sensing distances, output signals, mounting options, and integration solutions available.

Professional Technical Support

Engineering assistance for installation, setup, and troubleshooting.

Global Export Experience

Trusted by manufacturers in printing, packaging, battery production, converting, and industrial automation industries.

Fast Worldwide Delivery

Responsive customer support and reliable logistics services.

Whether you need precise registration mark detection for a printing press, accurate label positioning for a converting machine, or reliable mark tracking for a lithium battery production line, the XWDGM Contrast Sensor delivers exceptional accuracy, fast response, and industrial-grade reliability.
