XWDGM DIN Standard Magnetic Particle Brake for Precision Web Tension Control

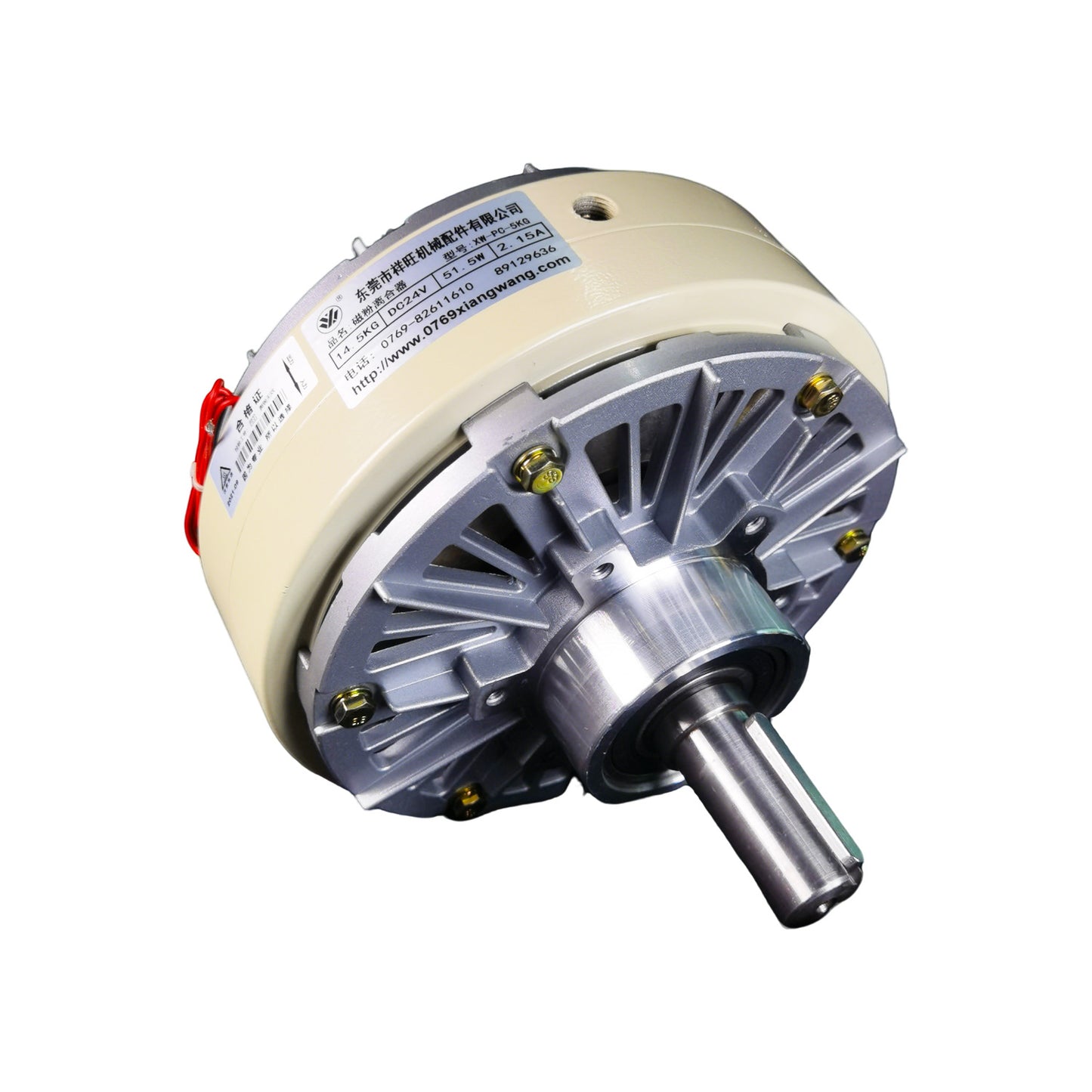

XWDGM Magnetic Particle Brake

The XWDGM Magnetic Particle Brake is a high-performance DIN-standard torque control brake engineered for precision web tension control and continuous industrial operation. Designed for demanding winding, unwinding, slitting, rewinding, printing, coating, laminating, and converting applications, this industrial braking solution provides smooth, stable, and highly responsive torque regulation throughout the production process.

Manufactured using premium magnetic particles, precision bearings, and high-strength components, the XWDGM Magnetic Particle Brake delivers exceptional torque linearity, stable low-speed performance, and long-term operational reliability. The braking torque is directly proportional to excitation current, enabling accurate tension adjustment for high-quality roll-to-roll processing.

For complete web handling solutions, the brake can be integrated with a

 [Magnetic Particle Clutch] and a [Tension Control System] to create a fully automated closed-loop tension control system.

In advanced [Web Tension Control] applications, the brake automatically compensates for changing roll diameters, helping maintain consistent tension, reduce material waste, and improve finished roll quality.

For high-speed converting lines, the brake is frequently used together with a

[Differential Shaft], [Air Expanding Shaft], and complete [Slitting Machine Solutions] to achieve superior winding performance and production efficiency.

What is a DIN Standard Magnetic Particle Brake?

A DIN Standard Magnetic Particle Brake is manufactured according to internationally recognized DIN mounting specifications, ensuring compatibility with a wide range of European and global machinery systems.

Benefits include:

• Standardized installation dimensions
• Easy machine integration
• Excellent interchangeability
• Reliable industrial performance
• Compatibility with automated production equipment
• Simplified replacement and maintenance

Key Features

Precise Torque Control

Provides highly linear braking torque for accurate and repeatable tension regulation.

Stable Web Tension Control

Maintains consistent material tension during winding and unwinding operations regardless of roll diameter changes.

Fast Dynamic Response

Rapid torque adjustment improves production accuracy during acceleration, deceleration, and speed variations.

Long-Life Magnetic Particle Technology

Premium magnetic particles offer excellent wear resistance and thermal stability for extended service life.

Excellent Heat Dissipation

Optimized housing structure enhances cooling efficiency and supports continuous-duty operation.

Low Noise and Smooth Operation

Reduces vibration and improves overall machine reliability.

DIN Standard Industrial Design

Ensures seamless integration with global industrial machinery and automation systems.

Technical Advantages

High Torque Accuracy

Provides precise torque output across the full operating range.

Stable Low-Speed Performance

Maintains reliable braking force even during slow-speed operation.

Continuous Slip Capability

Designed for demanding tension control applications requiring long-term continuous slipping.

Low Maintenance Requirements

Durable internal components minimize maintenance frequency and operating costs.

Compact Structure

Space-saving design allows easy integration into modern converting machinery.

Automatic Control Compatibility

Fully compatible with modern tension controllers and closed-loop automation systems.

24/7 Industrial Reliability

Engineered for continuous operation in demanding manufacturing environments.

How Does a Magnetic Particle Brake Work?

The XWDGM Magnetic Particle Brake uses electromagnetic particle transmission technology to generate adjustable braking torque.

Working Principle

1. DC current energizes the electromagnetic coil.
2. Magnetic particles become magnetized.
3. Particle chains form inside the brake chamber.
4. Braking torque is generated between rotating components.
5. Torque output changes proportionally with excitation current.
6. Stable web tension is maintained throughout winding and unwinding operations.

This highly responsive control method enables precise tension management in modern roll-to-roll production systems.

Typical Applications

Slitting and Rewinding Machines

Controls unwinding tension and ensures consistent roll quality during high-speed slitting operations.

Printing Machinery

Maintains accurate web tension to improve registration accuracy and reduce print defects.

Flexible Packaging Equipment

Provides stable braking force for film unwinding and rewinding applications.

Paper Converting Industry

Supports coating, laminating, embossing, and paper processing operations.

Textile Machinery

Ensures stable fabric tension during winding and processing.

Lithium Battery Manufacturing

Widely used in electrode coating, separator winding, and precision roll-to-roll production lines.

Wire and Cable Processing

Provides smooth tension regulation during drawing, winding, and testing operations.

Film Converting Equipment

Suitable for BOPP film, PET film, CPP film, optical film, and specialty industrial film processing.

Selection Guide

Selecting the proper Magnetic Particle Brake depends on:

• Material type
• Material thickness
• Web width
• Required tension level
• Roll diameter
• Machine speed
• Continuous or intermittent operation
• Cooling conditions
• Safety factor requirements

Our engineering team can recommend the most suitable model based on your specific machine parameters and production requirements.

Why Choose XWDGM Magnetic Particle Brake?

Factory Direct Manufacturing

Competitive pricing with strict quality control standards.

Premium Magnetic Particle Technology

Stable torque output and long operational lifespan.

OEM & Custom Manufacturing

Customized torque capacities, shaft configurations, mounting dimensions, and voltage specifications available.

Fast Technical Support

Professional application assistance and engineering consultation.

Global Export Experience

Trusted by customers in printing, packaging, converting, paper processing, and battery manufacturing industries worldwide.

Worldwide Shipping

Reliable logistics support and fast international delivery.

Whether you require a compact brake for a narrow web slitting machine or a heavy-duty tension control solution for large-scale converting equipment, XWDGM provides dependable braking performance, superior durability, and precise web tension control.

Our factory has passed ISO9001 quality certification, ensuring consistent manufacturing quality and long-term operational reliability.
