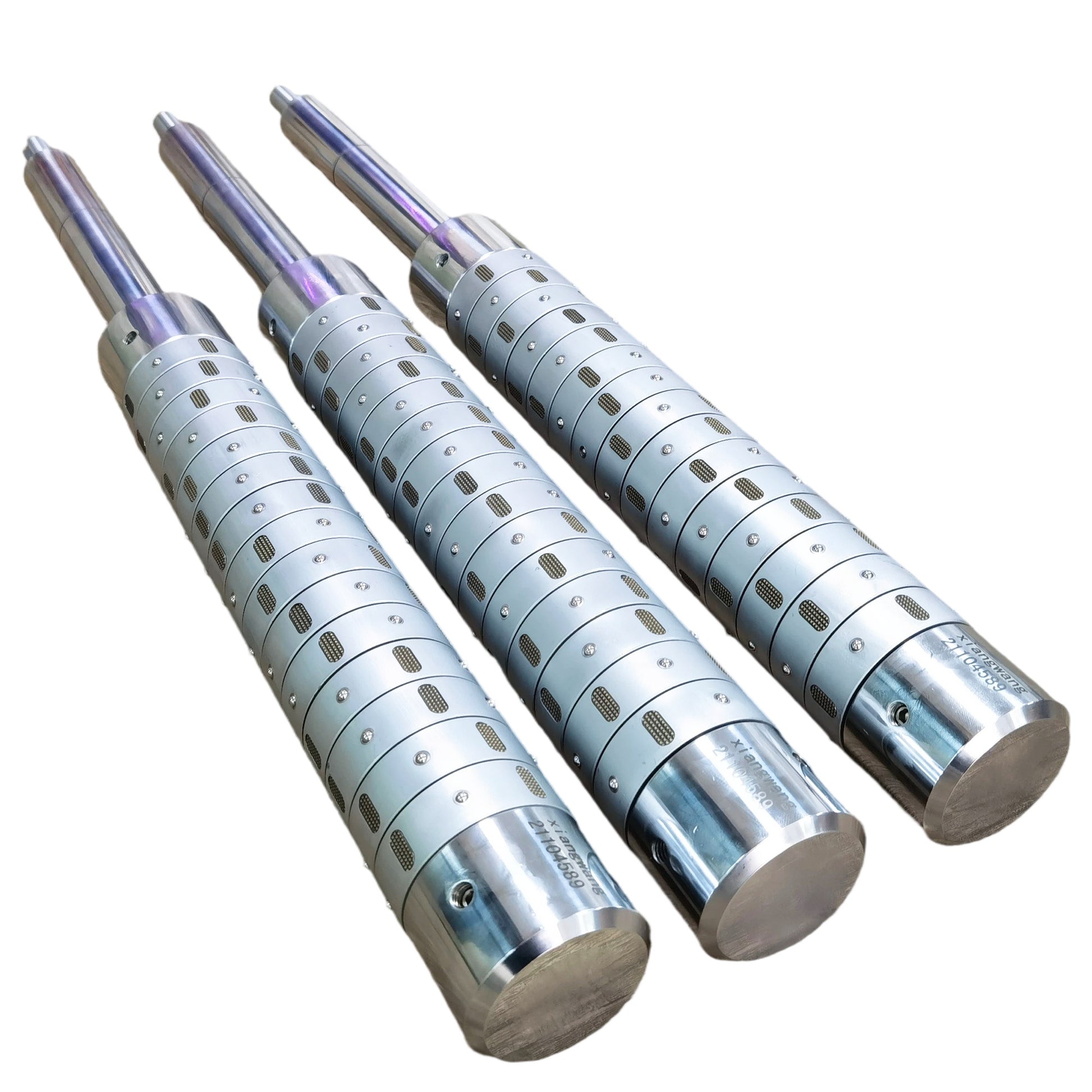

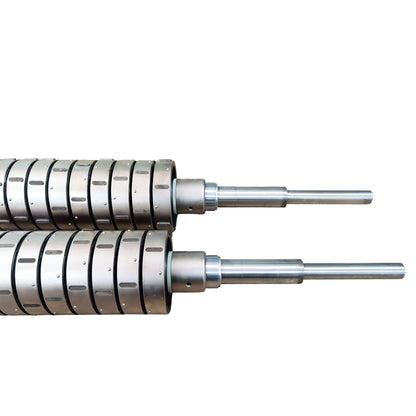

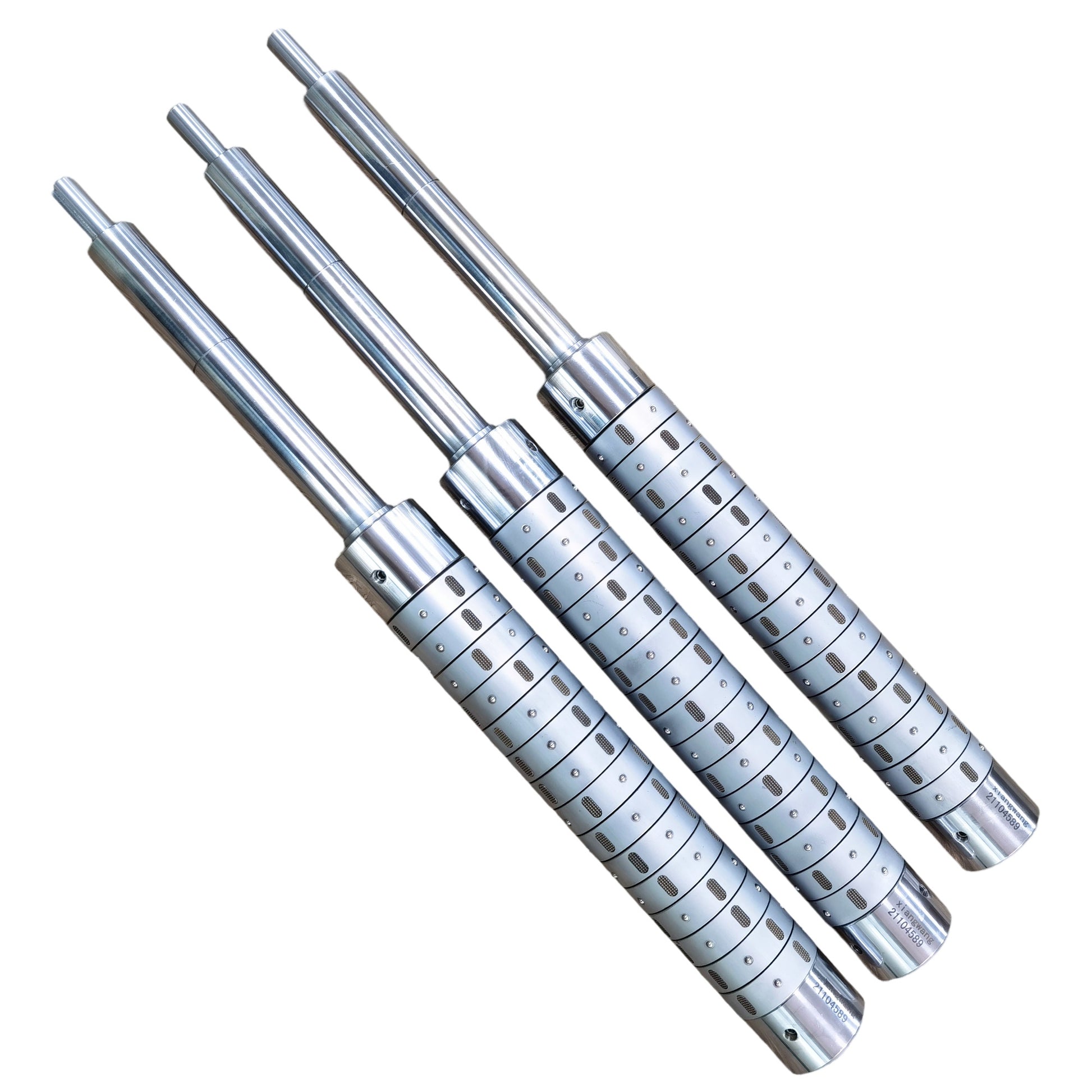

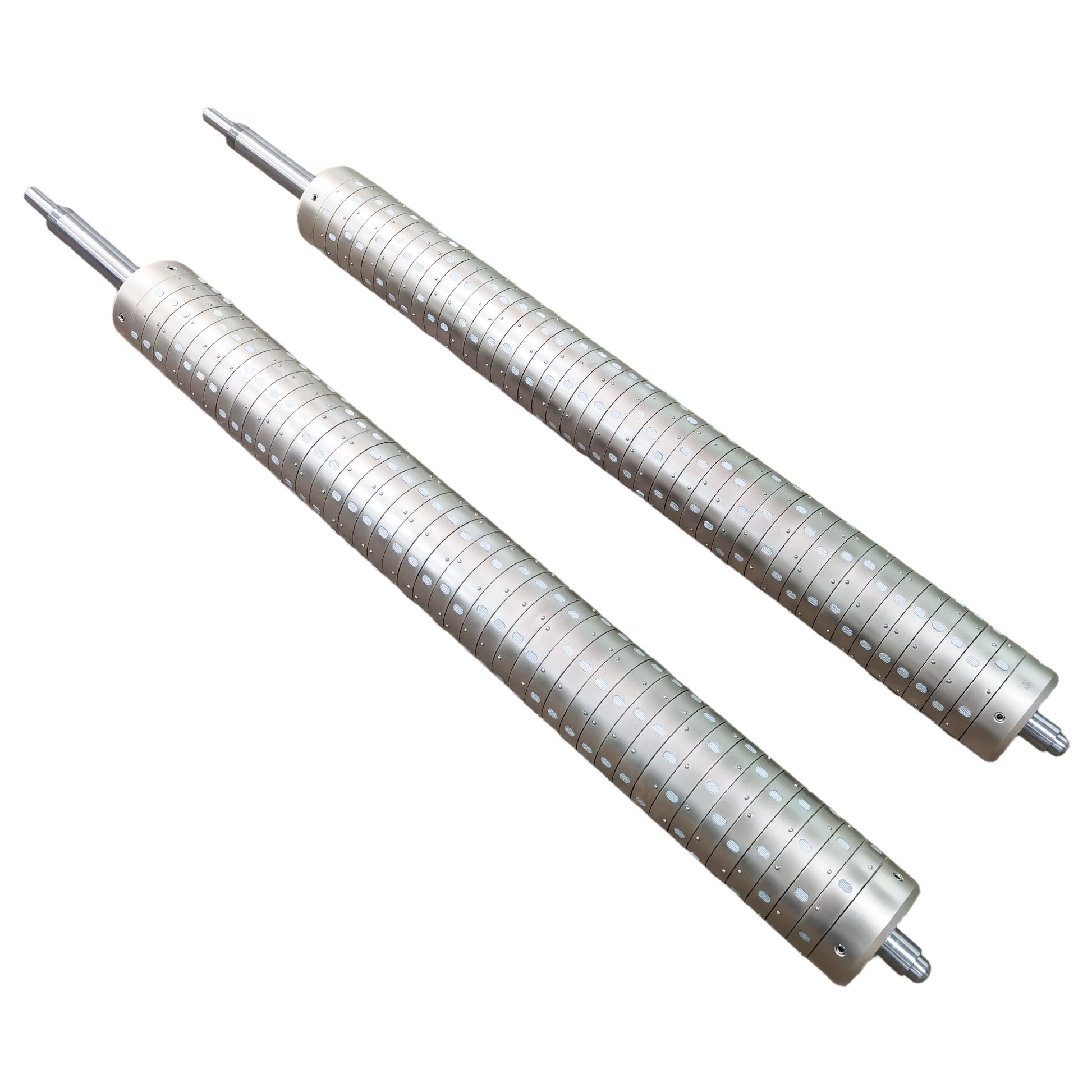

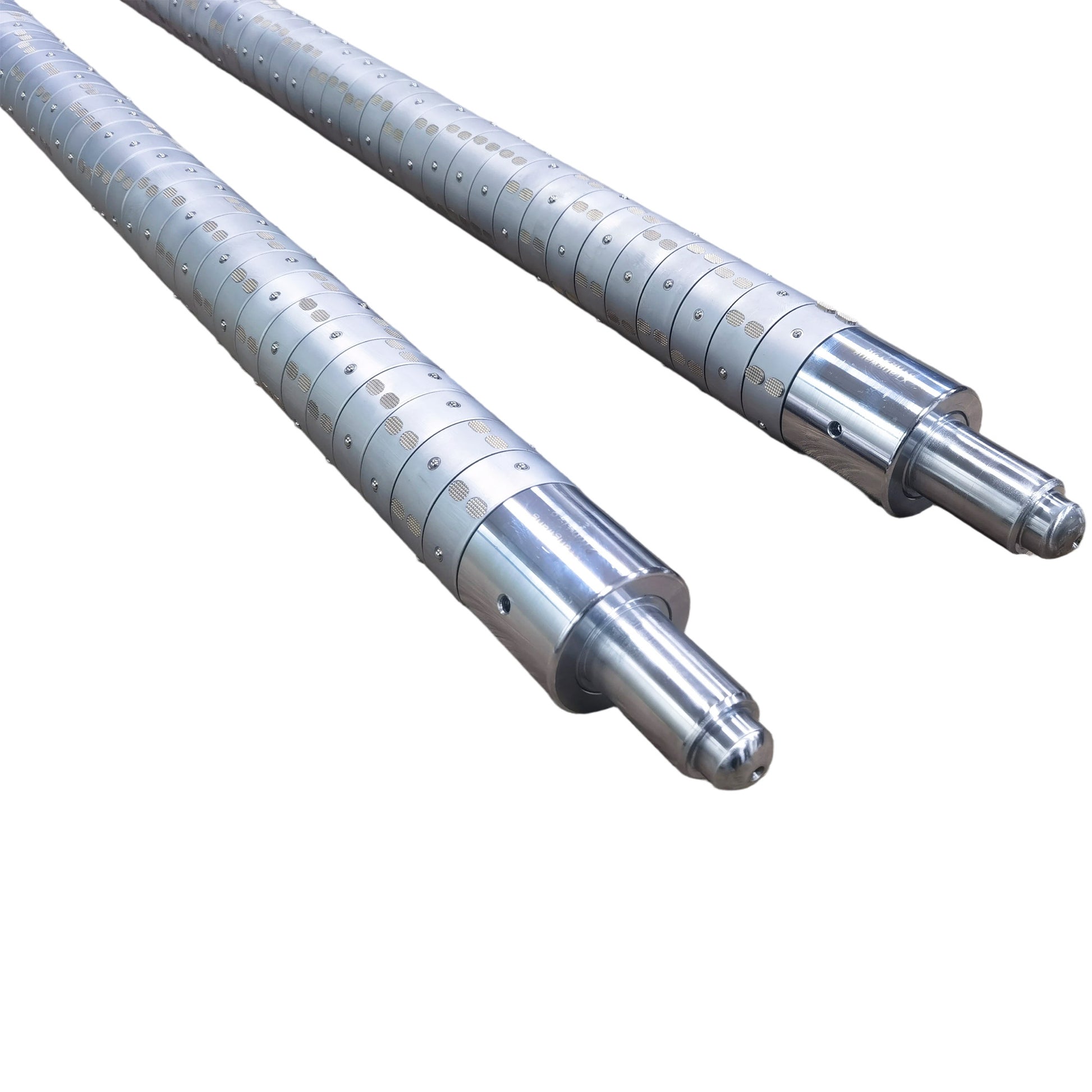

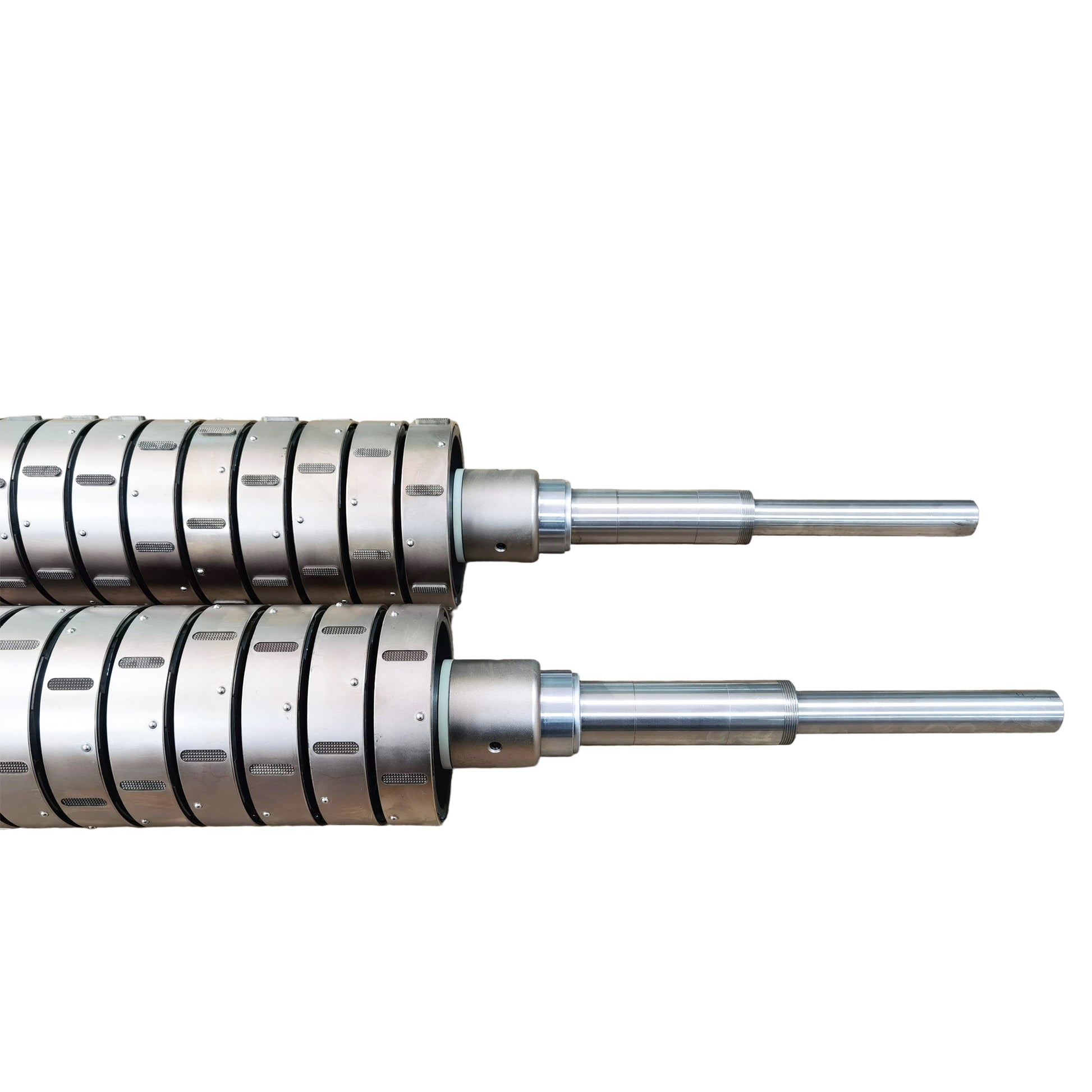

XWDGM Differential Slip Shaft

The XWDGM Differential Slip Shaft is a high-precision winding shaft specifically engineered for slitting, rewinding, and roll-to-roll converting applications that require independent tension control across multiple finished rolls. Utilizing advanced friction slip technology, the shaft automatically compensates for differences in roll diameter, thickness variation, and winding speed, ensuring uniform tension and superior winding quality.

Widely used in film converting, paper processing, aluminum foil production, copper foil manufacturing, adhesive tape slitting, label converting, flexible packaging, lithium battery electrode processing, and nonwoven material production, the XWDGM Differential Slip Shaft helps eliminate wrinkles, telescoping, loose winding, and uneven roll hardness.

Unlike conventional air shafts, a differential slip shaft allows each core to rotate independently through adjustable friction mechanisms, maintaining consistent tension on every roll throughout the winding process.

For complete web handling solutions, the shaft can be integrated with

[Magnetic Particle Brake], [Magnetic Particle Clutch], [Tension Control System],

[Through-Shaft Tension Detector], [Air Shaft], [Web Guiding System], and

[Slitting Machine Solutions].

What Is a Differential Slip Shaft?

A Differential Slip Shaft is a specialized winding shaft designed to provide independent tension control for multiple rolls during slitting and rewinding operations.

Each friction ring or slip element on the shaft can rotate independently, automatically compensating for roll diameter differences and web thickness variations.

It is also commonly known as:

• Differential Shaft
• Slip Shaft
• Friction Shaft
• Differential Friction Shaft
• Multi-Roll Winding Shaft
• Slitting Differential Shaft
• Differential Rewinding Shaft
• Roll-to-Roll Differential Shaft

This technology significantly improves winding consistency and finished roll quality.

Key Features

Independent Tension Control

Each roll receives uniform winding tension regardless of diameter variation.

Automatic Slip Compensation

Compensates for thickness variations and roll growth automatically.

High Winding Accuracy

Produces consistent roll hardness and winding quality.

Adjustable Friction Torque

Available with customizable slip torque settings.

High-Speed Operation

Suitable for demanding industrial slitting and rewinding applications.

Modular Friction Ring Design

Easy maintenance and replacement of friction components.

Long Service Life

Manufactured using hardened steel and wear-resistant materials.

Stable Multi-Roll Winding

Prevents telescoping, wrinkles, and uneven roll formation.

Advantages of XWDGM Differential Slip Shafts

Improve Roll Quality

Ensures uniform roll density and winding tension.

Reduce Material Waste

Minimizes defects caused by uneven tension distribution.

Increase Production Efficiency

Allows multiple rolls to be wound simultaneously with stable quality.

Prevent Telescoping

Maintains proper roll structure during winding.

Suitable for Sensitive Materials

Ideal for thin films, foils, labels, and battery materials.

Lower Operating Costs

Reduces scrap rates and rework requirements.

How Does a Differential Slip Shaft Work?

The XWDGM Differential Slip Shaft uses friction-controlled slip mechanisms installed along the shaft body.

Working Principle

1. Multiple cores are mounted on the shaft.
2. Friction rings transmit torque to each core.
3. As roll diameters change, individual rolls rotate at slightly different speeds.
4. The friction mechanism automatically compensates for speed differences.
5. Each roll maintains consistent winding tension.
6. Uniform roll hardness and winding quality are achieved.

This automatic differential action ensures optimal winding performance throughout production.

Available Differential Shaft Types

Slip Ball Differential Shaft

Uses precision steel balls to generate differential friction.

Advantages

• High precision
• Stable torque control
• Long service life

Roller Type Differential Shaft

Uses roller elements for smooth slip adjustment.

Advantages

• Excellent load capacity
• Smooth operation
• Reduced wear

Pneumatic Differential Shaft

Combines air expansion technology with differential winding control.

Advantages

• Fast core loading
• Adjustable friction control
• Efficient roll changes

Custom Differential Shaft Solutions

Available according to machine specifications, shaft diameter, roll width, and application requirements.

Typical Applications

Slitting Machines

Provide independent tension control for multiple finished rolls.

Rewinding Machines

Ensure consistent winding quality and roll hardness.

Film Converting Equipment

Suitable for BOPP, PET, CPP, PE, and specialty films.

Label Converting Machines

Improve label roll quality and dimensional consistency.

Flexible Packaging Production

Reduce wrinkles and tension-related defects.

Paper Processing Machinery

Maintain stable tension across multiple paper rolls.

Aluminum Foil Processing

Prevent foil deformation during winding.

Copper Foil Production

Ideal for battery-grade foil processing.

Lithium Battery Manufacturing

Widely used for electrode materials, separator film, and current collector processing.

Adhesive Tape Production

Ensure smooth and uniform tape winding.

Suitable Materials

The XWDGM Differential Slip Shaft is suitable for:

• Plastic Film
• BOPP Film
• PET Film
• CPP Film
• PE Film
• Paper
• Aluminum Foil
• Copper Foil
• Adhesive Tape
• Labels
• Release Liners
• Nonwoven Fabric
• Textile Materials
• Flexible Packaging Materials
• Battery Electrode Materials

Technical Advantages

Precision Friction Control

Provides stable differential winding performance.

High-Strength Shaft Construction

Designed for heavy-duty industrial applications.

Wear-Resistant Components

Extend operational life and reduce maintenance.

Excellent Torque Distribution

Maintains uniform tension across multiple rolls.

Custom Engineering Solutions

Available for different shaft diameters, widths, friction settings, and machine configurations.

Compatible System Components

The XWDGM Differential Slip Shaft can be integrated with:

• [Magnetic Particle Brake]
• [Magnetic Particle Clutch]
• [Tension Control System]
• [Through-Shaft Tension Detector]
• [Air Shaft]
• [Leaf Type Air Shaft]
• [Web Guiding System]
• [Web Guide Controller]
• [Web Guide Sensor]
• [Web Guide Actuator]
• [Slitting Machine Solutions]

Together, these components create a complete winding, tension control, and web handling solution.

Why Choose XWDGM?

ISO9001 Certified Manufacturing

Strict quality control ensures consistent performance and reliability.

OEM & ODM Support

Custom shaft diameters, friction rings, torque settings, and machine-specific designs available.

Professional Engineering Support

Expert assistance for selection, installation, and application optimization.

Global Export Experience

Trusted by manufacturers in packaging, printing, film converting, paper processing, and lithium battery industries.

Fast Worldwide Delivery

Reliable logistics and responsive technical support.

Complete Web Handling Solutions

One-stop supplier for differential shafts, air shafts, magnetic particle brakes, magnetic particle clutches, tension controllers, and web guiding systems.

Whether you need a slip shaft for narrow-web label slitting or a heavy-duty differential shaft for lithium battery production, XWDGM delivers precise tension control, superior winding quality, and long-term industrial reliability.
