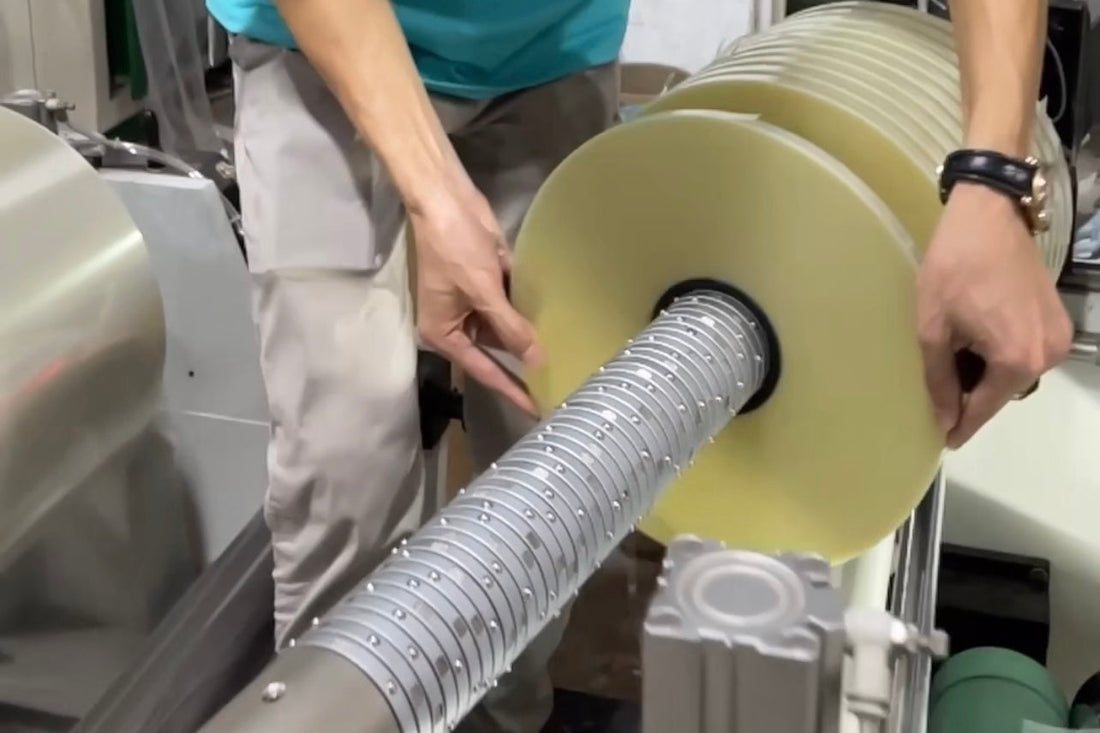

XW Machiniery Differential Shaft installed on a slitting and rewinding machine for precise multi-roll tension control and uniform winding quality.

Applications of Differential Shafts in the Slitting Industry: Improve Roll Quality and Production Efficiency

Applications of Differential Shafts in the Slitting Industry

Modern slitting and rewinding operations demand high precision, stable web tension, and consistently wound rolls. Whether processing paper, plastic film, aluminum foil, nonwoven fabric, adhesive tape, or lithium battery materials, maintaining equal winding tension across multiple rolls is essential for product quality.

This is where the Differential Shaft becomes one of the most valuable components in a slitting machine. By automatically compensating for differences in roll diameter and tension, differential shafts significantly improve winding consistency and reduce production defects.

If your production line requires higher efficiency and better roll quality, understanding how a differential shaft works can help optimize your converting process.

What Is a Differential Shaft?

A differential shaft (also called a slip shaft) is a mechanical shaft equipped with independently slipping friction rings or slip elements. Unlike a conventional winding shaft, each core on the shaft can rotate at a slightly different speed.

This controlled slipping allows every finished roll to maintain nearly identical winding tension, even when roll diameters vary during production.

For a complete introduction, visit our [Differential Shaft] page.

Why Is a Differential Shaft Important in Slitting?

During multi-roll slitting, every roll grows at a slightly different rate because of:

  • Material thickness variations
  • Uneven web tension
  • Different paper core tolerances
  • Machine vibration
  • Material elasticity

A standard shaft forces every roll to rotate at the same speed, creating unequal winding tension.

This often leads to:

  • Loose rolls
  • Over-tight rolls
  • Wrinkles
  • Telescoping
  • Core crushing
  • Material waste

A differential shaft solves these problems automatically through controlled frictional slip.

Common Applications

Differential shafts are widely used in many roll-to-roll industries.

Film Slitting

Plastic films require extremely consistent winding tension.

Applications include:

  • PET film
  • BOPP film
  • CPP film
  • PE film
  • PVC film

Even slight tension differences can cause wrinkles or deformation. Differential shafts greatly improve finished roll quality.

Real-World Application: Differential Shaft in Slitting

To better understand how a differential shaft performs in an actual production environment, watch the short demonstration below. This video shows an XW Machinery Differential Shaft operating on a slitting machine, where multiple rolls are rewound with stable tension and consistent winding quality.

You'll see how the differential slip mechanism automatically compensates for roll diameter differences, helping reduce wrinkles, loose rolls, and telescoping while improving production efficiency.

▶ Watch the application video:
https://www.instagram.com/reel/DaP4kkkIzxl/?igsh=MW9oNjh0MWJlcGhndA==

This real-world example demonstrates why differential shafts are widely used in paper converting, plastic film, foil, label stock, nonwoven fabrics, and lithium battery material processing.

Paper Converting

Paper products often have slight thickness variations.

Common applications include:

  • Kraft paper
  • Thermal paper
  • Release paper
  • Label paper
  • Specialty paper

Differential shafts maintain stable winding throughout long production runs.

Adhesive Tape Manufacturing

Tape slitting typically produces many narrow rolls on one shaft.

Each roll must receive equal winding pressure.

Using a differential shaft helps prevent:

  • Loose tape rolls
  • Uneven edges
  • Roll deformation
  • Core slipping

Aluminum Foil Processing

Aluminum foil is extremely thin and sensitive to tension fluctuations.

Differential shafts help maintain:

  • Flat roll surfaces
  • Uniform winding density
  • Reduced edge damage

Lithium Battery Materials

Battery separator films and electrode materials require exceptionally accurate tension control.

Modern lithium battery production lines commonly combine:

to achieve precise roll winding.

Nonwoven Fabric

Nonwoven materials stretch easily during winding.

Differential shafts compensate for tension differences between rolls and reduce product deformation.

Advantages of Using Differential Shafts

1. Equal Tension on Every Roll

Each core slips independently to compensate for diameter differences.

Result:

  • Uniform roll hardness
  • Better winding quality

2. Reduce Material Waste

Stable tension minimizes defects such as:

  • Wrinkles
  • Loose winding
  • Roll collapse
  • Edge damage

This directly lowers production costs.

3. Higher Production Speed

Because tension remains stable automatically, machines can operate at higher speeds without sacrificing quality.

4. Better Finished Roll Appearance

Customers expect clean, evenly wound rolls.

Differential shafts improve:

  • Roll shape
  • Edge alignment
  • Winding density
  • Overall appearance

5. Longer Equipment Life

Stable winding reduces shock loads on:

  • Bearings
  • Shafts
  • Rewind systems

This lowers maintenance costs over time.

Working Together with Other Tension Control Components

A differential shaft performs best when integrated with a complete web handling system.

Typical system configuration includes:

Together, these components provide stable web transport from unwinding to rewinding.

How to Choose the Right Differential Shaft

When selecting a differential shaft, consider:

  • Material type
  • Maximum roll width
  • Core diameter
  • Maximum shaft load
  • Machine speed
  • Required winding tension
  • Number of slit rolls
  • Shaft diameter

High-quality slip rings and precision machining are equally important for long service life.

Why Choose XWDGM Differential Rewind Shafts?

XWDGM manufactures differential rewind shafts for demanding converting applications worldwide.

Our products offer:

  • High torque transmission
  • Stable differential slipping
  • Precision machining
  • Durable friction rings
  • Long service life
  • Custom dimensions
  • Fast delivery

Whether you're upgrading an existing slitter or designing a new converting line, XWDGM differential slip shafts help improve productivity while ensuring consistent roll quality.

Conclusion

Differential shafts have become indispensable components in modern slitting and rewinding machines. By automatically balancing winding tension across multiple rolls, they significantly improve production efficiency, reduce waste, and produce consistently high-quality finished rolls.

For manufacturers processing paper, film, foil, tapes, or battery materials, investing in a high-quality differential shaft is one of the most effective ways to enhance slitting performance and increase long-term profitability.

Explore the complete XWDGM range of differential shafts and web handling solutions to optimize your production line.
