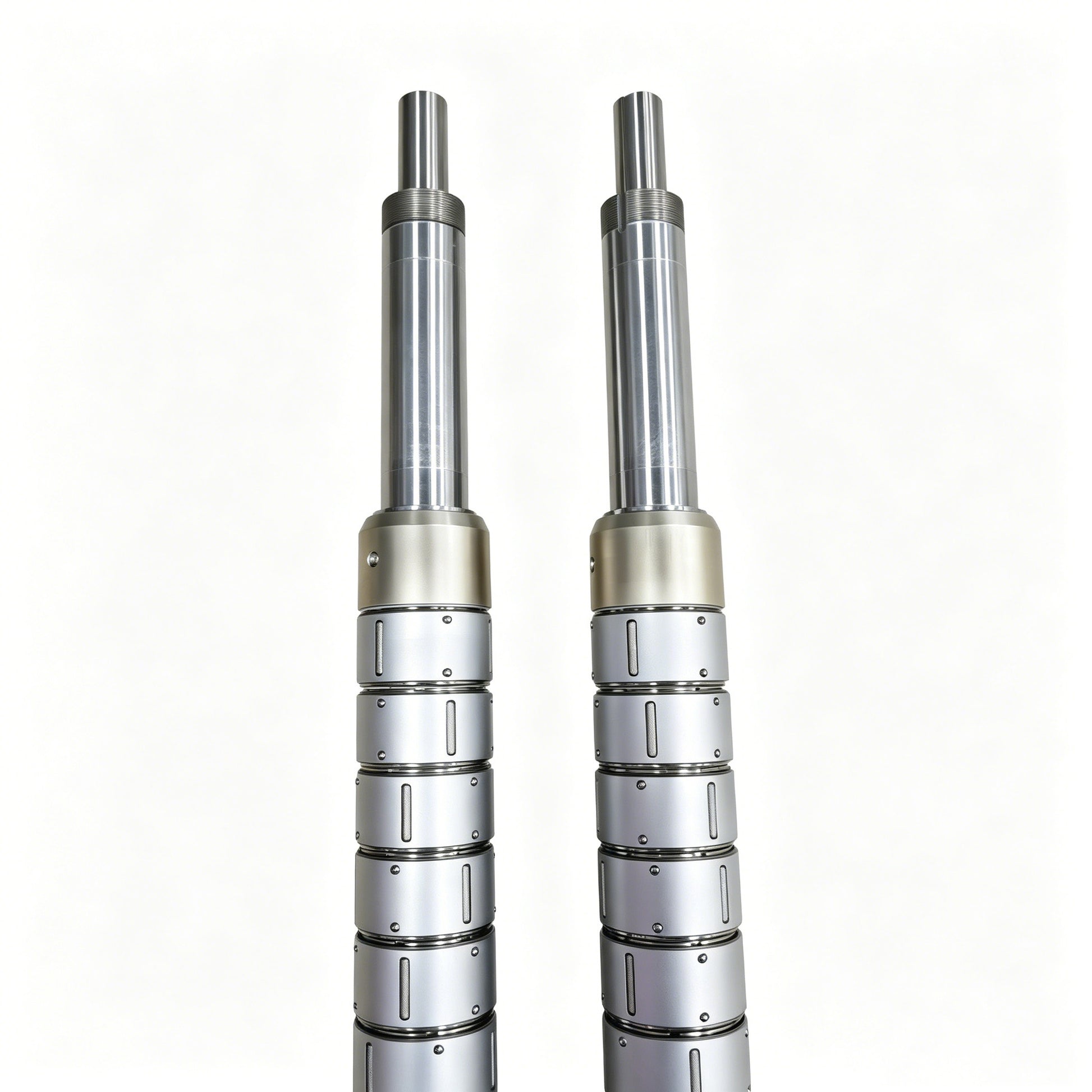

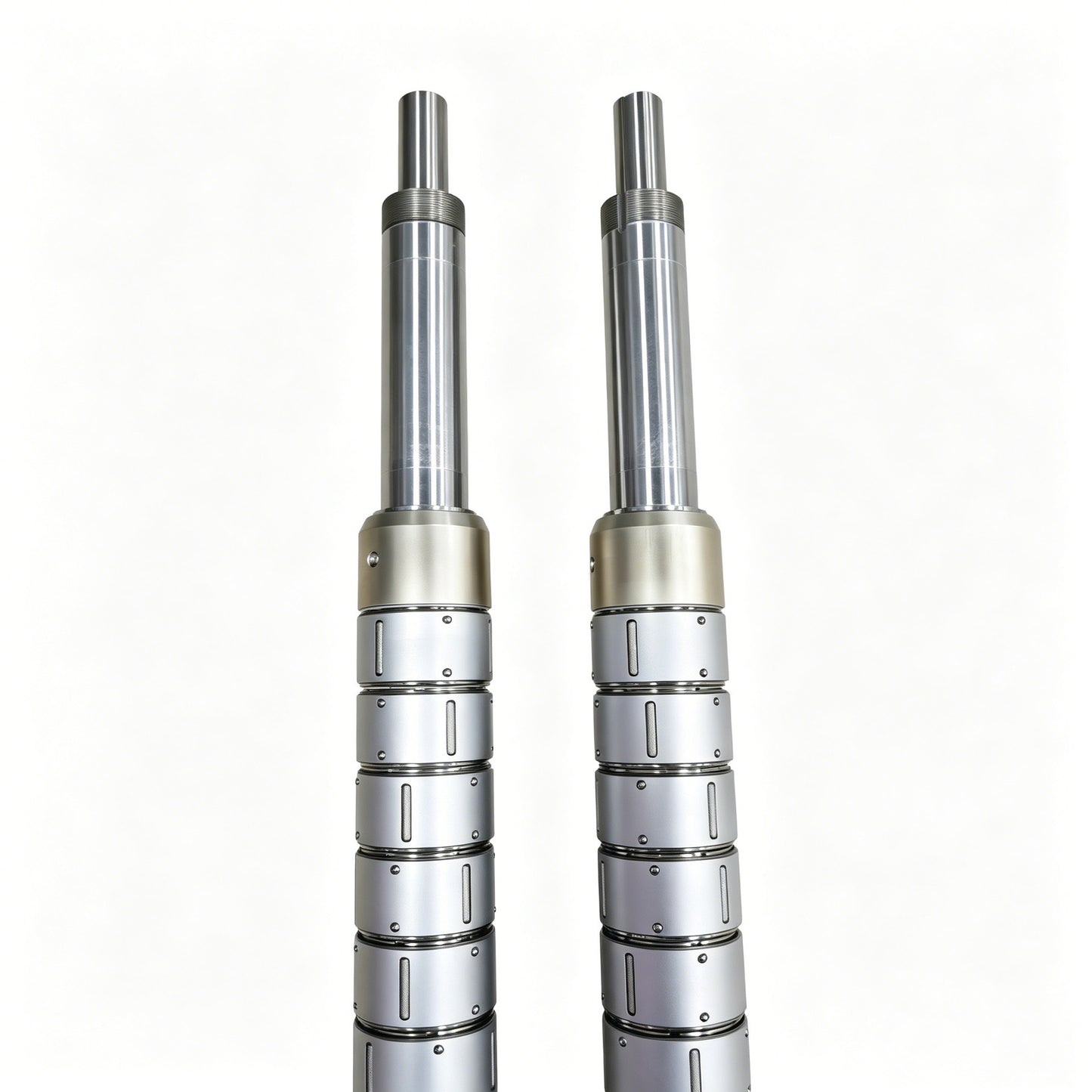

XWDGM Differential Rewind Shaft

The XWDGM Differential Rewind Shaft is a high-performance tension control shaft designed for precision rewinding applications in slitting, converting, printing, packaging, film processing, paper converting, textile manufacturing, and lithium battery production.

Engineered with advanced differential friction technology, the shaft automatically compensates for roll diameter variations and material thickness differences, allowing each finished roll to maintain independent winding tension. This ensures uniform roll hardness, improved winding quality, and significantly reduced material waste.

Compared with conventional rewind shafts, the XWDGM Differential Rewind Shaft eliminates common winding defects such as wrinkles, telescoping, loose rolls, star-shaped winding, and uneven tension distribution.

For complete roll-to-roll processing solutions, the shaft can be integrated with

[Magnetic Particle Brake], [Magnetic Particle Clutch], [Tension Control System],

[Through-Shaft Tension Detector], [Air Shaft], [Differential Slip Shaft],

 [Web Guiding System], and [Slitting Machine Solutions].

What Is a Differential Rewind Shaft?

A Differential Rewind Shaft is a specialized rewinding shaft that allows multiple cores to rotate independently while maintaining consistent winding tension on each roll.

Using precision friction rings, slip balls, or roller differential mechanisms, the shaft automatically adjusts rotational speed differences caused by varying roll diameters during rewinding.

It is commonly known as:

• Differential Rewind Shaft
• Differential Shaft
• Differential Slip Shaft
• Friction Rewind Shaft
• Multi-Roll Rewinding Shaft
• Slitting Rewind Shaft
• Differential Friction Shaft
• Independent Tension Rewind Shaft

This technology is essential for high-quality multi-roll rewinding operations.

Key Features

Independent Roll Tension Control

Each finished roll receives consistent winding tension.

Automatic Differential Compensation

Compensates for roll diameter growth during rewinding.

High Precision Rewinding

Produces uniform roll hardness and superior roll quality.

Adjustable Friction Torque

Customized torque settings available for different materials.

High-Speed Operation

Suitable for modern slitting and converting equipment.

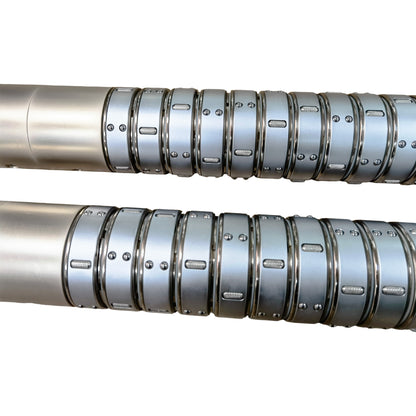

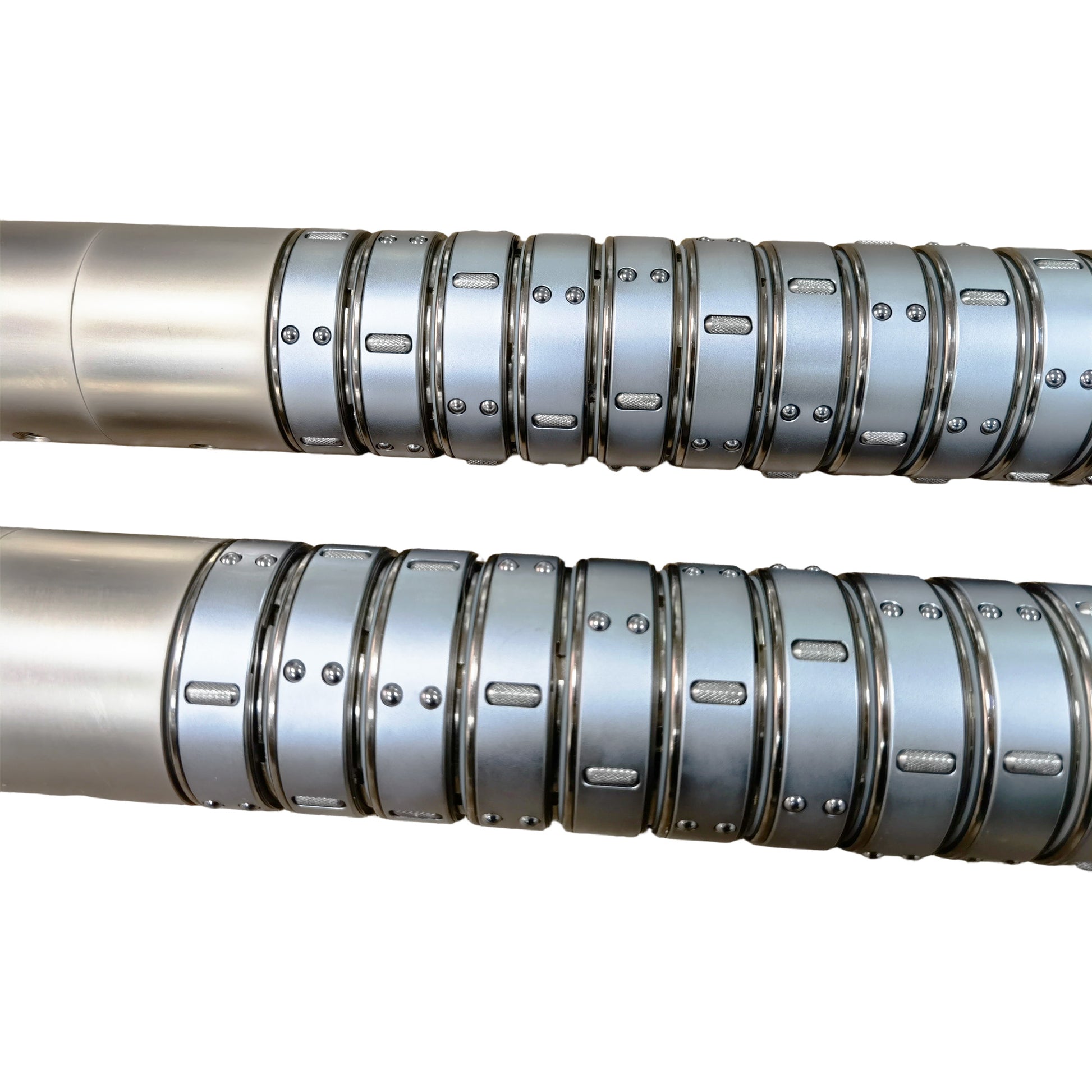

Modular Friction Ring Design

Easy maintenance and replacement of wear components.

Heavy-Duty Construction

Designed for continuous industrial production.

Long Service Life

Manufactured using precision-machined, wear-resistant components.

Advantages of XWDGM Differential Rewind Shafts

Improve Finished Roll Quality

Ensures consistent roll density and winding structure.

Reduce Material Waste

Minimizes wrinkles, edge defects, and winding inconsistencies.

Increase Production Efficiency

Supports simultaneous rewinding of multiple rolls.

Prevent Telescoping

Maintains stable roll formation throughout production.

Optimize Tension Distribution

Provides accurate tension control for sensitive materials.

Lower Maintenance Costs

Durable construction reduces downtime and service requirements.

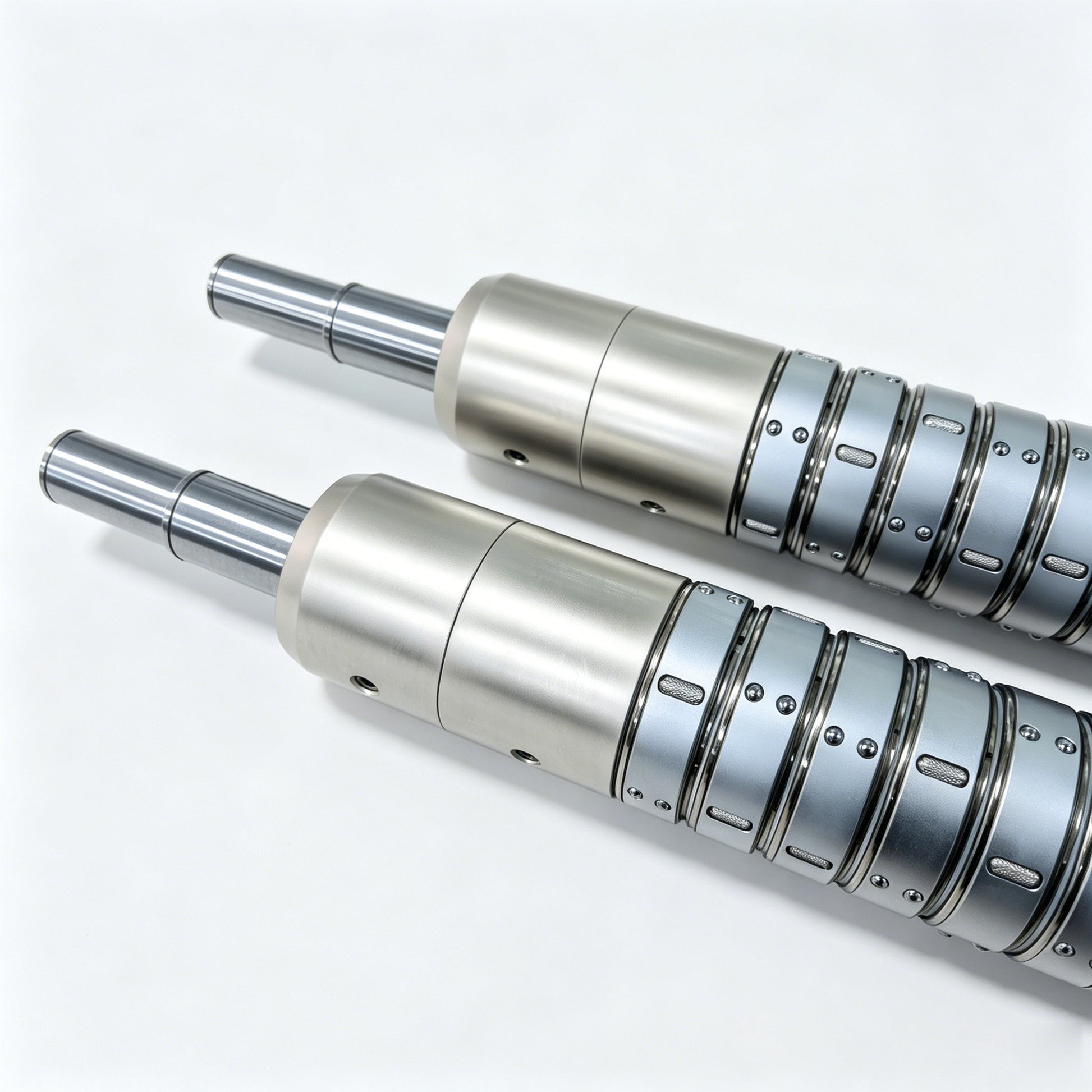

How Does a Differential Rewind Shaft Work?

The XWDGM Differential Rewind Shaft uses friction-controlled slip mechanisms to regulate torque independently for each winding core.

Working Principle

1. Multiple cores are mounted onto the shaft.
2. Torque is transmitted through friction rings or slip mechanisms.
3. As roll diameters increase, each roll rotates at a slightly different speed.
4. The differential mechanism automatically compensates for speed differences.
5. Independent tension is maintained on every roll.
6. Uniform winding quality is achieved throughout the rewinding process.

This automatic compensation system improves winding precision and production stability.

Available Differential Rewind Shaft Types

Slip Ball Differential Rewind Shaft

Uses precision steel balls to provide stable differential torque control.

Benefits

• High winding accuracy
• Stable friction performance
• Long service life

Roller Type Differential Rewind Shaft

Uses precision rollers for smooth slip adjustment.

Benefits

• High load capacity
• Reduced wear
• Excellent stability

Pneumatic Differential Rewind Shaft

Combines air expansion technology with differential winding control.

Benefits

• Fast core loading
• Quick roll changes
• Improved productivity

Custom Differential Rewind Shafts

Available according to customer specifications and machine requirements.

Typical Applications

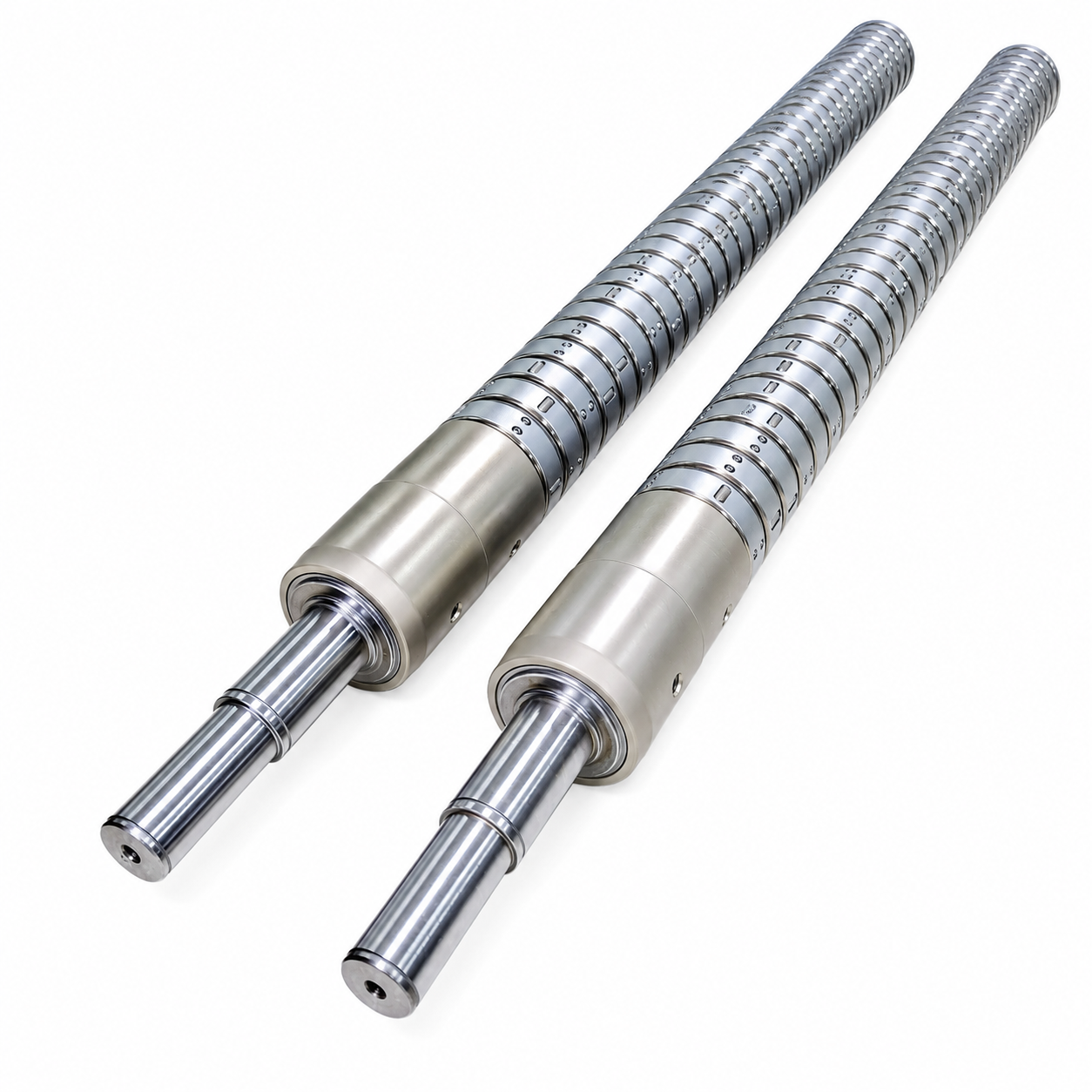

Slitting Machines

Maintain consistent tension during multi-roll rewinding.

Rewinding Machines

Improve winding quality and finished roll consistency.

Film Converting Equipment

Suitable for BOPP, PET, CPP, PE, PVC, and specialty films.

Paper Converting Systems

Ensure smooth paper rewinding operations.

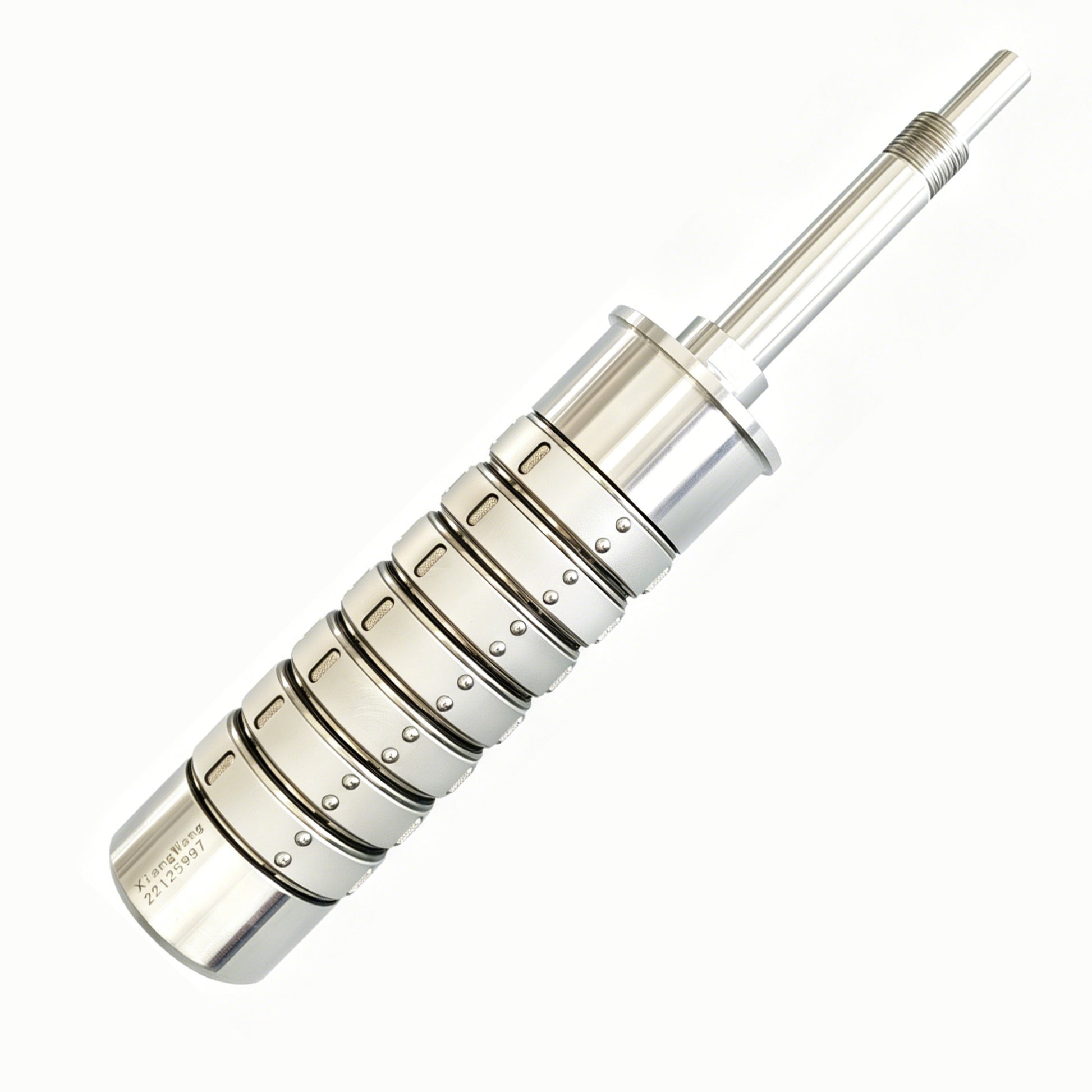

Flexible Packaging Production

Prevent wrinkles and uneven winding tension.

Label Manufacturing

Produce high-quality finished label rolls.

Aluminum Foil Processing

Maintain precise tension during foil rewinding.

Copper Foil Production

Suitable for battery-grade foil processing lines.

Lithium Battery Manufacturing

Ideal for electrode materials, separator films, and current collector rewinding.

Adhesive Tape Production

Improve tape roll quality and winding consistency.

Suitable Materials

The XWDGM Differential Rewind Shaft is suitable for:

• Plastic Film
• BOPP Film
• PET Film
• CPP Film
• PE Film
• PVC Film
• Paper
• Aluminum Foil
• Copper Foil
• Adhesive Tape
• Labels
• Release Liners
• Nonwoven Fabric
• Textile Materials
• Flexible Packaging Materials
• Lithium Battery Materials

Technical Advantages

Precision Friction Control Technology

Ensures stable and repeatable tension performance.

Excellent Torque Distribution

Provides balanced winding across multiple rolls.

High-Speed Rewinding Capability

Supports demanding production environments.

Heavy-Duty Industrial Design

Suitable for 24/7 manufacturing operations.

Custom Engineering Support

Available in various shaft diameters, lengths, friction settings, and core sizes.

Compatible System Components

The XWDGM Differential Rewind Shaft can be integrated with:

• [Magnetic Particle Brake]
• [Magnetic Particle Clutch]
• [Tension Control System]
• [Through-Shaft Tension Detector]
• [Air Shaft]
• [Differential Slip Shaft]
• [Web Guiding System]
• [Web Guide Sensor]
• [Web Guide Controller]
• [Web Guide Actuator]
• [Slitting Machine Solutions]

Together, these components create a complete web tension control and roll-to-roll processing solution.

Why Choose XWDGM?

ISO9001 Certified Manufacturing

Strict quality control ensures reliable and consistent performance.

OEM & ODM Support

Custom shaft dimensions, friction rings, torque settings, and mounting configurations available.

Professional Engineering Assistance

Expert support for machine integration and application optimization.

Global Export Experience

Trusted by customers in printing, packaging, film converting, paper processing, and lithium battery industries.

Fast Worldwide Delivery

Efficient production and international logistics support.

Complete Web Handling Solutions

One-stop supplier for differential shafts, air shafts, magnetic particle brakes, magnetic particle clutches, tension controllers, tension detectors, and web guiding systems.

Whether you need a narrow-web rewinding shaft for label production or a heavy-duty differential rewind shaft for lithium battery manufacturing, XWDGM delivers exceptional tension control, superior winding quality, and long-term operational reliability.
