Web Guiding Systems, Controllers, Sensors & Actuators

  XW Machinery is a professional manufacturer of web guiding systems, providing complete web alignment solutions for printing, packaging, nonwoven, paper, film, converting, and lithium battery production lines.

About Web Guiding Systems, Controllers, Sensors & Actuators

  XW Machinery is a professional manufacturer of web guiding systems, providing complete web alignment solutions for printing, packaging, nonwoven, paper, film, converting, and lithium battery production lines. Our integrated web guiding systems are designed to eliminate material drift, improve winding accuracy, and ensure stable web positioning at high operating speeds.

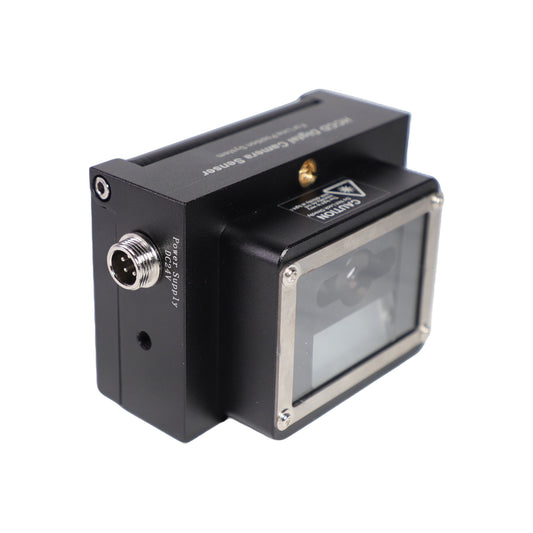

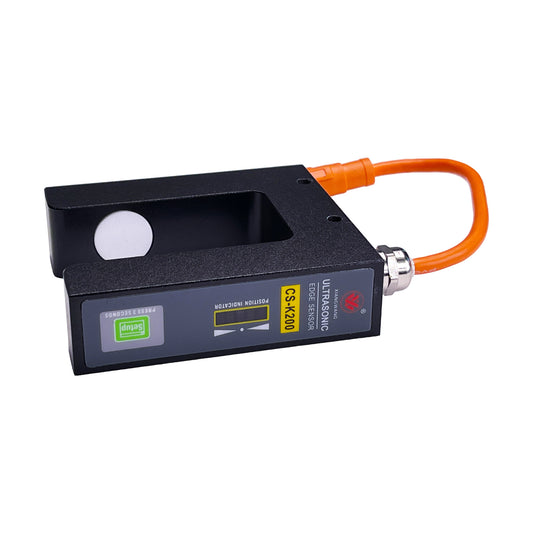

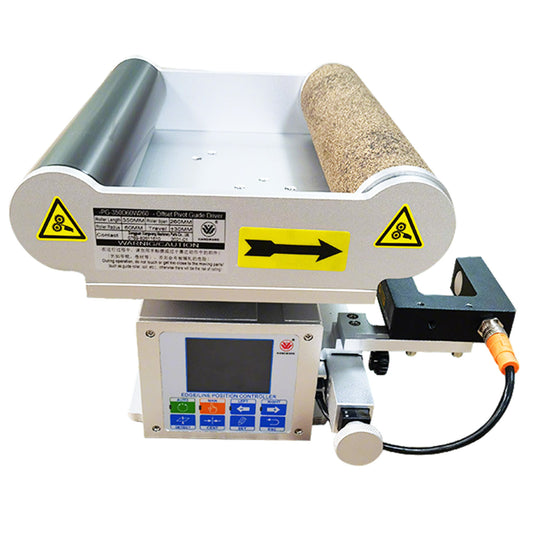

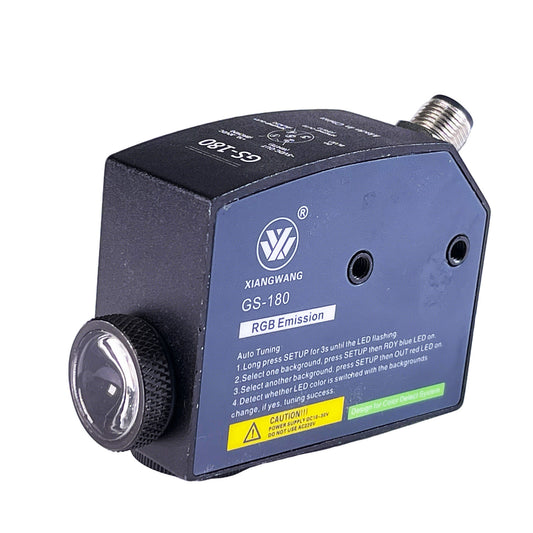

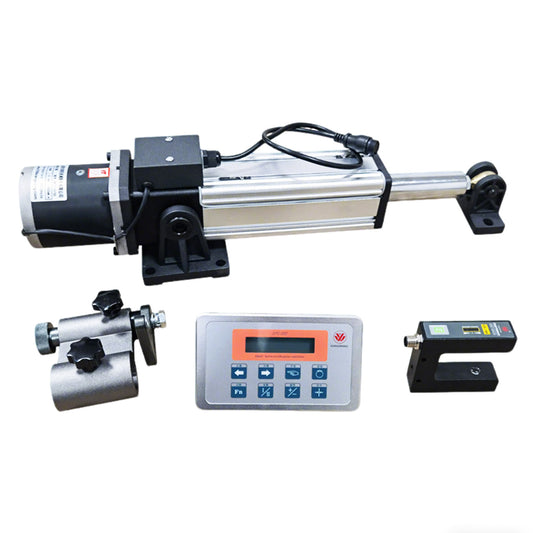

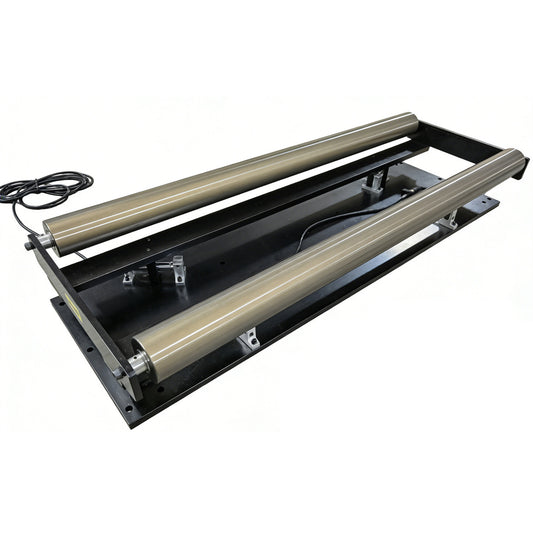

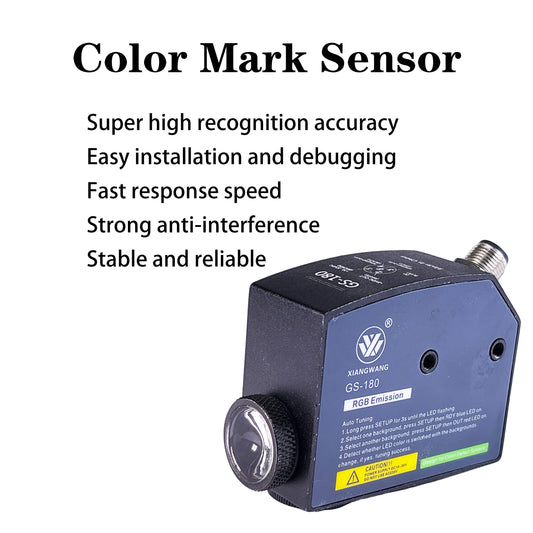

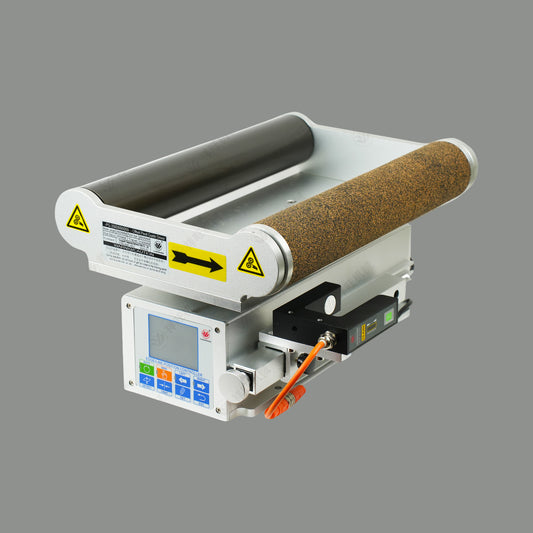

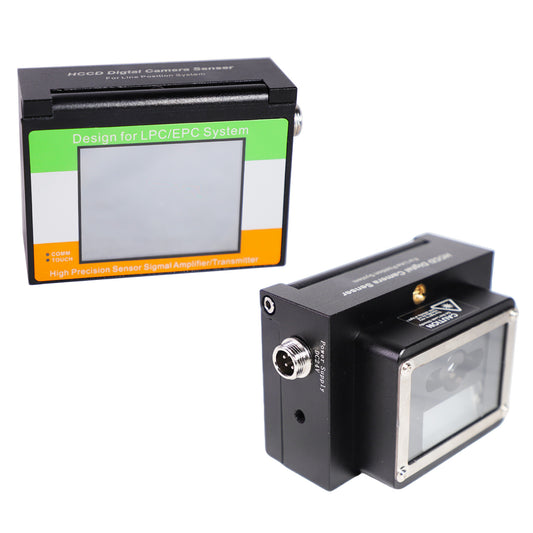

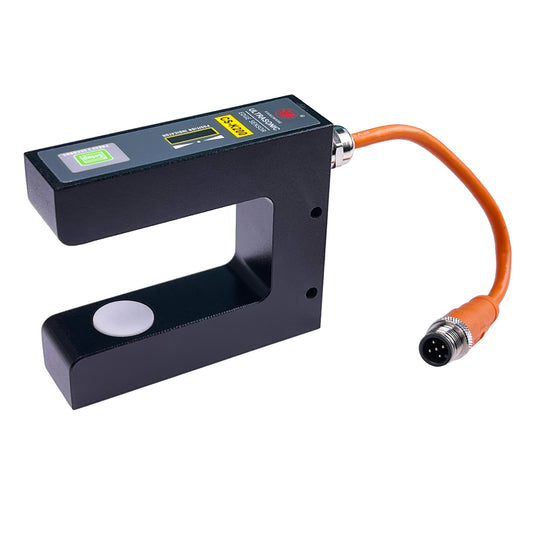

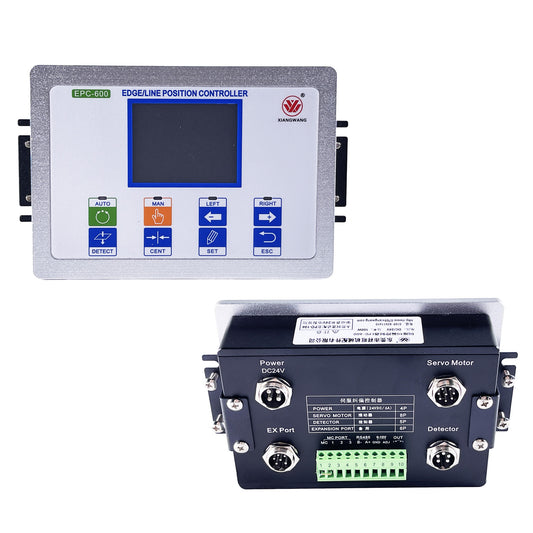

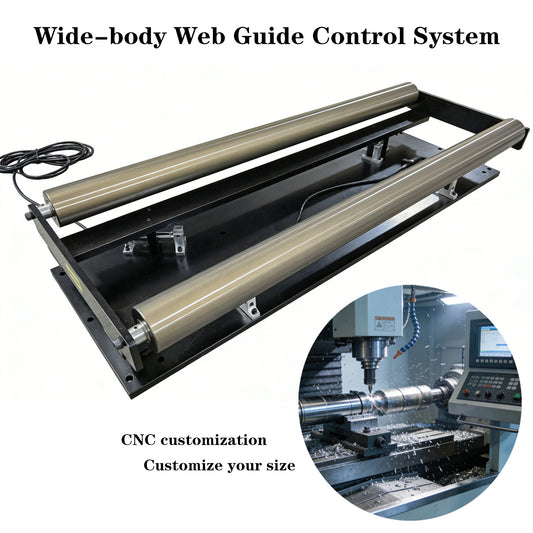

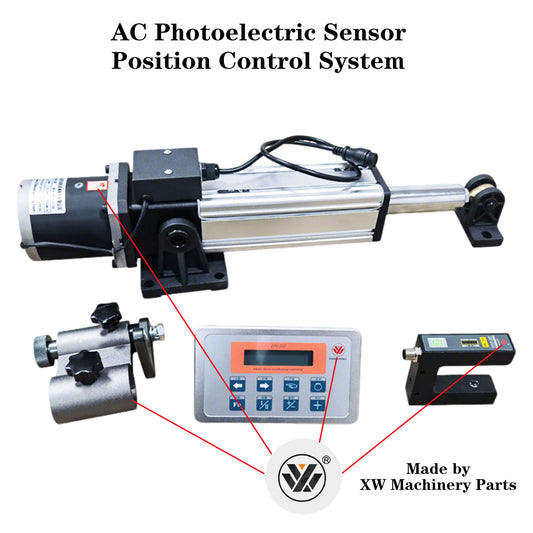

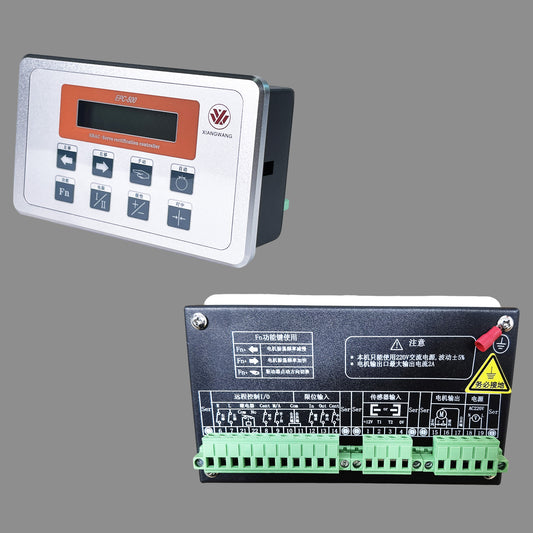

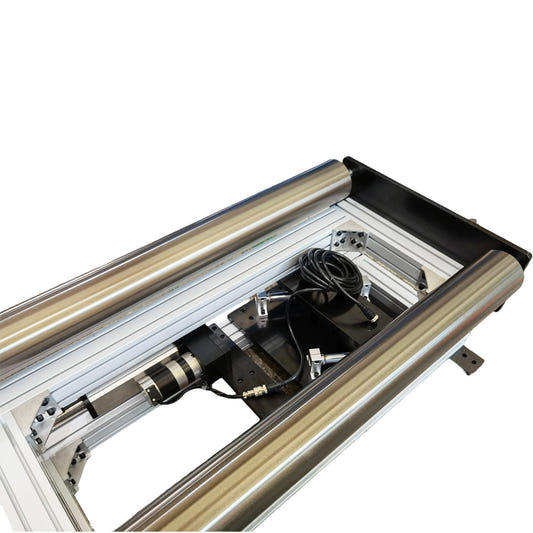

  Our product range includes advanced web guiding controllers, high-performance electric actuators, precision edge and line sensors, and complete guiding frames. We offer HCCD line tracking sensors, photoelectric sensors, ultrasonic sensors for transparent materials, and color mark sensors for accurate registration control. For mechanical guidance, our heavy-duty offset pivot frames and integrated web guiding machines provide reliable and responsive web correction across a wide range of industrial applications.

  Engineered for seamless system integration, our web guiding components deliver fast response, high positioning accuracy, and long-term operational stability. Whether you require individual components or a complete turnkey web guiding solution, we provide factory-direct manufacturing, OEM customization, and professional engineering support.

  Browse our complete collection to explore technical specifications, wiring diagrams, and customized web guiding solutions for your production line.

Web Guiding System Specifications

Before selecting a model, confirm the measurable parameters that decide whether a guider holds tolerance on your line:

  • Guiding accuracy: up to 0.01 mm with servo EPC; 0.1 mm to 0.5 mm with photoelectric correction
  • Response time: under 10 ms with servo correction; 20 ms to 50 ms with photoelectric correction
  • Detection method: CCD linear scanning, photoelectric edge detection, color mark and contrast detection, ultrasonic sensing for transparent films

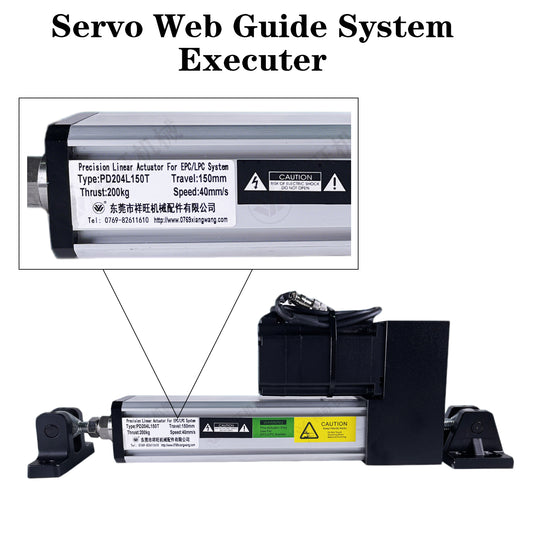

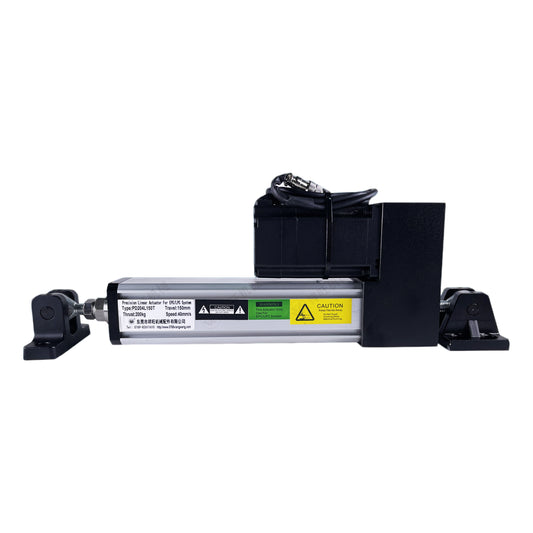

  • Actuator: precision ball screw servo, 150 mm stroke, 40 mm/s maximum speed, 200 kg thrust, DC 24 V
  • Guiding modes: edge guiding, line guiding and center guiding

For the full parameter table, three typical model configurations and a sensor selection guide, see Web Guiding Systems: Specifications and Model Selection. For the tension side of the same line, see Web Tension Control: Tension Range and Control Methods.

Frequently Asked Questions

What sensors does XW Machinery offer for web guiding?

The range includes HCCD line tracking sensors, photoelectric sensors, ultrasonic sensors for transparent materials, and color mark sensors for accurate registration control.

Can I buy individual components or a full system?

Both. You can source individual components — guiding controllers, electric actuators, edge and line sensors, and guiding frames — or a complete turnkey web guiding solution.

Which materials and industries are supported?

The systems serve printing, packaging, nonwoven, paper, film, converting, and lithium battery production lines.
