Web Tension Control Systems, Tension Controllers & Load Cells

About Web Tension Control Systems, Tension Controllers & Load Cells

  XW Machinery is a professional manufacturer of web tension control systems, offering a complete range of tension controllers, tension detectors (load cells), and integrated tension management solutions for printing, packaging, plastic film, textile, paper converting, slitting, and rewinding machinery.

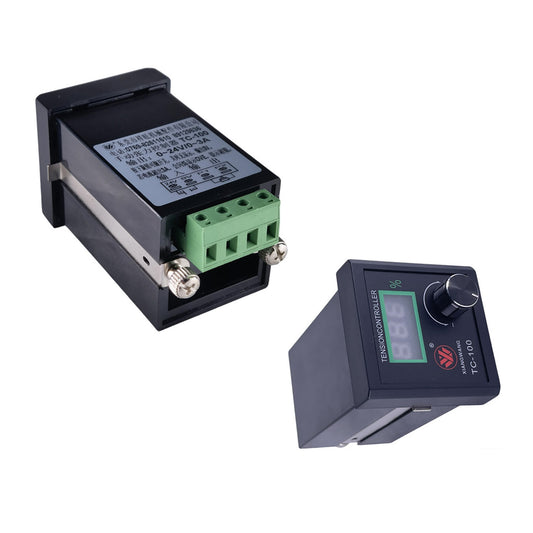

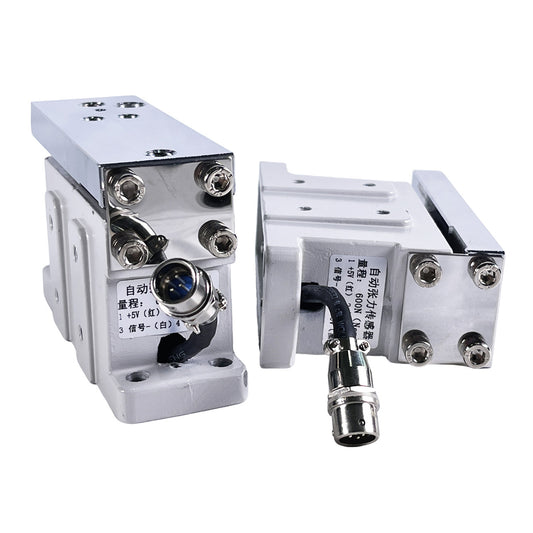

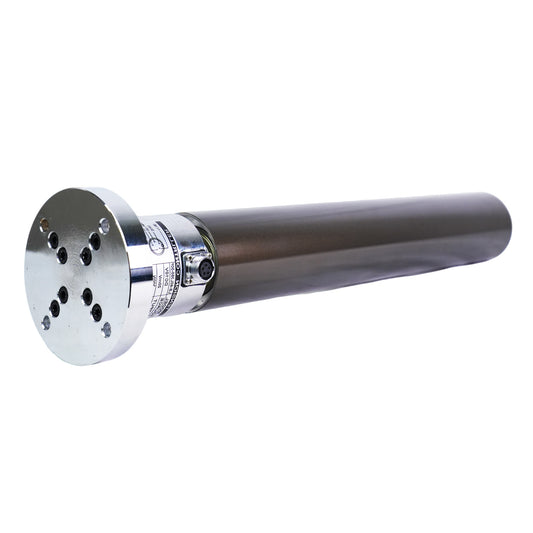

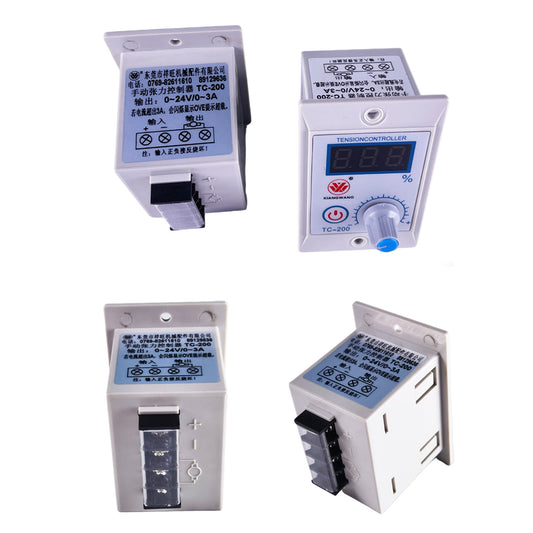

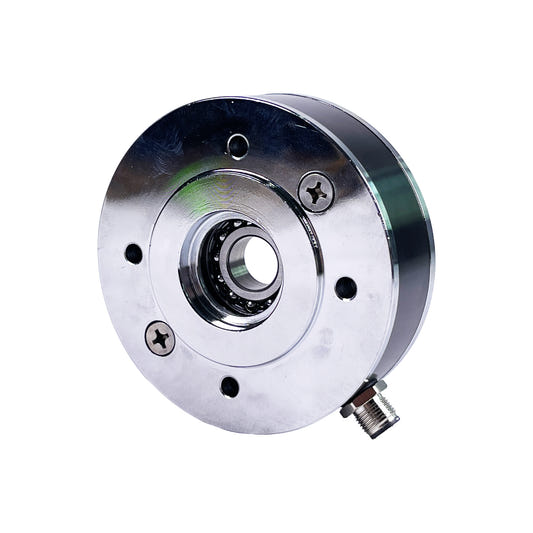

  Our product lineup includes automatic tension controllers, semi-automatic tension controllers, manual tension controllers, split-type controllers, and miniature controllers designed for precise and stable web tension regulation. We also supply high-accuracy tension detectors, including through-shaft load cells, cantilever load cells, and pillow block tension detectors for real-time tension monitoring across light-duty and heavy-duty production lines.

  Engineered for seamless compatibility and reliable performance, our tension control components help reduce material waste, improve winding quality, increase production efficiency, and maintain consistent web tension at high operating speeds. All products are manufactured to strict quality standards and can be customized to meet specific machine requirements.

  Browse our complete collection to explore technical specifications, wiring diagrams, and factory-direct solutions for your web tension control applications.

Tension Control Specifications

Key parameters to confirm before ordering a tension control system:

  • Torque range: 6 N.m to 400 N.m on standard magnetic powder clutches and brakes; 1 N.m to 5 N.m on micro units
  • Control method: automatic closed loop with a non-overshoot PI algorithm, or manual constant-current open loop
  • Main output: 2 x 24 V / 4 A constant-current channels
  • Sensor input: 30 mV or 300 mV standard, 5 V customizable
  • Sampling: 50 ms cycle with 1 LSB conversion accuracy
  • Measurement structure: cantilever, pillow block or through-shaft, mV/V output, IP54 / IP65

Tension follows from torque and roll radius: web tension (N) = torque (N.m) / roll radius (m). For the full specification table, the three control methods and three typical configurations, see Web Tension Control: Tension Range and Control Methods. For lateral alignment on the same line, see Web Guiding Systems: Specifications and Model Selection.

Frequently Asked Questions

What tension controllers are available?

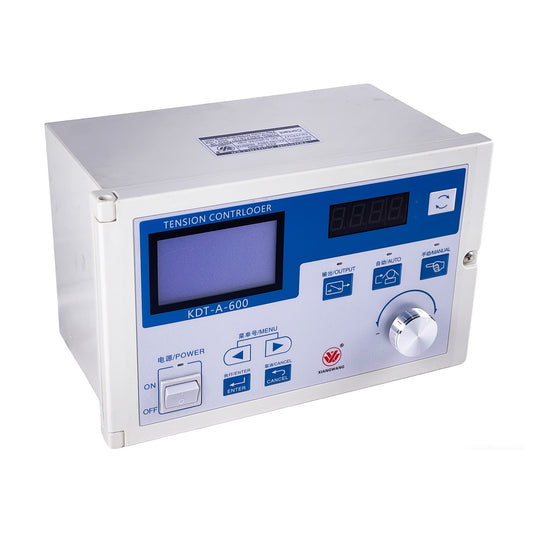

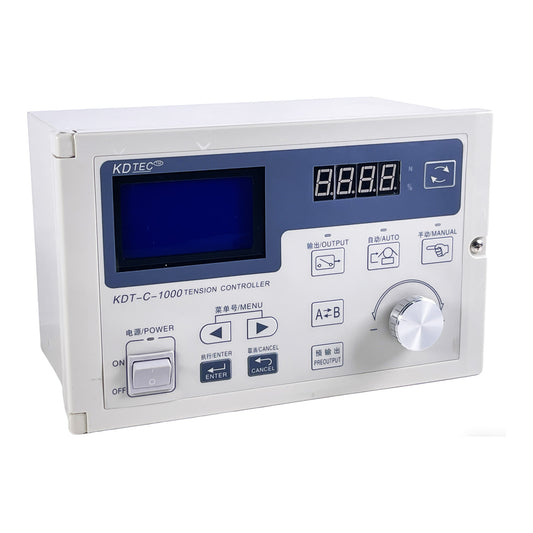

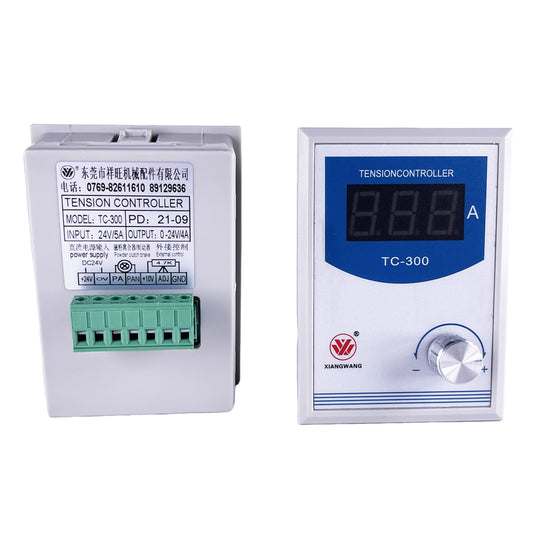

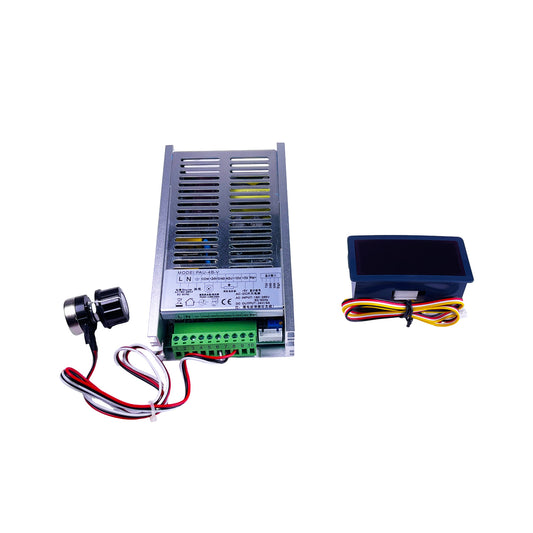

The lineup includes automatic, semi-automatic, manual, split-type, and miniature tension controllers for precise and stable web tension regulation.

What tension detectors are offered?

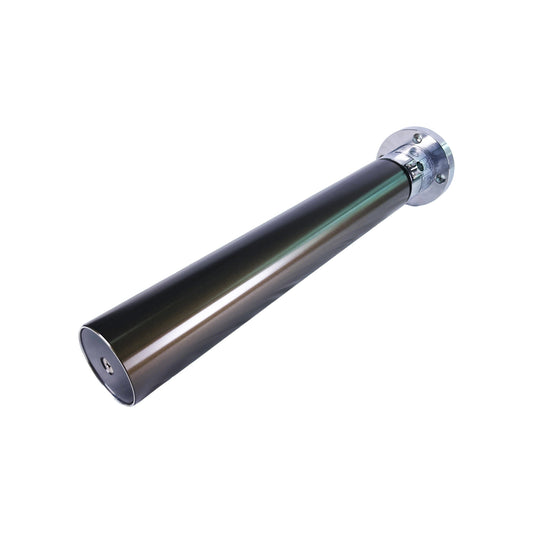

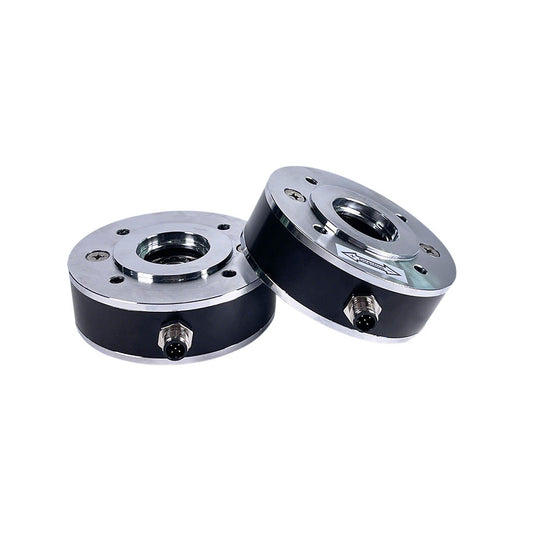

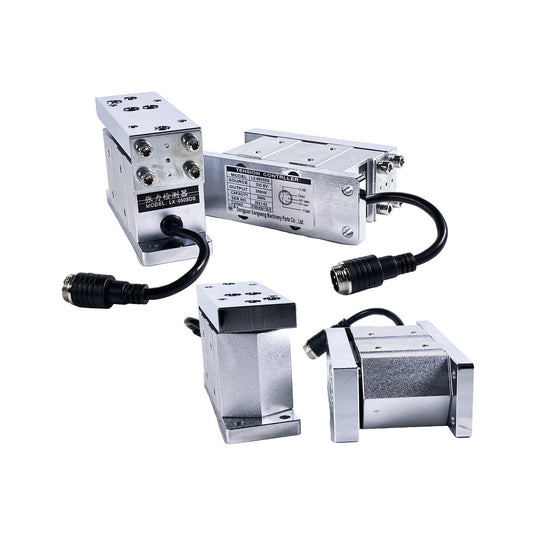

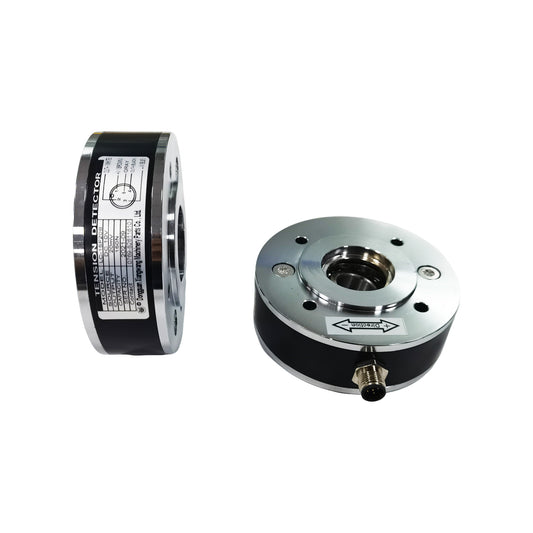

XW Machinery supplies through-shaft load cells, cantilever load cells, and pillow block tension detectors for real-time tension monitoring on light-duty and heavy-duty production lines.

What should I confirm before ordering?

Confirm key parameters including torque range, tension range, control method, and machine configuration before ordering a tension control system.
