XWDGM Web Guide Actuator for Automatic Web Alignment & EPC Guiding Systems

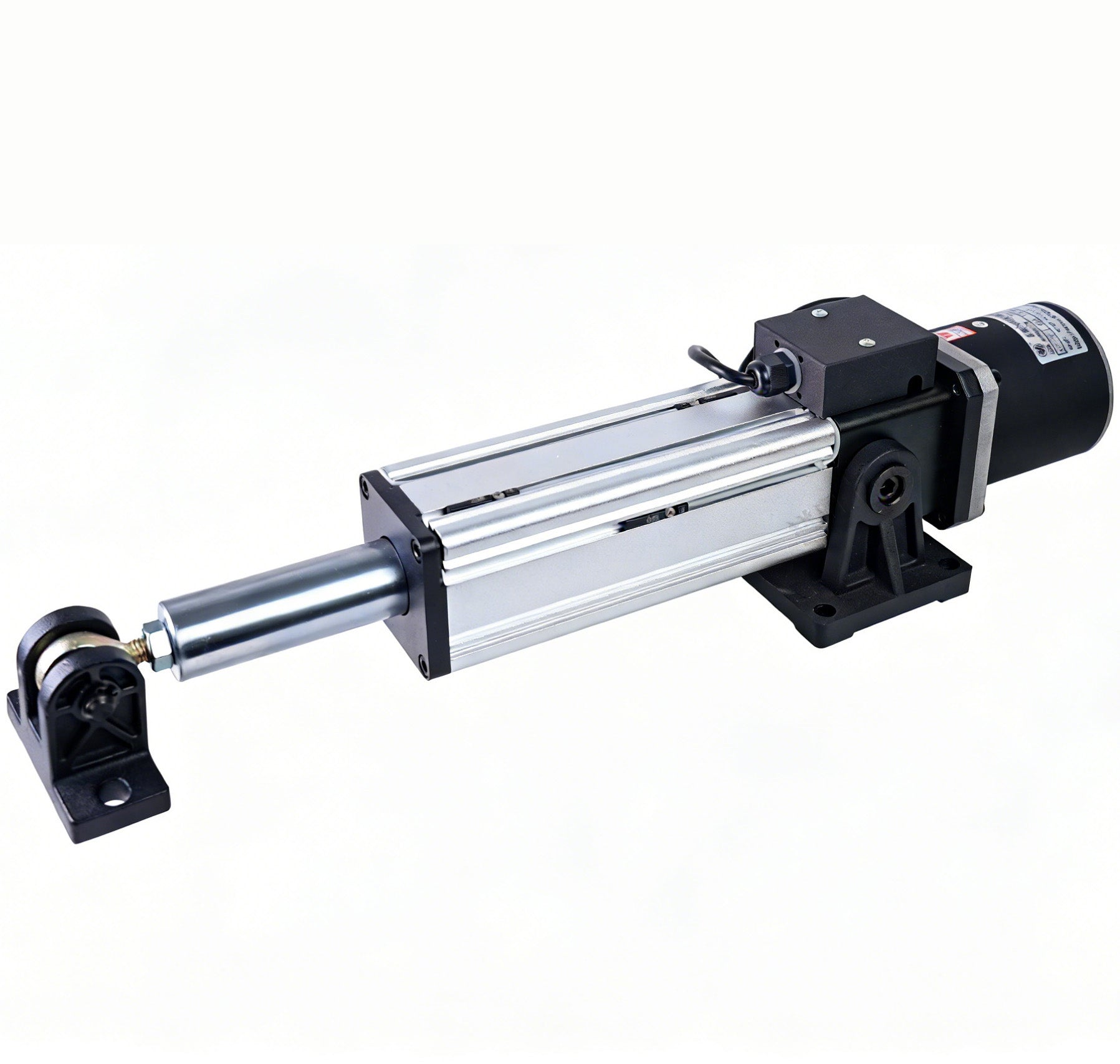

XWDGM Web Guide Actuator

The XWDGM Web Guide Actuator is a high-precision linear positioning device designed for automatic web guiding and web alignment control systems. As the core execution component of an EPC (Edge Position Control) system, the actuator receives correction signals from the Web Guide Controller and precisely adjusts the guide frame position to maintain accurate web tracking throughout production.

Engineered for high-speed roll-to-roll processing applications, the XWDGM Web Guide Actuator delivers fast response, precise positioning, smooth motion control, and long-term operational reliability. It is widely used in slitting machines, rewinding machines, printing presses, coating lines, laminating equipment, flexible packaging machinery, paper converting systems, textile processing equipment, nonwoven production lines, and lithium battery manufacturing plants.

When integrated with a Web Guide Sensor and Web Guide Controller, the actuator automatically corrects material deviation, ensuring stable web alignment, reduced material waste, improved product quality, and increased production efficiency.

Precision Motion Control for Automatic Web Guiding Systems

Modern converting equipment requires continuous web alignment to maintain product quality and production stability.

The XWDGM Web Guide Actuator helps eliminate:

• Web wandering
• Edge deviation
• Material tracking errors
• Wrinkles and folds
• Registration defects
• Uneven winding
• Production downtime
• Material waste

By providing precise lateral positioning control, the actuator ensures accurate material alignment even during high-speed operation.

Key Features

High-Precision Positioning

Provides accurate guide frame movement for precise web alignment control.

Fast Dynamic Response

Quickly reacts to correction commands from the EPC controller.

Smooth Linear Motion

Ensures stable correction without vibration or sudden movement.

High Thrust Output

Delivers sufficient force for heavy-duty industrial guiding applications.

Long Stroke Options

Available in multiple travel lengths to suit different machine designs.

Industrial-Grade Construction

Designed for continuous operation in demanding production environments.

Low Maintenance Design

Reliable mechanical structure minimizes maintenance requirements.

Easy System Integration

Compatible with most EPC web guiding systems and industrial automation equipment.

Advantages of XWDGM Web Guide Actuators

Improve Web Alignment Accuracy

Provides precise correction for stable material tracking.

Increase Production Efficiency

Reduces manual adjustments and machine downtime.

Reduce Material Waste

Minimizes scrap caused by edge wandering and misalignment.

Enhance Product Quality

Improves registration accuracy, winding quality, and processing consistency.

Support High-Speed Production

Maintains stable correction performance at elevated line speeds.

Long Operational Life

Built with high-quality components for extended service life.

How Does a Web Guide Actuator Work?

The web guide actuator functions as the execution component within a closed-loop EPC system.

Working Principle

1. The Web Guide Sensor continuously monitors web position.
2. Position data is transmitted to the Web Guide Controller.
3. The controller calculates alignment corrections.
4. Correction signals are sent to the actuator.
5. The actuator moves the guide frame laterally.
6. Web position is automatically corrected.
7. Continuous feedback maintains precise web tracking.

This closed-loop process ensures stable web alignment throughout production.

Typical Applications

Slitting Machines

Maintain accurate web tracking during high-speed slitting operations.

Rewinding Machines

Improve winding quality and roll consistency.

Printing Presses

Ensure precise print registration and color alignment.

Coating Lines

Maintain substrate positioning for uniform coating applications.

Laminating Equipment

Provide accurate layer alignment during lamination processes.

Flexible Packaging Machinery

Reduce material waste and improve packaging quality.

Lithium Battery Production Lines

Suitable for electrode coating, separator processing, copper foil handling, and aluminum foil production.

Textile Processing Equipment

Maintain accurate fabric edge tracking and alignment.

Paper Converting Machinery

Improve web stability during paper processing operations.

Technical Advantages

High Positioning Accuracy

Ensures precise web correction and stable material transport.

Rapid Correction Capability

Responds instantly to web deviation signals.

Stable Motion Control

Smooth actuator movement improves overall guiding performance.

Heavy-Duty Industrial Design

Supports demanding continuous-production environments.

Excellent Reliability

Designed for 24/7 industrial operation.

Automation System Compatibility

Integrates easily with PLCs, EPC controllers, and industrial control systems.

Compatible System Components

The XWDGM Web Guide Actuator works seamlessly with:

• Web Guide Sensor
• Web Guide Controller
• EPC Web Guiding System
• CCD Sensor
• Ultrasonic Sensor
• Tension Control System
• Automatic Tension Controller
• Through-Shaft Tension Detector
• Magnetic Particle Brake
• Magnetic Particle Clutch
• Air Expanding Shaft
• Differential Shaft
• Slitting Machine Solutions

Together, these components create a complete web handling, tension control, and web alignment solution for industrial automation systems.

Suitable Industries

Flexible Packaging

Maintain precise film tracking during packaging production.

Printing & Packaging

Improve registration accuracy and material alignment.

Lithium Battery Manufacturing

Support high-precision roll-to-roll processing.

Paper Converting

Ensure stable web guiding throughout production.

Textile & Nonwoven Production

Improve fabric tracking and winding consistency.

Film Processing

Maintain accurate alignment of plastic films and specialty materials.

Electronics Materials Processing

Suitable for copper foil, aluminum foil, and advanced material manufacturing.

Why Choose XWDGM?

ISO9001 Certified Manufacturing

Strict quality management ensures reliable industrial performance.

Advanced Motion Control Technology

High-precision positioning for demanding EPC applications.

OEM & Custom Solutions

Customized thrust force, travel length, installation dimensions, and communication interfaces available.

Professional Technical Support

Engineering assistance for system selection, installation, and commissioning.

Global Export Experience

Trusted by manufacturers in printing, packaging, battery production, converting, and automation industries worldwide.

Fast Worldwide Delivery

Reliable logistics and responsive after-sales support.

Whether you need a precision actuator for a slitting machine, a high-speed printing press, or a lithium battery production line, the XWDGM Web Guide Actuator delivers exceptional positioning accuracy, fast response, and long-term industrial reliability.
