XWDGM Ultra-Thin Magnetic Particle Brake for Compact Web Tension Control Systems

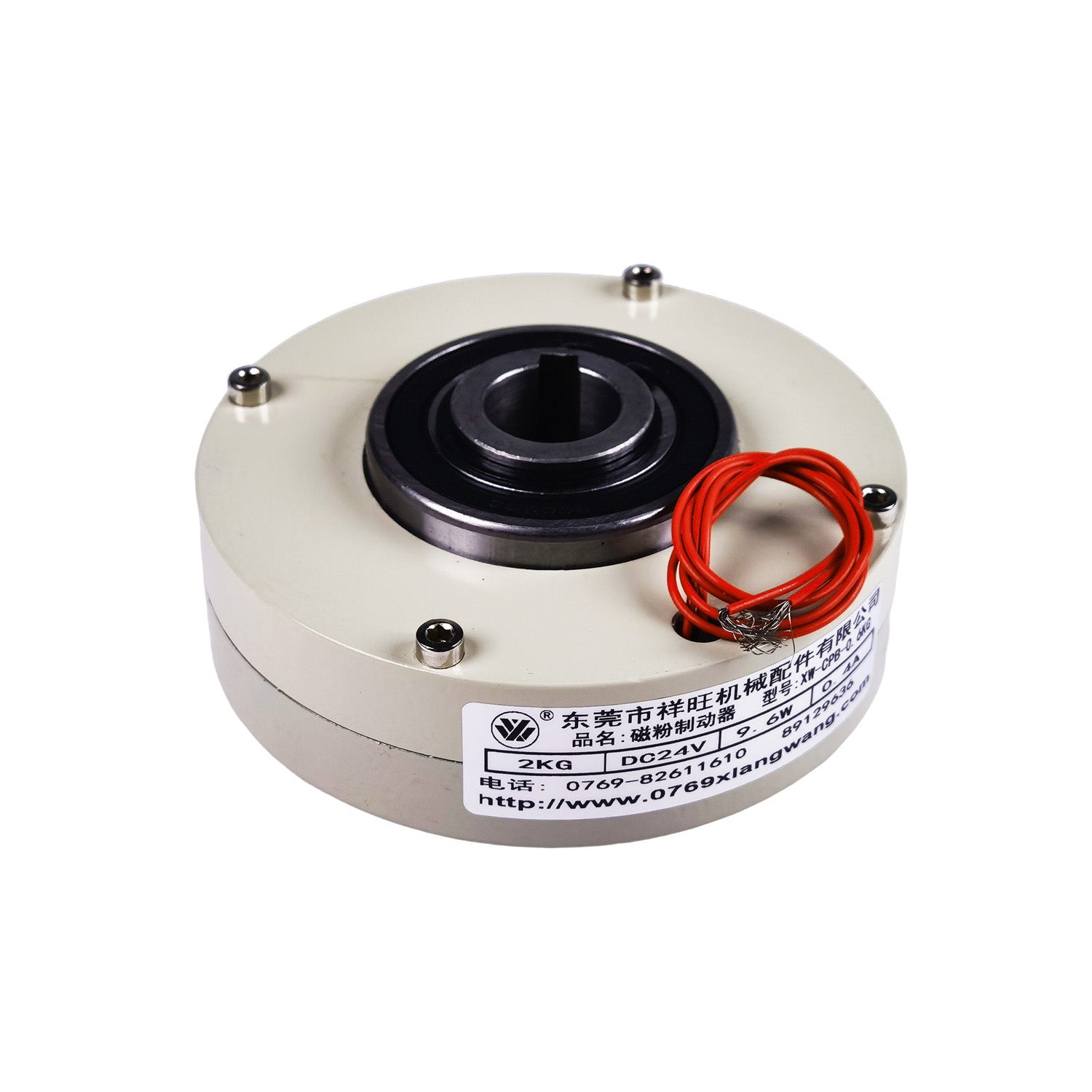

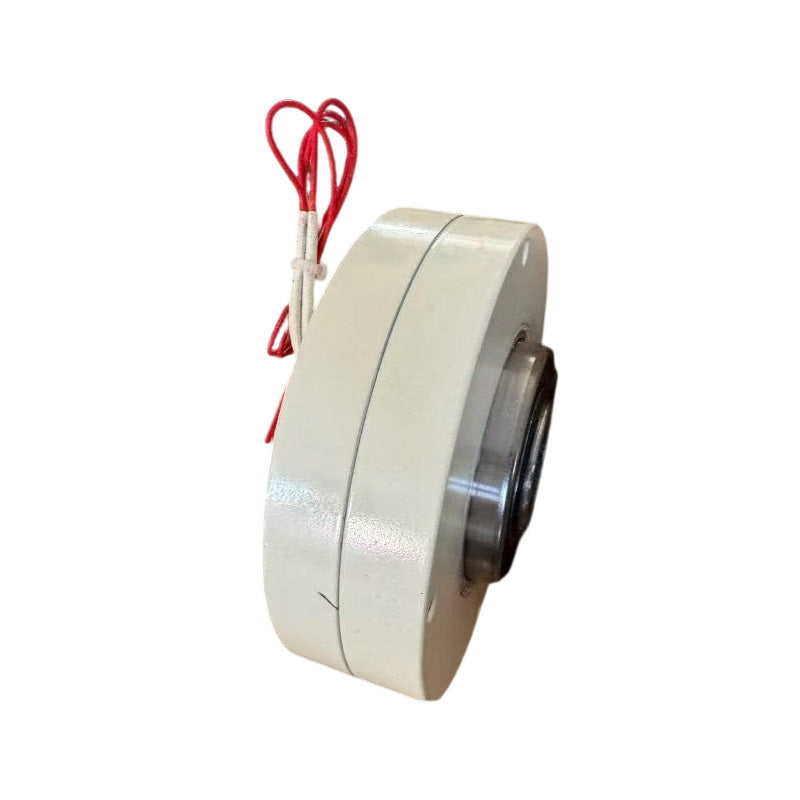

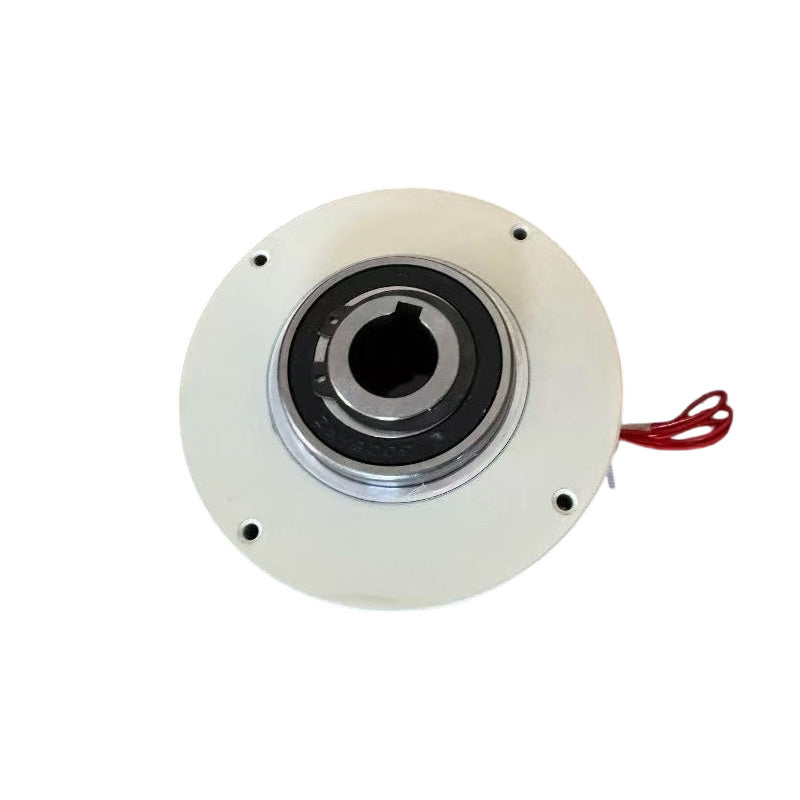

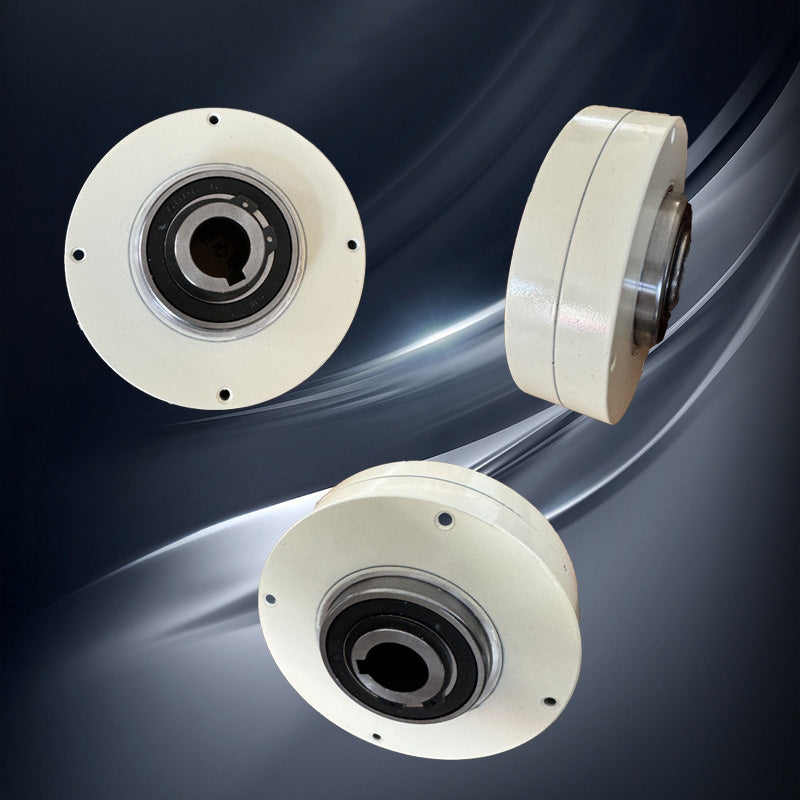

XWDGM Ultra-Thin Magnetic Particle Brake

The XWDGM Ultra-Thin Magnetic Particle Brake is a compact, high-performance torque control solution designed for modern web handling and tension control applications where installation space is limited. Featuring an ultra-slim profile, precise torque regulation, and fast electromagnetic response, this industrial magnetic particle brake provides stable web tension and reliable braking performance for high-speed production environments.

Engineered for slitting machines, rewinding machines, printing presses, coating lines, laminating systems, flexible packaging equipment, film converting machinery, and compact automation systems, the XWDGM Ultra-Thin Magnetic Particle Brake helps manufacturers improve product quality, reduce material waste, and maximize production efficiency.

Using advanced electromagnetic technology and premium magnetic particles, the brake delivers smooth and adjustable braking torque that remains proportional to excitation current. This ensures highly accurate tension control throughout winding and unwinding operations.

For complete web handling solutions, the brake can be integrated with a

 [Magnetic Particle Clutch], [Tension Controller], and [EPC Web Guide System] to create a fully automated closed-loop tension control system.

The brake is also commonly used with a [Hollow Shaft Magnetic Brake], [External Rotation Clutch], and [Air Shaft] in high-speed roll-to-roll processing equipment.

Why Ultra-Thin Design Matters

Modern converting and printing equipment increasingly requires compact components that deliver high performance without occupying valuable installation space.

The XWDGM Ultra-Thin Magnetic Particle Brake offers:

• Space-saving installation
• Compact machine integration
• Reduced equipment footprint
• Improved design flexibility
• Easy integration into modular systems
• Optimized layout for automation equipment
• Suitable for high-density machine configurations
• Ideal for modern compact production lines

Its slim structure makes it particularly valuable for OEM equipment manufacturers seeking efficient machine layouts and enhanced system performance.

Key Features

Ultra-Thin Compact Structure

Specially designed for machines with limited installation space while maintaining excellent torque performance.

Precision Torque Control

Provides highly accurate and repeatable braking torque for demanding tension control applications.

Stable Web Tension Regulation

Maintains consistent material tension during winding, unwinding, and converting processes.

Fast Electromagnetic Response

Rapid torque adjustment improves control accuracy and production stability.

Smooth Continuous Operation

Supports long-term continuous slip applications without compromising braking performance.

Low Vibration and Low Noise

Improves machine reliability and finished product quality.

Easy System Integration

Compatible with modern tension control systems and automated production equipment.

Long Service Life

Premium magnetic particle technology ensures durability and low maintenance requirements.

Technical Advantages

High Torque Accuracy

Delivers stable and repeatable braking force across varying production conditions.

Compact Space-Saving Design

Ideal for compact machinery, modular production lines, and automation equipment.

Excellent Heat Dissipation

Optimized structure supports continuous operation and stable torque output.

Stable Low-Speed Performance

Provides reliable braking force even during low-speed operation.

Continuous Slip Capability

Designed for demanding industrial applications requiring continuous tension regulation.

Automation Ready

Compatible with PLC-controlled systems, automatic tension controllers, and intelligent production equipment.

How Does an Ultra-Thin Magnetic Particle Brake Work?

The brake operates using electromagnetic particle transmission technology.

Working Principle

1. DC current energizes the electromagnetic coil.
2. Magnetic particles become magnetized.
3. Magnetic particle chains form inside the brake chamber.
4. Adjustable braking torque is generated.
5. Torque output changes proportionally to excitation current.
6. Stable web tension is maintained throughout the production process.

This technology enables highly responsive and precise tension control in modern roll-to-roll manufacturing systems.

Typical Applications

Slitting Machines

Controls unwinding tension and improves slitting accuracy while reducing material deformation.

Rewinding Machines

Maintains uniform roll hardness and consistent winding quality.

Printing Equipment

Provides stable web tension for flexographic, gravure, offset, UV, and digital printing systems.

Coating Machines

Ensures accurate substrate tension for uniform coating quality.

Laminating Systems

Maintains tension stability during film and substrate lamination processes.

Flexible Packaging Production

Supports high-speed packaging material processing and roll handling.

Film Converting Equipment

Suitable for BOPP film, PET film, CPP film, optical film, release film, and specialty industrial films.

Compact Automation Equipment

Ideal for space-constrained industrial machinery and modular production systems.

Suitable Materials

The XWDGM Ultra-Thin Magnetic Particle Brake is widely used for processing:

• Plastic Film
• PET Film
• BOPP Film
• CPP Film
• Paper
• Aluminum Foil
• Copper Foil
• Nonwoven Fabric
• Adhesive Labels
• Pressure-Sensitive Tapes
• Flexible Packaging Materials
• Battery Electrode Materials
• Wire and Cable Materials

Selection Guide

To choose the correct Ultra-Thin Magnetic Particle Brake, consider:

• Material type
• Material thickness
• Web width
• Required tension level
• Roll diameter variation
• Machine speed
• Continuous or intermittent operation
• Installation space limitations
• Cooling requirements
• Safety factor requirements

Proper model selection helps maximize tension control accuracy and production efficiency.

Why Choose XWDGM?

ISO9001 Certified Manufacturing

Strict quality management ensures consistent product performance.

Premium Magnetic Particle Technology

Stable torque output and extended service life.

OEM & Custom Manufacturing

Customized torque capacities, installation dimensions, voltage specifications, and mounting structures available.

Fast Technical Support

Professional engineering assistance and application guidance.

Global Export Experience

Trusted by customers in printing, packaging, converting, automation, and battery manufacturing industries worldwide.

Worldwide Delivery

Reliable logistics and international shipping support.

Whether you need a compact tension control solution for a narrow-web printing machine or a high-performance brake for a modern converting line, the XWDGM Ultra-Thin Magnetic Particle Brake delivers precision, durability, and exceptional space-saving performance.
