How to Check Magnetic Particle Clutch/Brake Faults & When to Replace Magnetic Powder

  Magnetic particle clutches and brakes are core components in industrial transmission systems, valued for precise torque control, smooth operation, and rapid response. However, long-term use leads to wear and tear. Mastering fault diagnosis and knowing when to replace magnetic powder is critical to avoiding production downtime and maintaining stable equipment performance.

Below is a practical, easy-to-follow guide.

Common Failure Symptoms of Magnetic Particle Clutch/Brake

Before formal inspection, watch for these obvious abnormal signs—they are early warnings of potential faults:

· Abnormal Noise: Unusual buzzing, grinding, or rattling during operation (distinct from normal electrical hum).

· Unstable Torque: Torque fluctuates erratically, or the device cannot maintain the set torque value.

· Excessive Overheating: The housing overheats severely even under normal load conditions.

· Slow Response: Delayed engagement or disengagement when power is switched on/off.

· Load Slippage: The magnetic powder clutch / brake slips under load, causing speed drops or reduced system efficiency.

Step-by-Step Fault Inspection Method

Follow these systematic steps to accurately confirm whether the magnetic ppowder clutch and brake is faulty:

1. Visual Safety Inspection

First, cut off all power to the equipment to ensure safety. Check the following:

· Housing: Cracks, rust, oil leaks, or deformation.

· Electrical System: Loose wiring, damaged connectors, or burnt cable insulation.

· Magnetic Powder Seal: Visible powder leakage (indicates broken seals).

2. Electrical Performance Test

Use a multimeter to measure coil resistance (refer to the manufacturer’s manual for standard resistance ranges):

· Open Circuit: Infinite resistance → Coil broken (faulty).

· Short Circuit: Zero/ultra-low resistance → Coil short-circuited (faulty).

· Normal Reading: Resistance within the specified range → Coil electrically sound.

3. No-Load/Light-Load Operational Test

Restore power (operate under no-load or light-load conditions only):

· Listen for abnormal noise and verify smooth engagement/disengagement.

· Use a torque meter to monitor output torque—unstable readings signal internal issues.

· Check housing temperature after 10–15 minutes of operation; persistent overheating indicates wear.

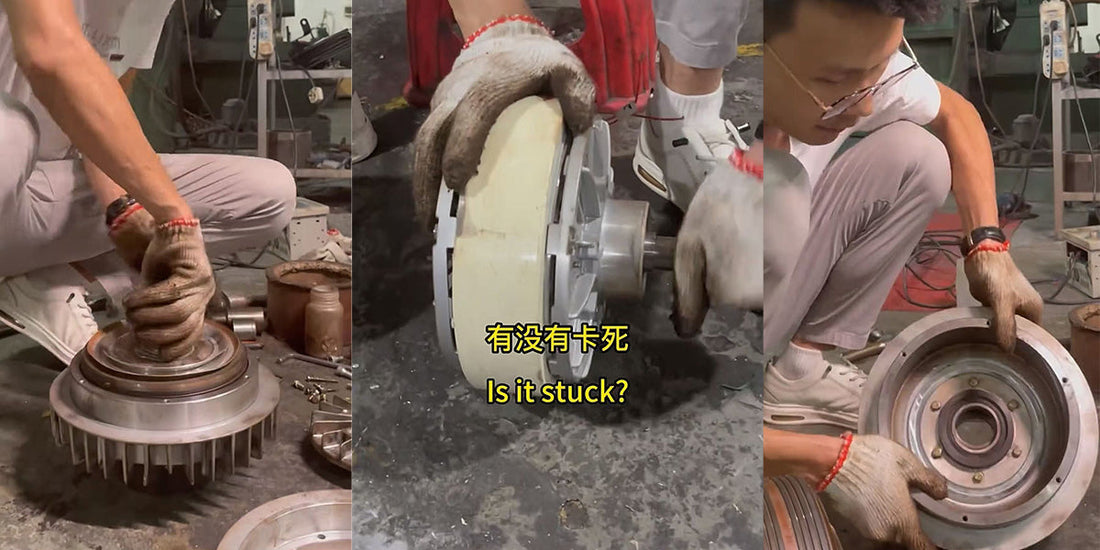

4. Magnetic Powder Condition Check

Magnetic powder is the key working medium. Degraded powder directly causes performance failure:

· Over time, powder cakes, oxidizes, or becomes contaminated with oil/dust.

· Worn powder loses magnetic properties, leading to reduced torque and slippage.

For a clear visual demonstration, refer to:How to Check Magnetic Particle Clutch/Brake Faults

When to Replace Magnetic Powder

Magnetic powder replacement is routine maintenance—do not wait for complete failure. Replace powder immediately if you observe:

1. Persistent Slippage: Torque drops by over 20% of the rated value (even after voltage adjustment).

2. Severe Degradation: Powder is caked, blackened, or heavily contaminated.

3. Frequent Overheating: Regular overheating under normal operating conditions.

4. Service Life Expiry: Powder in use for 6–12 months (replace earlier for heavy-duty applications).

Quick Guide: How to Replace Magnetic Powder

Follow these steps for safe and correct powder replacement:

1. Disassemble the clutch/brake housing and fully remove old degraded magnetic powder.

2. Thoroughly clean the internal cavity with a dry cloth to eliminate dust/residue.

3. Add new manufacturer-recommended magnetic powder (strictly follow dosage specs).

4. Reassemble the housing and perform a no-load test to confirm smooth operation.

For a detailed step-by-step tutorial, watch:How to Replace Magnetic Powder

Final Summary

Regular inspections and timely magnetic powder replacement significantly extend the service life of magnetic particle clutches and brakes. Never ignore minor abnormal signs—early maintenance avoids costly repairs and unexpected downtime.

For a concise fault-check overview, this short video is useful:How to Check for Magnetic Particle Clutch/Brake Failures
