XWDGM Hollow Shaft Magnetic Particle Brake for Precision Web Tension Control

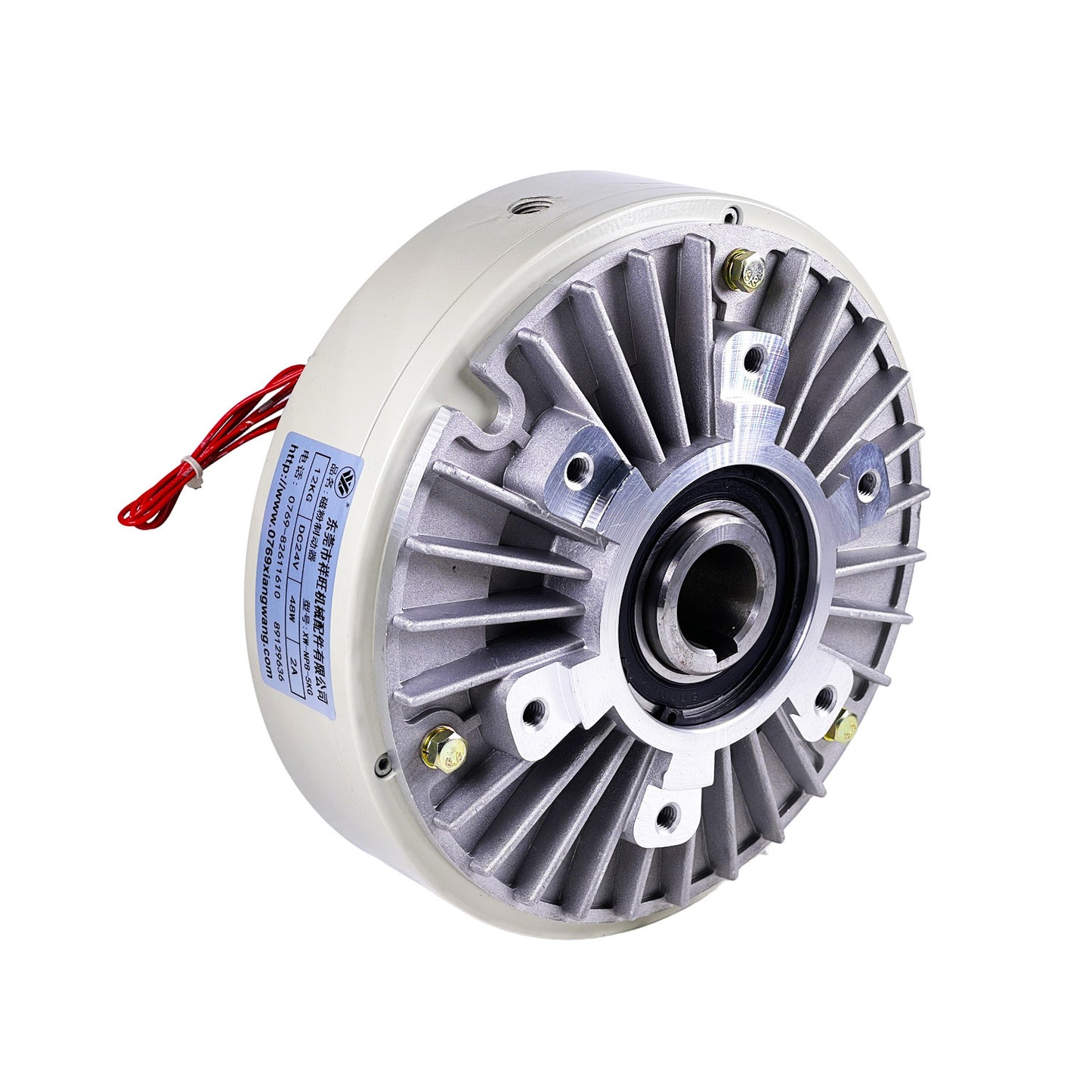

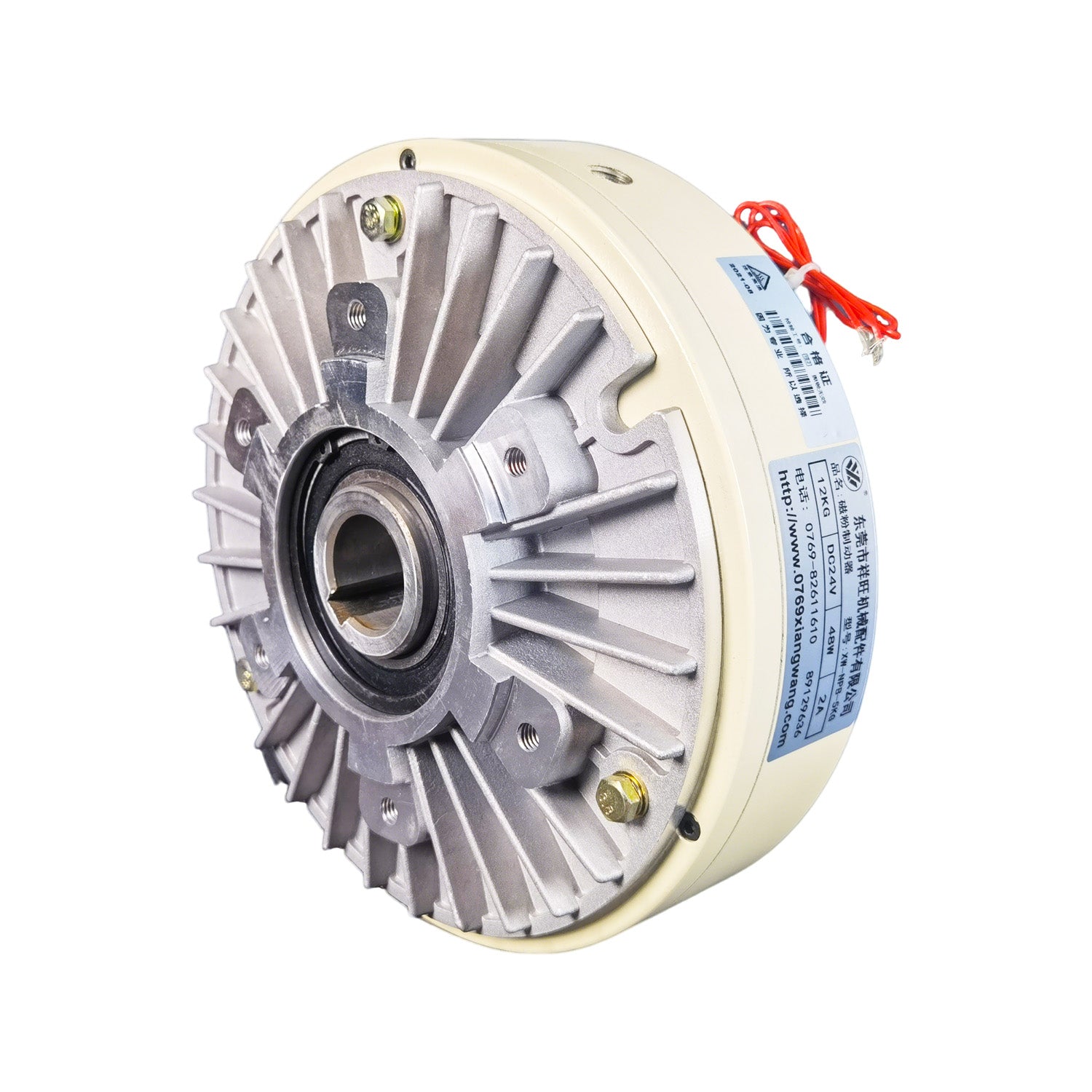

XWDGM Hollow Shaft Magnetic Particle Brake

The XWDGM Hollow Shaft Magnetic Particle Brake is a high-precision torque control solution engineered for demanding web handling and tension control applications. Designed with a compact hollow shaft structure, this industrial magnetic particle brake enables direct shaft installation while providing smooth, stable, and adjustable braking torque for continuous production environments.

Widely used in slitting machines, rewinding machines, printing presses, coating lines, laminating equipment, flexible packaging systems, paper converting machinery, textile processing equipment, and lithium battery manufacturing lines, the XWDGM Hollow Shaft Magnetic Particle Brake delivers reliable performance and precise web tension control throughout the production process.

Using premium magnetic particles and advanced electromagnetic technology, braking torque is directly proportional to excitation current, ensuring highly accurate torque regulation independent of slip speed. This makes it an ideal solution for modern roll-to-roll processing systems requiring stable tension and consistent product quality.

For complete tension management, this brake can be integrated with a

[Magnetic Particle Clutch] and a [Tension Control System] to form a fully automated closed-loop tension control solution.

In advanced [Web Tension Control] applications, it works seamlessly with a

[Differential Shaft], [Air Expanding Shaft], and complete [Slitting Machine Solutions] to improve winding quality, reduce material waste, and increase production efficiency.

Key Features

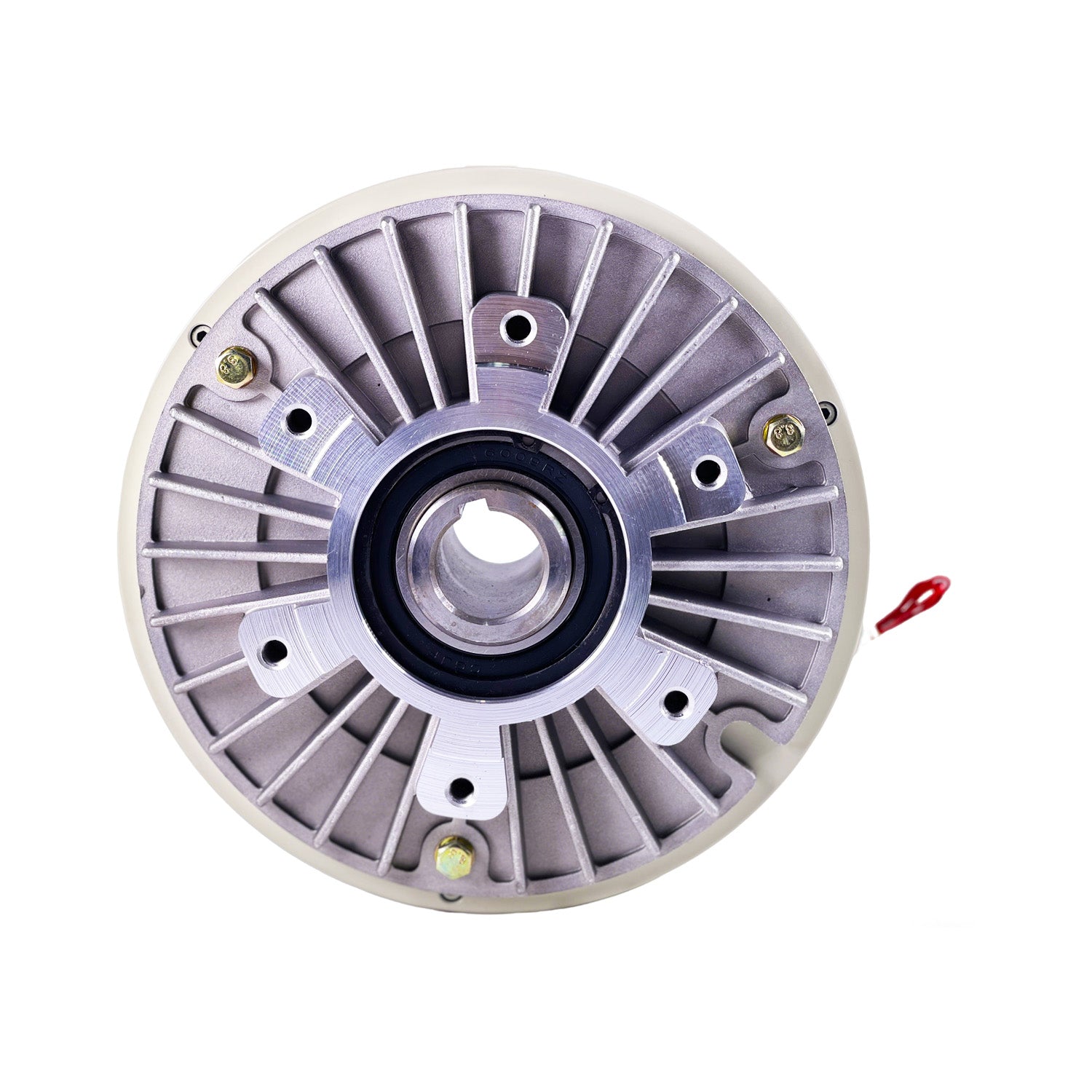

Hollow Shaft Design

The hollow shaft structure allows direct installation on machine shafts, reducing installation space while improving machine integration flexibility.

Precision Torque Control

Provides highly accurate and repeatable braking torque through adjustable excitation current.

Stable Web Tension Control

Maintains constant material tension during winding and unwinding operations, minimizing wrinkles, stretching, telescoping, and material waste.

Wide Torque Range

Available from 6Nm to 400Nm to accommodate various converting, printing, and packaging applications.

Fast Dynamic Response

Rapid torque adjustment improves tension stability during acceleration, deceleration, and speed changes.

Long Service Life

Premium magnetic particles and precision bearings ensure reliable long-term operation with minimal maintenance.

Low Noise & Low Vibration

Smooth torque transmission enhances machine reliability and finished product quality.

Excellent Heat Dissipation

Optimized housing design supports continuous-duty industrial operation and long-term slip applications.

Advantages of Hollow Shaft Magnetic Particle Brake

Compared with traditional braking systems, the XWDGM Hollow Shaft Magnetic Particle Brake offers several significant advantages:

• Direct shaft installation
• Compact machine integration
• Reduced transmission components
• Improved alignment accuracy
• Stable torque output
• Excellent low-speed performance
• Continuous slip capability
• Reduced maintenance requirements
• Longer operational lifespan
• Enhanced production stability

The hollow shaft design is particularly suitable for modern high-speed slitting and rewinding machinery where installation space is limited.

How Does a Hollow Shaft Magnetic Particle Brake Work?

The brake operates using electromagnetic particle transmission technology.

Working Principle

1. DC current energizes the electromagnetic coil.
2. Magnetic particles become magnetized inside the brake chamber.
3. Magnetic particle chains form between rotating components.
4. Adjustable braking torque is generated.
5. Torque output changes proportionally with excitation current.
6. Stable web tension is maintained throughout winding and unwinding operations.

Because braking torque remains independent of slip speed, the system provides exceptionally stable tension control for demanding industrial applications.

Typical Applications

Printing Industry

Used in flexographic printing machines, gravure presses, offset printing equipment, and label printing systems to maintain accurate web tension and improve registration quality.

Slitting & Rewinding Machines

Provides stable unwinding tension and ensures uniform roll hardness and superior winding quality.

Flexible Packaging Production

Controls film tension during unwinding and rewinding operations, reducing wrinkles and material deformation.

Paper & Film Converting

Suitable for coating, laminating, embossing, slitting, and converting processes requiring precise tension regulation.

Textile Machinery

Supports stable tension management for fabric winding, weaving, and finishing operations.

Lithium Battery Manufacturing

Widely used in electrode coating, separator winding, copper foil processing, aluminum foil processing, and high-precision roll-to-roll production lines.

Wire & Cable Processing

Ensures smooth tension control during wire drawing, winding, testing, and spooling applications.

Industry Benefits

Many customers report measurable production improvements after installing XWDGM Hollow Shaft Magnetic Particle Brakes:

• Reduced scrap rates
• Improved winding consistency
• Higher production speeds
• Reduced maintenance frequency
• Better roll quality
• Lower operating costs
• Increased machine efficiency

The brake is especially effective in high-speed web handling systems where stable tension directly impacts production quality.

Technical Advantages

High Torque Accuracy

Provides smooth and repeatable braking torque across the full operating range.

Stable Low-Speed Performance

Maintains precise braking force even during low-speed operation.

Continuous Slip Capability

Designed for demanding tension control applications requiring extended continuous slipping operation.

Compact Structure

Space-saving hollow shaft design simplifies machine integration.

Automatic Control Compatibility

Fully compatible with modern tension controllers and closed-loop automation systems.

Maintenance-Friendly Design

Reduced wear and simplified servicing lower overall ownership costs.

Industrial Reliability

Designed for continuous 24/7 operation in demanding manufacturing environments.

Selection Guide

When selecting a Hollow Shaft Magnetic Particle Brake, consider:

• Material type
• Material thickness
• Web width
• Required tension level
• Roll diameter
• Machine speed
• Continuous or intermittent operation
• Cooling requirements
• Installation dimensions
• Safety margin requirements

The XWDGM series covers torque capacities from 6Nm to 400Nm, providing solutions for applications ranging from narrow label materials to heavy-duty paper, foil, and battery electrode processing.

Why Choose XWDGM?

Premium Manufacturing Quality

Manufactured under ISO9001 quality management standards.

Stable Torque Performance

High-purity magnetic particle technology ensures consistent torque output.

OEM & Custom Manufacturing

Customized torque capacities, shaft dimensions, mounting structures, and voltage specifications available.

Fast Technical Support

Professional engineering assistance for product selection and system integration.

Global Export Experience

Trusted by customers in printing, packaging, converting, battery manufacturing, and industrial automation industries worldwide.

Worldwide Delivery

Reliable logistics and international shipping support.

Whether you require a compact brake for a narrow-web slitting machine or a heavy-duty solution for large-scale converting equipment, XWDGM Hollow Shaft Magnetic Particle Brakes deliver precise tension control, exceptional durability, and long-term operational reliability.
