XWDGM Web Guide Controller for Automatic Web Alignment & Edge Position Control

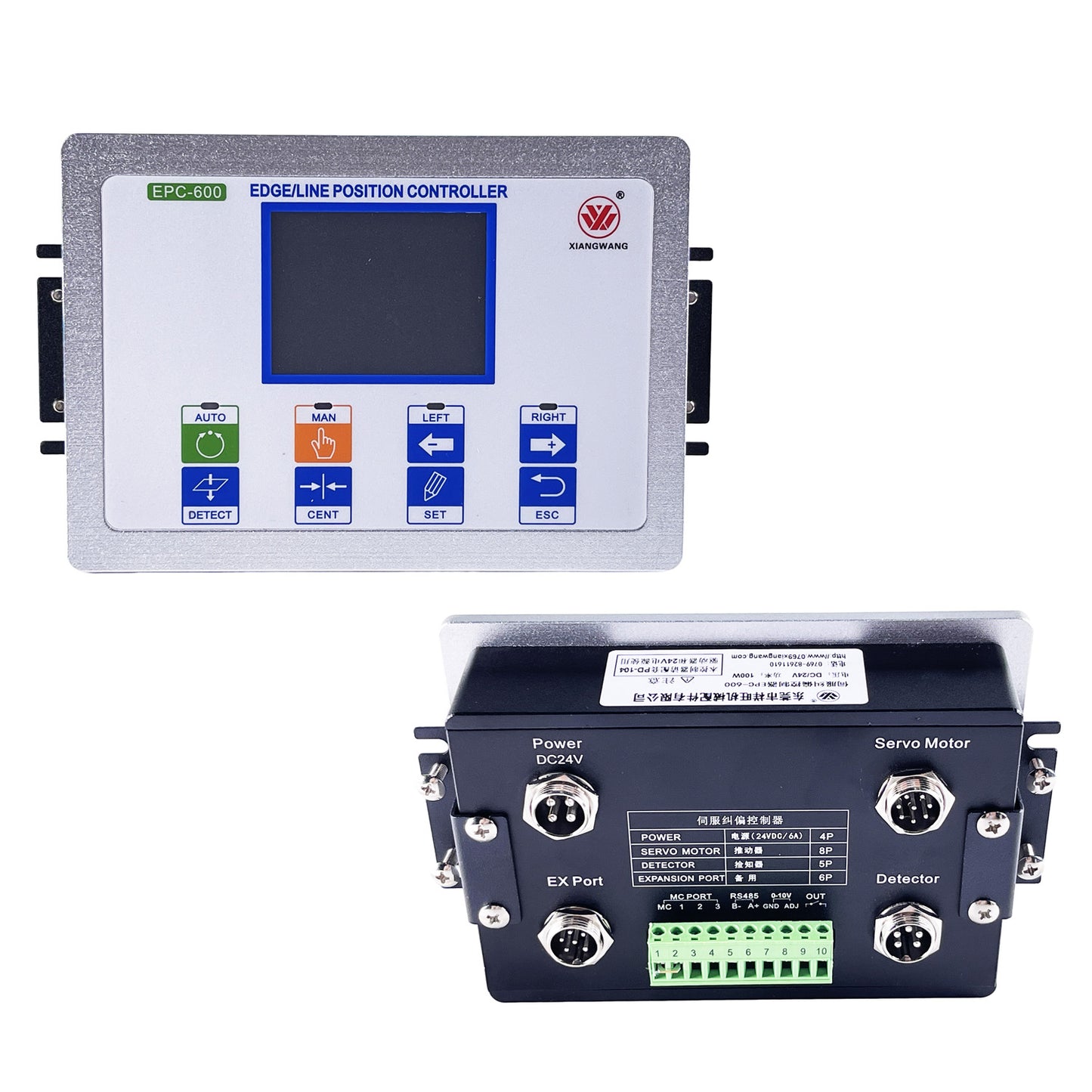

XWDGM Web Guide Controller

The XWDGM Web Guide Controller is a high-precision automatic web alignment controller designed for modern roll-to-roll processing applications. Engineered to work seamlessly with web guide sensors and linear actuators, this advanced controller continuously monitors web position and automatically corrects material deviation to ensure precise edge alignment throughout production.

Widely used in slitting machines, rewinding machines, printing presses, coating lines, laminating equipment, flexible packaging machinery, paper converting systems, textile production lines, and lithium battery manufacturing equipment, the XWDGM Web Guide Controller significantly improves product quality, production efficiency, and material utilization.

By combining intelligent control algorithms, high-speed signal processing, and industrial-grade reliability, the controller delivers stable web tracking performance even during high-speed operation and continuous production environments.

For complete web handling solutions, the controller integrates with a Web Guide Sensor, Linear Actuator, Tension Control System, Automatic Tension Controller, Through-Shaft Tension Detector, Magnetic Particle Brake, Magnetic Particle Clutch, Air Expanding Shaft, and Differential Shaft.

Precision Web Alignment for High-Speed Production

Accurate web positioning is critical in modern converting and manufacturing processes.

The XWDGM Web Guide Controller helps eliminate:

• Web wandering
• Edge misalignment
• Registration errors
• Material waste
• Wrinkles and folds
• Tracking instability
• Uneven winding
• Production downtime

By continuously correcting material position, the controller ensures smooth and consistent web transport from start to finish.

Key Features

High-Precision Web Alignment Control

Maintains accurate material positioning throughout the production process.

Intelligent Automatic Correction

Automatically compensates for web deviation and tracking errors in real time.

Fast Response Speed

Processes sensor signals instantly to maintain stable alignment during high-speed operation.

Multiple Control Modes

Supports edge guiding, center guiding, and line guiding applications.

User-Friendly Interface

Simple parameter configuration and intuitive operation improve production efficiency.

Stable Industrial Performance

Industrial-grade electronics ensure reliable long-term operation.

Strong Anti-Interference Capability

Designed for demanding industrial environments with high electrical noise resistance.

Flexible System Integration

Compatible with various sensors, actuators, and industrial automation systems.

Advantages of XWDGM Web Guide Controllers

Improve Product Quality

Accurate web tracking reduces defects and improves finished product consistency.

Reduce Material Waste

Minimizes scrap caused by web deviation and edge misalignment.

Increase Production Efficiency

Reduces manual adjustments and machine downtime.

Enhance Automation

Supports fully automated web handling systems and Industry 4.0 manufacturing.

Stable High-Speed Operation

Maintains precise web alignment even at elevated production speeds.

Long Service Life

Built for continuous industrial operation with minimal maintenance requirements.

How Does a Web Guide Controller Work?

The controller receives signals from a web guide sensor that continuously monitors material position.

Working Principle

1. The Web Guide Sensor detects web edge or center position.
2. Position data is transmitted to the controller.
3. The controller analyzes deviation from the target position.
4. Correction commands are generated automatically.
5. The Linear Actuator receives adjustment signals.
6. The guide frame moves to correct web alignment.
7. Stable web tracking is maintained in real time.

This closed-loop control system ensures precise material positioning throughout the entire production process.

Typical Applications

Slitting Machines

Maintain accurate web tracking during high-speed slitting operations.

Rewinding Machines

Improve roll quality and reduce winding defects.

Printing Presses

Enhance print registration accuracy and color alignment.

Laminating Equipment

Ensure precise material positioning during multilayer lamination.

Coating Lines

Maintain substrate alignment for uniform coating quality.

Flexible Packaging Machinery

Reduce waste and improve production consistency.

Lithium Battery Manufacturing

Suitable for electrode coating, separator processing, copper foil, and aluminum foil production lines.

Textile Processing Equipment

Maintain stable fabric tracking and alignment.

Paper Converting Machinery

Improve edge control and web stability during paper processing.

Supported Control Modes

Edge Position Control (EPC)

Tracks a single web edge and maintains a fixed edge position.

Center Position Control (CPC)

Maintains the web centerline regardless of material width variations.

Line Guiding Control

Tracks printed lines, marks, or registration references for precision processing.

Compatible System Components

The XWDGM Web Guide Controller can be integrated with:

• Web Guide Sensor
• EPC Sensor
• Ultrasonic Sensor
• CCD Sensor
• Linear Actuator
• Web Guiding System
• Tension Control System
• Automatic Tension Controller
• Through-Shaft Tension Detector
• Magnetic Particle Brake
• Magnetic Particle Clutch
• Air Expanding Shaft
• Differential Shaft
• Slitting Machine Solutions

Together, these components create a complete web guiding and tension control solution for industrial automation systems.

Suitable Industries

• Flexible Packaging
• Printing & Packaging
• Label Manufacturing
• Plastic Film Processing
• Paper Converting
• Textile Manufacturing
• Nonwoven Production
• Lithium Battery Manufacturing
• Electronics Material Processing
• Roll-to-Roll Processing
• Industrial Automation Equipment

Why Choose XWDGM?

ISO9001 Certified Manufacturing

Strict quality management ensures reliable performance and long-term stability.

Advanced Control Technology

High-speed processing and intelligent algorithms provide exceptional guiding accuracy.

OEM & Custom Solutions

Customized software functions, communication protocols, voltage options, and integration solutions available.

Professional Technical Support

Experienced engineers assist with system design, installation, and commissioning.

Global Export Experience

Trusted by manufacturers worldwide in printing, packaging, battery production, converting, and automation industries.

Worldwide Delivery

Fast delivery and responsive customer service.

Whether you need precise edge guiding for a slitting machine, accurate web alignment for a printing press, or intelligent tracking control for a lithium battery production line, the XWDGM Web Guide Controller delivers exceptional accuracy, stability, and industrial reliability.
