XWDGM Compact Web Guide System for Precision Web Alignment and Edge Position Control

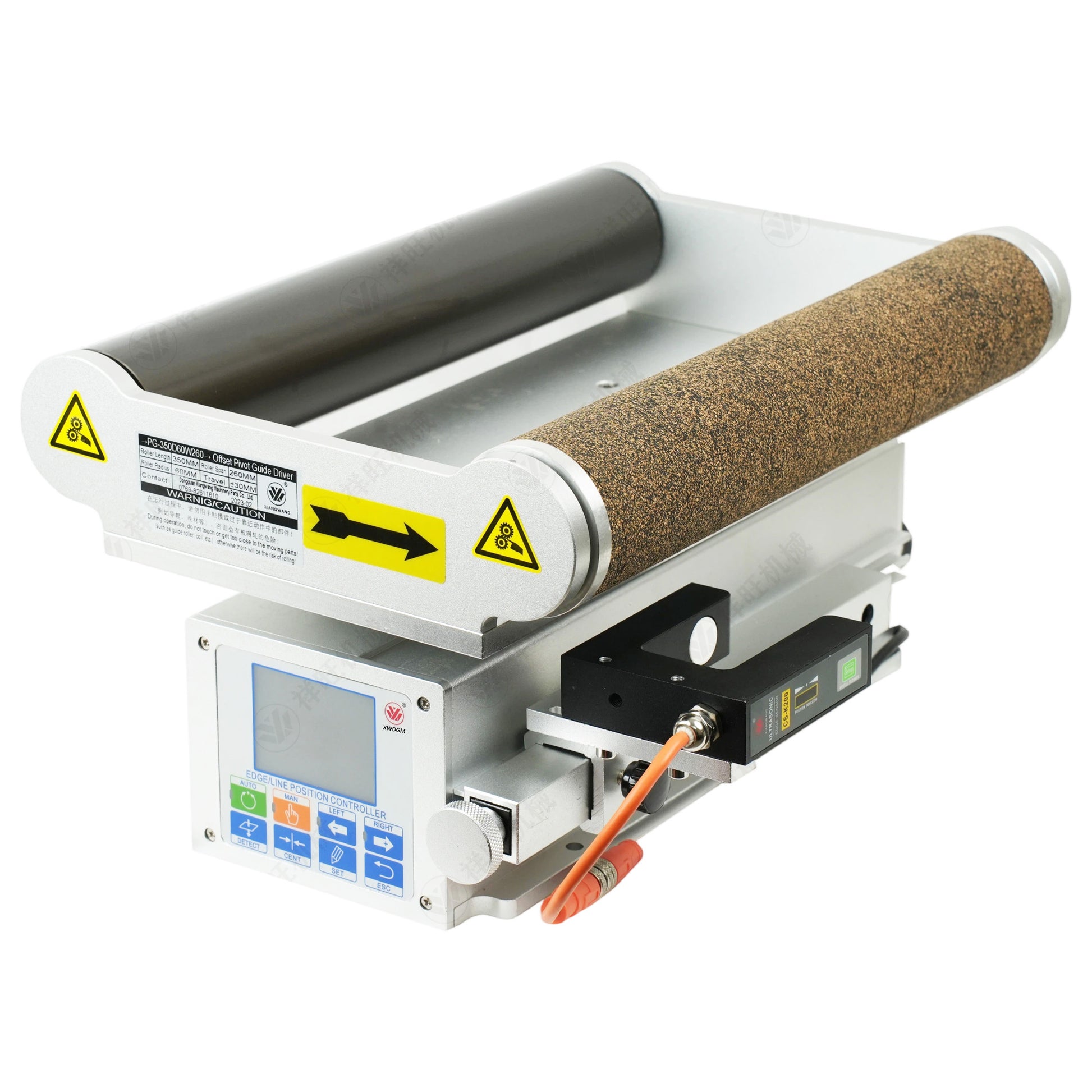

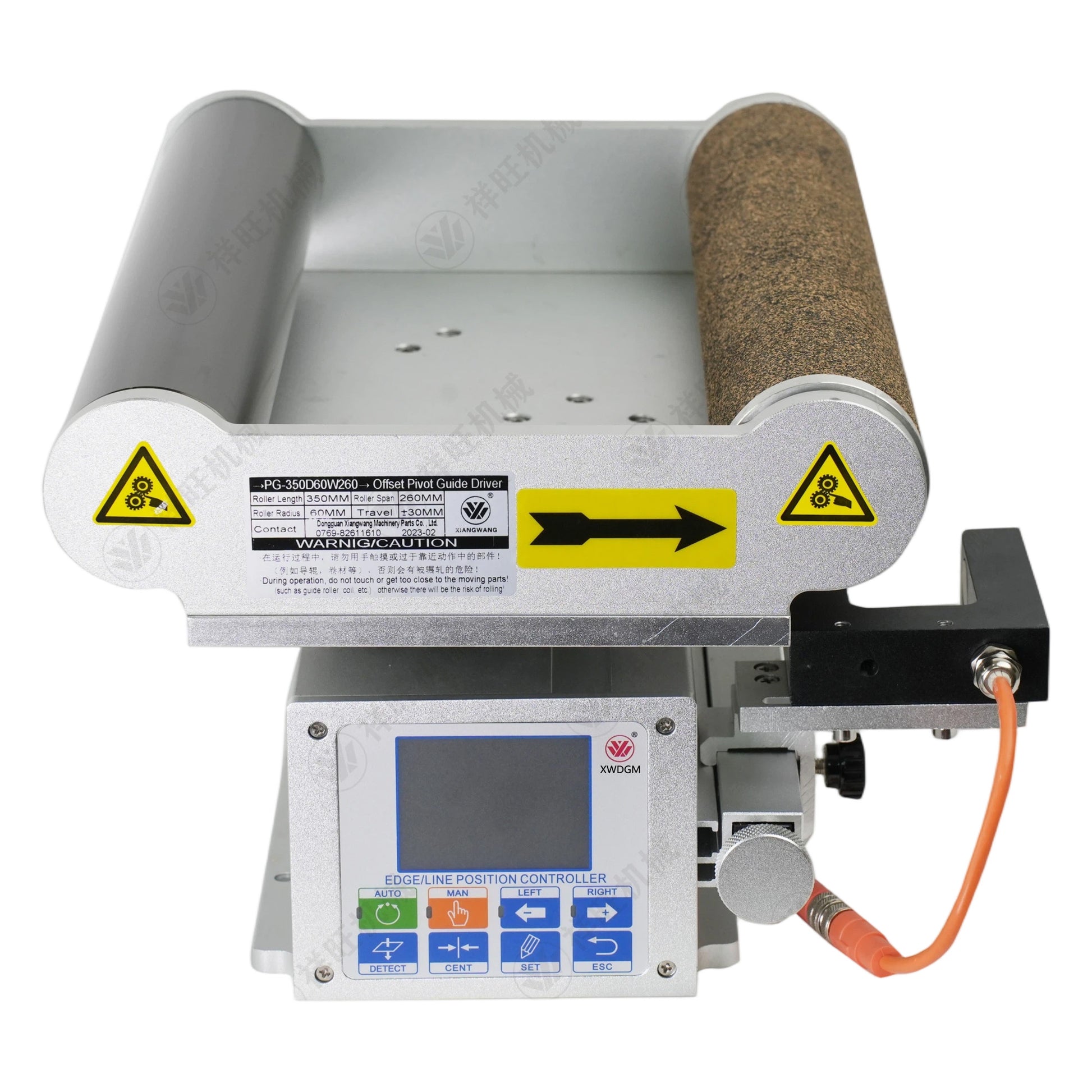

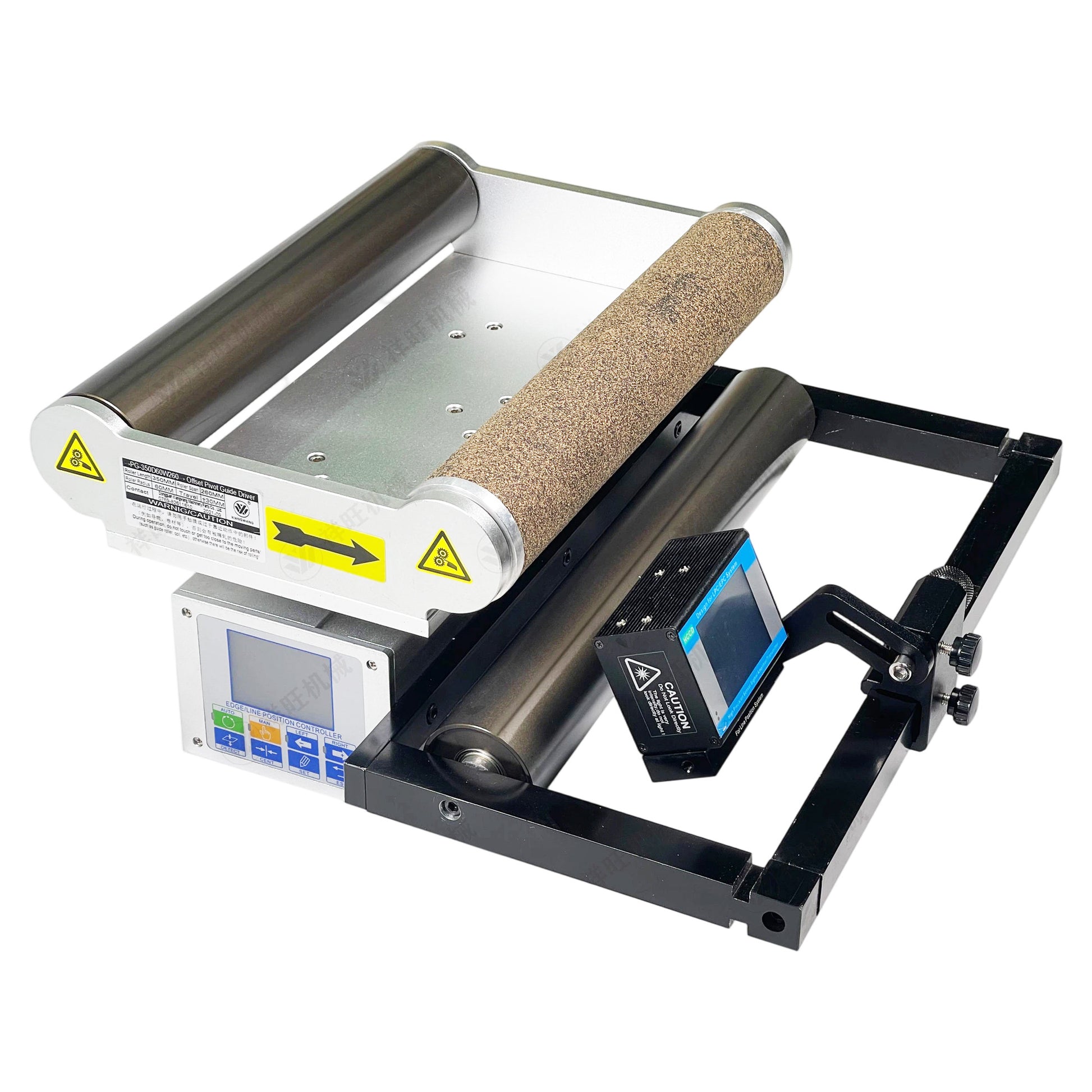

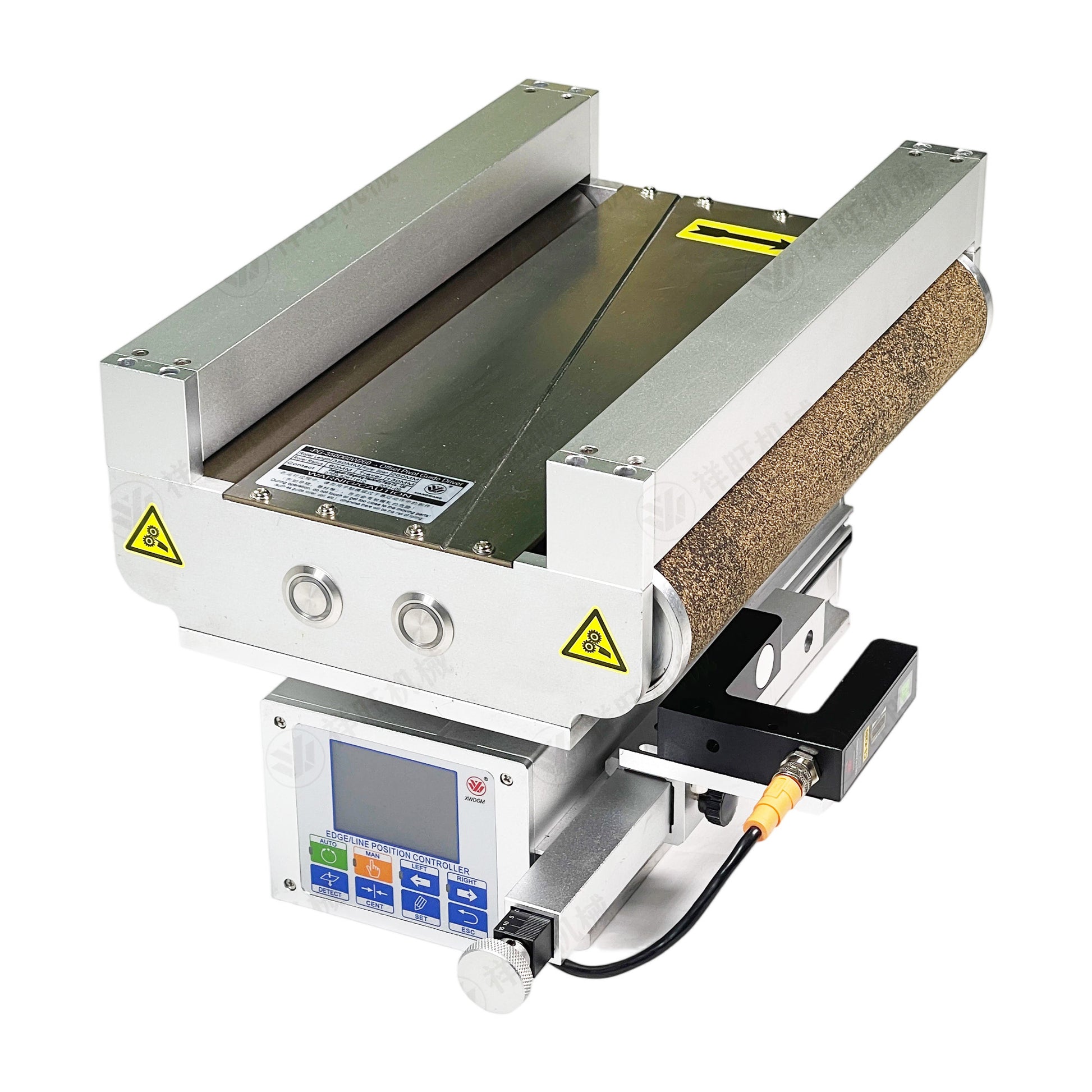

XWDGM Compact Web Guide System

The XWDGM Compact Web Guide System is a space-saving automatic web alignment solution designed for modern converting, printing, packaging, coating, laminating, slitting, rewinding, and lithium battery production lines. Combining a compact guide frame, intelligent control technology, precision sensing, and high-response actuation, this system delivers accurate web tracking while minimizing installation space.

Designed specifically for machines with limited mounting areas, the Compact Web Guide System provides reliable edge position control (EPC), center position control (CPC), and automatic web alignment functions. It continuously detects material deviation and automatically corrects web position, ensuring smooth operation, reduced waste, and consistent product quality.

For complete web handling solutions, the system can be integrated with our Web Guide Sensor, Web Guide Controller, Web Guide Actuator, Tension Control System, Through-Shaft Tension Detector, Magnetic Particle Brake, Magnetic Particle Clutch, Air Expanding Shaft, and Differential Shaft.

Why Choose a Compact Web Guide System?

Modern production lines increasingly require high-performance automation within limited machine space. The XWDGM Compact Web Guide offers:

• Reduced installation footprint
• Easier machine integration
• High guiding accuracy
• Fast correction response
• Improved production efficiency
• Reduced material waste
• Stable operation at high speed
• Simplified maintenance

The compact structure makes it particularly suitable for retrofit projects, small slitting machines, label converting equipment, narrow web processing lines, and compact automation systems.

Key Features

Compact Space-Saving Design

Engineered for installations where machine space is limited.

High-Precision Web Alignment

Maintains accurate material tracking throughout production.

Automatic Edge Position Control

Continuously corrects web deviation in real time.

Fast Dynamic Response

Rapid correction improves stability during high-speed operation.

Intelligent Closed-Loop Control

Provides accurate and continuous web positioning.

Strong Anti-Interference Capability

Stable performance in demanding industrial environments.

Flexible Installation

Suitable for new equipment and machine upgrades.

Industrial Reliability

Designed for continuous 24/7 production environments.

Advantages of XWDGM Compact Web Guide

Save Valuable Machine Space

Compact dimensions allow installation in confined production environments.

Improve Product Quality

Accurate web tracking minimizes registration errors and material defects.

Reduce Material Waste

Prevents edge wandering, wrinkles, and misalignment.

Increase Production Efficiency

Automatic correction reduces operator intervention.

Support High-Speed Processing

Maintains stable web alignment even during rapid production.

Easy Integration

Compatible with various industrial control systems and converting machinery.

How Does a Compact Web Guide Work?

The XWDGM Compact Web Guide System uses a closed-loop automatic correction process.

Working Principle

1. The Web Guide Sensor detects web edge or center position.
2. Position data is transmitted to the Web Guide Controller.
3. The controller calculates correction requirements.
4. Signals are sent to the Web Guide Actuator.
5. The actuator adjusts the guide frame position.
6. Web alignment is corrected automatically.
7. Continuous feedback maintains precise web tracking.

This process ensures stable alignment throughout the production cycle.

Typical Applications

Slitting Machines

Improve cutting accuracy and roll quality.

Rewinding Machines

Maintain consistent winding alignment.

Label Converting Equipment

Ensure accurate registration and tracking.

Printing Presses

Improve print registration accuracy.

Laminating Machines

Maintain proper material alignment during lamination.

Coating Lines

Ensure uniform substrate positioning.

Flexible Packaging Production

Reduce scrap and improve production consistency.

Lithium Battery Manufacturing

Suitable for electrode coating, separator processing, copper foil, and aluminum foil production lines.

Textile Processing Equipment

Maintain accurate fabric tracking.

Suitable Materials

The XWDGM Compact Web Guide System is suitable for:

• Plastic Film
• BOPP Film
• PET Film
• CPP Film
• PE Film
• Paper
• Aluminum Foil
• Copper Foil
• Nonwoven Fabric
• Textile Materials
• Battery Electrode Materials
• Adhesive Labels
• Release Liners
• Flexible Packaging Materials
• Specialty Web Materials

Compatible System Components

The Compact Web Guide System can be integrated with:

• [Web Guide Sensor]
• [Web Guide Controller]
• [Web Guide Actuator]
• [Web Guiding System]
• [Tension Control System]
• [Automatic Tension Controller]
• [Through-Shaft Tension Detector]
• [Magnetic Particle Brake]
• [Magnetic Particle Clutch]
• [Air Expanding Shaft]
• [Differential Shaft]
• [Slitting Machine Solutions]

Together, these components create a complete web handling and tension control solution.

Industries Served

• Printing & Packaging
• Flexible Packaging
• Label Manufacturing
• Film Converting
• Paper Converting
• Textile Processing
• Nonwoven Production
• Lithium Battery Manufacturing
• Electronics Materials Processing
• Roll-to-Roll Manufacturing
• Industrial Automation Equipment

Why Choose XWDGM?

ISO9001 Certified Manufacturing

Strict quality control ensures long-term reliability and performance.

Complete EPC Solution Provider

One-stop source for sensors, controllers, actuators, and complete web guiding systems.

OEM & ODM Support

Customized dimensions, travel ranges, control modes, and integration solutions available.

Professional Engineering Support

Technical assistance for selection, installation, commissioning, and troubleshooting.

Global Export Experience

Trusted by manufacturers in printing, packaging, battery production, converting, and automation industries worldwide.

Fast Worldwide Delivery

Responsive support and reliable logistics services.

Whether you need a compact web alignment system for a narrow web slitting machine, a label rewinder, a printing press, or a lithium battery production line, the XWDGM Compact Web Guide System delivers exceptional guiding accuracy, space-saving installation, and reliable industrial performance.
