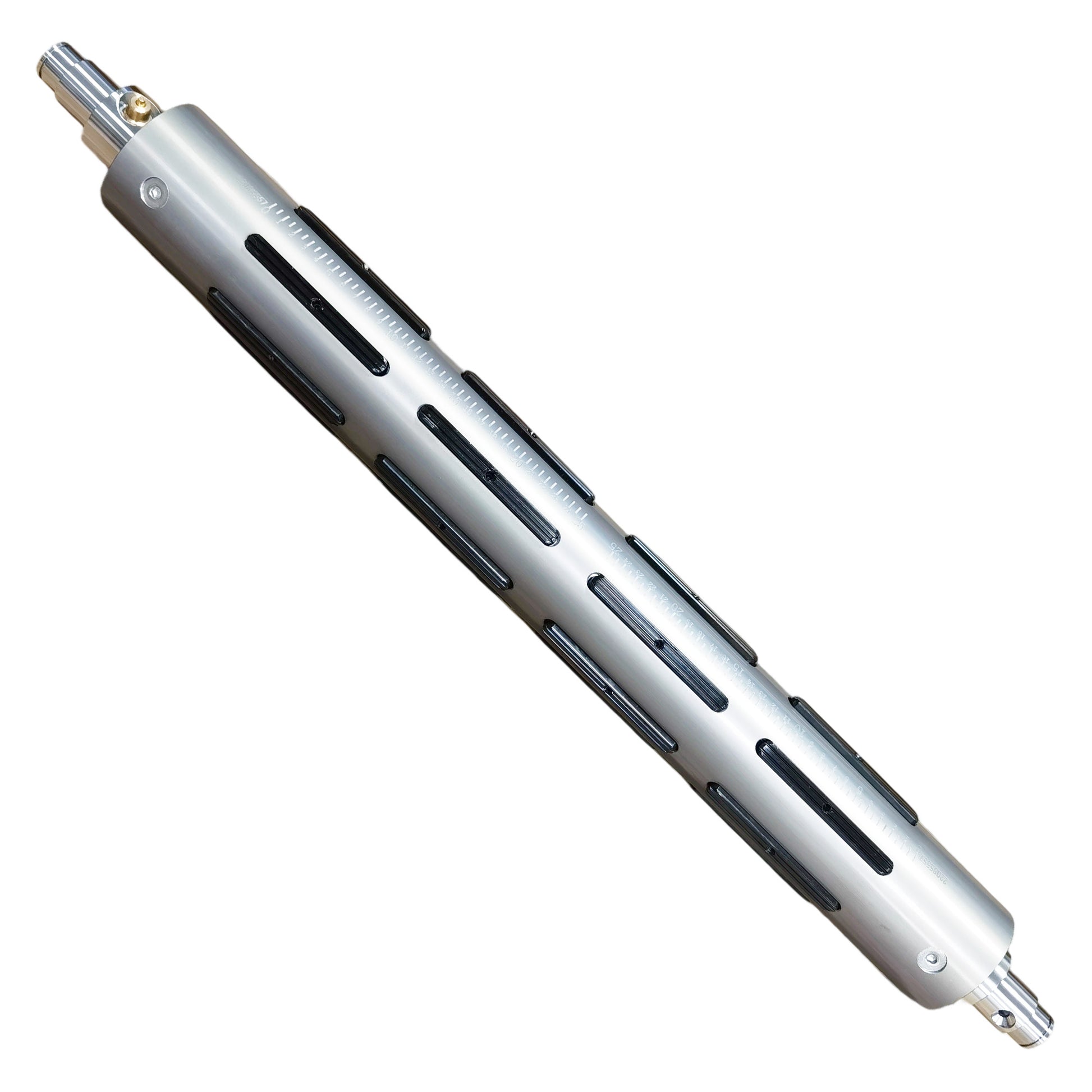

XWDGM Inflatable Shaft

The XWDGM Inflatable Shaft is a high-performance pneumatic expanding shaft engineered for secure core gripping, rapid roll changes, and reliable torque transmission in modern roll-to-roll production environments. Designed for slitting machines, rewinding machines, printing presses, coating lines, laminating equipment, flexible packaging systems, textile machinery, paper converting equipment, and lithium battery manufacturing lines, this shaft significantly improves production efficiency and winding quality.

Using compressed air to activate its expansion mechanism, the shaft expands uniformly to lock paper cores, plastic cores, aluminum cores, and composite material cores securely. Once production is completed, the shaft quickly deflates, allowing fast roll removal and minimizing machine downtime.

For complete web handling solutions, the Inflatable Shaft can be integrated with [Magnetic Particle Brake], [Magnetic Particle Clutch], [Tension Control System],

[Through-Shaft Tension Detector], [Differential Shaft], [Web Guiding System], and

[Slitting Machine Solutions].

What Is an Inflatable Shaft?

An Inflatable Shaft is a pneumatic shaft that uses internal air pressure to expand gripping elements and securely hold roll cores during winding and unwinding operations.

It is also commonly known as:

• Pneumatic Expanding Shaft
• Air Expanding Shaft
• Inflatable Air Shaft
• Air Expansion Shaft
• Expanding Core Shaft
• Pneumatic Winding Shaft
• Roll Handling Shaft
• Air Chuck Shaft

Compared with conventional mechanical shafts, inflatable shafts provide faster operation, stronger gripping force, and improved production efficiency.

Key Features

Fast Inflation & Deflation

Quick roll loading and unloading significantly reduce machine downtime.

Secure Core Locking

Provides strong and uniform gripping force for reliable torque transmission.

High Load Capacity

Suitable for lightweight films and heavy-duty industrial rolls.

Excellent Concentricity

Ensures smooth rotation and improved winding quality.

Durable Construction

Manufactured from high-strength steel or aluminum alloy materials.

Wide Core Compatibility

Suitable for paper, plastic, aluminum, and composite cores.

Long Service Life

Engineered for continuous industrial operation.

Easy Maintenance

Simple structure reduces maintenance requirements and operating costs.

Advantages of XWDGM Inflatable Shafts

Improve Production Efficiency

Rapid core changes increase machine uptime.

Reduce Setup Time

Inflation and deflation take only a few seconds.

Improve Roll Quality

Stable gripping minimizes slippage and winding defects.

Lower Labor Costs

Simplifies operation and roll replacement procedures.

Enhance Machine Performance

Maintains reliable torque transmission at high speeds.

Suitable for Automated Production

Supports modern industrial automation systems.

Available Inflatable Shaft Types

Lug Type Inflatable Shaft

Ideal for heavy-duty winding and wide web applications.

Advantages

• Strong gripping force
• High torque transmission
• Suitable for large rolls

Leaf Type Inflatable Shaft

Provides uniform expansion and excellent concentricity.

Advantages

• Smooth winding
• High-speed performance
• Improved roll quality

Strip Type Inflatable Shaft

Cost-effective solution for medium-duty applications.

Advantages

• Lightweight design
• Easy maintenance
• Stable operation

Custom Inflatable Shaft

Available according to specific core sizes, shaft lengths, and machine requirements.

How Does an Inflatable Shaft Work?

The XWDGM Inflatable Shaft operates through a pneumatic expansion system.

Working Process

1. Roll core is installed onto the shaft.
2. Compressed air enters the inflation valve.
3. Internal air bladder expands.
4. Expansion elements move outward.
5. Roll core is securely locked.
6. Torque is transmitted during production.
7. Air is released after operation.
8. Expansion elements retract automatically.
9. Roll is removed quickly and safely.

This process enables efficient roll handling and reliable performance.

Typical Applications

Slitting Machines

Provide stable winding and precise roll formation.

Rewinding Machines

Support high-speed rewinding operations.

Printing Machines

Ensure smooth roll rotation and material feeding.

Laminating Equipment

Maintain stable web transport during lamination.

Coating Machines

Support accurate tension control and roll handling.

Flexible Packaging Production

Improve productivity and reduce material waste.

Paper Converting Equipment

Handle heavy paper rolls efficiently.

Textile Machinery

Suitable for fabric winding and unwinding systems.

Lithium Battery Manufacturing

Used in electrode coating, separator processing, copper foil winding, and aluminum foil production.

Film Converting Systems

Compatible with BOPP, PET, CPP, PE, and specialty films.

Suitable Materials

The XWDGM Inflatable Shaft is suitable for:

• Plastic Film
• BOPP Film
• PET Film
• CPP Film
• PE Film
• Paper
• Aluminum Foil
• Copper Foil
• Nonwoven Fabric
• Textile Materials
• Flexible Packaging Materials
• Battery Electrode Materials
• Adhesive Labels
• Release Liners
• Specialty Industrial Materials

Technical Advantages

Precision Manufacturing

Ensures accurate shaft balance and concentricity.

High-Strength Air Bladder

Provides reliable expansion and long-term durability.

Robust Structural Design

Supports demanding industrial production environments.

Excellent Torque Transmission

Prevents core slipping during high-speed operation.

Custom Engineering Solutions

Available for special dimensions, materials, and machine configurations.

Compatible System Components

The XWDGM Inflatable Shaft can work together with:

• [Magnetic Particle Brake]
• [Magnetic Particle Clutch]
• [Tension Control System]
• [Through-Shaft Tension Detector]
• [Differential Shaft]
• [Web Guiding System]
• [Web Guide Sensor]
• [Web Guide Controller]
• [Web Guide Actuator]
• [Slitting Machine Solutions]

Together, these components create a complete web handling, tension control, and winding solution.

Industries Served

• Printing & Packaging
• Flexible Packaging
• Film Converting
• Paper Converting
• Textile Manufacturing
• Nonwoven Production
• Lithium Battery Manufacturing
• Electronics Materials Processing
• Roll-to-Roll Processing
• Industrial Automation Equipment

Why Choose XWDGM?

ISO9001 Certified Manufacturing

Strict quality management ensures product reliability.

OEM & ODM Support

Custom shaft lengths, diameters, journals, and expansion structures available.

Professional Engineering Team

Technical support for product selection and system integration.

Global Export Experience

Trusted by customers worldwide in printing, packaging, converting, and battery industries.

Fast Worldwide Delivery

Reliable logistics and responsive customer service.

Complete Web Handling Solutions

One-stop supplier for inflatable shafts, magnetic particle brakes, magnetic particle clutches, web guiding systems, tension control systems, and differential shafts.

Whether you need a compact inflatable shaft for narrow-web converting or a heavy-duty pneumatic shaft for large roll processing, XWDGM delivers reliable performance, efficient operation, and long-term industrial durability.
