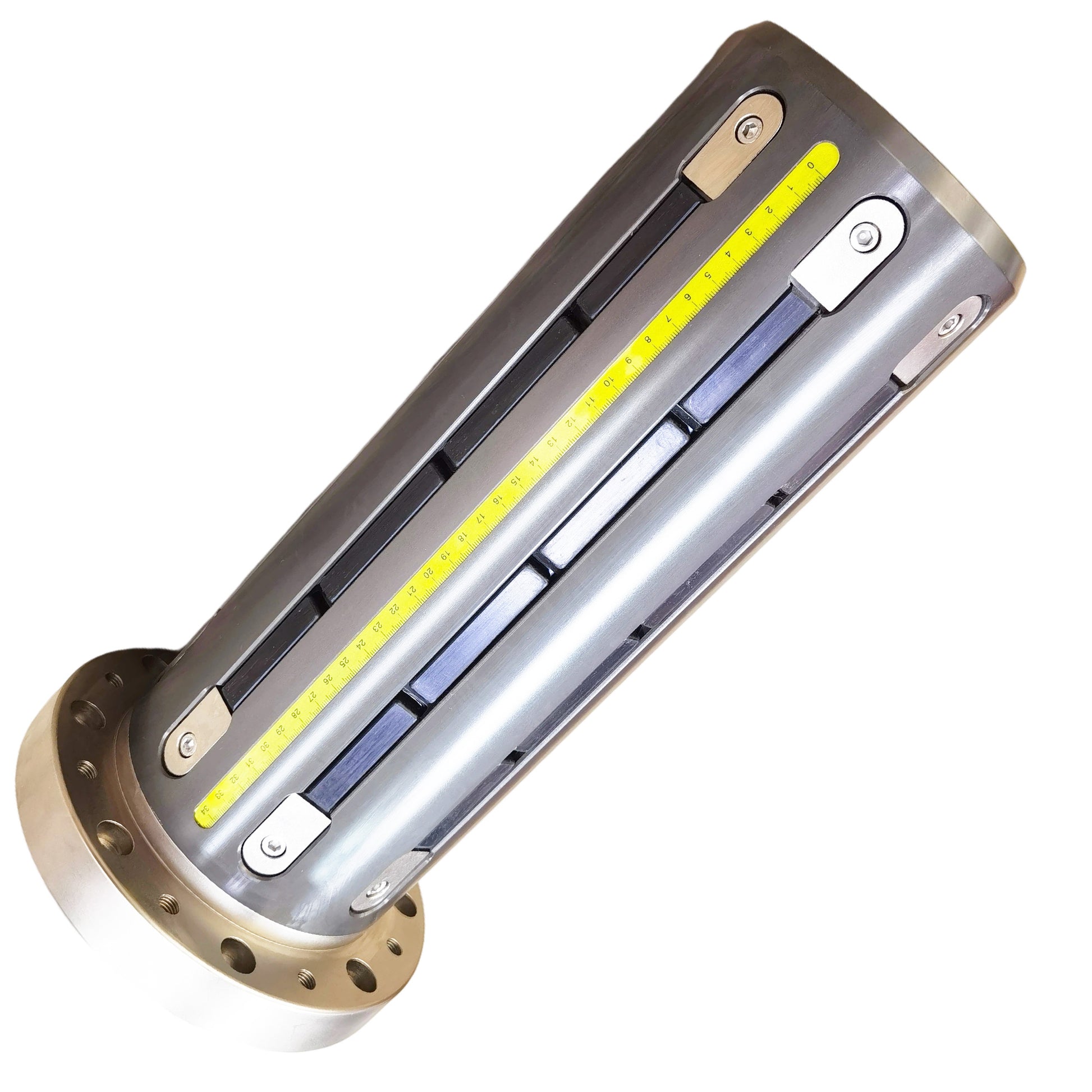

XWDGM Air Shaft

The XWDGM Air Shaft (Pneumatic Expanding Shaft) is a high-performance winding shaft designed for modern web converting, slitting, rewinding, printing, laminating, coating, packaging, textile, paper processing, and lithium battery manufacturing equipment.

Using compressed air to expand gripping elements, the air shaft securely locks paper cores, plastic cores, aluminum cores, and composite material cores, enabling fast roll loading and unloading while maintaining stable torque transmission throughout production.

Compared with traditional mechanical shafts, XWDGM Air Shafts significantly reduce setup time, improve production efficiency, minimize downtime, and ensure reliable winding quality during high-speed operation.

The system is widely used in roll-to-roll processing applications where quick core changes, accurate web tension, and efficient material handling are critical.

For complete web handling solutions, the air shaft can be integrated with [Magnetic Particle Brake], [Magnetic Particle Clutch], [Tension Control System], [Through-Shaft Tension Detector], [Differential Shaft], [Web Guiding System], and [Slitting Machine Solutions].

---

What Is an Air Shaft?

An Air Shaft, also known as a:

• Pneumatic Expanding Shaft
• Air Expanding Shaft
• Inflatable Shaft
• Air Chuck Shaft
• Expanding Core Shaft
• Winding Air Shaft
• Unwinding Air Shaft

is a shaft that uses compressed air to expand lugs, strips, leaves, or keys to grip a roll core securely.

After inflation, the shaft expands evenly around the core, providing strong holding force and excellent concentricity. When air is released, the shaft contracts instantly, allowing fast roll removal.

This simple but highly efficient design makes air shafts an essential component in modern winding and unwinding systems.

---

Key Features

Fast Roll Loading & Unloading

Reduces machine downtime and improves production efficiency.

Strong Core Gripping Force

Provides reliable torque transmission during high-speed winding.

Excellent Concentricity

Improves winding quality and roll uniformity.

Wide Core Compatibility

Supports paper cores, plastic cores, aluminum cores, and custom core sizes.

High Load Capacity

Suitable for light-duty and heavy-duty industrial applications.

Easy Operation

Simple inflation and deflation process for quick roll changes.

Long Service Life

Manufactured using high-strength steel and aluminum alloy materials.

Low Maintenance Requirements

Robust design minimizes maintenance costs.

---

Advantages of XWDGM Air Shafts

Improve Production Efficiency

Rapid core loading significantly reduces setup time.

Reduce Machine Downtime

Fast shaft expansion and release accelerate roll changes.

Improve Winding Quality

Stable gripping prevents core slippage and roll defects.

Enhance Operator Safety

No complicated mechanical locking mechanisms required.

Lower Operating Costs

Reduced labor requirements and maintenance expenses.

Suitable for High-Speed Production

Provides reliable operation in demanding industrial environments.

---

Available Air Shaft Types

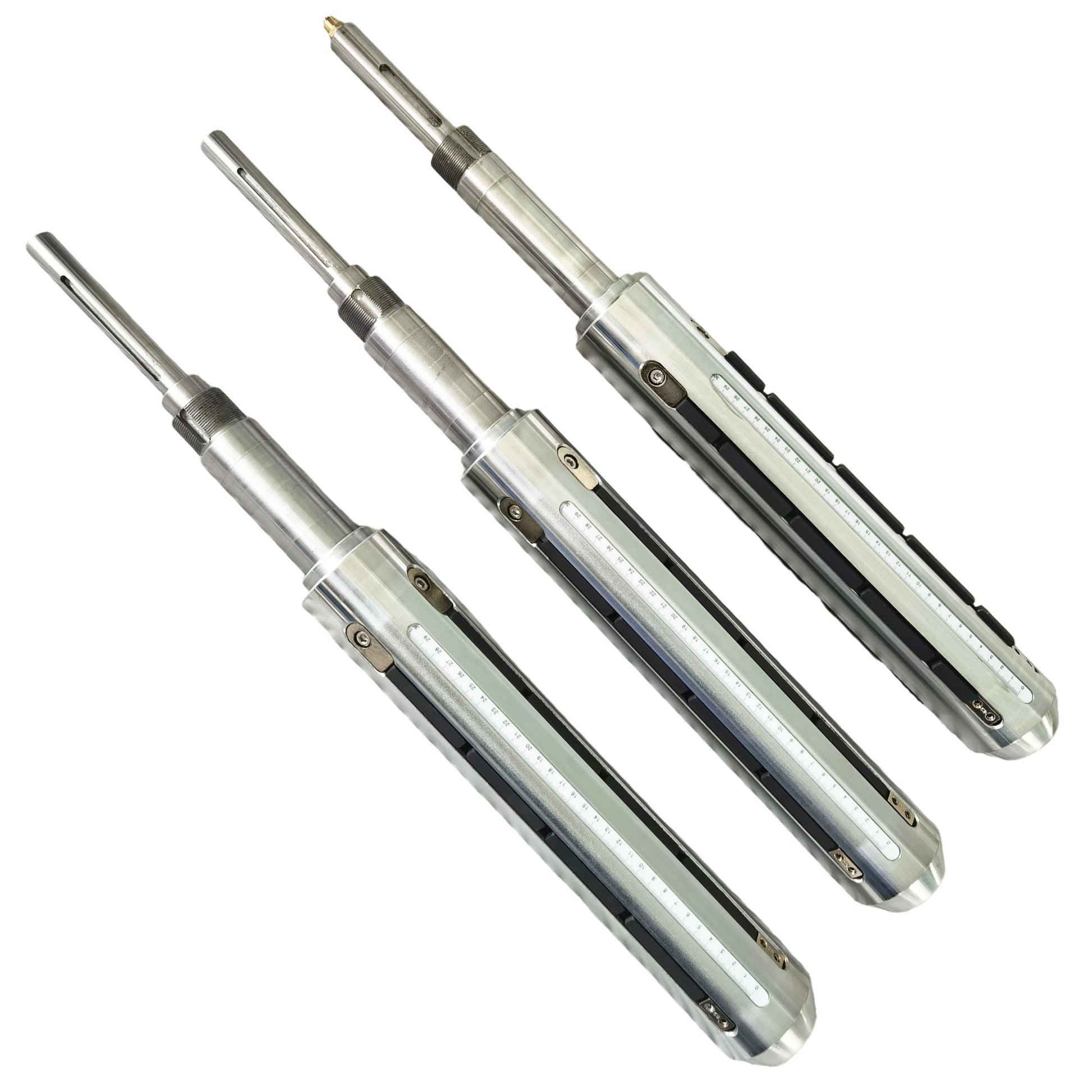

Lug Type Air Shaft

Ideal for heavy-duty winding and large-diameter rolls.

Advantages

• High load capacity
• Strong gripping force
• Suitable for wide materials

Leaf Type Air Shaft

Provides smooth expansion and excellent concentricity.

Advantages

• Uniform expansion
• Stable winding quality
• Suitable for high-speed production

Strip Type Air Shaft

Suitable for lightweight and medium-duty applications.

Advantages

• Cost-effective
• Easy maintenance
• Lightweight construction

Multi-Bladder Air Shaft

Designed for specialized converting applications requiring independent expansion zones.

---

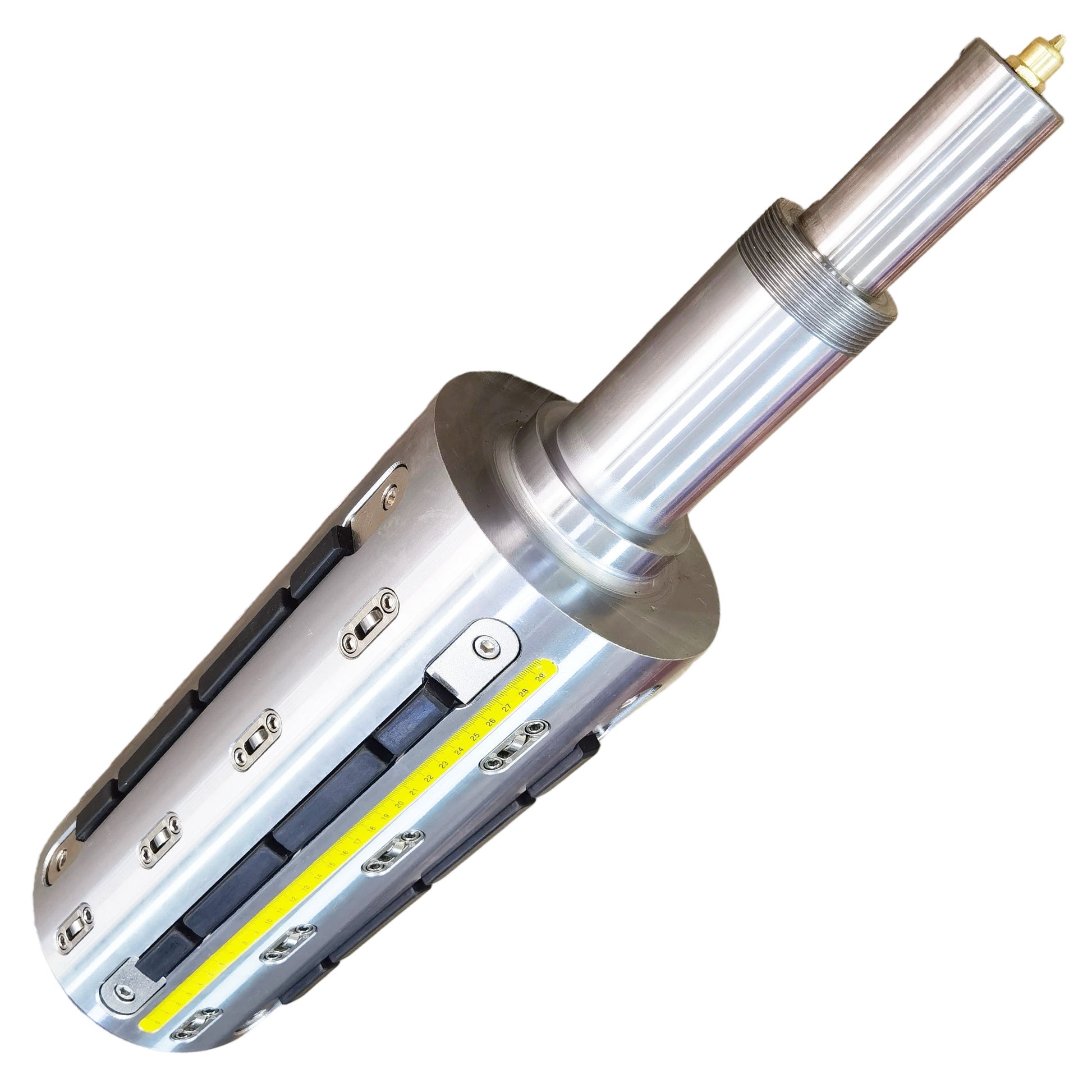

How Does an Air Shaft Work?

The XWDGM Air Shaft operates using compressed air and an internal expansion mechanism.

Working Process

1. Roll core is placed onto the shaft.
2. Compressed air is introduced through the inflation valve.
3. Internal air bladder expands.
4. Expansion elements move outward.
5. Core is securely locked.
6. Torque is transmitted during winding or unwinding.
7. Air is released after production.
8. Expansion elements retract.
9. Roll is removed quickly.

This design ensures fast operation and reliable performance.

---

Typical Applications

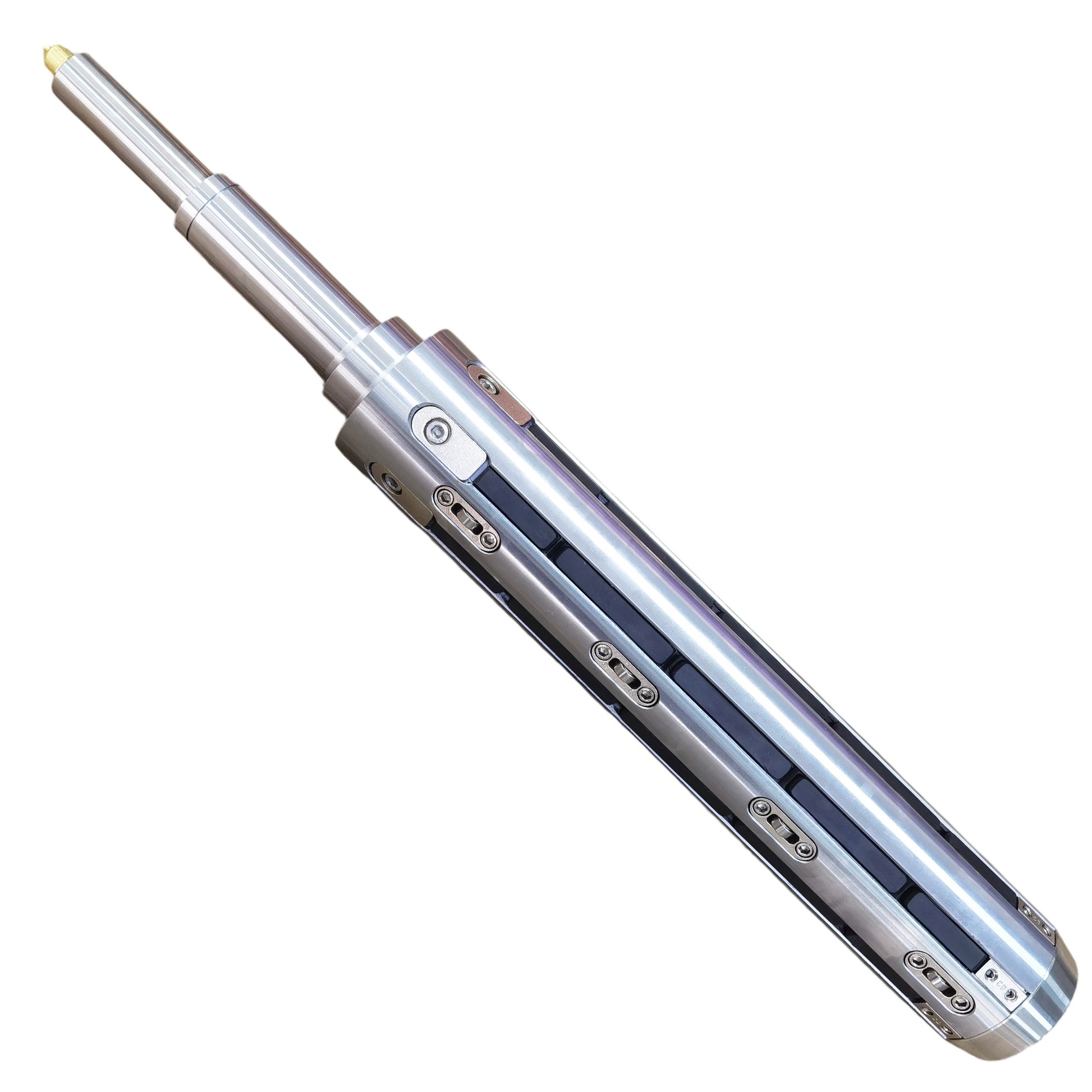

Slitting Machines

Provide secure core gripping and stable winding.

Rewinding Machines

Ensure accurate roll formation and tension control.

Printing Machines

Maintain reliable roll support during printing operations.

Laminating Equipment

Support multilayer material processing.

Coating Machines

Enable smooth winding and unwinding performance.

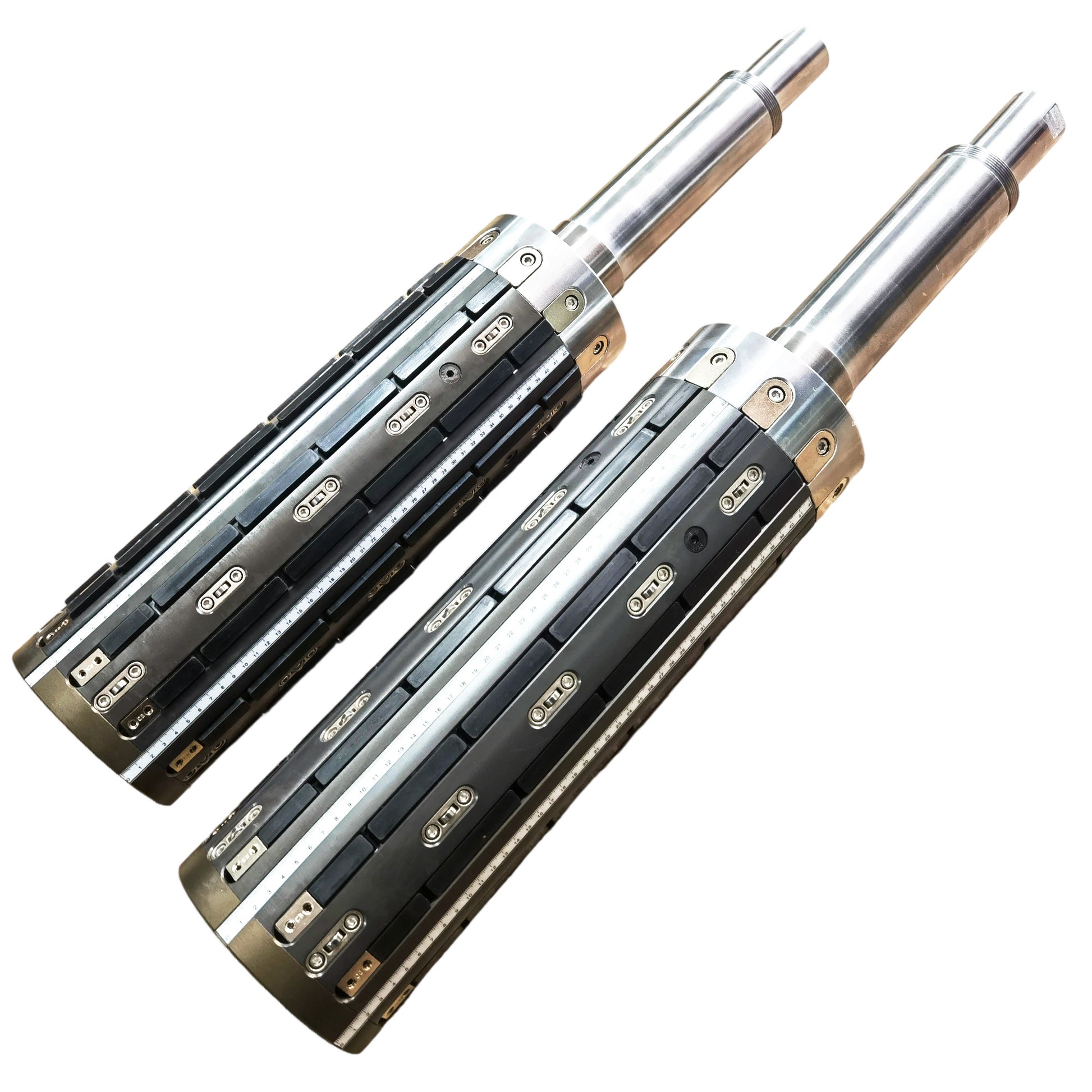

Flexible Packaging Production

Improve roll quality and reduce waste.

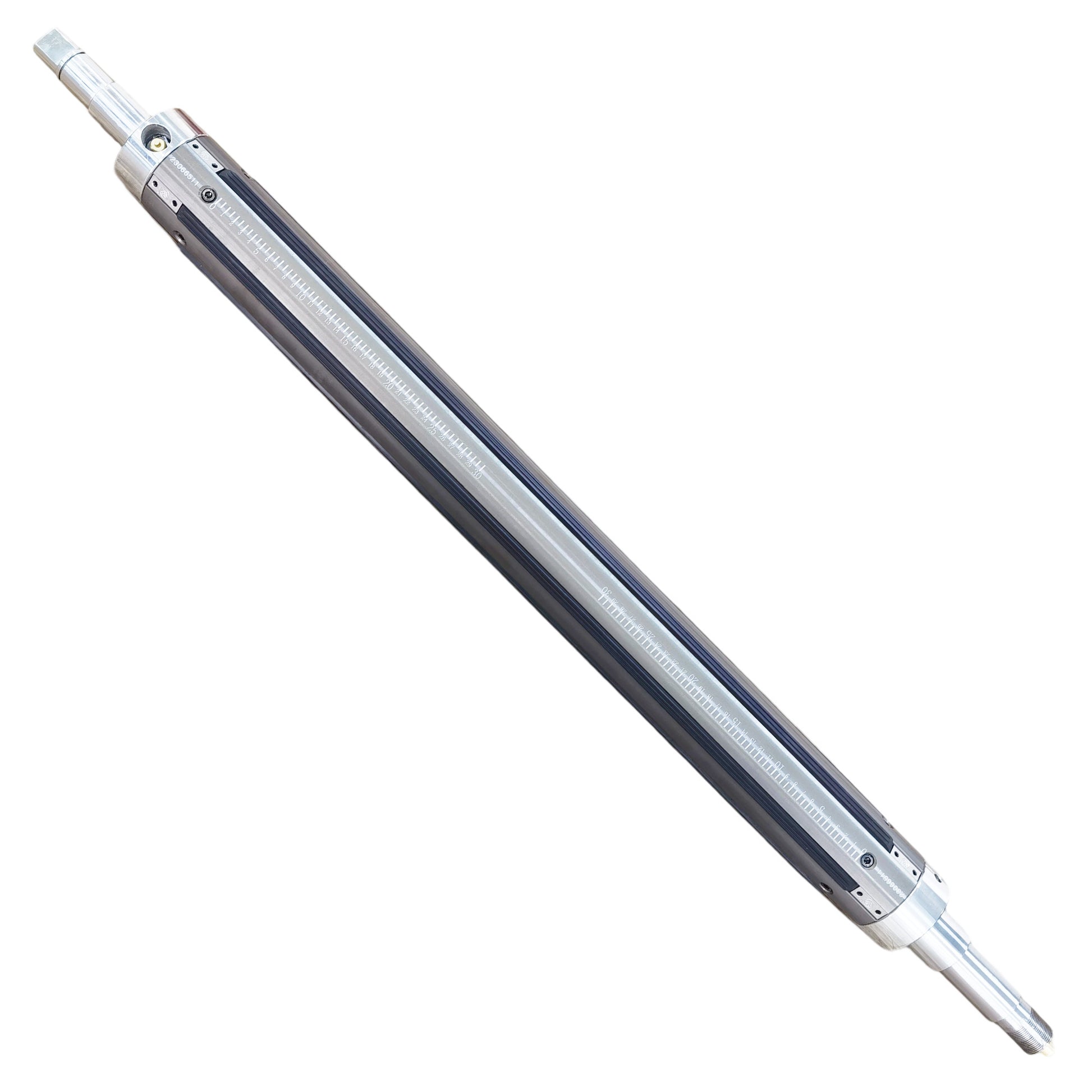

Paper Converting Equipment

Handle large rolls efficiently.

Textile Machinery

Support fabric winding and unwinding operations.

Lithium Battery Manufacturing

Used in electrode coating, separator winding, copper foil processing, and aluminum foil production.

Film Converting Systems

Suitable for BOPP, PET, CPP, PE, and specialty films.

---

Suitable Materials

The XWDGM Air Shaft is suitable for:

• Plastic Film
• BOPP Film
• PET Film
• CPP Film
• PE Film
• Paper
• Aluminum Foil
• Copper Foil
• Nonwoven Fabric
• Textile Materials
• Flexible Packaging Materials
• Battery Electrode Materials
• Adhesive Labels
• Release Liners
• Specialty Industrial Web Materials

---

Technical Advantages

Precision Machining

Ensures excellent shaft concentricity and balance.

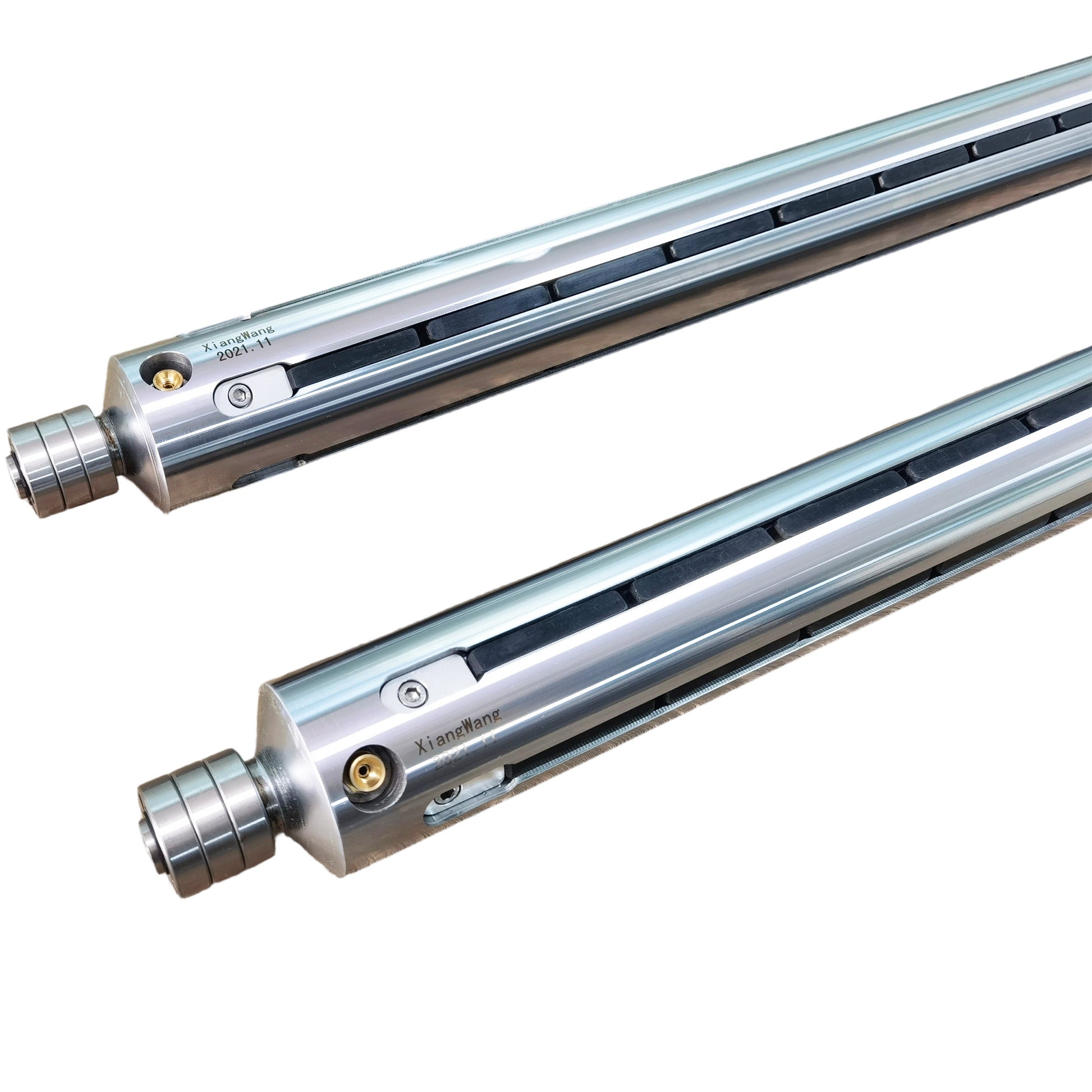

High-Strength Materials

Available in steel, aluminum alloy, and customized materials.

Reliable Air Bladder Technology

Provides long-term expansion performance.

Excellent Durability

Designed for continuous industrial operation.

Custom Engineering Solutions

Available for special shaft diameters, lengths, and core sizes.

---

Compatible System Components

The XWDGM Air Shaft can be integrated with:

• [Magnetic Particle Brake]
• [Magnetic Particle Clutch]
• [Tension Control System]
• [Through-Shaft Tension Detector]
• [Differential Shaft]
• [Web Guiding System]
• [Web Guide Controller]
• [Web Guide Sensor]
• [Web Guide Actuator]
• [Slitting Machine Solutions]

Together, these components create a complete winding, unwinding, tension control, and web handling solution.

---

Industries Served

Printing & Packaging

Improve winding quality and production efficiency.

Flexible Packaging

Maintain stable roll formation and tension control.

Paper Converting

Support heavy-duty paper roll handling.

Textile Processing

Enable efficient fabric winding systems.

Lithium Battery Manufacturing

Support high-precision roll-to-roll production.

Film Converting

Suitable for plastic films and specialty materials.

Electronics Materials Processing

Handle copper foil, aluminum foil, and advanced materials.

---

Why Choose XWDGM?

ISO9001 Certified Manufacturing

Strict quality control throughout production.

OEM & ODM Support

Custom shaft lengths, diameters, journals, and expansion structures available.

Professional Engineering Team

Selection guidance and technical support.

Global Export Experience

Trusted by customers in printing, packaging, converting, and battery industries.

Fast Worldwide Delivery

Reliable logistics and responsive service.

Complete Web Handling Solutions

One-stop supplier for air shafts, tension control systems, web guiding systems, magnetic particle brakes, magnetic particle clutches, and differential shafts.

---

FAQ

What is an Air Shaft?

An Air Shaft is a pneumatic expanding shaft that uses compressed air to lock and release roll cores quickly for winding and unwinding applications.

What is the difference between an Air Shaft and a Mechanical Shaft?

Air shafts provide faster roll changes, stronger gripping force, and improved production efficiency compared to traditional mechanical shafts.

What core sizes are available?

Common core sizes include:

• 1 inch
• 2 inch
• 3 inch
• 6 inch
• Custom sizes

Can XWDGM provide customized Air Shafts?

Yes. XWDGM offers OEM and custom manufacturing services including:

• Custom shaft length
• Custom diameter
• Special journals
• Aluminum or steel construction
• Multi-bladder designs
• Heavy-duty air shafts

Which industries use Air Shafts?

Air shafts are widely used in:

• Printing
• Packaging
• Slitting
• Rewinding
• Film Converting
• Paper Processing
• Textile Manufacturing
• Lithium Battery Production
• Roll-to-Roll Processing
