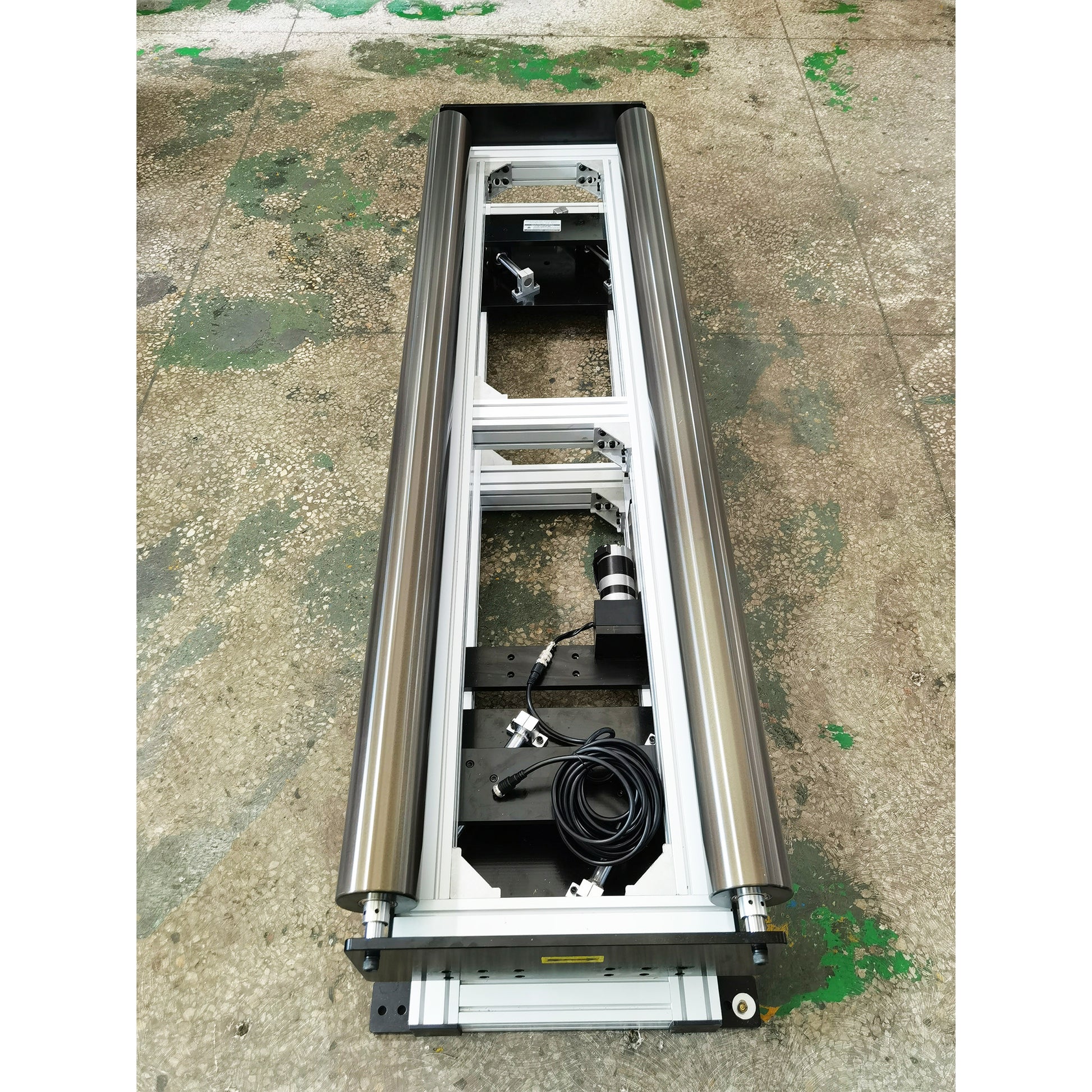

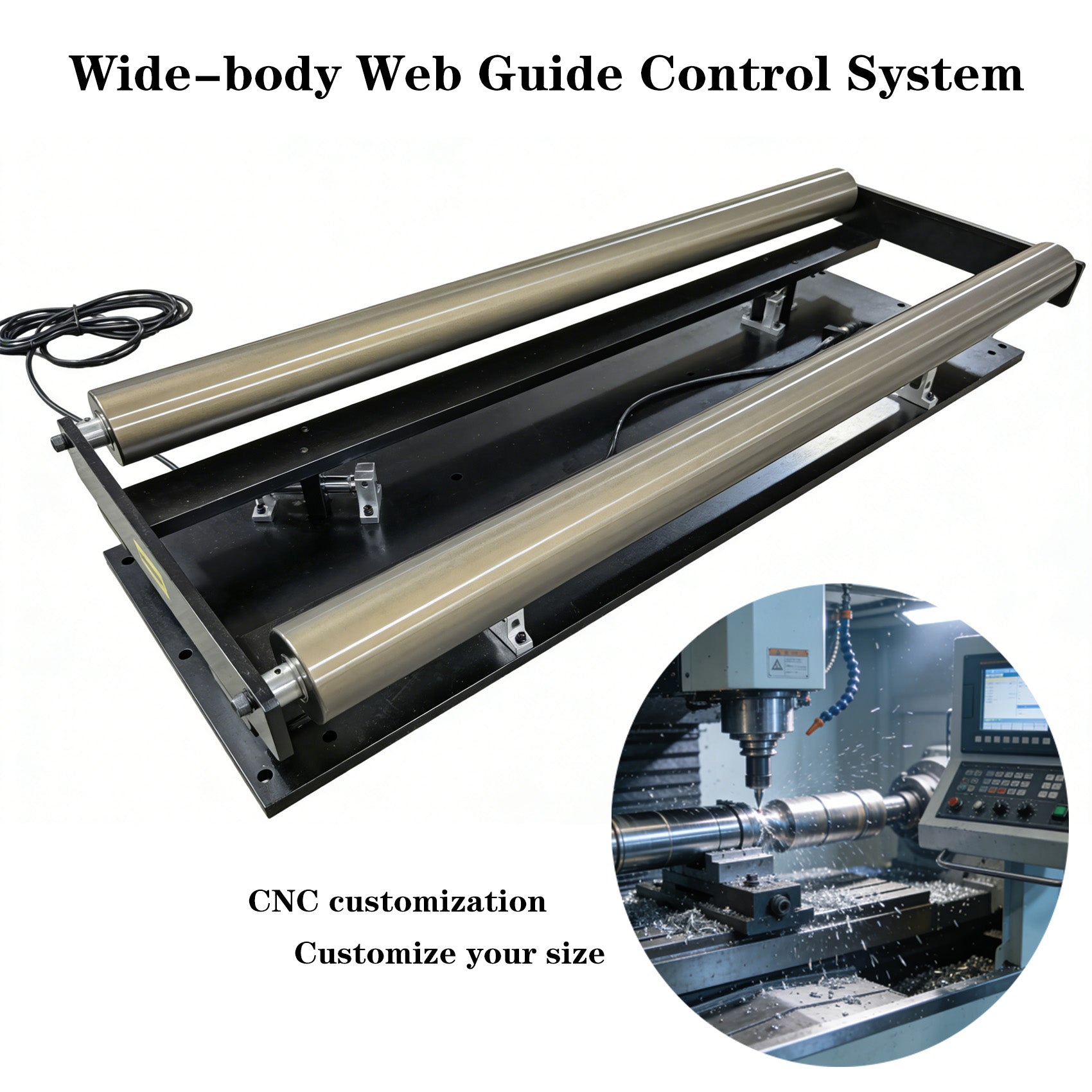

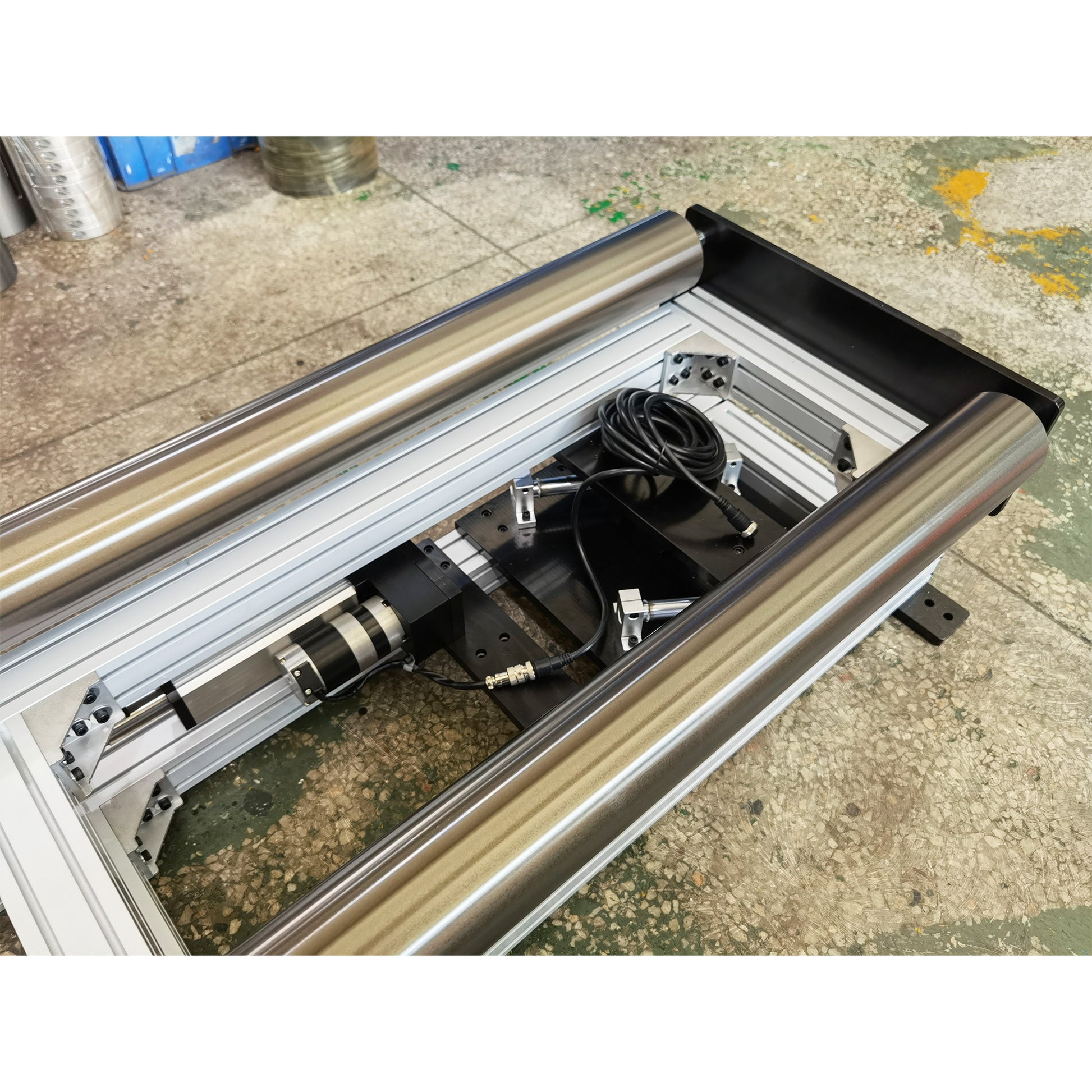

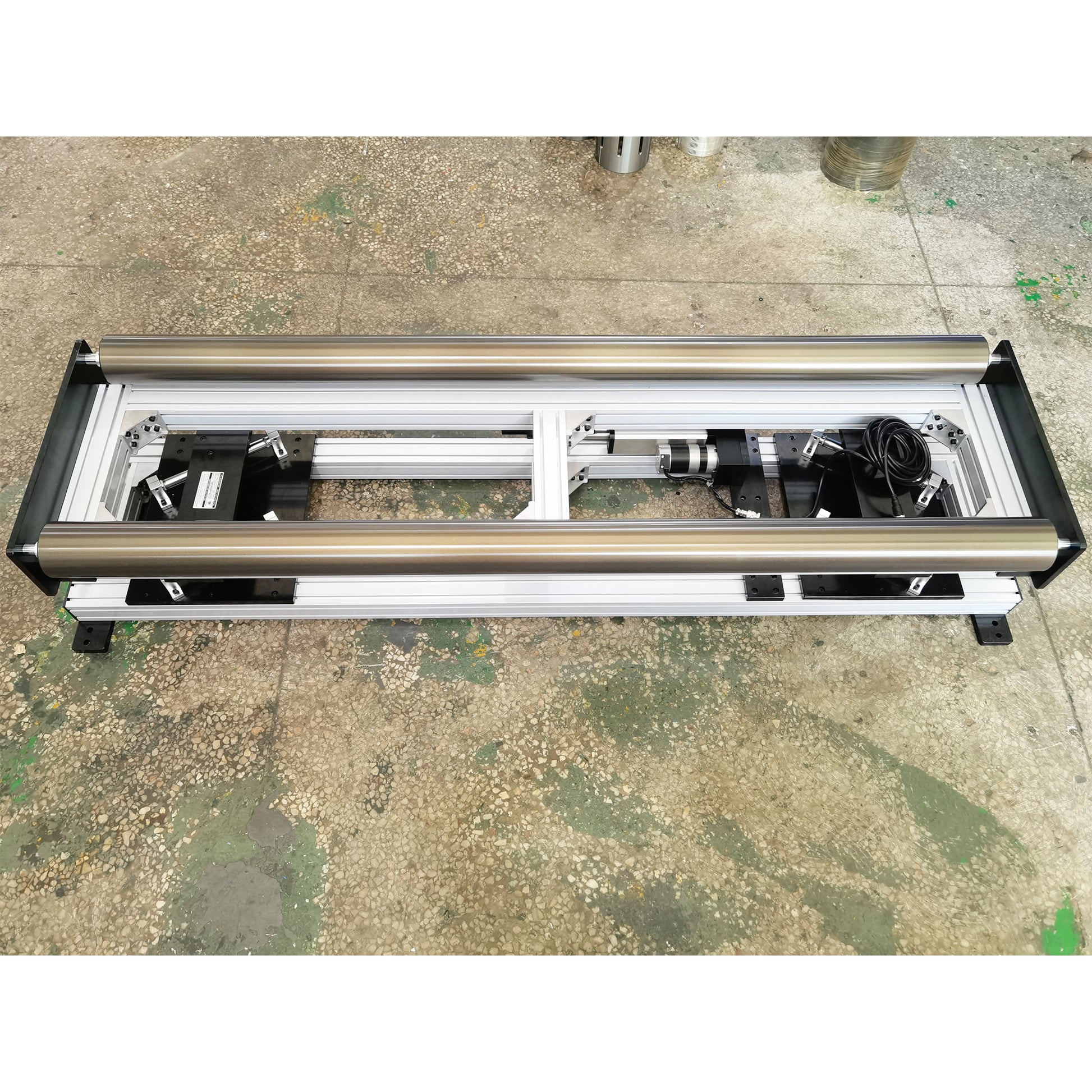

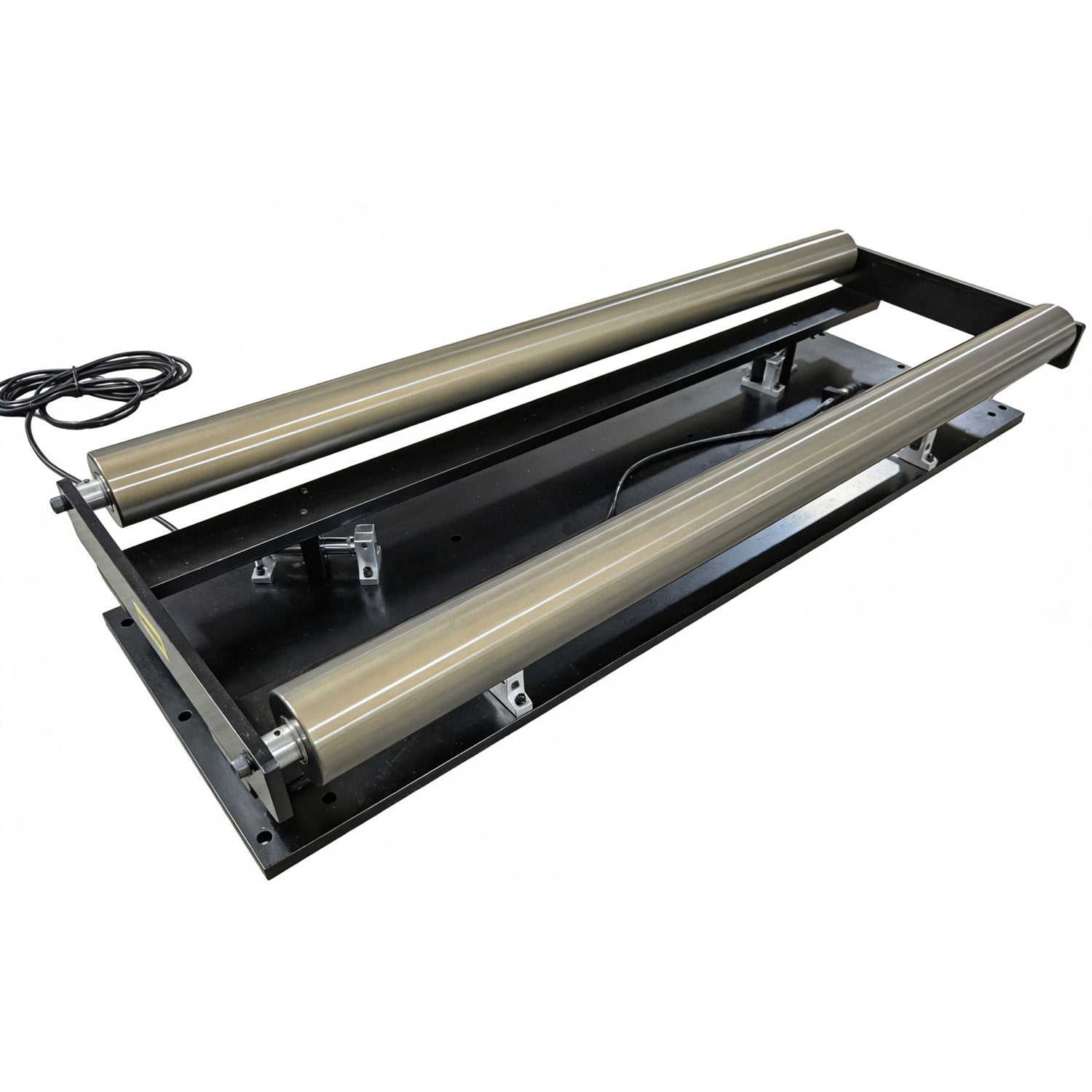

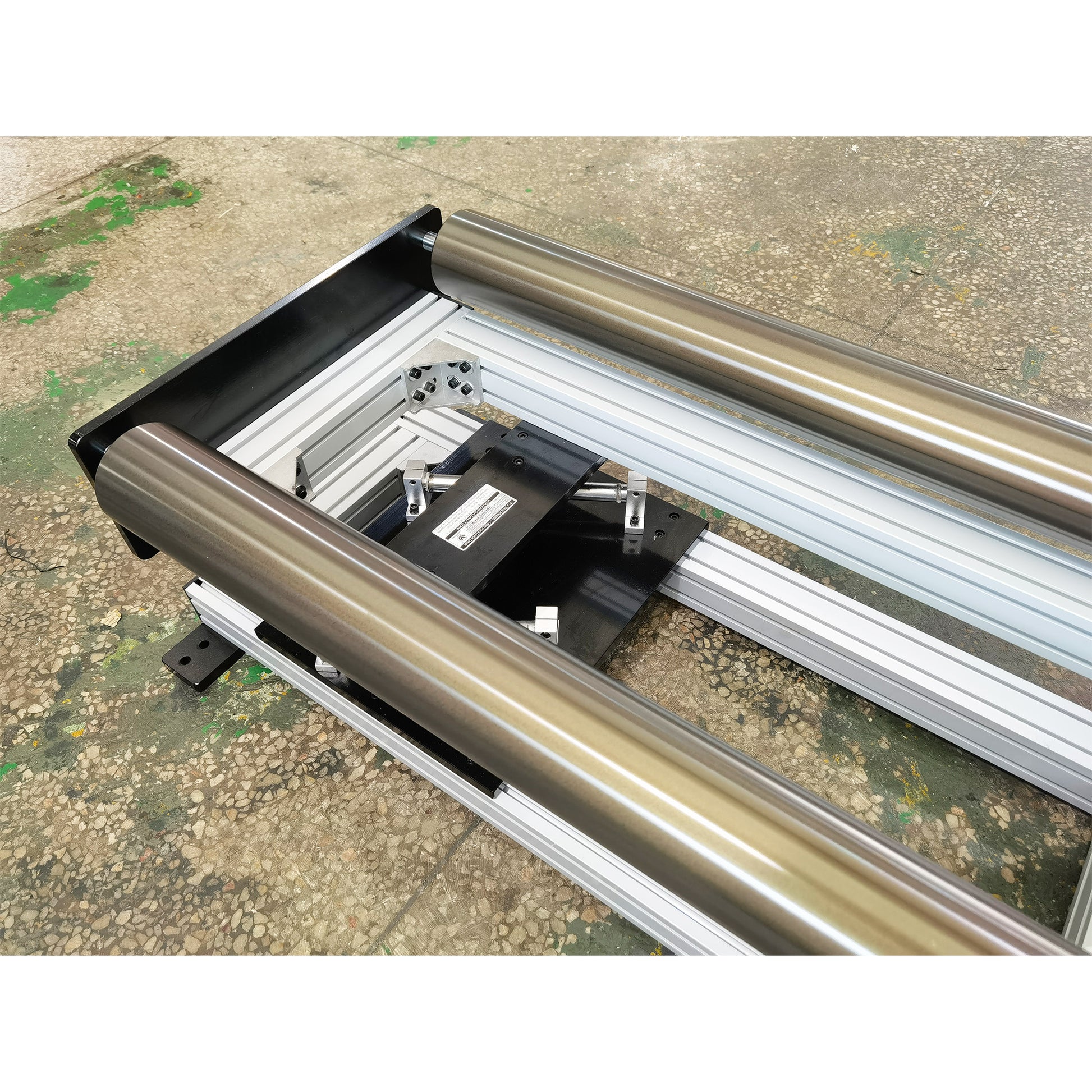

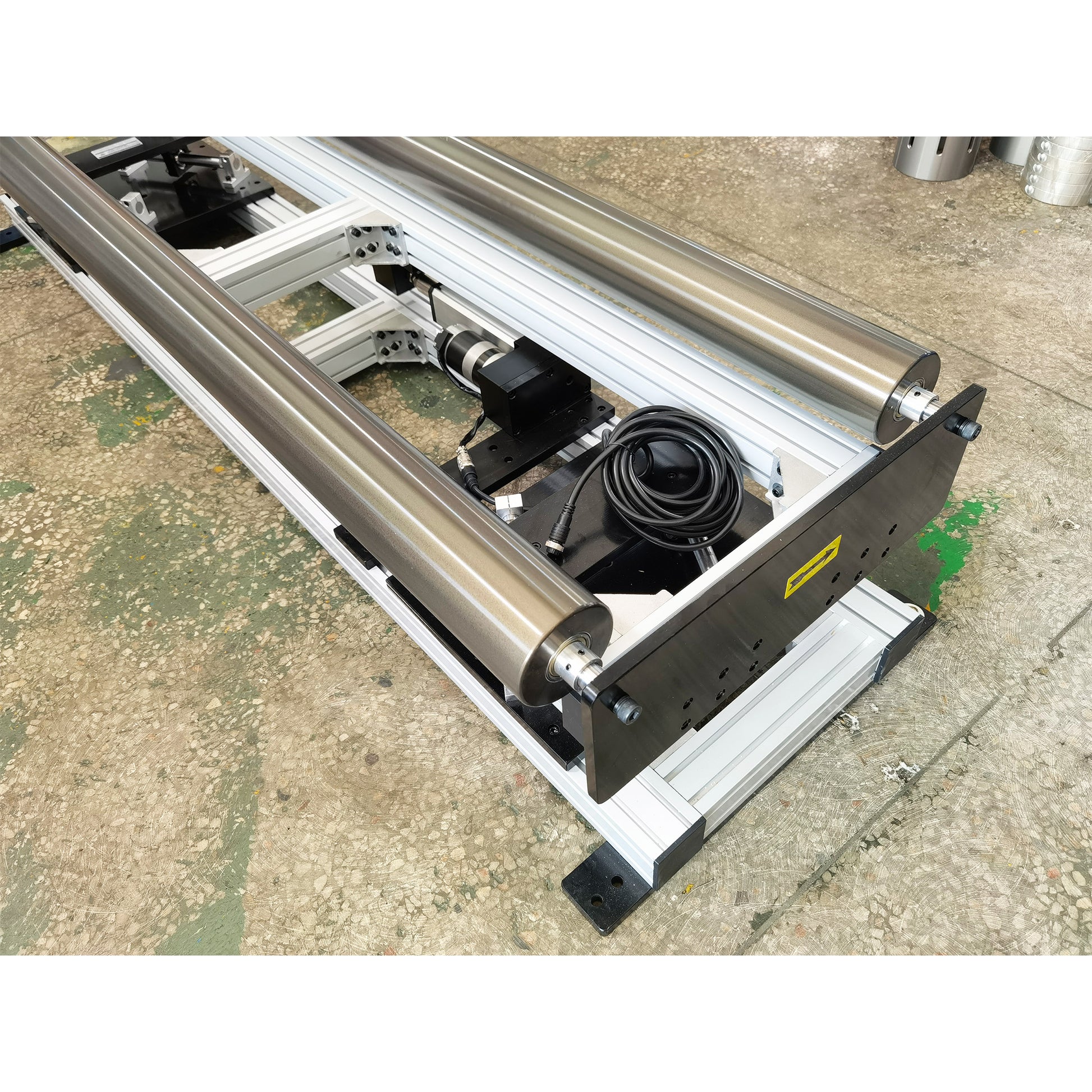

Wide Body Web Guide Control System Bracket - Customizable Size CNC Cutting

Wide Body Web Guide Control System Bracket – Customizable Size CNC Cutting

  The Wide Body Web Guide Bracket is a heavy-duty mounting solution designed specifically for wide-format web guiding systems. Engineered for precision alignment and robust support in demanding industrial environments, this customizable CNC-cut bracket ensures your web guide sensors, actuators, and control components are securely installed for optimal performance.

  Whether you need a replacement bracket or a completely custom mounting solution for new web guiding equipment, our brackets deliver exact fit and long-lasting reliability.

Key Features & Benefits

• Wide Body Design: Optimized for wide web guiding systems handling broader materials. Provides enhanced stability and reduced vibration compared to standard narrow brackets.
• Fully Customizable: Submit your drawings or specifications. We use high-precision CNC cutting to produce brackets in any size, hole pattern, thickness, or configuration you require. No inventory – made to order for perfect compatibility.
• Premium Materials: Manufactured from high-strength steel plate or aluminum alloy (custom options available). Strong enough for heavy-duty actuators and high-speed operations.
• Precision CNC Fabrication: Accurate cutting, drilling, and tapping ensure seamless integration with your existing web guide controllers, edge sensors, ultrasonic sensors, or linear actuators.
• Surface Treatment: Options include rust-resistant powder coating, galvanizing, or anodizing for superior corrosion protection in humid or dusty production environments.
• Fast Turnaround: We reply to inquiries within 4 hours and offer quick production for urgent replacement needs.

Technical Specifications

• Material: High-tensile steel / Aluminum alloy (custom)
• Thickness: 5mm – 20mm (or per your drawing)
• Maximum Dimensions: Up to 1500mm+ (custom)
• Hole Patterns: Fully customizable mounting holes, slots, and threaded holes
• Finish: Powder coated, anodized, or as requested
• Compatibility: Works with most brands of web guiding systems, displacement guides, steering guides, and edge position control (EPC) setups

Applications

This wide body web guide bracket is widely used in:

• Printing and converting machinery
• Packaging film and flexible packaging lines
• Lithium battery electrode coating and slitting
• Textile and non-woven fabric production
• Paper, foil, and metal strip processing
• Coating, laminating, and extrusion lines

It effectively solves common issues such as web misalignment, bracket fatigue, vibration-induced drift, and installation incompatibility in high-speed web handling operations.

Why Choose XW Machinery Wide Body Brackets?

• Solve installation problems for non-standard or imported web guiding systems
• Reduce downtime with precise, ready-to-install custom brackets
• Improve web guiding accuracy and overall machine performance
• Cost-effective alternative to OEM parts with faster delivery
• Professional technical support – our team helps review drawings and recommend optimal designs

How to Order Simply send us your technical drawings (PDF, DWG, or even clear photos with dimensions). We will provide a quote within 4 hours, including material recommendations, processing time, and shipping cost.

Customization Process:

1. Send inquiry + drawings
2. Receive quote and confirmation
3. CNC production
4. Quality inspection and shipping

Do you have this bracket in stock?

No – every bracket is custom CNC cut according to customer specifications for perfect fit.

What file formats do you accept for drawings?

We accept AutoCAD (.DWG), PDF, STEP, or even hand sketches with clear dimensions.

What is the typical production lead time?

Standard orders ship in 5–12 working days, depending on complexity and quantity. Expedited service available.

Can you make brackets for specific sensor or actuator brands?

Yes. We regularly produce mounting solutions compatible with major web guide systems.

Do you offer samples?

Yes, sample orders are welcome for validation before bulk production.

Wide Body Web Guide Control System Bracket – Precision CNC custom mounting solution for reliable web guiding performance.
