HCCD Web Guide Sensor for EPC Edge Position Control System

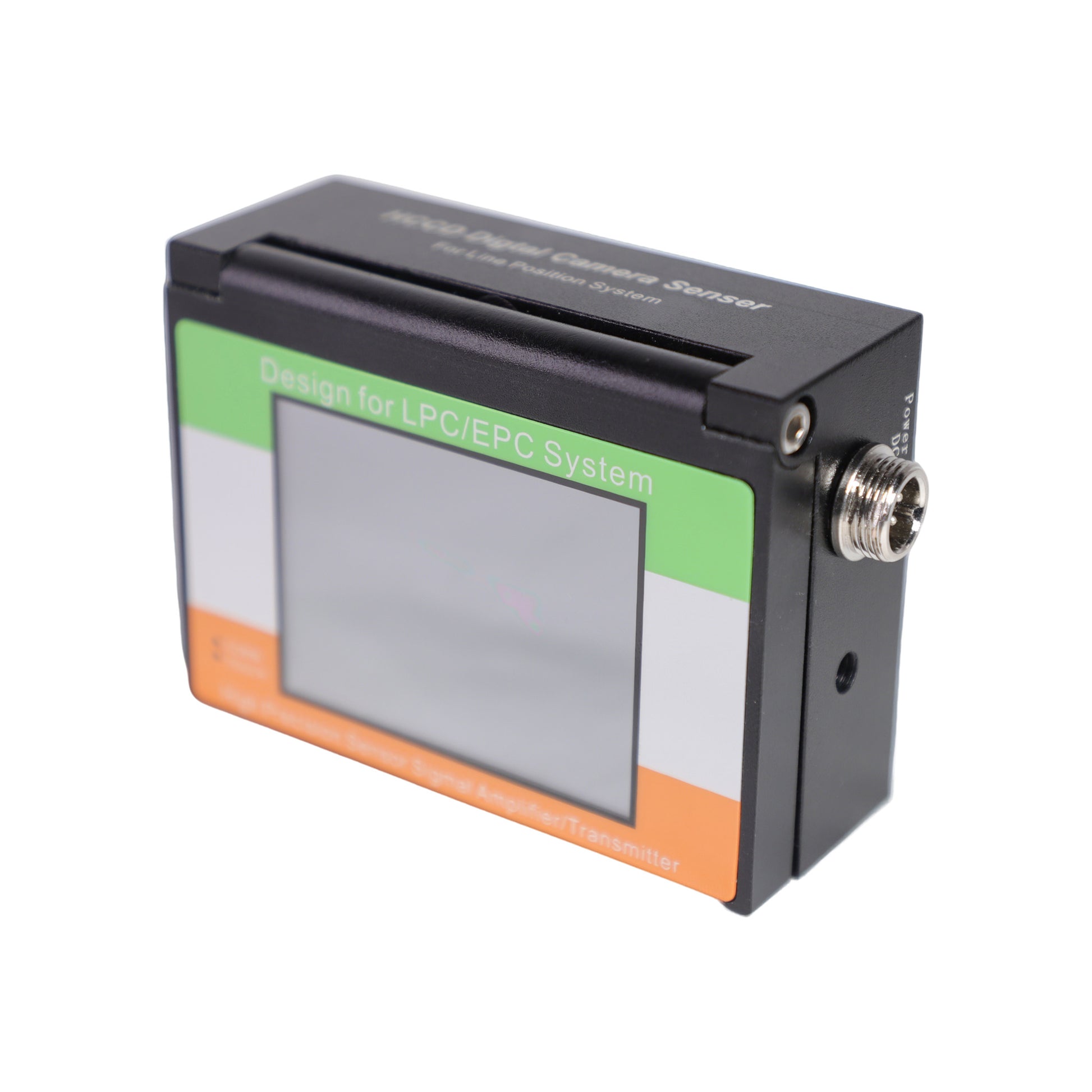

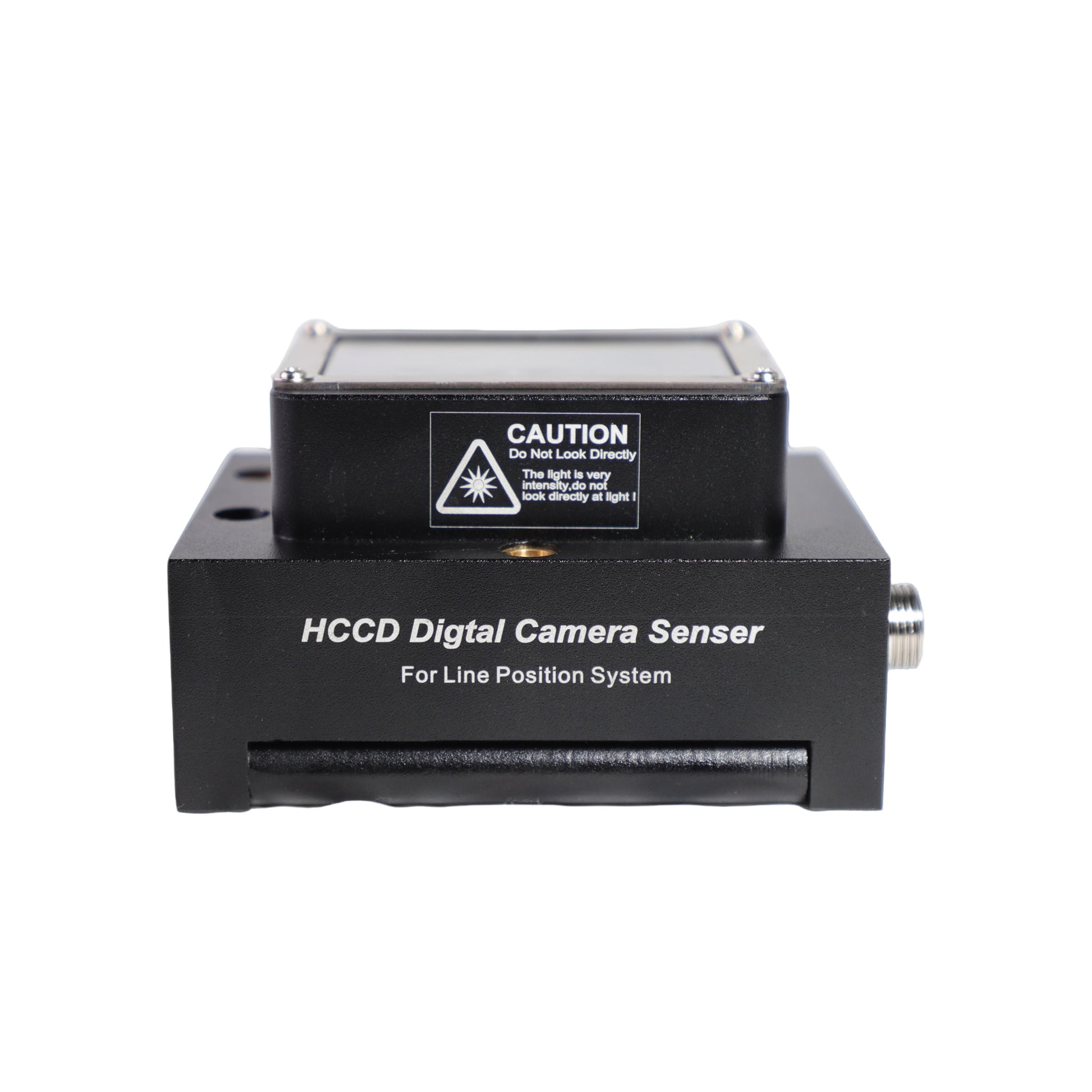

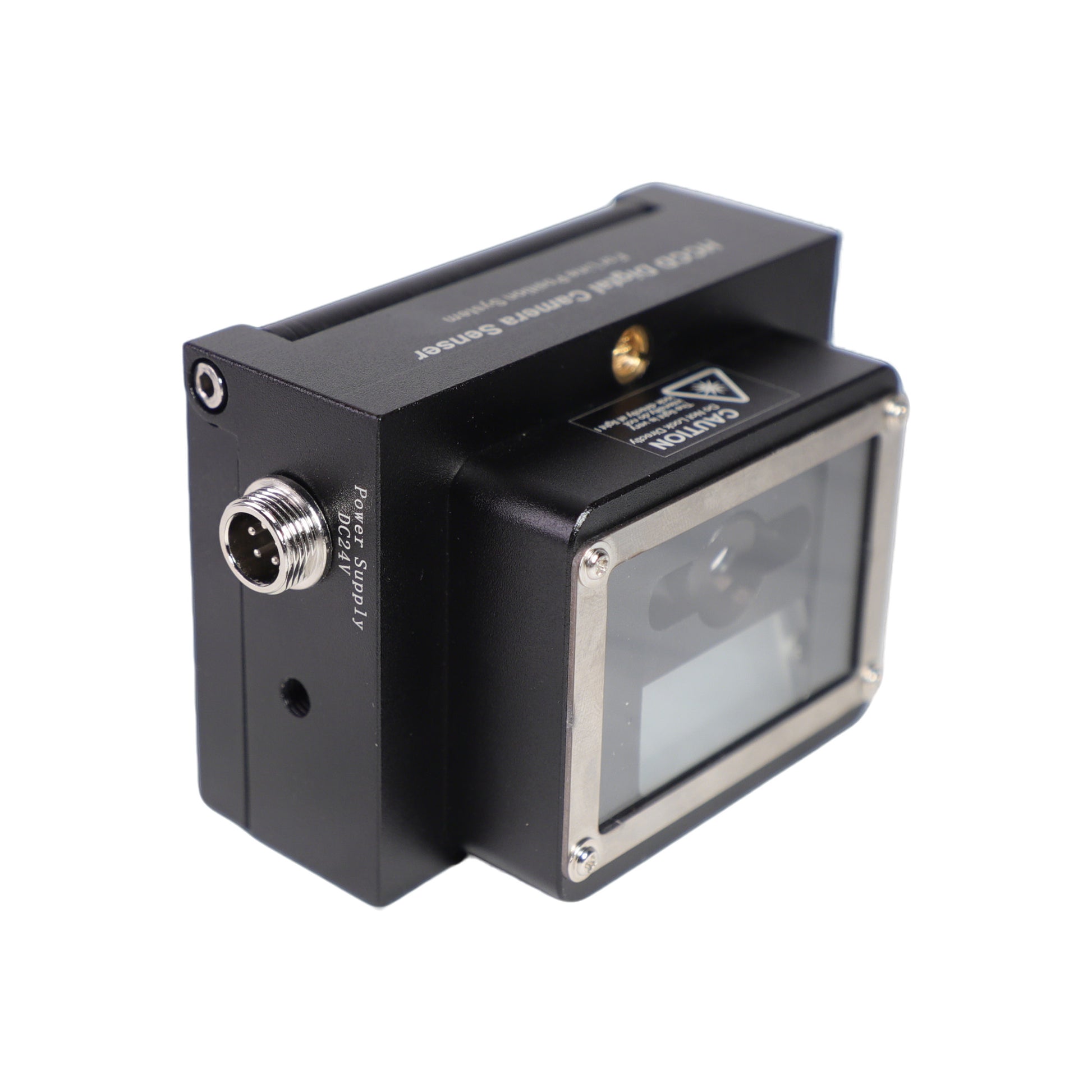

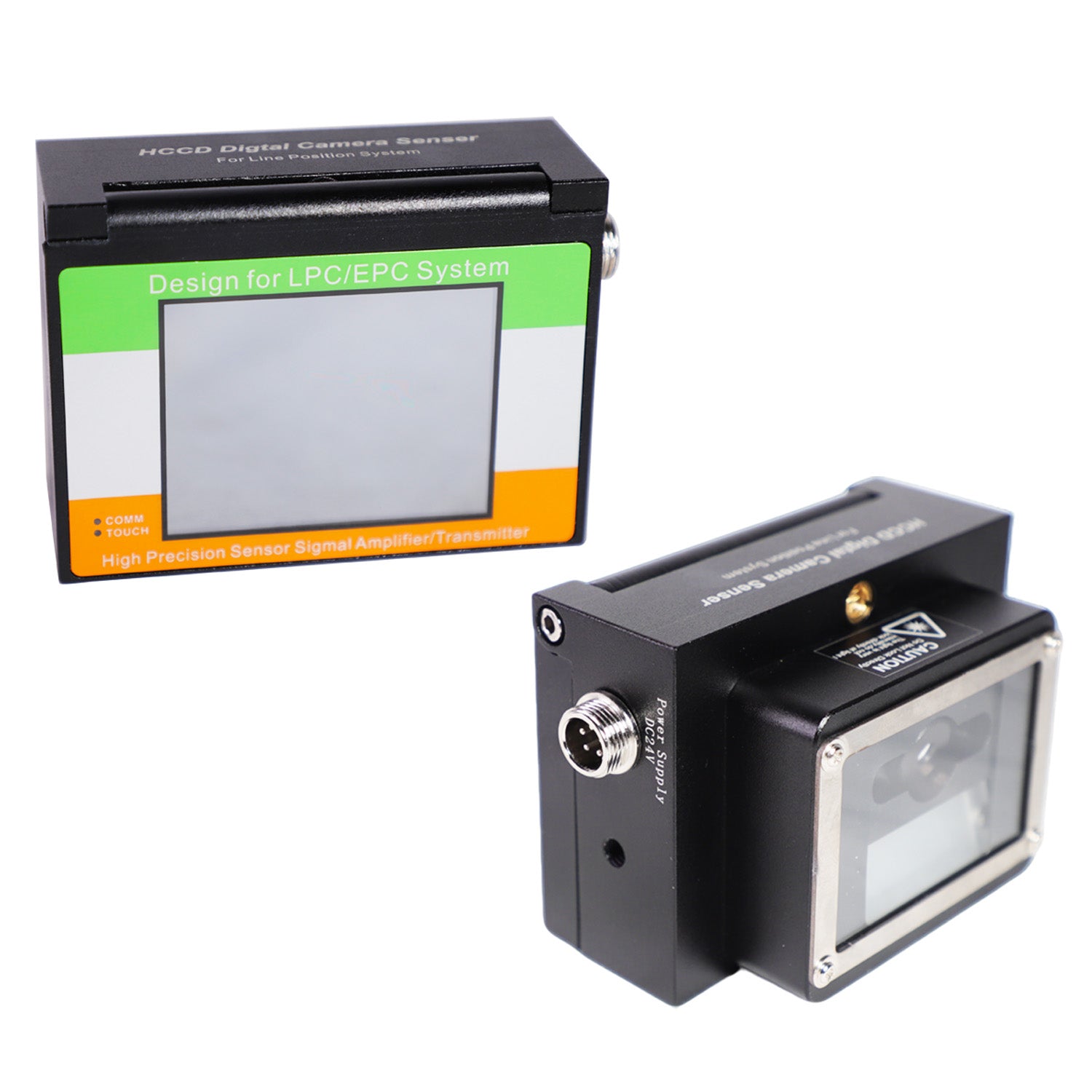

High-Precision HCCD Web Guide Sensor for EPC Systems

The HCCD web guide sensor is designed for high-precision edge detection and automatic web alignment in industrial EPC (Edge Position Control) systems. It is widely used in slitting machines, printing machines, coating lines, laminating equipment, lithium battery production lines, and other web handling systems.

With fast response speed and stable signal output, this HCCD sensor helps maintain accurate material tracking, reduce deviation, improve winding quality, and increase production efficiency.

Key Features

• High-precision edge detection
• Fast response and stable correction signal
• Suitable for transparent, opaque, film, paper, foil, and nonwoven materials
• Strong anti-interference capability
• Compact industrial design
• Easy installation and integration
• Compatible with EPC web guiding controllers

Applications

The HCCD guide sensor is widely used in:

• Slitting machines
• Rewinding machines
• Printing machines
• Coating machines
• Laminating equipment
• Lithium battery production lines
• Packaging machinery
• Flexible material processing systems

Advantages of HCCD Sensors

Compared with traditional photoelectric sensors, HCCD sensors provide:

• Higher edge tracking accuracy
• Better stability at high speed
• Improved correction performance
• Reduced material waste
• More stable winding alignment

This makes them ideal for precision web guiding systems in modern industrial automation.

Technical Support & Customization

XW Machinery provides complete web handling solutions including:

• EPC web guiding systems
• HCCD sensors
• Tension controllers
• Magnetic powder brakes and clutches
• Air shafts and differential shafts

Custom solutions are available according to your machine requirements.

What materials can the HCCD sensor detect?

The sensor can detect film, paper, foil, nonwoven fabric, and other roll materials.

Is the HCCD sensor suitable for high-speed machines?

Yes, it provides stable and fast edge tracking for high-speed web handling systems.

Can it work with EPC controllers?

Yes, the sensor is compatible with most industrial EPC web guiding systems.
