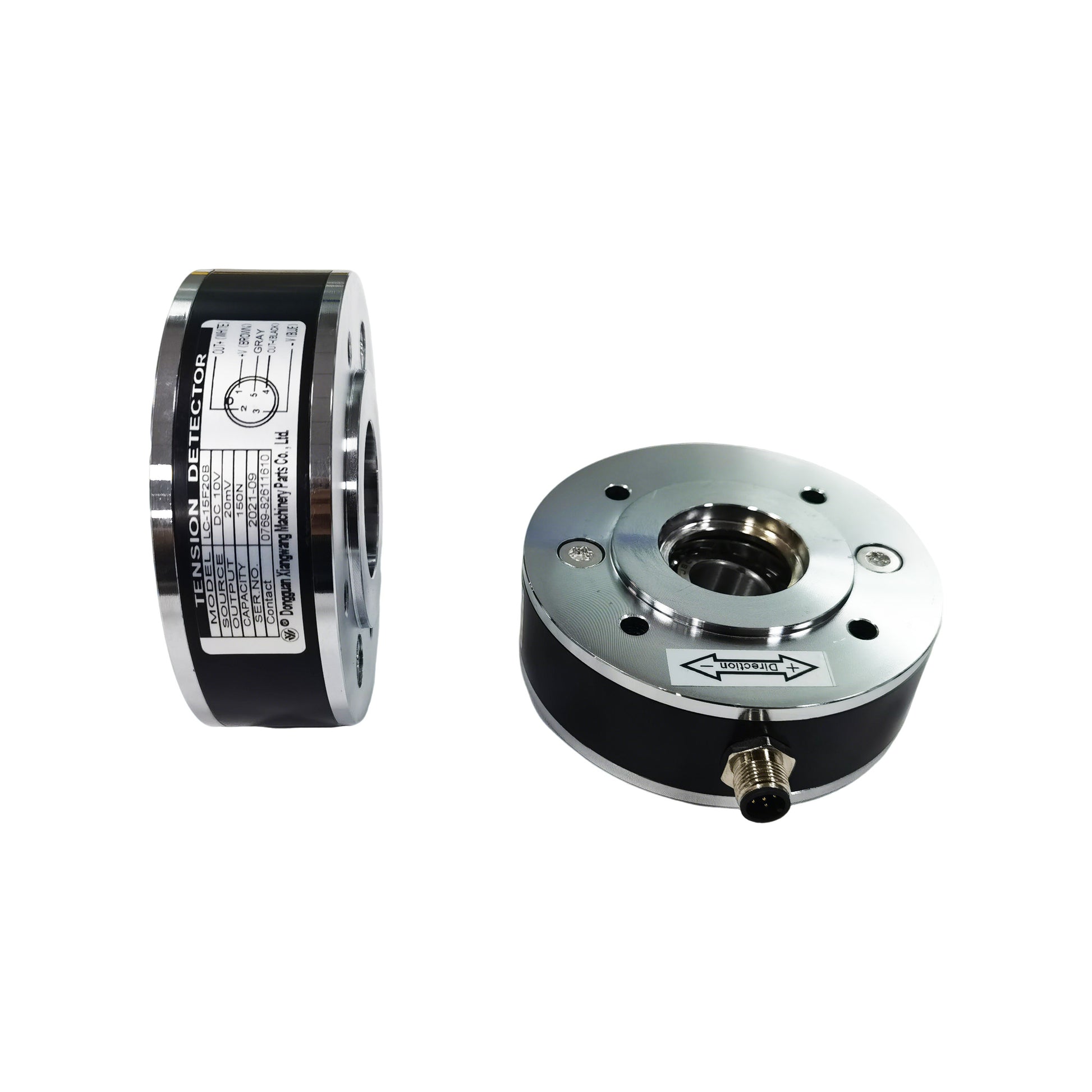

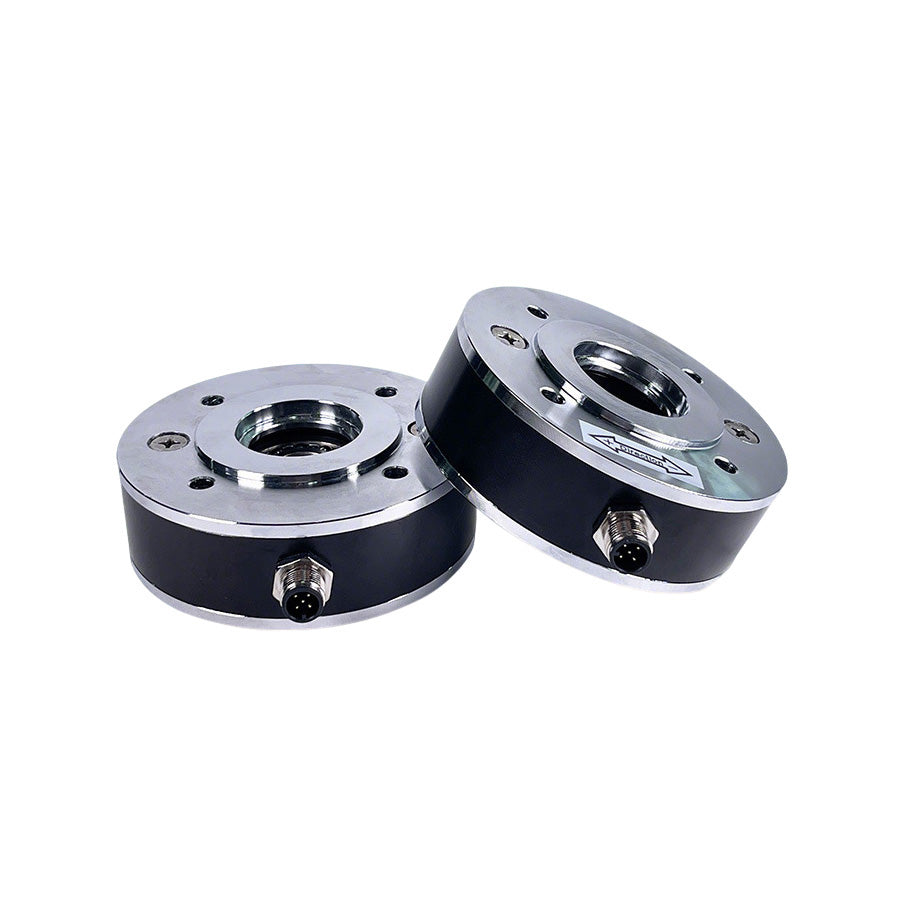

Axial Tension Detector for Industrial Web Tension Control System

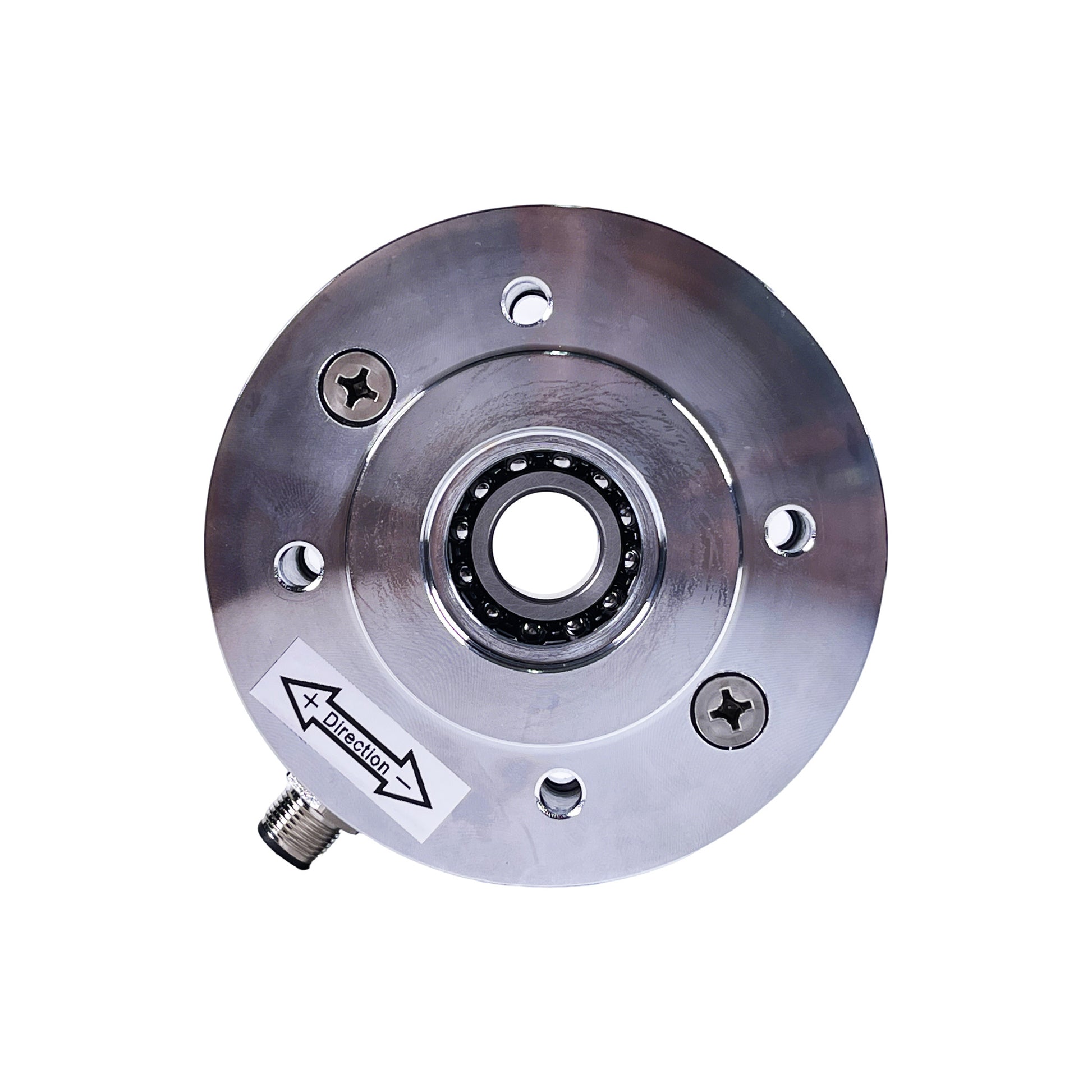

High-Precision Axial Tension Detector for Web Tension Control Systems

The axial tension detector is designed for accurate web tension measurement in industrial roll-to-roll processing systems. It is widely used in slitting machines, rewinding equipment, coating lines, printing machinery, laminating systems, lithium battery production lines, and flexible material processing applications.

Using high-sensitivity strain gauge sensing technology, the detector converts web tension into stable electrical signals for closed-loop tension control systems. Accurate tension measurement is essential for maintaining stable web handling, reducing material waste, improving winding quality, and increasing production efficiency. Modern web tension systems commonly use load cells and tension transducers to monitor running web force in real time.

Key Features

• High-precision web tension measurement
• Stable signal output
• Fast response performance
• High sensitivity strain gauge sensing
• Strong anti-interference capability
• Stable operation during high-speed processing
• Compact industrial structure
• Easy installation and integration
• Suitable for continuous industrial operation
• Compatible with automatic tension controllers

Applications

Widely used in:

• Slitting machines
• Rewinding machines
• Coating equipment
• Printing machinery
• Laminating machines

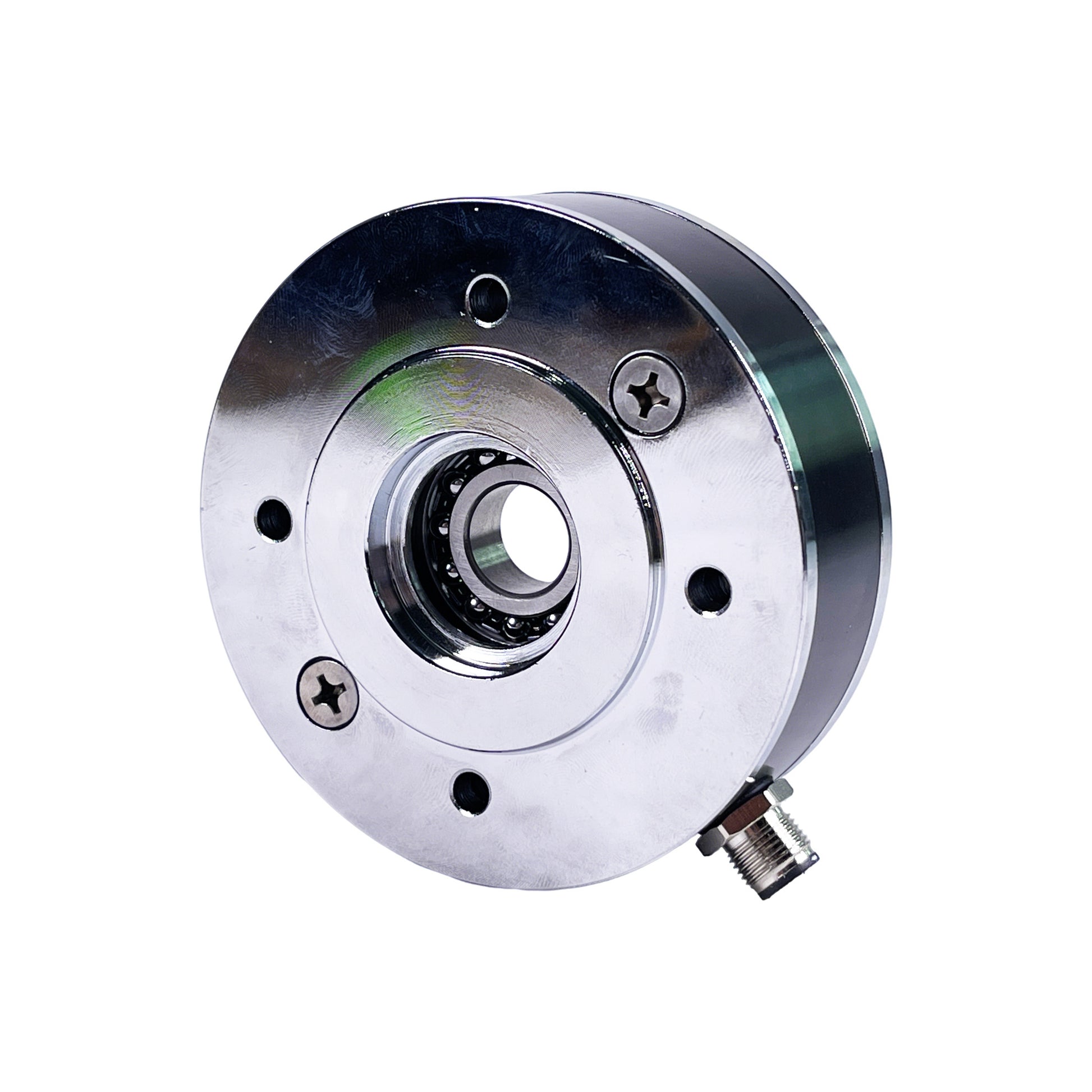

• Lithium battery production lines
• Film and foil converting equipment
• Nonwoven fabric processing systems
• Flexible packaging machinery

Advantages of Axial Tension Detectors

Compared with manual tension monitoring methods, automatic tension detectors provide:

• More accurate tension feedback
• Stable closed-loop tension control
• Reduced wrinkles and web deviation
• Improved winding consistency
• Better product quality
• Reduced material waste
• Higher production efficiency

Industrial web tension systems commonly use load cells or tension transducers mounted on rollers to continuously measure web force and provide real-time feedback for automatic tension regulation.

Working Principle

The axial tension detector measures the force applied to the guide roller by the moving web material. The built-in strain gauge sensing element converts the mechanical force into an electrical signal, which is transmitted to the tension controller for automatic adjustment and closed-loop tension control. Modern web tension systems widely rely on load-cell-based feedback technology for stable roll-to-roll processing.

Compatible System Components

This tension detector can work together with:

• Automatic tension controllers
• Magnetic powder brakes
• Magnetic powder clutches

• Air shafts
• Differential shafts
• Web guiding systems

XW Machinery also provides complete web tension and web guiding solutions for industrial automation systems.
