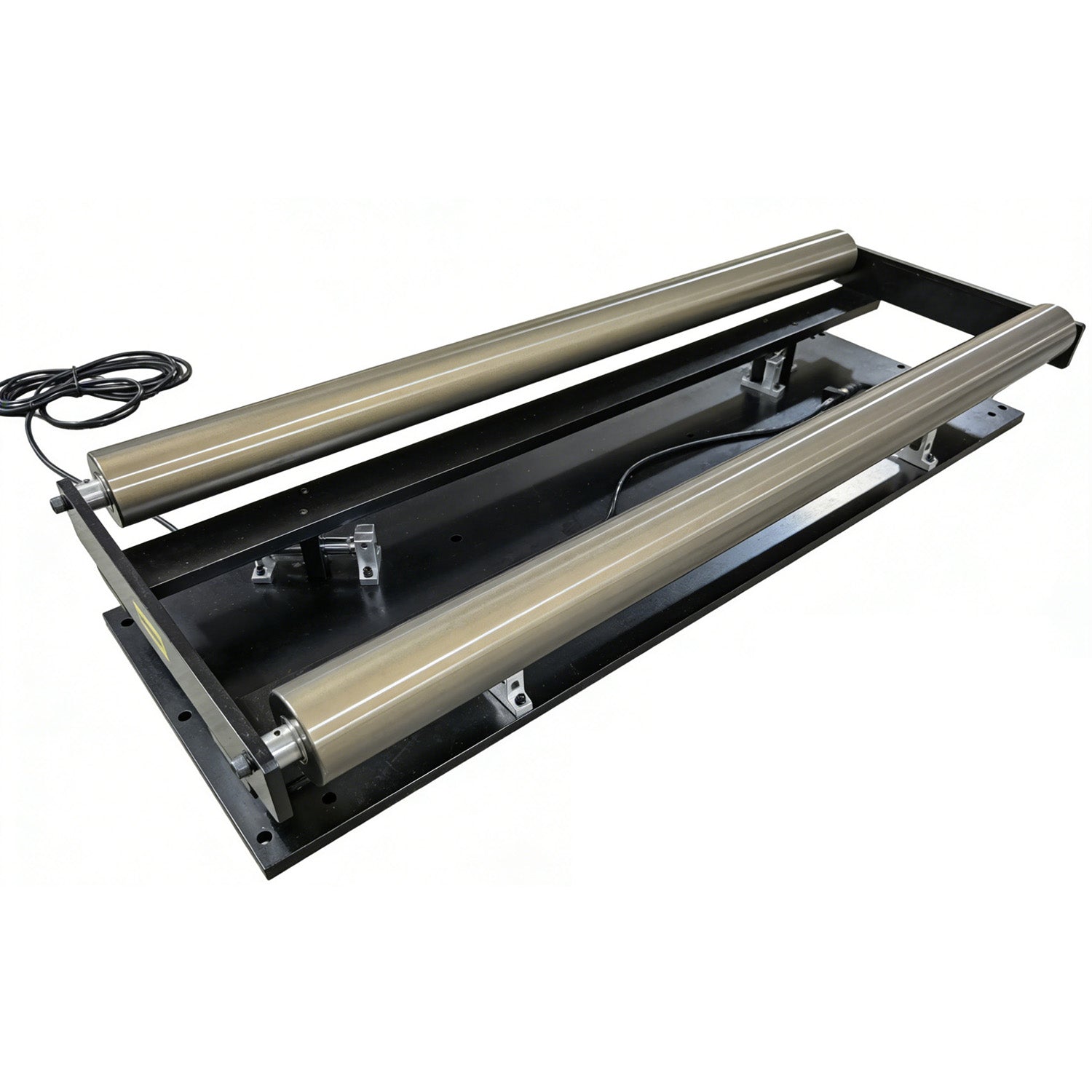

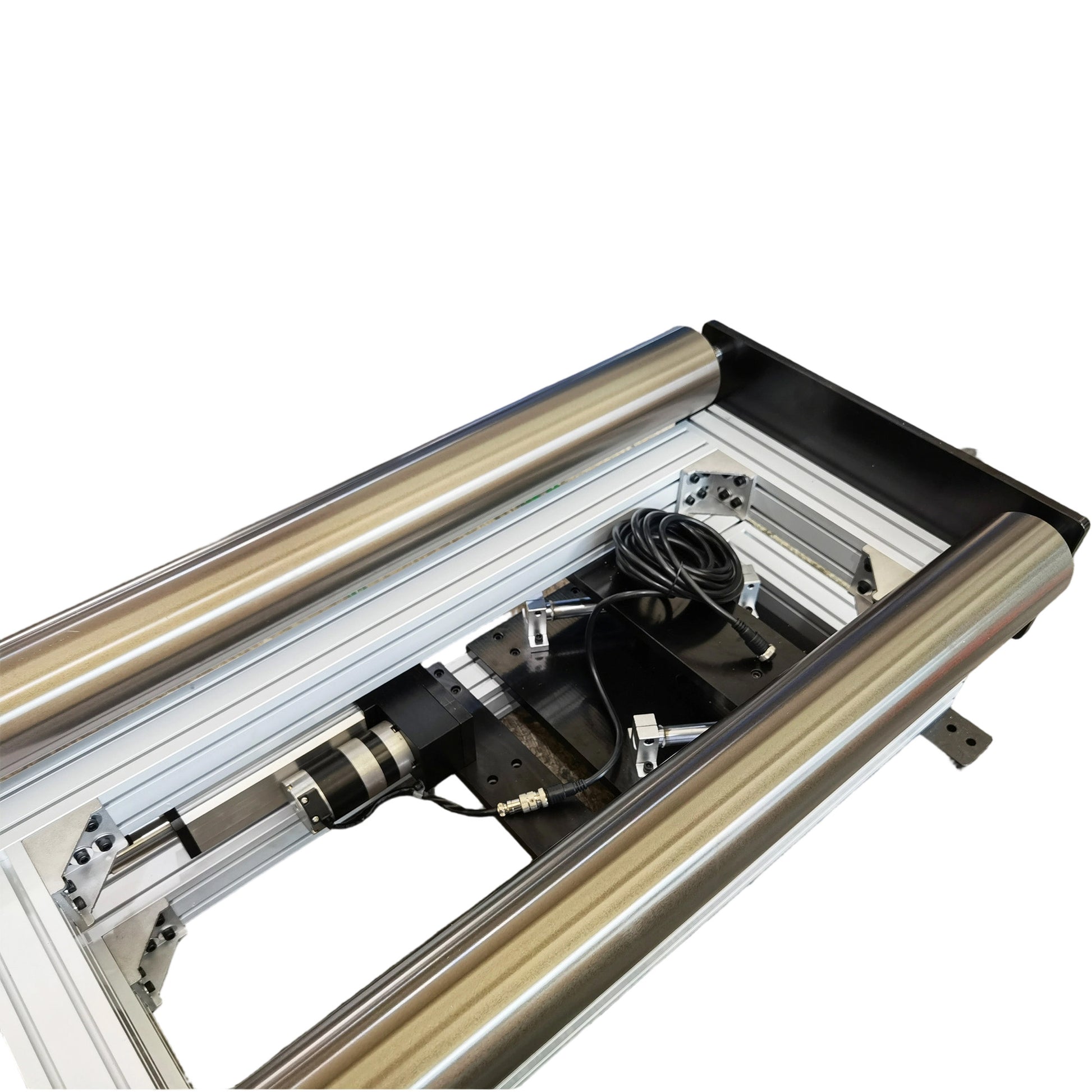

Steering Frame for Automatic Web Guiding Systems

XW Machinery Steering Frames are designed for high-precision web guiding and web alignment control in slitting, rewinding, printing, laminating, coating, packaging, paper converting, film processing, foil manufacturing and lithium battery production lines.

As a critical component of an automatic Web Guiding System, the Steering Frame continuously adjusts web position based on signals from CCD Edge Guide Sensors, CCD Linear Sensors, ultrasonic sensors or photoelectric sensors, ensuring stable material tracking and minimizing edge deviation during production.

Our Steering Frames help manufacturers improve product quality, reduce material waste, increase production efficiency and maintain accurate web positioning even at high operating speeds.

---

What is a Steering Frame?

A Steering Frame (Guide Frame or Web Guide Frame) is an automatic correction mechanism that moves rollers and guide assemblies laterally to maintain proper web alignment.

When integrated with a Web Guide Controller and Web Guide Sensor, the Steering Frame automatically compensates for web wandering, edge misalignment and tracking errors.

Benefits include:

• Accurate web tracking
• Reduced material waste
• Improved slitting accuracy
• Enhanced roll quality
• Stable production operation
• Lower downtime
• High-speed correction capability

---

Key Features

High-Precision Web Alignment

Maintains consistent web position throughout the production process.

Fast Response Correction

Quickly compensates for web deviations during high-speed operation.

Heavy-Duty Industrial Design

Designed for continuous operation in demanding manufacturing environments.

Servo & Electric Actuation Available

Supports precise positioning and smooth correction performance.

Wide Material Compatibility

Suitable for:

• Plastic Films
• BOPP Films
• PET Films
• CPP Films
• Paper Rolls
• Aluminum Foil
• Copper Foil
• Nonwoven Fabrics
• Textile Materials
• Lithium Battery Electrode Materials

---

Available Steering Frame Types

Pivoting Steering Frame

Ideal for medium and high-speed web guiding applications.

Moving Guide Frame

Provides lateral correction for precise edge control.

Integrated Web Guide Frame

Complete guiding assembly including frame, actuator and controller.

Heavy-Duty Steering Frame

Designed for wide web and large roll applications.

---

Applications

XW Machinery Steering Frames are widely used in:

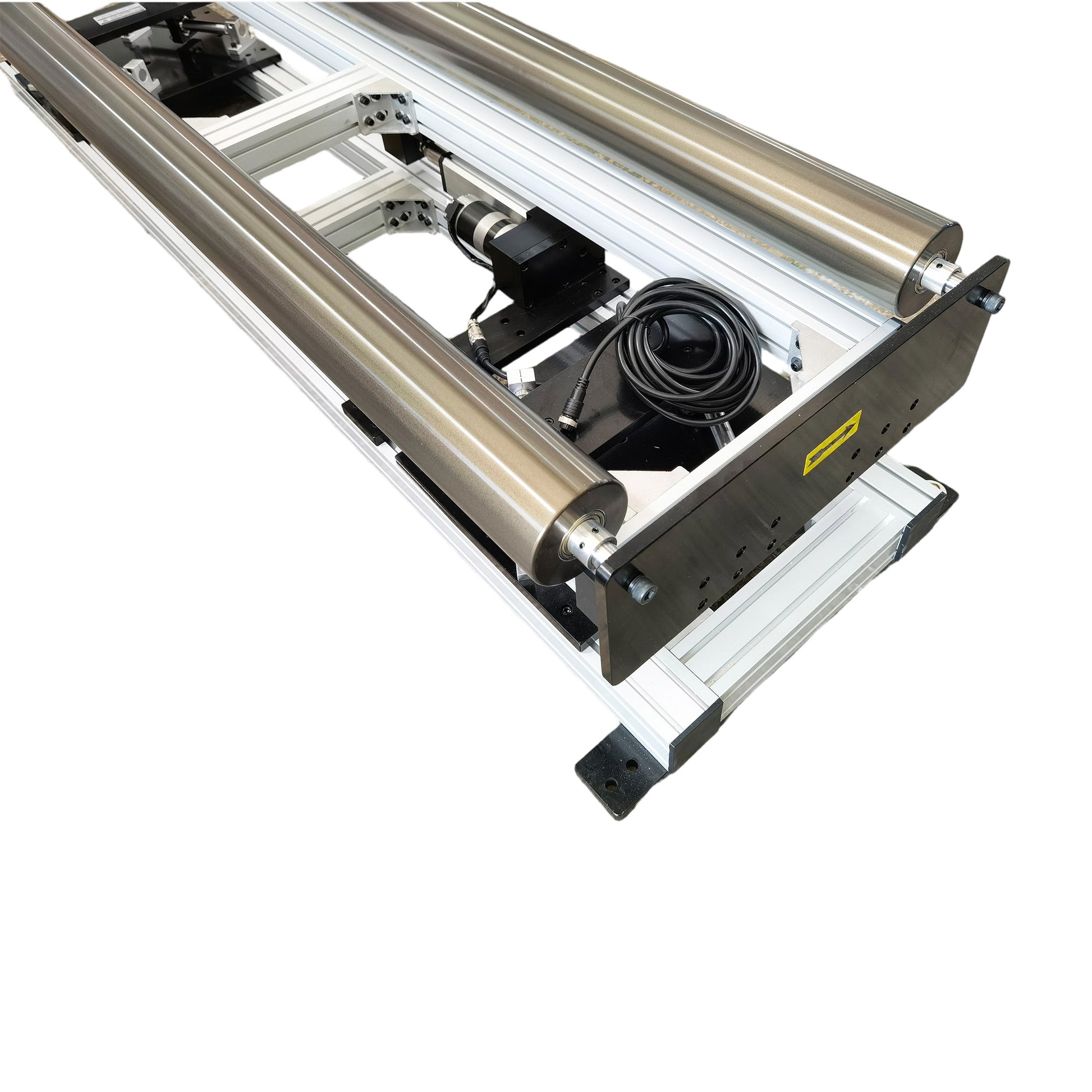

Slitting Machines

Improve slit roll accuracy and reduce edge wandering.

Rewinding Machines

Maintain uniform roll alignment during winding.

Printing Machines

Ensure precise registration and print quality.

Laminating Machines

Improve layer alignment and product consistency.

Coating Machines

Maintain coating precision across the web width.

Lithium Battery Production Lines

Support accurate electrode alignment for battery manufacturing.

Flexible Packaging Production

Ensure stable web tracking throughout converting processes.

---

Why Choose XW Machinery Steering Frames?

Precision Engineering

Designed for reliable web correction performance.

High-Speed Capability

Suitable for modern high-speed converting equipment.

Stable Operation

Minimizes vibration and improves tracking accuracy.

OEM & Custom Manufacturing

Customized dimensions and configurations available.

Global Technical Support

Professional engineering assistance and application guidance.

---

The Steering Frame can be integrated with:

[Web Guiding System]

Complete automatic web guiding solutions for converting industries.

[CCD Edge Guide Sensor]

High-precision edge detection for automatic correction systems.

[CCD Linear Sensor for Web Guiding]

Advanced web position monitoring technology.

[Automatic Web Guide Controller]

Intelligent control unit for steering frame systems.

[Tension Control System]

Maintain stable web tension throughout production.

[Cantilever Tension Load Cell]

Accurate web tension measurement for closed-loop control.

[Air Expanding Shaft]

Reliable winding and unwinding shaft solutions.

[Differential Shaft]

Independent tension compensation for multi-roll winding.



Why XW Machinery?

XW Machinery specializes in manufacturing:

• Web Guiding Systems
• Steering Frames
• CCD Edge Guide Sensors
• CCD Linear Sensors
• Web Guide Controllers
• Air Expanding Shafts
• Differential Shafts
• Tension Controllers
• Tension Sensors
• Magnetic Powder Brakes
• Magnetic Powder Clutches

Serving customers in:

• Flexible Packaging
• Film Converting
• Paper Processing
• Foil Manufacturing
• Printing Industry
• Coating Industry
• Laminating Industry
• Lithium Battery Production
