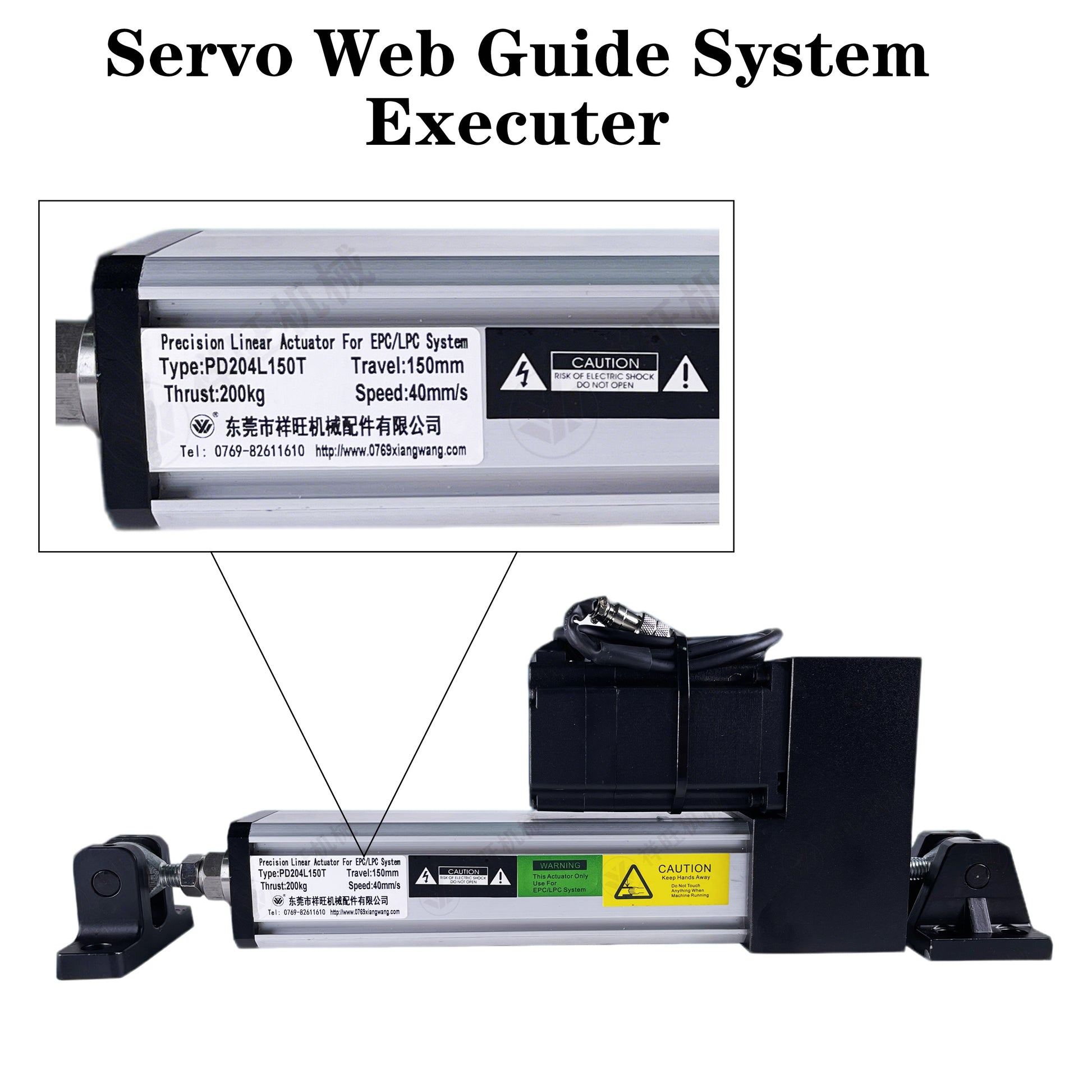

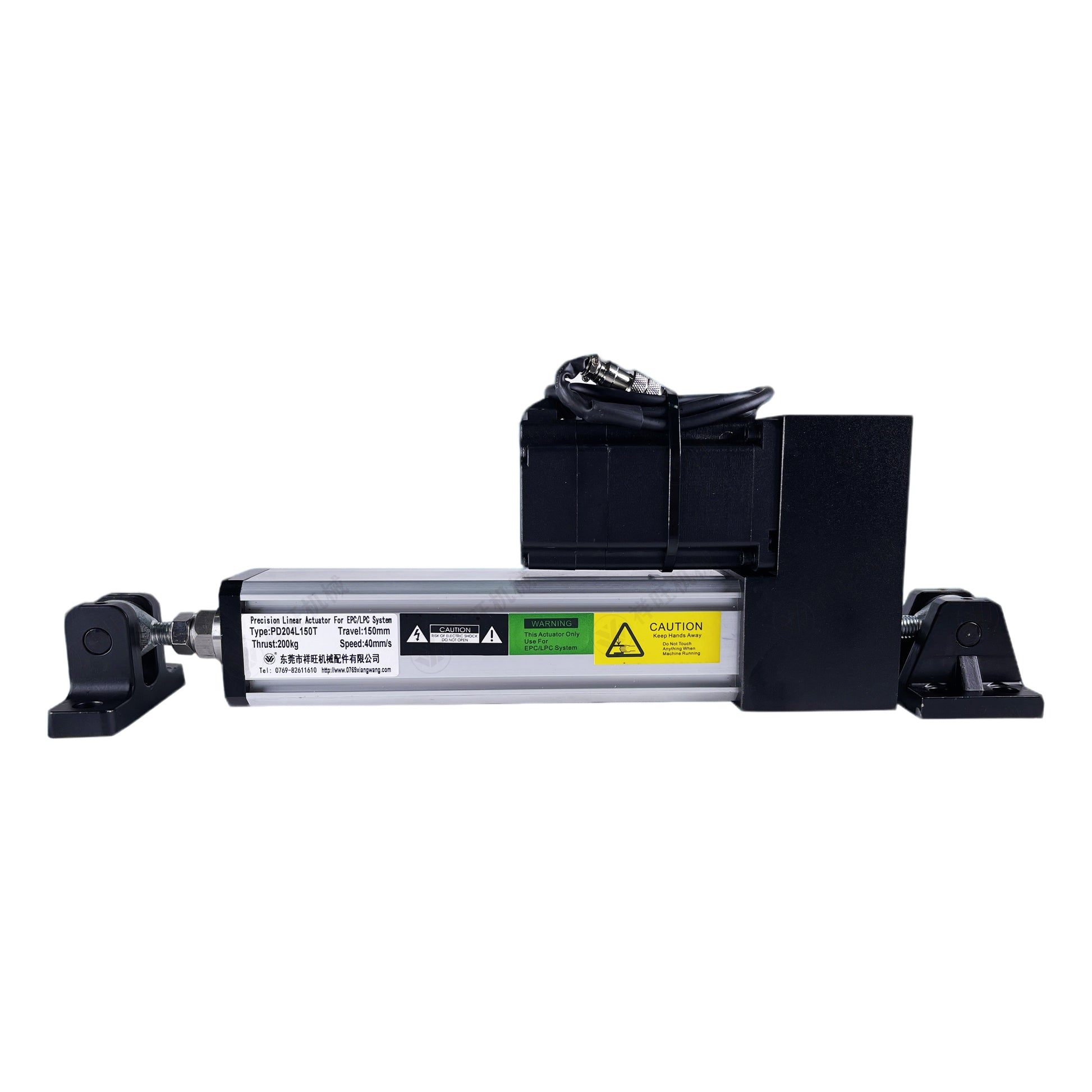

Servo Linear Actuator for EPC/LPC Web Guide Control System

High-Precision Servo Linear Actuator for EPC/LPC Systems

  This servo linear actuator is specially designed for industrial EPC (Edge Position Control) and LPC (Line Position Control) web guiding systems. It provides precise automatic correction and stable web alignment for slitting machines, coating lines, laminating equipment, printing machinery, lithium battery production lines, and other roll-to-roll processing systems.

  Powered by a high-performance brushless servo motor and precision ball screw structure, the actuator delivers fast response, stable positioning, and high correction accuracy during high-speed operation.

  With 200kg thrust force, 40mm/s driving speed, and 150mm stroke travel, it is ideal for modern industrial automation systems requiring reliable web guiding and continuous correction control. Similar servo-driven web guide actuators are widely used for high-precision web alignment applications.

Key Features

• High-precision servo correction control
• Brushless servo motor drive
• Precision ball screw transmission
• Fast response and stable positioning
• 200kg high thrust force
• 40mm/s driving speed
• 150mm stroke travel
• Maintenance-free servo structure
• Low backlash and accurate positioning
• Strong anti-interference performance
• Suitable for high-speed web handling systems

Applications

Widely used in:

• Slitting machines
• Rewinding machines
• Coating machines
• Printing machinery
• Laminating equipment
• Lithium battery production lines
• Flexible packaging systems
• Film and foil converting equipment
• Nonwoven fabric processing machines

Advantages of Servo Web Guide Actuators

Compared with pneumatic correction systems, servo linear actuators provide:

• Higher positioning accuracy
• Faster correction response
• More stable web alignment
• Better high-speed performance
• Reduced material waste
• Improved winding quality
• Lower maintenance requirements

Modern servo-driven EPC systems commonly use precision ball screw transmission and encoder feedback for accurate positioning and stable correction performance.

Technical Specifications

Compatible System Components

This servo actuator can work together with:

• EPC controllers
• LPC controllers
• Ultrasonic web guide sensors
• HCCD sensors
• Photoelectric edge sensors
• Servo correction controllers
• Web guiding frames

XW Machinery also provides complete web handling and tension control solutions.

What is this servo linear actuator used for?

It is used for automatic web alignment and correction in EPC/LPC web guide systems.

Is it suitable for high-speed slitting machines?

Yes. The actuator provides fast response and stable correction for high-speed production lines.

What materials can it handle?

It is suitable for film, paper, foil, lithium battery materials, nonwoven fabric, and flexible roll materials.

Why use a servo actuator instead of pneumatic correction?

Servo actuators provide higher precision, faster response, and more stable web alignment.
