All-in-One Web Guide Control System | Servo EPC Web Alignment System 24V DC | XW Machinery

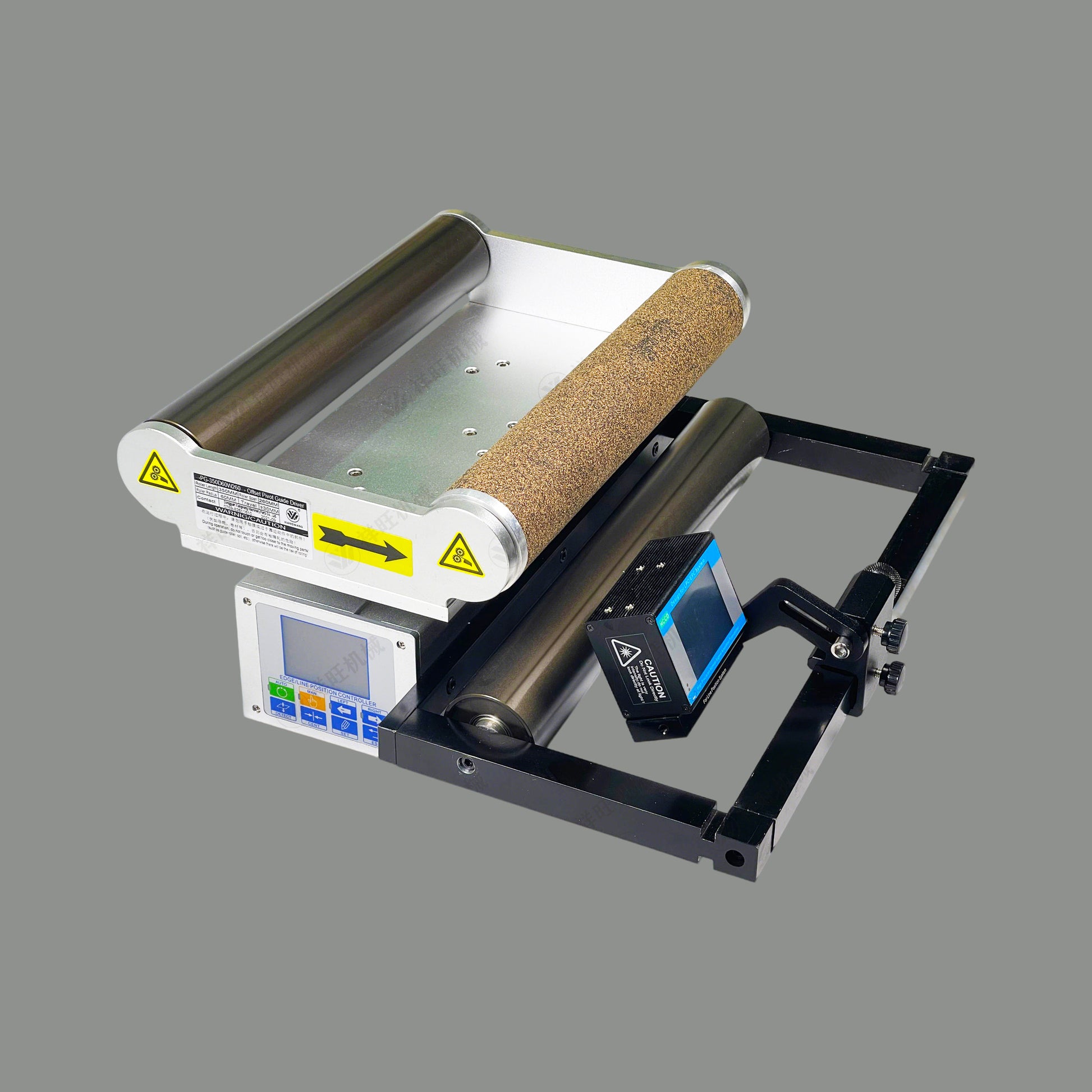

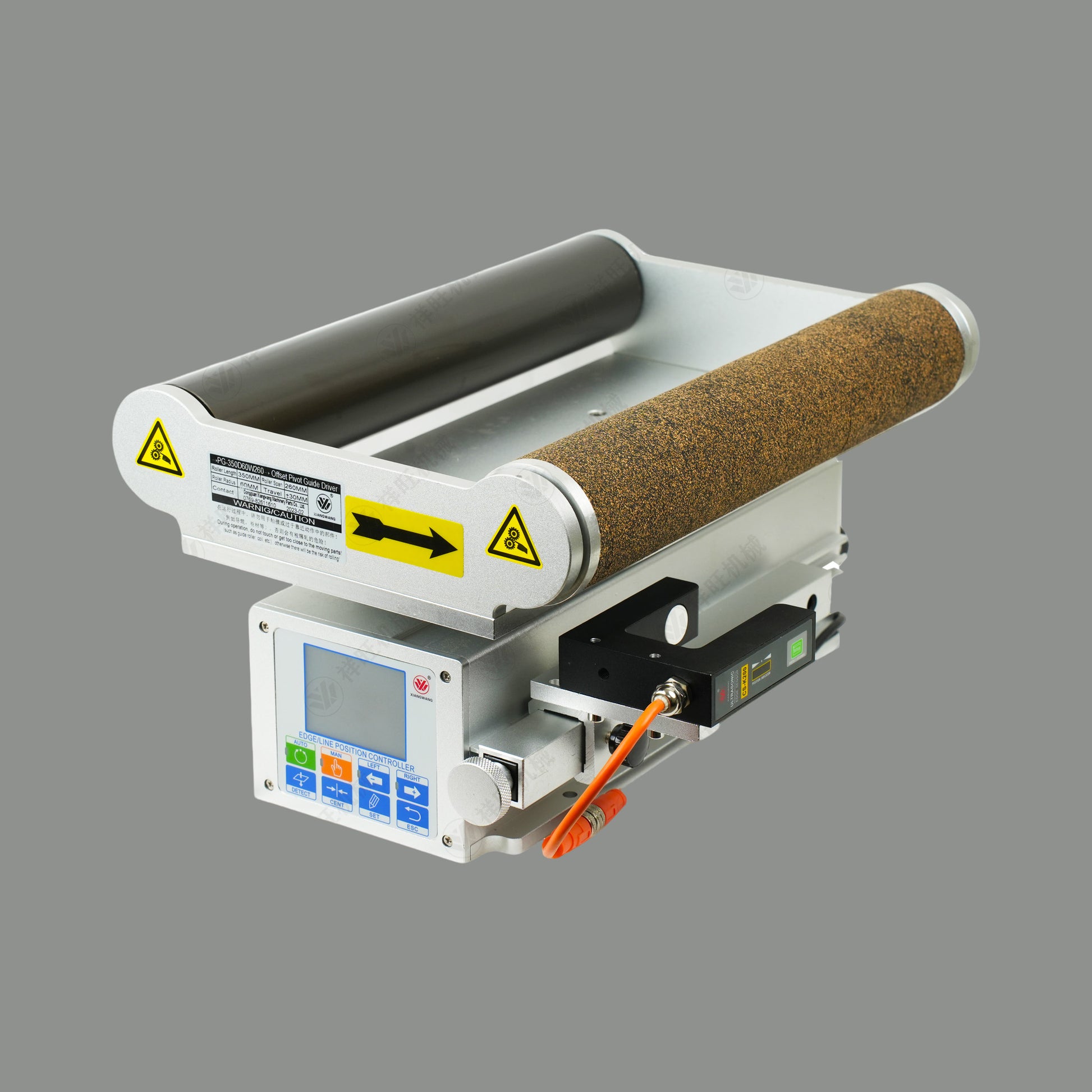

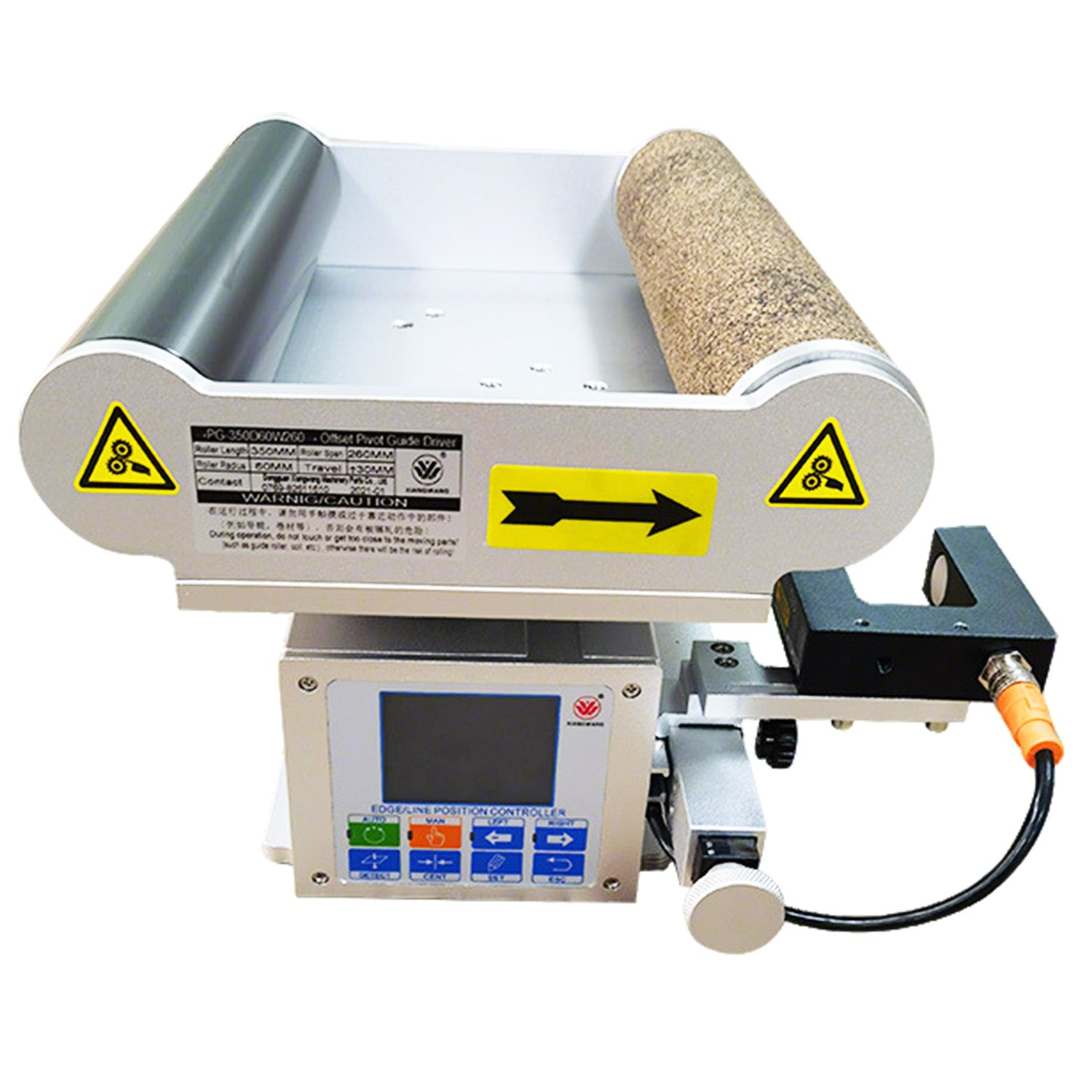

  The XW Machinery All-in-One Web Guide Control System integrates the controller, sensor, and servo correction unit into a compact solution for precise automatic web alignment.
  Designed for paper processing, bag making, printing, labeling, and roll-to-roll converting machines, it delivers stable EPC correction performance, fast response speed, and reliable edge tracking.

What Is an All-in-One Web Guide Control System?

  An all-in-one web guide control system is a compact EPC (Edge Position Control) solution that integrates the controller, sensor, and actuator into a single unit for automatic web alignment correction.

  It continuously detects material deviation and automatically adjusts web position during production, helping maintain accurate alignment and reducing material waste. Modern systems support high-speed response, automatic tracking, and multi-mode guiding functions.

The XW Machinery integrated web guiding system is ideal for narrow web and roll-to-roll applications requiring stable correction accuracy and simplified installation.

Key Features of XW Machinery Integrated Web Guiding System

Compact All-in-One Design

The controller, driver, and guiding mechanism are integrated into one structure, reducing installation space and simplifying machine integration.

High Precision Servo Correction

The system uses servo-driven EPC technology for fast response and accurate web tracking performance during high-speed operation.

Multi-Sensor Compatibility

Compatible with:

• Photoelectric sensors
• Ultrasonic sensors
• CCD sensors
• Infrared edge sensors

Stable 24V DC Power Design

Supports industrial 24V DC input with stable 12V DC sensor output for reliable long-term operation.

Intelligent Automatic Tracking

Supports multiple working modes:

• Edge guiding
• Line tracking
• Center alignment

Suitable for different material types and machine structures.

Applications of All-in-One EPC Web Guiding Systems

This automatic web alignment system is widely used in:

• Bag making machines
• Paper processing machines
• Label printing machines
• Slitting machines
• Rewinding systems
• Flexible packaging lines
• Nonwoven fabric production
• Film converting equipment

Benefits of Automatic Web Alignment

Accurate web guiding helps manufacturers:

• Reduce edge misalignment
• Improve winding quality
• Minimize material waste
• Increase production efficiency
• Improve slitting precision
• Reduce downtime caused by web deviation

Why Choose XW Machinery?

XW Machinery specializes in industrial web handling solutions for converting and roll-to-roll production industries.

We provide:

• Servo EPC web guiding systems
• Automatic tension control systems
• Differential air shafts
• Magnetic powder brakes
• Air expanding shafts
• Custom automation solutions

Our systems are widely used in printing, packaging, lithium battery, film, and paper industries.

  Modern roll-to-roll converting equipment often combines an advanced EPC web guiding system with a precise tension control system, durable differential air shaft, high-performance magnetic powder brake, and reliable air expanding shaft to improve web alignment accuracy, winding quality, and production efficiency.

What is an EPC web guiding system?

An EPC web guiding system automatically detects and corrects web deviation to maintain accurate material alignment during production.

What machines use web guide systems?

Web guide systems are commonly used in slitting, rewinding, bag making, printing, coating, and packaging machines.

What sensors are supported?

The system supports photoelectric, ultrasonic, CCD, and infrared sensors.

Is the system suitable for high-speed production?

Yes. Servo-driven EPC systems provide high-speed response and stable correction accuracy for industrial converting applications.

Can the guiding system be customized?

Yes. XW Machinary provides customized guiding solutions based on material width, machine speed, correction stroke, and application requirements.
