Does Uneven Material Thickness Cause Poor Winding Quality?
Share
Roll-to-roll manufacturing requires consistent winding quality to ensure efficient downstream processing. However, many manufacturers encounter a common issue: the finished roll appears uneven, telescopes, or develops a wavy surface even when the slitting machine is operating normally.
Many people immediately suspect the winding tension or the machine itself. In reality, non-uniform material thickness is often one of the primary causes of poor roll formation.
In this article, we'll explain why thickness variation affects winding quality and how proper tension control and winding components can minimize its impact.
Why Material Thickness Matters During Winding
During rewinding, each layer of material is wrapped tightly around the previous one.
If the material thickness remains consistent, every layer stacks evenly, creating a smooth and stable roll.
However, if the material has:
- Thickness variations across the web
- Local thick or thin spots
- Inconsistent coating thickness
- Uneven lamination
the winding diameter changes slightly with every rotation.
Over hundreds or thousands of layers, these tiny differences accumulate, causing:
- Uneven roll edges
- Telescoping rolls
- High and low spots
- Loose winding sections
- Wrinkles
- Poor roll appearance
This phenomenon becomes even more obvious when processing:
- Lithium battery separator film
- Optical film
- Aluminum foil
- Copper foil
- PET film
- BOPP film
- Paper
- Nonwoven fabrics
Why Increasing Tension Isn't the Solution
A common mistake is increasing rewinding tension to make the roll tighter.
Unfortunately, this usually creates new problems.
Excessive tension may lead to:
- Material stretching
- Core deformation
- Edge damage
- Increased wrinkles
- Roll blocking
- Product deformation
Instead of solving thickness variation, excessive tension simply forces the uneven layers together, often making defects worse.
The Relationship Between Thickness Variation and Roll Quality
Imagine wrapping several hundred sheets of paper together.
If every sheet has exactly the same thickness, the roll remains perfectly cylindrical.
Now imagine some sheets are slightly thicker than others.
Even a thickness difference of only a few microns accumulates over many layers, producing visible bumps and uneven roll surfaces.
This is exactly what happens in industrial roll winding.
The thicker areas build up a larger winding diameter, while thinner areas create lower sections.
Eventually, the finished roll loses its uniform shape.
How Professional Converting Lines Reduce the Problem
Although material thickness cannot always be controlled during production, winding quality can still be significantly improved with the right equipment.
1. Stable Web Tension
A high-precision Automatic Tension Controller continuously adjusts winding torque according to roll diameter, maintaining stable web tension throughout the entire process.
This helps minimize the influence of thickness variation.
2. Accurate Differential Winding
For slitting multiple narrow rolls, using a Differential Shaft allows each roll to rotate independently.
Each strip automatically compensates for small differences in material thickness, ensuring more consistent winding hardness and preventing loose or overly tight rolls.
3. Reliable Core Clamping
A precision Air Expanding Shaft keeps the core firmly centered while providing excellent concentricity during high-speed winding.
Stable core positioning reduces vibration and improves roll uniformity.
4. Precise Web Alignment
A modern Web Guiding System continuously corrects lateral web deviation.
Accurate edge alignment prevents cumulative edge offset, producing cleaner and more uniform finished rolls.
Watch the Thickness Difference in Action

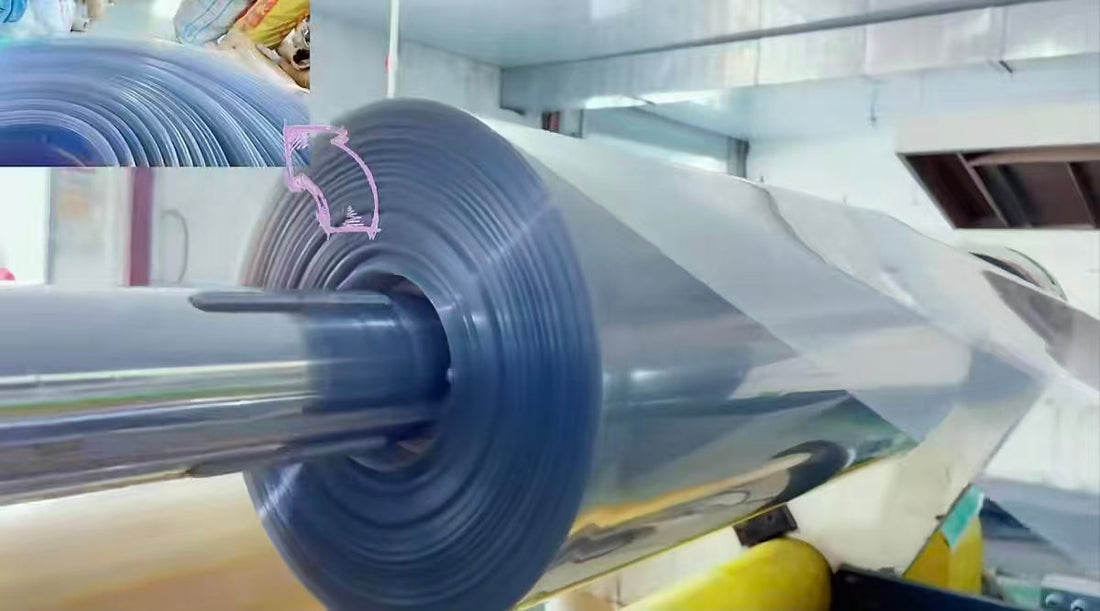

The following demonstration clearly shows how differences in material thickness affect the winding surface and final roll appearance.
Although the machine is functioning normally, the varying material thickness creates an uneven roll profile over time.
(Reference video: Instagram Reel showing uneven winding caused by thickness variation.)
Final Thoughts
When finished rolls become uneven, the machine is not always the root cause.
In many cases, material thickness variation is the hidden factor affecting winding quality.
While raw material consistency depends on upstream manufacturing, converters can greatly reduce winding defects by combining:
- Stable tension control
- Differential winding technology
- High-precision air shafts
- Accurate web guiding systems
Together, these solutions help produce smoother rolls, improve product quality, reduce waste, and increase production efficiency.
