How to Replace and Install a Magnetic Powder Brake: Step-by-Step Guide
Share
A magnetic powder brake is widely used in tension control systems across printing, packaging, wire winding, and textile machinery. Over time, wear or overheating may require replacement. Proper installation is essential to ensure stable torque output and long service life.
This guide explains how to safely replace and install a magnetic powder brake system step by step.
What Is a Magnetic Powder Brake?
A magnetic powder brake uses magnetic powder inside a sealed chamber to transmit torque. When current is applied, the magnetic field causes the powder to harden, creating controlled resistance between the input and output shafts.
It is commonly used in:
- Web tension control systems
- Coil winding machines
- Film and foil processing equipment
- Printing and labeling machines
Tools and Preparation
Before starting installation, prepare the following tools:
- Adjustable wrench set
- Screwdrivers (flat and Phillips)
- Torque wrench
- Alignment tools (dial indicator recommended)
- Clean cloth and alcohol for surface cleaning
- Electrical wiring tools (if needed)
Safety Precautions
- Turn off all power sources before starting
- Lock out/tag out the machine
- Ensure the system is fully stopped and cooled
- Wear protective gloves and safety glasses
Step 1: Remove the Old Magnetic Powder Brake
- Disconnect all electrical wiring from the magnetic particle brake.
- Mark wiring positions for correct reinstallation.
- Loosen mounting bolts using the appropriate wrench.
- Carefully slide the brake off the shaft.
- Inspect the shaft for wear, rust, or contamination.
Tip: Clean the shaft thoroughly before installing the new brake to avoid misalignment.
Step 2: Inspect the New Brake
- Ensure model and torque rating match system requirements
- Rotate shaft manually to check smooth operation
- Inspect for shipping damage or oil leakage
- Verify mounting dimensions
Always confirm compatibility with your industrial braking system.

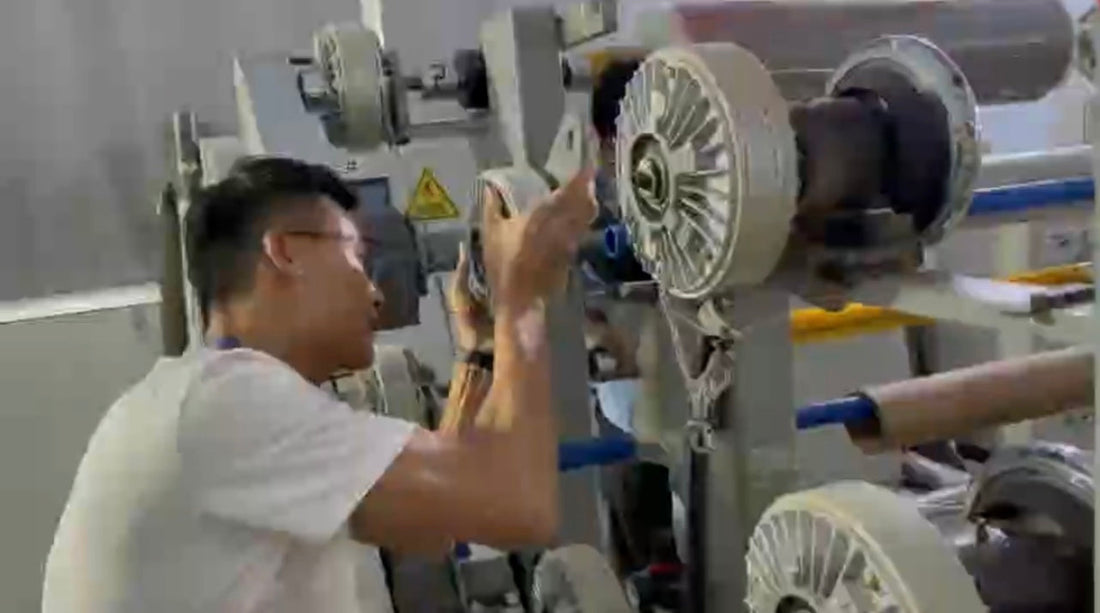

Step 3: Install the New Magnetic Powder Brake
- Align the brake with the shaft carefully.
- Slide it gently onto the mounting position.
- Tighten bolts evenly in a cross pattern.
- Use a torque wrench to apply manufacturer-recommended force.
- Ensure no axial or radial misalignment.
Proper alignment ensures stable performance of the magnetic powder brake unit.
Step 4: Electrical Wiring Connection
- Match polarity according to wiring diagram
- Secure all terminals tightly
- Avoid loose or exposed wires
- Use shielding to reduce electrical noise
Double-check all connections before powering on the system.
Step 5: Testing and Calibration
- Power on at low speed
- Observe braking response
- Gradually increase load
- Check for noise, heat, or vibration
- Adjust current settings for optimal tension control
If stable, the magnetic powder brake system is ready for operation.
Common Installation Mistakes to Avoid
- Misalignment between shaft and brake
- Loose mounting bolts
- Incorrect wiring polarity
- Skipping shaft cleaning
- Improper torque tightening
These mistakes can reduce lifespan and performance significantly.
Maintenance Tips
- Regularly clean powder residue
- Avoid overheating by controlling current
- Inspect wiring periodically
- Replace magnetic powder when torque weakens
- Ensure proper ventilation
Conclusion
Proper installation of a magnetic particle brake ensures accurate tension control and long-term stability in industrial applications. Following correct removal, installation, and calibration steps helps maximize performance and reduce downtime.
