How to Repair a Differential Shaft

Knowing how to repair a differential shaft keeps a slitter-rewinder running and protects roll quality. A differential shaft (often called a slip shaft) lets each rewind core on a slitting line wind at its own tension, so rolls come off even and tight even when core diameters differ. When rolls show loose edges, telescoping, or uneven hardness, the shaft — not the web — is usually the problem. This guide gives maintenance engineers and plant managers a practical repair path: how to diagnose the fault, which parts you can rebuild in-house, and when it is cheaper to replace the shaft than chase a symptom. XW Machinery builds differential, ball-type and key-type shafts for slitting and rewinding lines worldwide, so the steps below reflect real field service practice.

What Is a Differential Shaft?

A differential shaft carries multiple cores on one bar while letting each core slip independently at a set torque. At every winding position a friction element — a friction ring in key-type shafts or a ball mechanism in ball-type shafts — slips when tension exceeds its preset value. That slip equalizes tension across the whole roll set, which a rigid air shaft cannot do because it locks every core to the same speed.

XW Machinery's differential slip shaft uses independent friction rings at each core station, so a single worn station can often be serviced without pulling the whole shaft. For high-speed slitting, a ball-type design spreads load across more contact points and tends to run cooler than a keyed design — we compare the two repair paths below.

Signs Your Differential Shaft Needs Repair

Catch these early and a differential shaft repair stays a short job instead of an unplanned stoppage:

• Uneven roll hardness across the set — some rolls hard, some soft.
• Telescoping or slipped cores — the web shifts sideways on the core during rewind.
• Air leakage at the expanding element or end caps.
• Large slip-torque variation between stations on the same shaft.
• Glazed, contaminated, or cracked friction rings.

Symptom	Likely cause	First action
One core winds loose	Worn or contaminated friction ring at that station	Clean or replace that ring
Whole set uneven	Mixed ring wear / wrong torque setting	Rebuild all rings, re-set torque
Shaft will not hold core	End-cap seal leak / broken lug	Reseat seal or replace end cap
Slip torque drifts	Dirty balls or glazed ring face	Strip, clean, re-grease

How to Repair a Differential Shaft — Step by Step

A methodical differential shaft repair avoids the classic mistake of replacing parts you did not need.

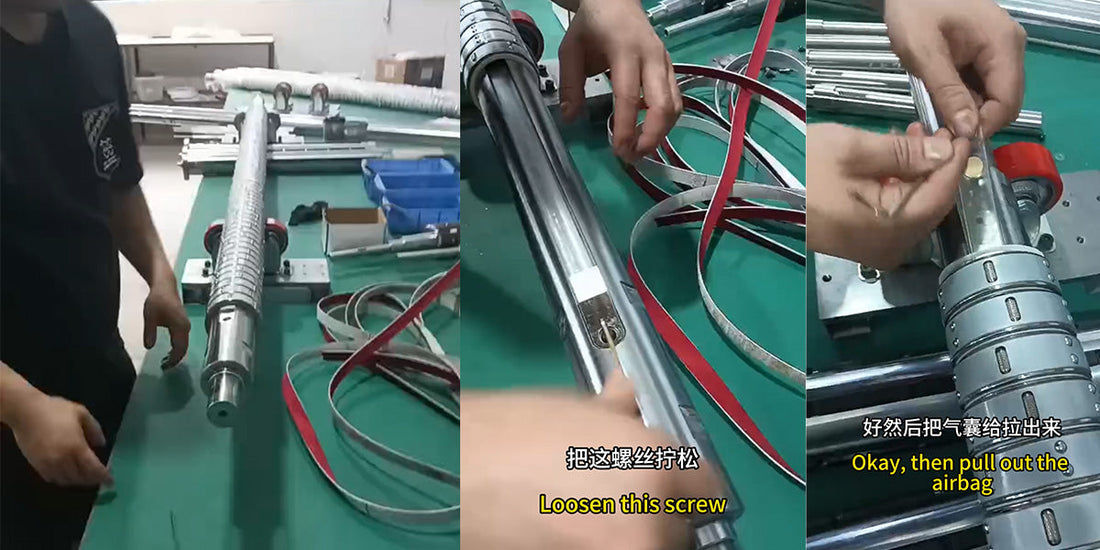

1. Lock out and tag out the rewinder. Release any residual air and confirm the shaft is depressurized.
2. Remove the shaft and lay it on a clean bench. Deflate fully and mark each core station so you can return parts to the same position.
3. Strip the end caps and slide off the outer sleeve. Inspect the shaft body for scoring, corrosion, or runout beyond the catalog tolerance.
4. Inspect the friction elements. On key-type shafts check each friction ring for glazing or cracking; on ball-type shafts check the balls and race for pitting.
5. Clean and replace worn parts. Wash reusable parts in solvent, replace any ring that has lost its friction face, and fit the correct ring type for that shaft.
6. Re-grease and reassemble. Apply the specified grease lightly — over-greasing attracts web dust and changes slip torque.
7. Bench-test before refitting. Spin the shaft and confirm each station slips at a consistent, repeatable torque. If you cannot verify torque on a test mandrel, contact XW Machinery for the exact specification for your model.

For a complete replacement rather than a repair, the Differential Air Shaft for Slitting is the standard XW Machinery drop-in for most slitter-rewinders.

Replacing Differential Friction Rings

The friction ring is the wear part you will replace most often, and matching the ring to the shaft type is the single most important rule of differential shaft repair. A key-type shaft needs a key-lock ring that seats on the keyway; a ball-type shaft needs a ball-lock ring sized to the ball race.

• Differential friction ring — the general-service ring for slitting and rewinding positions.
• Key lock differential friction ring — shaped to lock onto key-type shafts and prevent rotation slip at the hub.
• Ball lock differential friction ring — engineered for ball-type shafts where load spreads across the ball set.

Replace rings as a full set when torque varies more than the tolerance given in your machine manual, not one at a time, or you will simply move the problem to the next station.

Ball-Type vs Key-Type — Repair Differences

The two common differential shafts service differently, so confirm which you have before ordering parts.

• A ball-type differential shaft uses loose balls between inner and outer races. Repair means cleaning the race, checking ball diameter, and fitting a matching ball-lock ring. It tolerates higher speed but needs careful cleaning.
• A key-type differential shaft uses a keyed hub and friction ring. Repair is usually simpler — slide off the old ring, seat the new key-lock ring, and torque the end caps. It is easier to service in the field with basic tools.

Common Mistakes to Avoid

These are the faults we see most often in returned shafts:

• Mixing ring types — a key-lock ring on a ball shaft (or vice versa) destroys slip control.
• Over-greasing — excess grease migrates to the friction face and changes torque.
• Ignoring core ID tolerance — worn cores let the shaft slip on the core, not at the ring.
• Reusing cracked end caps — a cheap save that becomes an air-leak failure.
• No torque check — fitting new rings without verifying slip torque just repeats the original defect.

When to Replace Instead of Repair

A differential shaft repair makes sense while the shaft body is sound. Replace the shaft when the body is scored beyond the catalog limit, runout cannot be corrected, or repeated ring failures point to a bent or worn inner race. For non-standard widths, core patterns, or materials, a custom differential shaft is often cheaper over the lifecycle than patching a mismatched standard shaft.

Applications Across Industries

Differential shafts earn their keep wherever many cores must wind to a common tension on one bar: flexible packaging, film and foil converting, paper, label stock, nonwoven, textile, and lithium-battery electrode slitting. Any line where roll sets must stay even at high speed benefits from a well-maintained differential shaft.

FAQ

Q: Can I repair a differential shaft with basic workshop tools? A: Yes for most field service. Removing end caps, cleaning the race, and replacing friction rings needs standard hand tools. You need a test mandrel or torque gauge only to verify slip torque — if you lack one, contact XW Machinery for the spec for your model.

Q: How often should differential friction rings be replaced? A: It depends on speed, web type, and duty cycle. As a rule, inspect rings every scheduled maintenance window and replace the full set when slip torque drifts outside the manual's tolerance. Contaminated or glazed rings should be changed immediately, not cleaned and reused.

Q: What slip torque should my friction rings be set to? A: Torque is set per your web, core, and line speed, and varies by model. XW Machinery supplies the correct torque range with each shaft; contact us with your model and web specification for the exact value rather than guessing.

Q: Is a ball-type or key-type shaft easier to service? A: Key-type shafts are generally easier to service in the field because the ring slides on a keyway and end caps torque down simply. Ball-type shafts run cooler at higher speed but need more careful cleaning of the ball race during repair.

Conclusion & Next Step

Learning how to repair a differential shaft — diagnose the slip, replace the right friction rings, and verify torque — keeps a slitter-rewinder producing even, tight rolls instead of scrap. Match ring type to shaft type, replace as a set, and rebuild only while the shaft body is sound.

Need the correct friction rings, a replacement shaft, or the exact torque spec for your line? Contact XW Machinery for a free solution and factory-direct quote on differential, ball-type, and key-type shafts.
