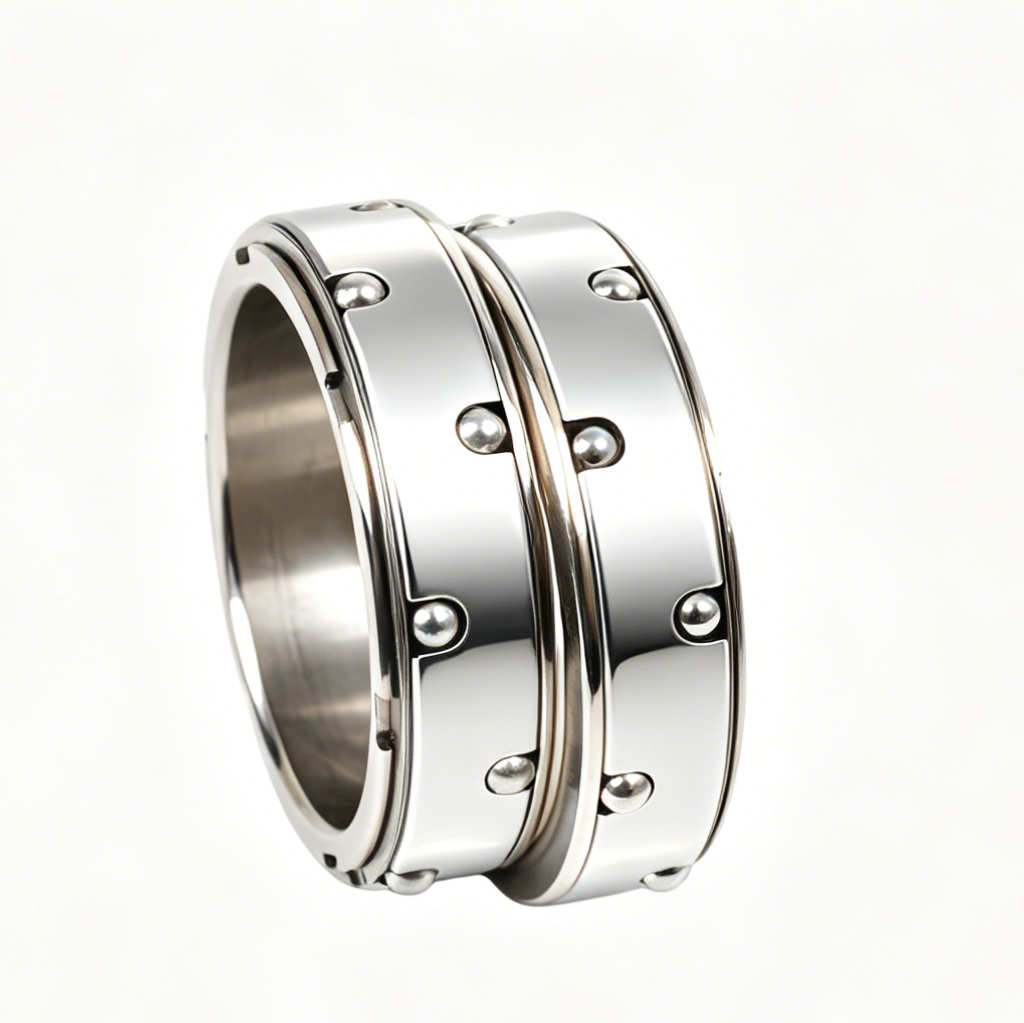

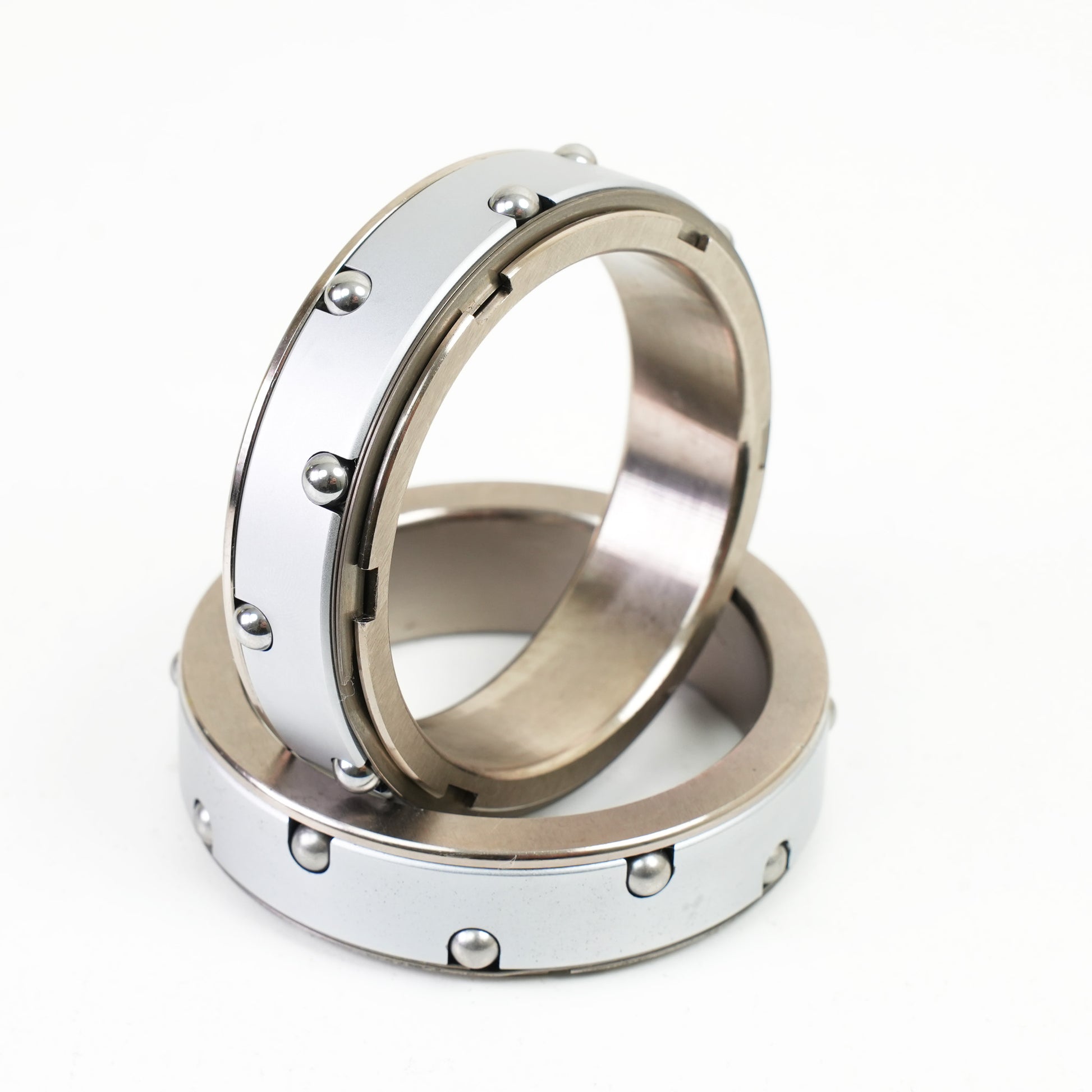

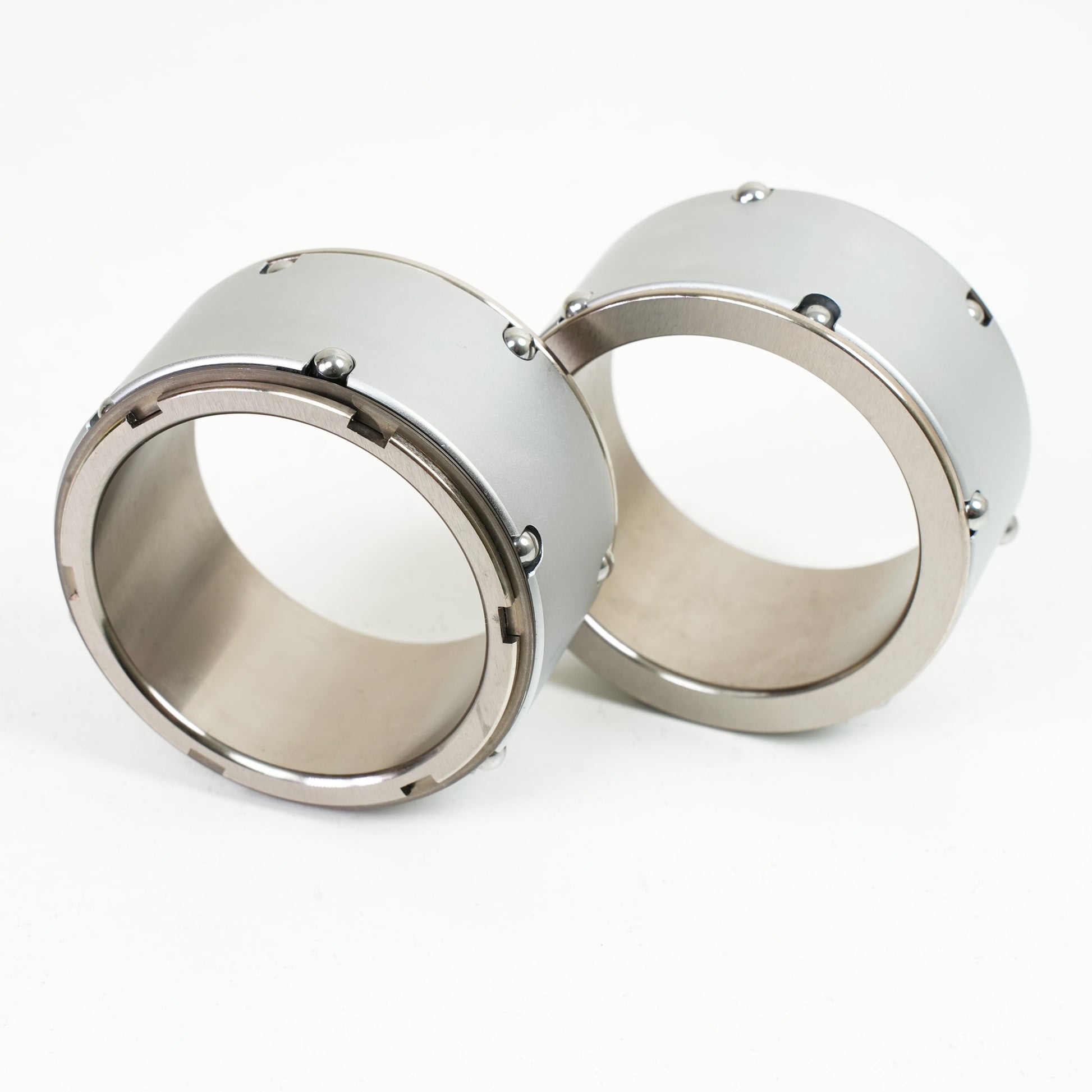

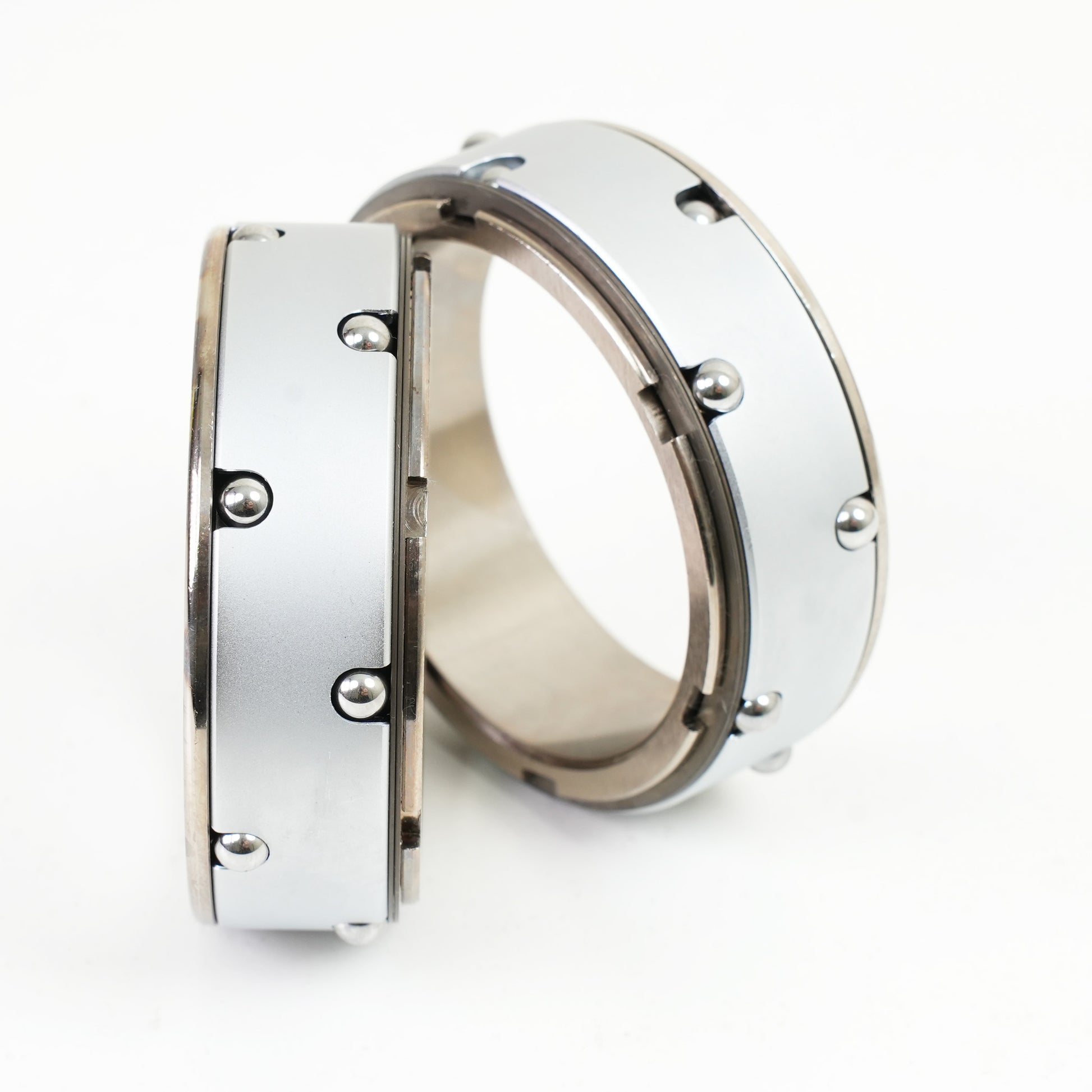

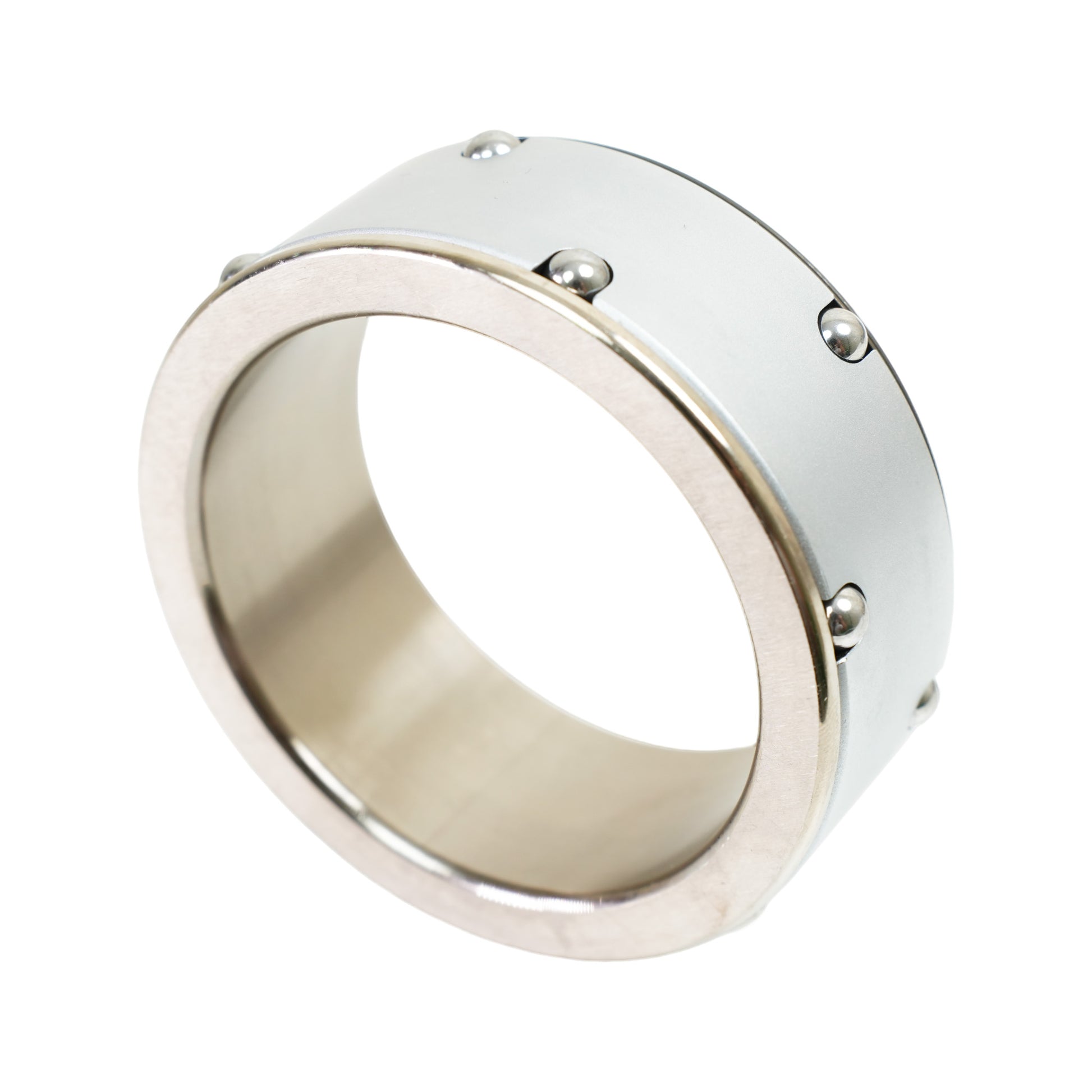

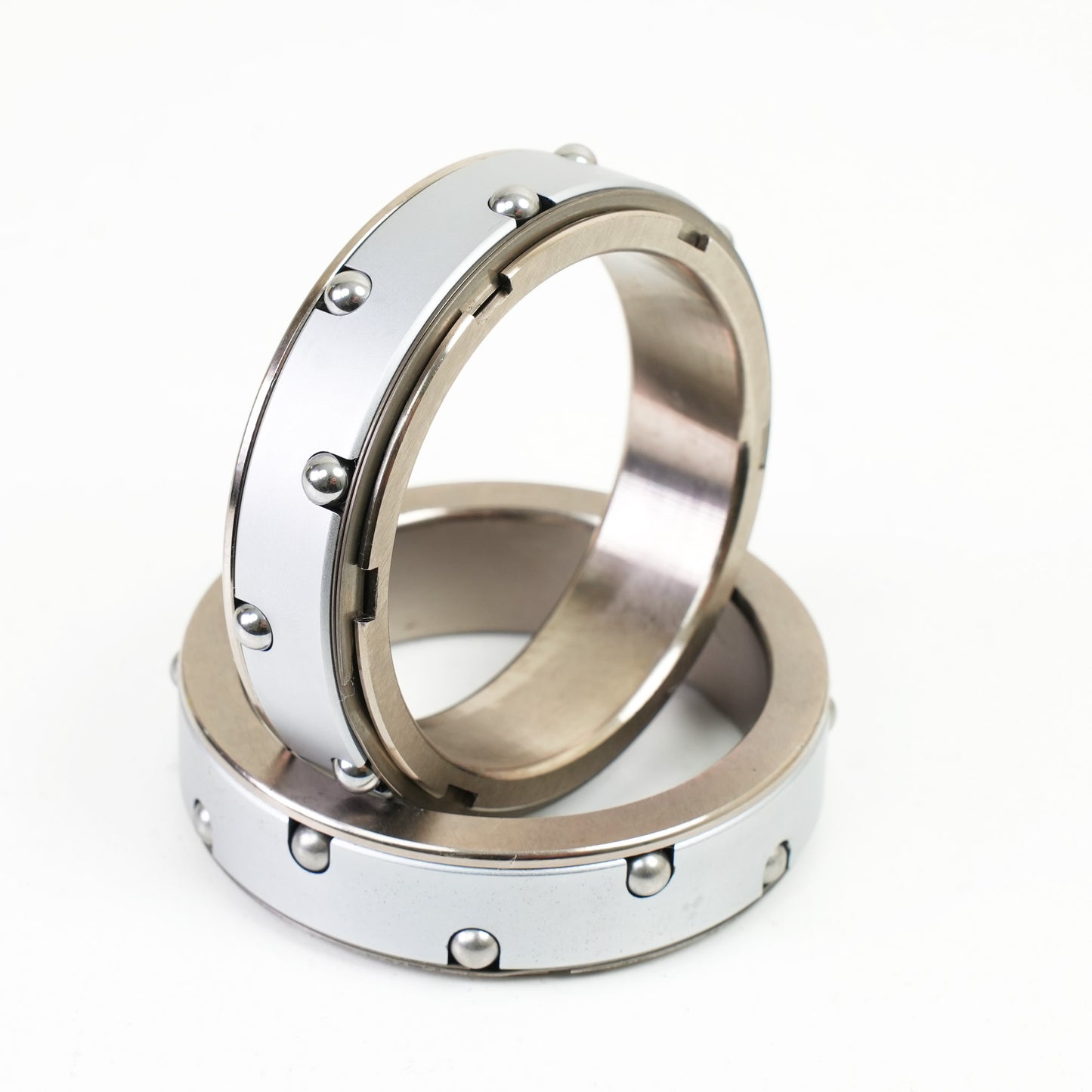

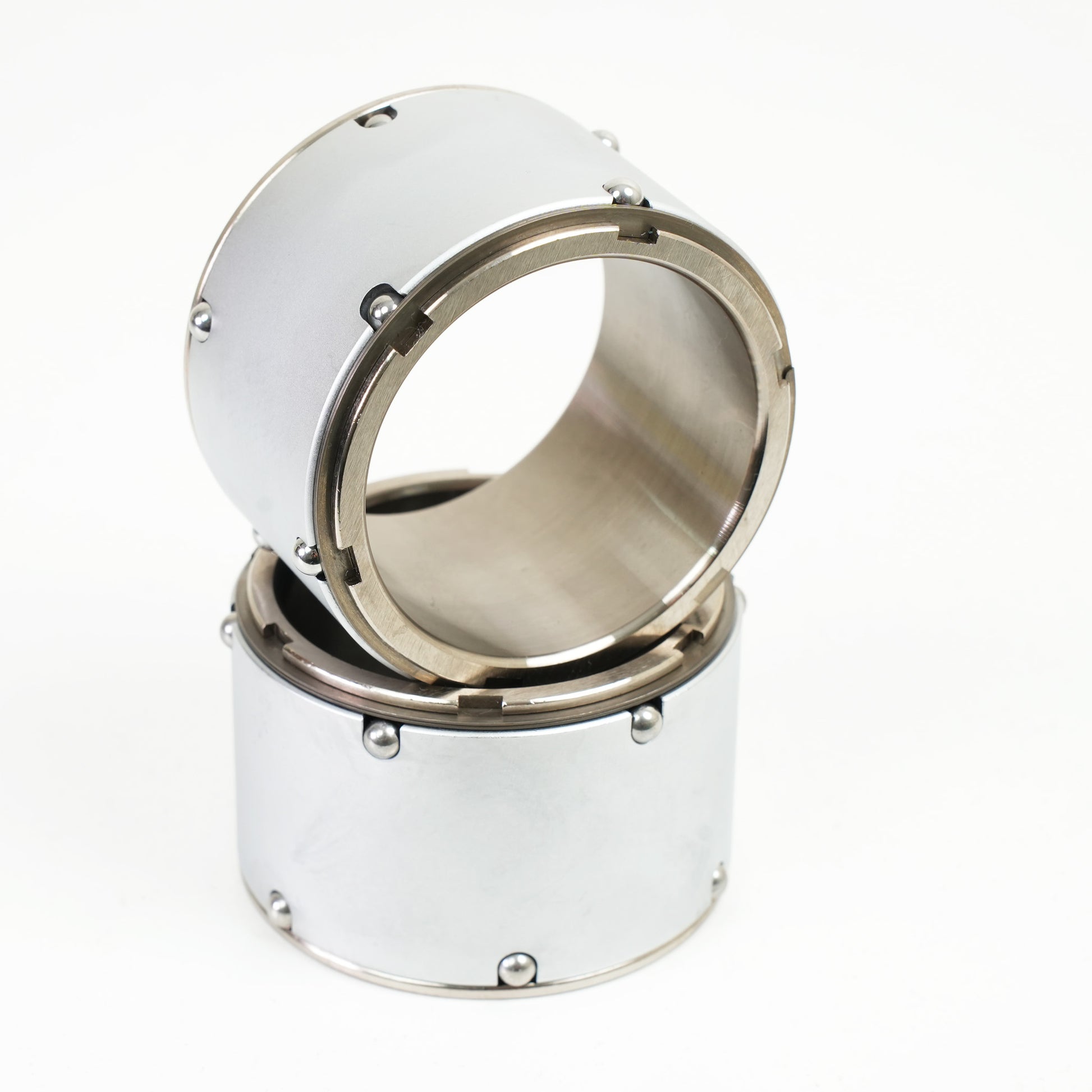

Ball Lock Differential Friction Ring for Ball Type Differential Shafts

The XW Machinery Ball Lock Differential Friction Ring is a high-precision torque control component specifically engineered for Ball Type Differential Shafts used in slitting, rewinding, converting, printing, flexible packaging, paper processing, aluminum foil, copper foil, film manufacturing, and lithium battery production lines.

Designed to provide controlled differential slip between the shaft and individual winding cores, the Ball Lock Differential Friction Ring automatically compensates for material thickness variations, roll diameter differences, and tension fluctuations during winding. This ensures each slit roll maintains consistent winding tension, resulting in superior roll quality, improved productivity, and reduced material waste.

Manufactured from premium wear-resistant materials and precision-machined components, the friction ring delivers stable torque transmission, smooth slip performance, and long-term reliability in demanding industrial environments.

Key Features

• High-performance Ball Lock Differential Friction Ring
• Designed for Ball Type Differential Shafts
• Precise independent tension compensation
• Smooth differential slip control
• Stable torque transmission
• Excellent wear resistance
• High-speed winding capability
• Long operational service life
• Easy installation and maintenance
• Reliable performance in continuous production

Benefits of Ball Lock Differential Friction Rings

In slitting and rewinding applications, minor variations in web thickness often cause uneven winding tension between rolls. Without differential compensation, this can lead to loose rolls, telescoping, wrinkles, core crushing, and inconsistent roll hardness.

The XW Machinery Ball Lock Differential Friction Ring solves these problems by allowing each winding core to rotate independently while maintaining controlled torque transmission.

Benefits include:

• Uniform winding tension
• Consistent roll hardness
• Reduced telescoping rolls
• Improved edge quality
• Better roll formation
• Reduced material waste
• Increased production efficiency
• Enhanced finished roll appearance

Applications

The XW Machinery Ball Lock Differential Friction Ring is widely used in:

• Slitting Machines
• Rewinding Machines
• Flexible Packaging Production Lines
• Plastic Film Processing
• Paper Converting Equipment
• Aluminum Foil Slitting
• Copper Foil Production
• Lithium Battery Electrode Slitting
• Label Manufacturing Equipment
• Nonwoven Fabric Processing
• Roll-to-Roll Converting Systems
• Printing and Laminating Machines

Advanced Ball Lock Differential Technology

The Ball Lock Differential Friction Ring utilizes precision ball-lock transmission technology to provide smooth and accurate differential movement between the shaft and winding cores.

As roll diameters increase during winding, each friction ring automatically adjusts rotational speed differences while maintaining stable torque. This prevents excessive tension buildup and ensures optimal winding quality across all rolls.

Compared with conventional rigid winding systems, Ball Type Differential Shaft assemblies equipped with high-quality friction rings significantly improve winding consistency and reduce production defects.

Advantages of XW Machinery Ball Lock Differential Friction Rings

The XW Machinery Ball Lock Differential Friction Ring offers:

• Precision torque control
• Consistent slip characteristics
• Superior heat resistance
• Excellent wear resistance
• High load capacity
• Smooth winding performance
• Reduced maintenance requirements
• Reliable long-term operation

Our friction rings are manufactured under strict quality control standards to ensure excellent performance in high-speed converting environments.

System Integration

The Ball Lock Differential Friction Ring can be used together with:

[Ball Type Differential Shaft]

Provides independent tension compensation for multiple slit rolls.

[Roller Type Differential Shaft]

Alternative differential winding solution for high-speed applications.

[Key Type Differential Shaft]

Suitable for heavy-duty differential winding systems.

[Differential Friction Ring]

Explore the complete friction ring series for various shaft designs.

[Air Expanding Shaft]

Used for standard winding and unwinding applications.

[Automatic Web Tension Controller]

Maintains stable web tension throughout production.

[Magnetic Powder Brake]

Provides precise unwind tension control.

[Tension Control System]

Creates a complete web tension management solution.

Why Choose XW Machinery

XW Machinery is a professional manufacturer of differential shafts, differential friction rings, air shafts, safety chucks, magnetic powder brakes, magnetic powder clutches, and web tension control systems for global converting industries.

Our advantages include:

• Professional engineering support
• Precision manufacturing technology
• OEM and ODM capabilities
• Strict quality control procedures
• Competitive factory-direct pricing
• Fast worldwide delivery
• Technical application assistance
• Long-term product reliability

Frequently Asked Questions

What is a Ball Lock Differential Friction Ring?

A Ball Lock Differential Friction Ring is a torque transmission component used on Ball Type Differential Shafts to provide controlled slip and independent tension compensation for multiple winding rolls.

How does a Ball Lock Differential Friction Ring work?

The friction ring allows controlled rotational movement between the shaft and individual cores, automatically compensating for material thickness differences and maintaining stable winding tension.

What are the advantages of Ball Lock Differential Friction Rings?

They improve roll quality, reduce wrinkles, prevent telescoping, maintain consistent roll hardness, and enhance production efficiency.

Which industries use Ball Lock Differential Friction Rings?

These friction rings are widely used in film converting, flexible packaging, paper processing, foil manufacturing, nonwoven production, label converting, and lithium battery industries.

Can Ball Lock Differential Friction Rings be used for high-speed slitting?

Yes. XW Machinery Ball Lock Differential Friction Rings are specifically designed for high-speed slitting and rewinding applications requiring precise differential tension control.

Are different sizes available?

Yes. Various specifications are available to accommodate different shaft sizes, core diameters, and production requirements.
