Custom Differential Shaft Solutions for High-Precision Slitting and Rewinding Applications

XW Machinery is a professional manufacturer of custom Differential Shafts designed for slitting, rewinding, roll-to-roll converting, flexible packaging, paper processing, film manufacturing, foil production, label converting, and lithium battery industries.

Our Differential Shafts are engineered to provide independent tension compensation for each winding roll, ensuring uniform roll hardness, superior winding quality, and stable web tension throughout the production process.

Whether you require a Differential Air Shaft, Differential Rewind Shaft, Differential Slip Shaft, Key Type Differential Shaft, Ball Type Differential Shaft, or Roller Type Differential Shaft, XW Machinery offers fully customized solutions tailored to your machine specifications and production requirements.

---

What is a Differential Shaft?

A Differential Shaft is a precision winding shaft that allows multiple slit rolls to maintain independent winding tension during the rewinding process.

Unlike conventional winding shafts, a Differential Shaft automatically compensates for material thickness variations and roll diameter differences by allowing controlled slip between individual cores and the shaft body.

This technology helps:

• Improve winding quality
• Reduce telescoping rolls
• Eliminate wrinkles
• Maintain uniform roll hardness
• Increase production efficiency
• Reduce material waste

---

Custom Differential Shaft Types Available

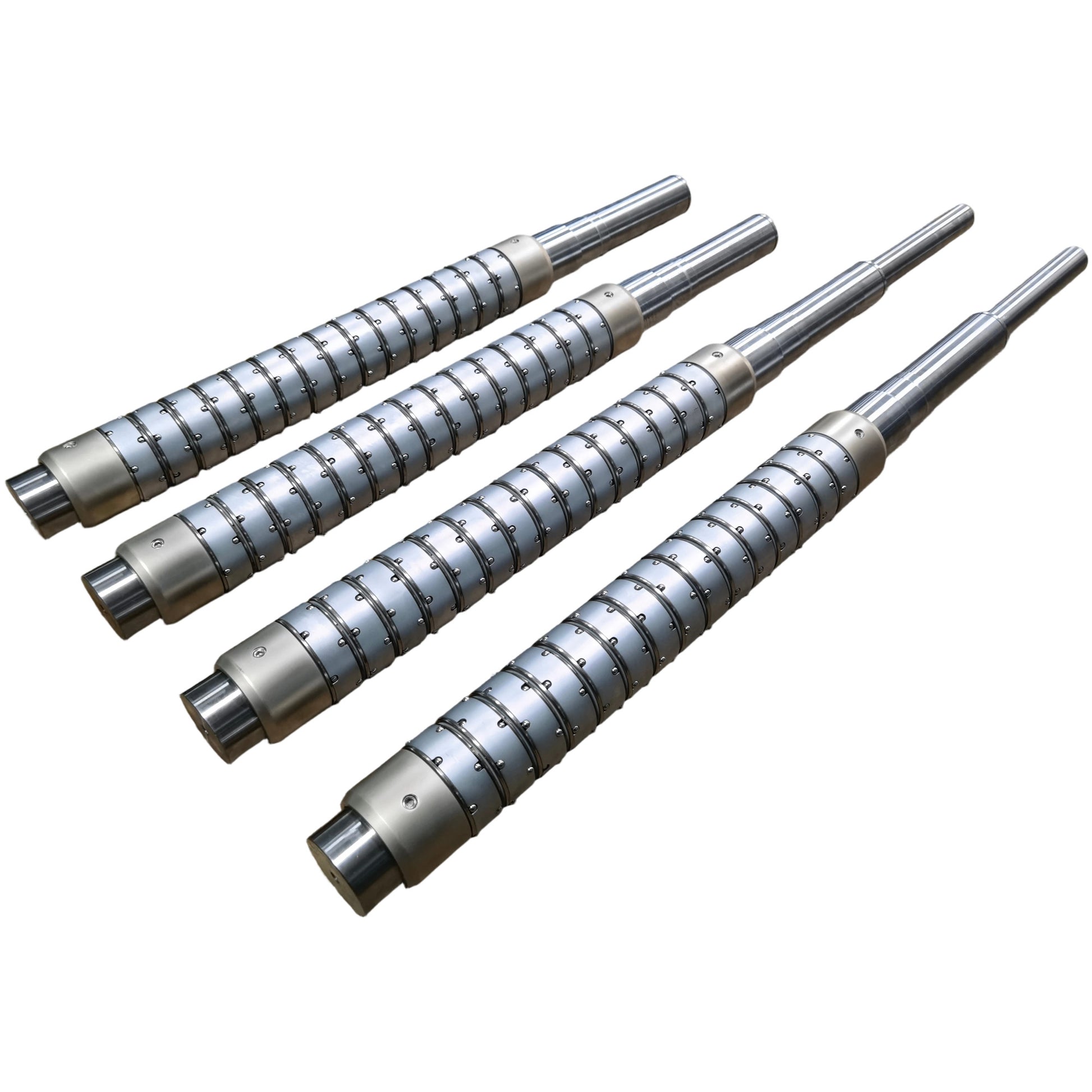

Custom Differential Air Shaft

Combines air shaft expansion technology with differential slip functionality.

Ideal for:

• High-speed slitting machines
• Flexible packaging production
• Film converting lines
• Paper processing equipment

---

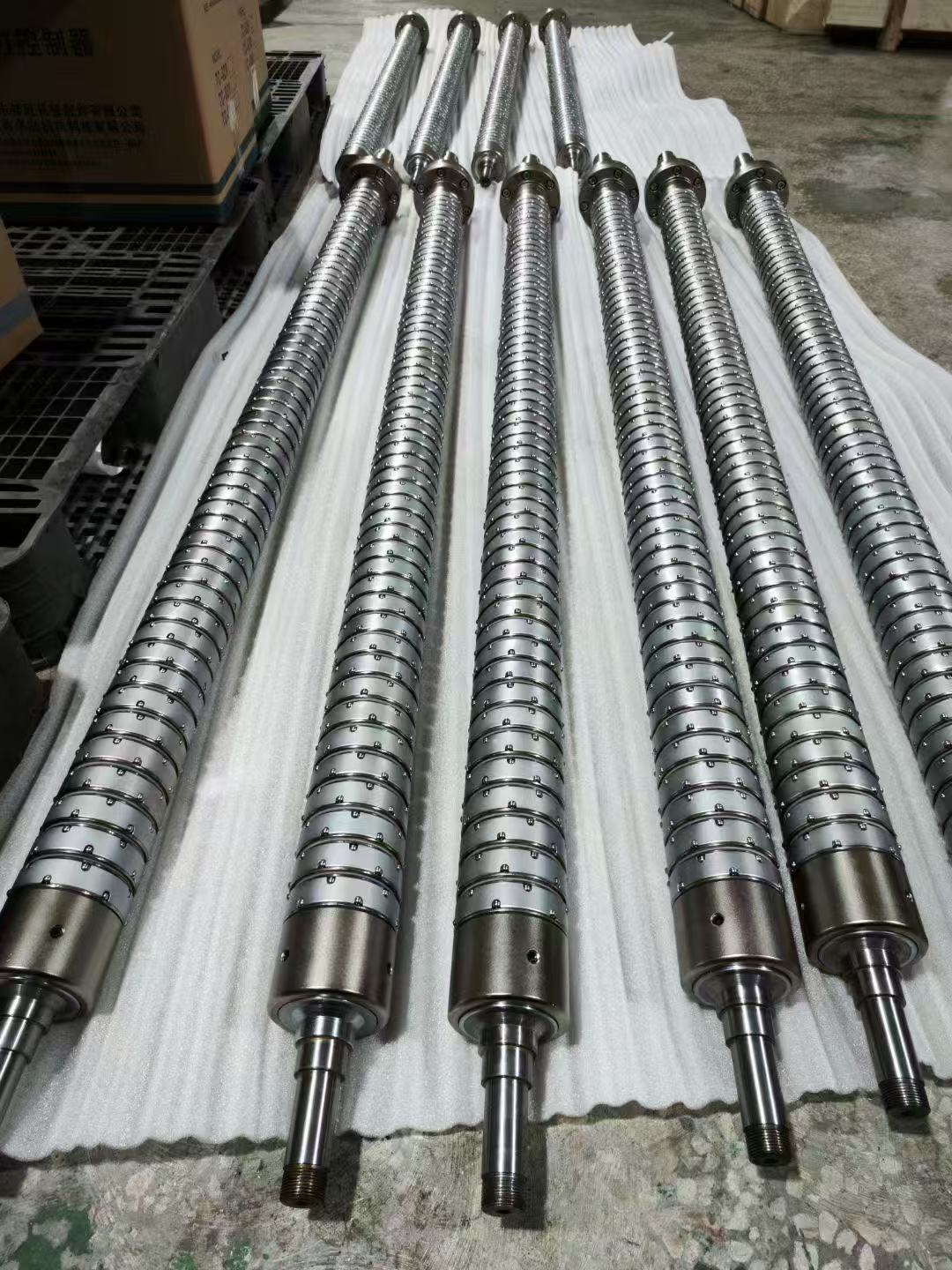

Custom Differential Rewind Shaft

Designed specifically for rewinding applications where multiple slit rolls require consistent winding tension.

Benefits include:

• Independent roll tension control
• Superior rewind quality
• Reduced edge defects
• Improved roll appearance

---

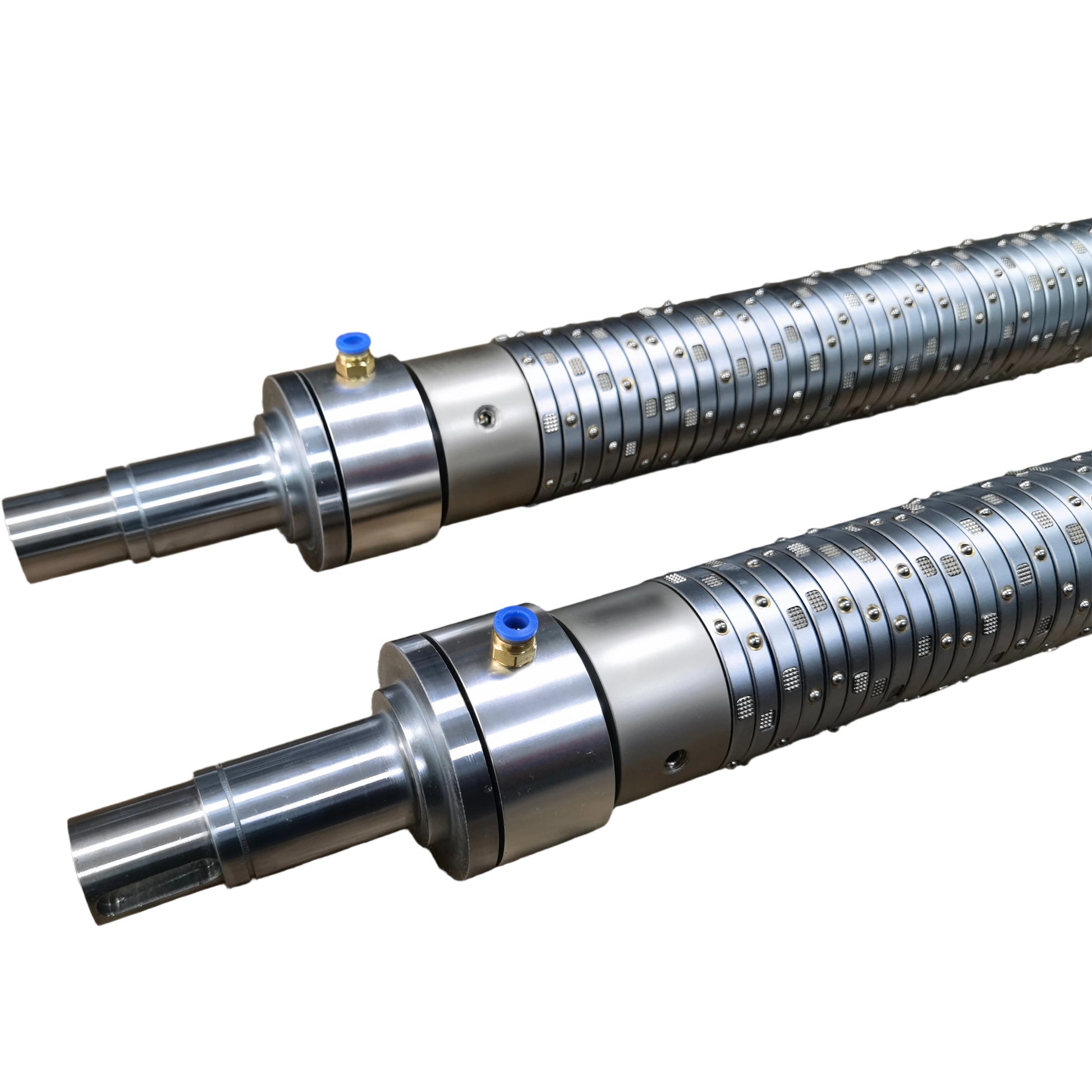

Custom Differential Slip Shaft

Utilizes precision friction elements to provide controlled torque transmission and automatic tension compensation.

Suitable for:

• Film slitting
• Foil processing
• Label converting
• Battery electrode production

---

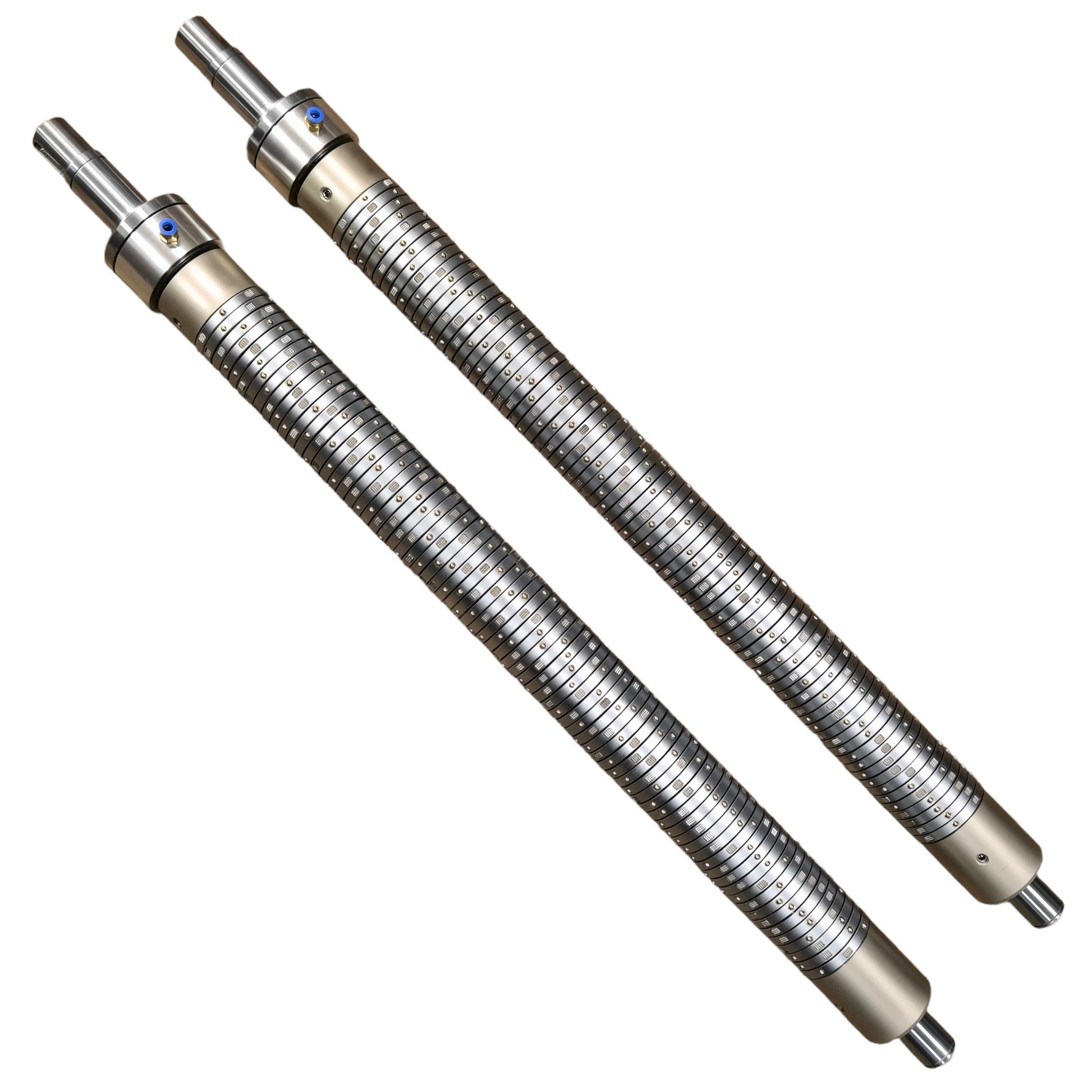

Custom Key Type Differential Shaft

The most popular heavy-duty differential shaft design.

Features:

• High torque transmission
• Excellent durability
• Stable friction performance
• Suitable for wide web applications

---

Custom Ball Type Differential Shaft

Designed for precision winding applications requiring highly responsive differential action.

Ideal for:

• High-speed slitting
• Thin film processing
• Precision converting lines

---

Custom Roller Type Differential Shaft

Provides superior slip performance and excellent tension uniformity for demanding industrial applications.

---

Customization Options

XW Machinery offers complete Differential Shaft customization.

Shaft Diameter

Available core sizes include:

• 3 Inch Differential Shaft
• 6 Inch Differential Shaft
• 8 Inch Differential Shaft
• Custom Core Sizes

Shaft Length

• Standard Length Differential Shafts
• Long Differential Shafts
• Heavy Duty Differential Shafts
• Extra Wide Web Differential Shafts

Friction Ring Configuration

Available with:

• Ball Lock Differential Friction Rings
• Key Lock Differential Friction Rings
• Custom Friction Ring Designs

Journal Ends

Customizable:

• Through Shaft Design
• Cantilever Design
• Flange Mounting
• Special Drive Ends

---

Key Features

• Precision differential winding technology
• Independent tension compensation
• High torque transmission
• Stable slip performance
• Superior winding quality
• Long service life
• High-speed operation capability
• Heavy-duty construction
• OEM and ODM support
• Global delivery available

---

Applications

XW Machinery Custom Differential Shafts are widely used in:

• Slitting Machines
• Rewinding Machines
• Flexible Packaging Production
• Plastic Film Manufacturing
• Aluminum Foil Processing
• Copper Foil Production
• Label Manufacturing
• Paper Converting
• Nonwoven Fabric Production
• Printing Equipment
• Laminating Machines
• Lithium Battery Electrode Slitting Lines

---

Why Choose XW Machinery Custom Differential Shafts?

Compared with standard differential shafts, custom-designed shafts provide:

• Better machine compatibility
• Improved winding quality
• Increased productivity
• Reduced downtime
• Longer operational life
• Optimized torque performance
• Lower maintenance costs

Every Differential Shaft is engineered according to your application requirements to maximize production efficiency.

For complete roll-to-roll processing solutions, the shaft can be integrated with：

[Differential Friction Ring]

Essential torque control component for differential shaft systems.

[Ball Lock Differential Friction Ring]

Precision friction ring for ball type differential shafts.

[Key Lock Differential Friction Ring]

Heavy-duty friction ring for key type differential shafts.

[Air Expanding Shaft]

Standard winding and unwinding shaft solutions.

[Automatic Web Tension Controller]

Maintains stable web tension throughout production.

[Magnetic Powder Brake]

Provides precise unwind tension control.

[Tension Control System]

Complete web tension management solution.

[Safety Chuck]

Reliable shaft support for rewinding systems.

---
