Key Type Differential Shaft for Slitting & Rewinding Machines

For precision rewinding applications, combining a key type differential shaft with a web tension control system can significantly improve roll quality and tension stability.

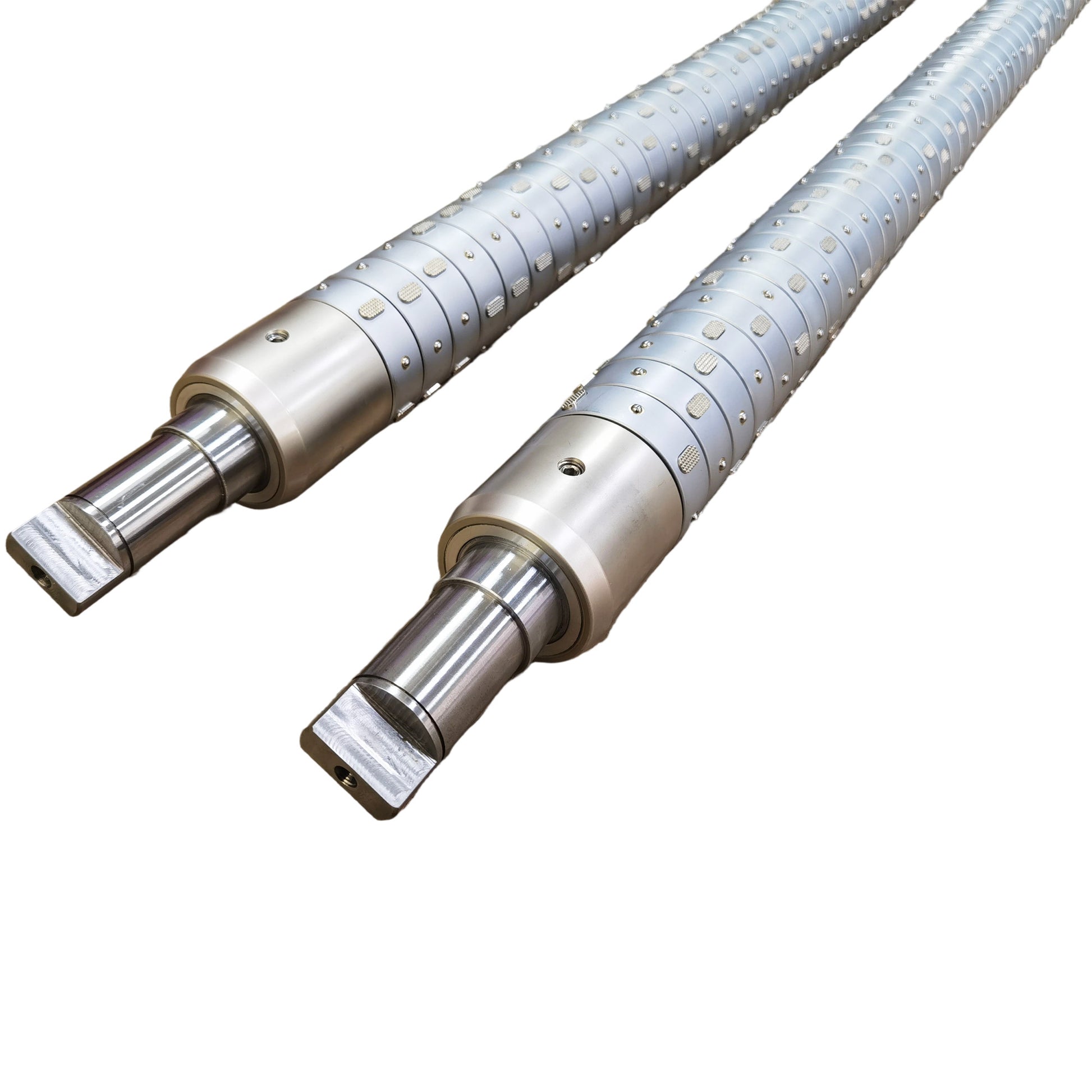

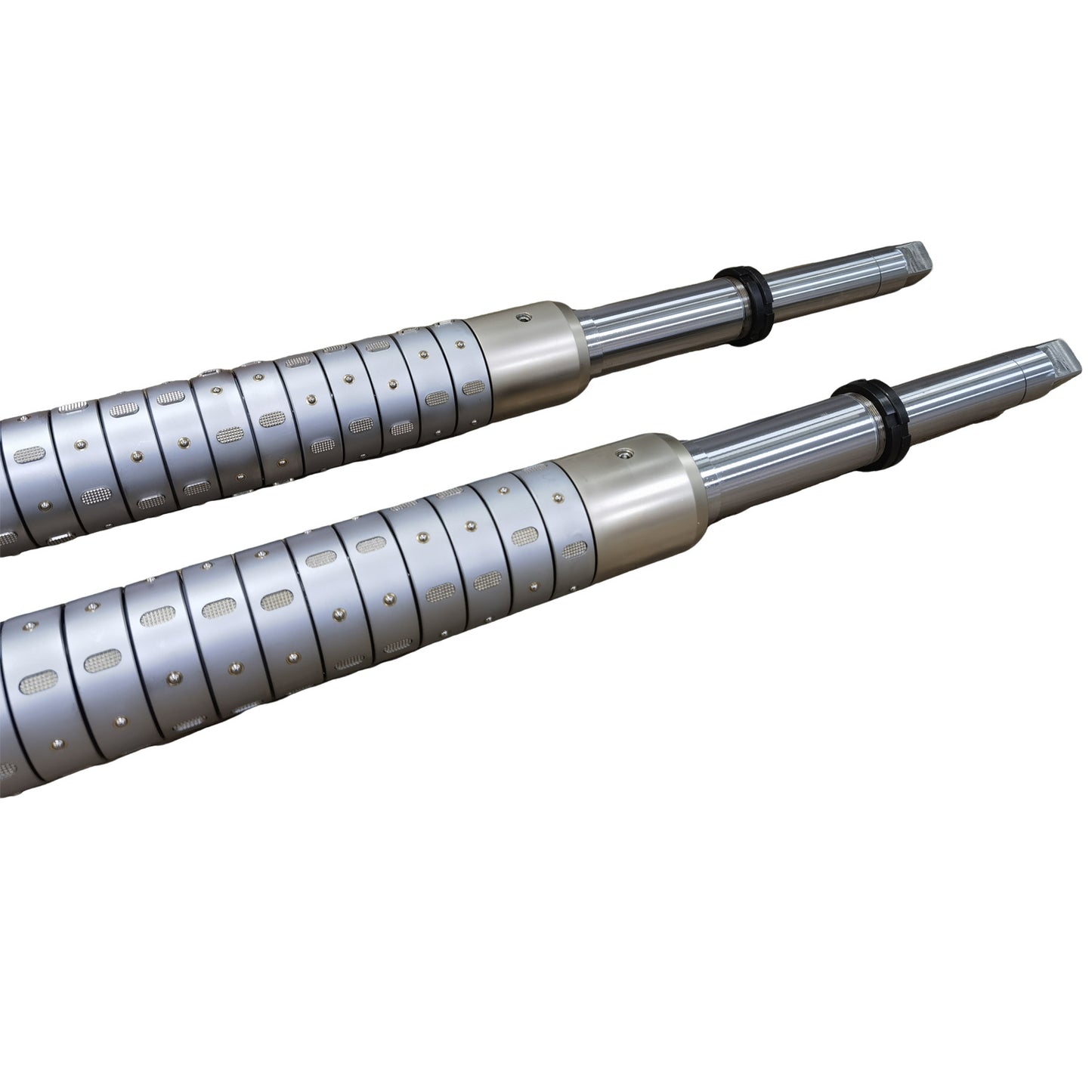

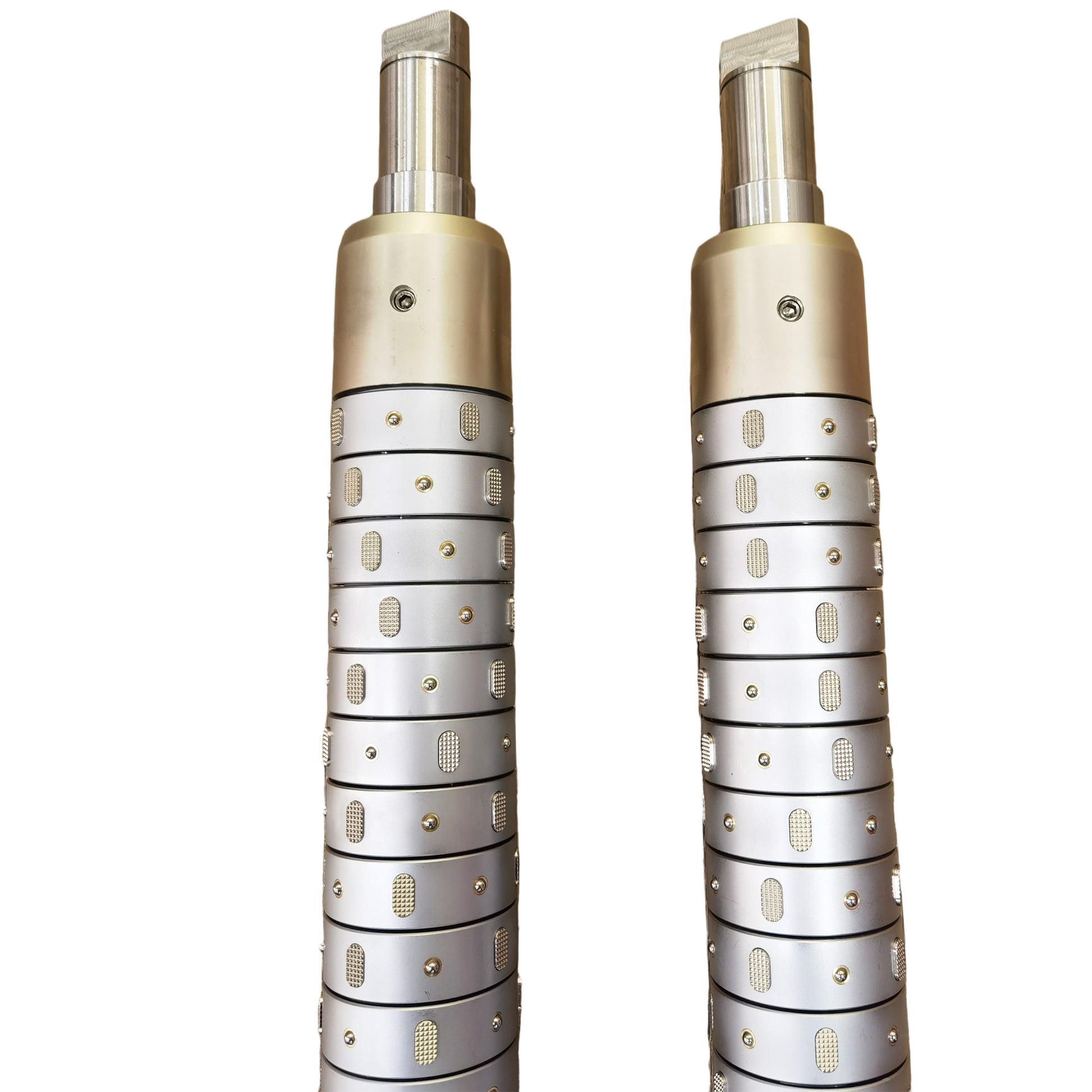

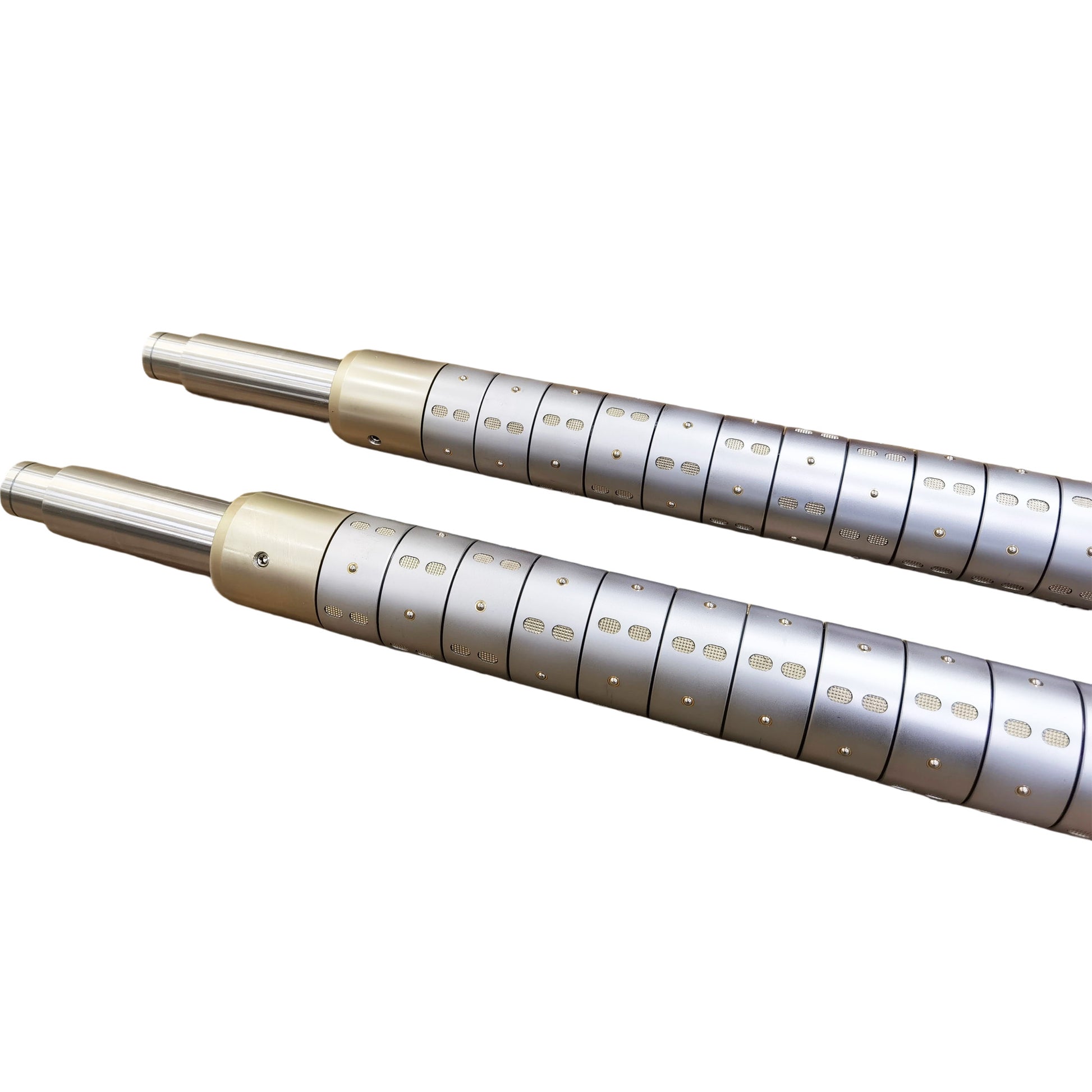

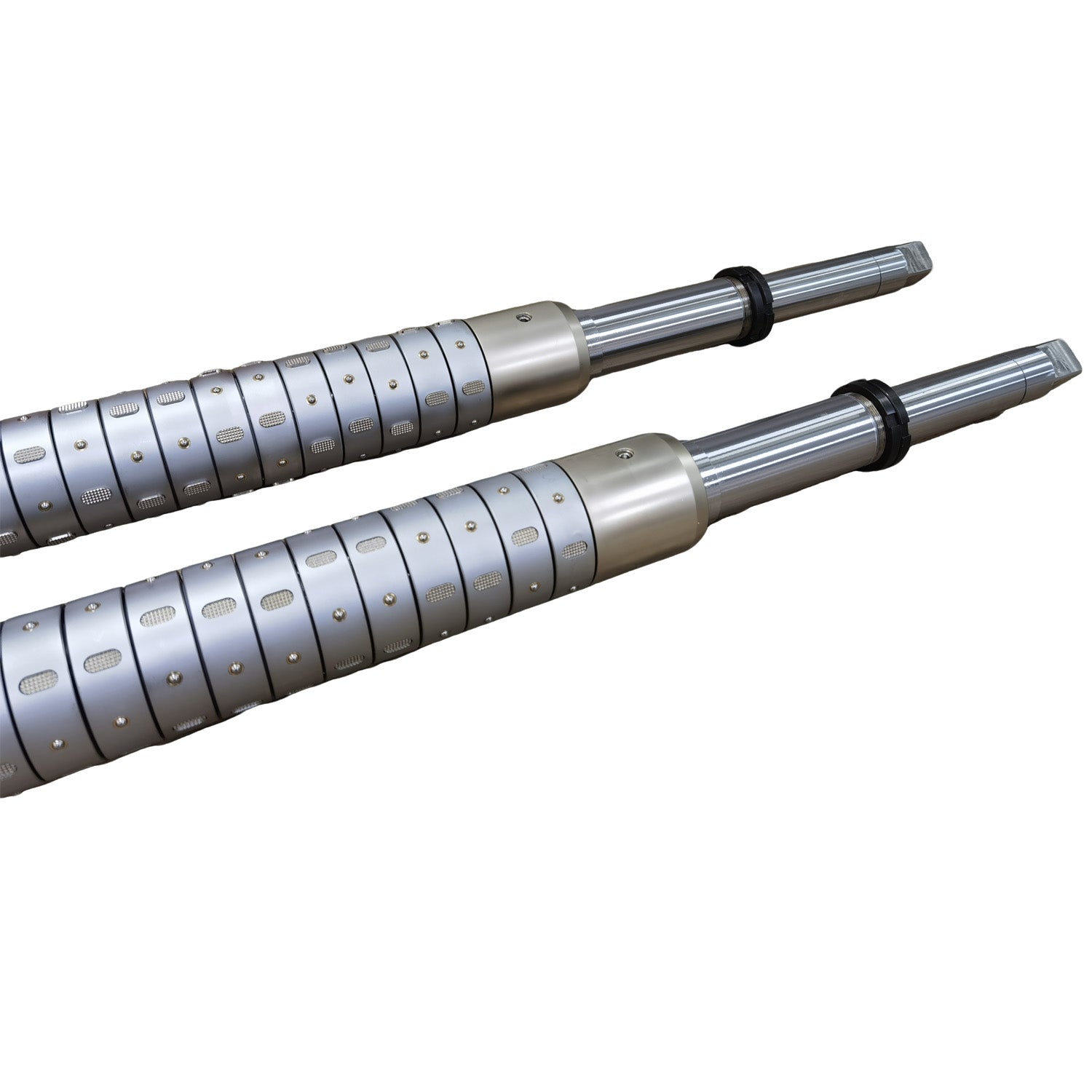

The XW Machinery Key Type Differential Shaft is built for heavy-duty slitting and rewinding where several slit rolls must be wound at the same time but never at exactly the same diameter. Instead of forcing every core to turn at one speed, each friction ring on the shaft slips independently, so every roll keeps its own tension from start to finish.

Pneumatic expansion pushes the key bars outward and locks the friction rings against the cores. The drive torque travels through the key bars, which is why the key type design carries noticeably more torque than a ball type differential shaft and is the usual choice for wide webs, heavy rolls and high-tension materials.

Customized shaft diameters, lengths, materials, friction ring types and expansion structures are available for various industrial applications.

Key Features of XW Machinery Key Type Differential Shafts

• Independent slip for every friction ring
• High torque transmission through key bar drive
• Automatic compensation of material thickness variation
• Strong and stable core gripping force
• Smooth expansion and deflation operation
• High concentricity for high-speed rewinding
• Durable steel and aluminum shaft options
• Suitable for heavy-duty industrial applications
• Customized shaft diameter and length available
• Long service life with low maintenance

Applications of Key Type Differential Shafts

Our key type differential shafts are widely used in:

• Slitting machines
• Rewinding machines
• Coating machines
• Printing machinery
• Film converting equipment
• Paper processing lines
• Flexible packaging systems
• Foil slitting machines
• Lithium battery production lines
• Label rewinding equipment

Key Type vs Ball Type Differential Shaft

For advanced rewinding performance, key type differential shafts are often integrated with a web tension control system to improve tension stability and roll quality.

XW Machinery specializes in customizing key type differential shafts, designed specifically for slitting machines, rewinding systems, and precision coating production lines. Adopting a pneumatic expansion + key bar locking structure with independent friction rings, it clamps the core quickly and evenly and compensates roll diameter differences automatically, eliminating telescoping and wrinkles during winding.

Technical Specifications

Technical parameters (customizable)

• Material: 45 # steel / seamless steel pipe / aluminum alloy (optional)
• Core size: 3 inch, 6 inch (other sizes supported)
• The length, shaft head form, and number of friction rings can be customized according to the drawings
• Working pressure: 0.4-0.8 MPa
• Certification: ISO9001 Factory Certification

What Is a Key Type Differential Shaft?

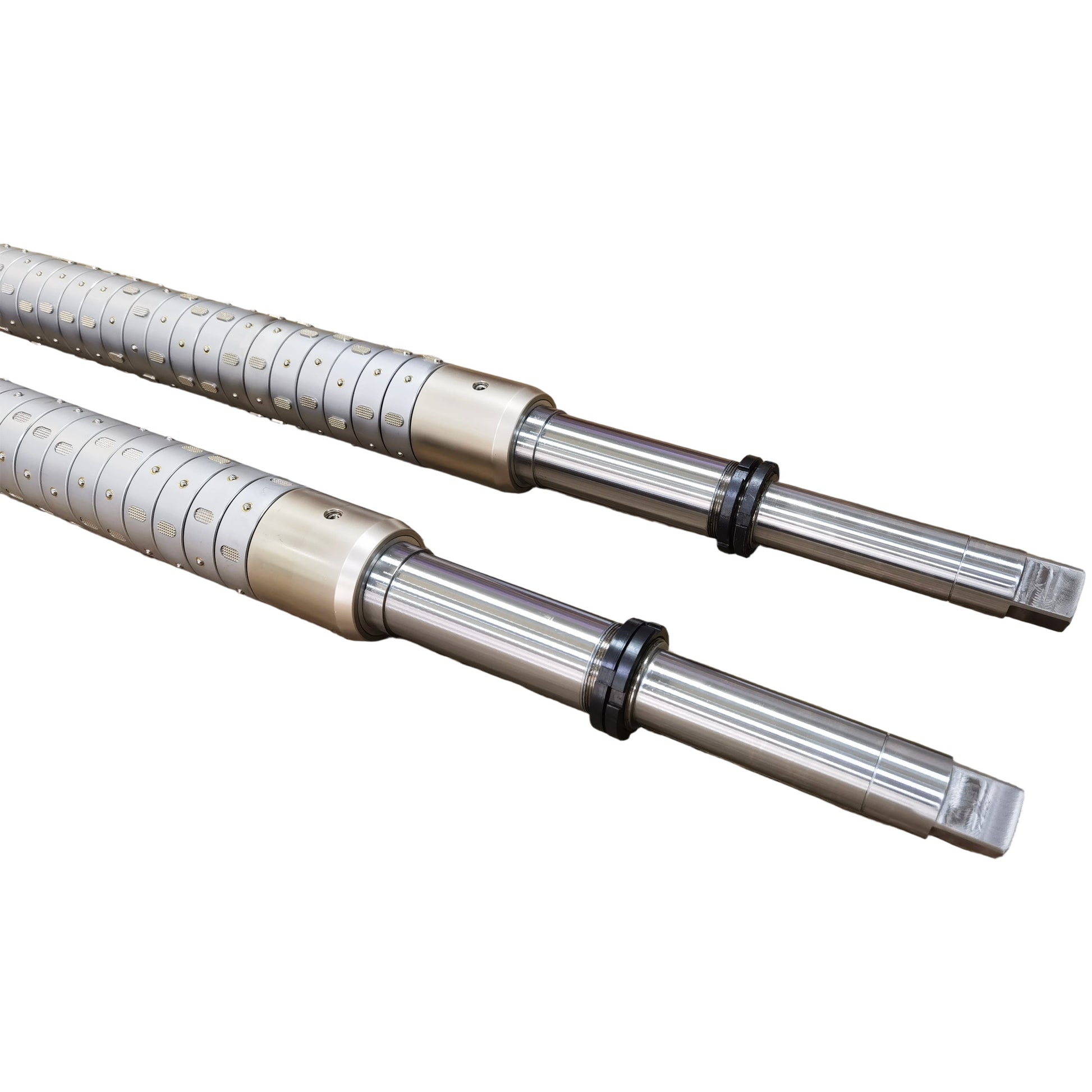

A key type differential shaft is a precision rewinding shaft that lets several slit rolls wind side by side while each one keeps its own tension. Individual friction rings sit on the shaft body and are driven through key bars; the rings are allowed to slip at a controlled rate relative to the shaft.

When one slit roll grows slightly faster than its neighbour because of a thickness difference or a diameter variation, that ring simply slips a little more. The shaft absorbs the difference instead of stretching, wrinkling or telescoping the roll.

Compared with a conventional winding shaft, a key type differential shaft delivers:

• Uniform roll hardness from core to outer diameter
• Fewer telescoped rolls
• No wrinkles on thin or stretchy materials
• Less material waste at start-up and splice

XW Machinery manufactures customized key type differential shafts for slitting machines, rewinding systems, coating lines, printing equipment, and flexible packaging machinery.

XW Machinery also provides high-performance air shafts and slitter rewinder machine parts for advanced converting industries.

Many high-speed slitting machines use a magnetic powder clutch together with differential shafts to achieve accurate torque control.

Why Choose XW Machinery?

XW Machinery specializes in precision web handling components for modern converting industries. We provide customized pneumatic shaft solutions for customers worldwide.

Our main products include:

• Air expanding shafts
• Differential air shafts
• Magnetic powder clutches
• Web guiding systems
• Tension controllers
• Slitter rewinder machine parts

With stable quality control and flexible customization capability, XW Machinery supports a wide range of industrial winding and rewinding applications.

Ordering Process:
1. Inquiry: Send us your requirements (Diameter, Length, Material).
2. Drawing Confirmation: Our engineers provide/confirm technical drawings within 4 hours.
3. Quotation: Competitive factory-direct pricing based on specs.
4. Production: 7-15 days lead time (standard parts).
5. Quality Check: ISO9001 standard inspection before shipping.

1. Can you customize the shaft length to fit our machine? (Yes, we provide drawings for confirmation.)
   2. What is the MOQ? (1 piece is supported.)
   3. How do you handle shipping for long shafts? (Reinforced wooden cases.)

Our factory has passed ISO9001 quality certification, ensuring quality assurance.

What is a key type differential shaft?

A key type differential shaft is a rewinding shaft with independently slipping friction rings driven through key bars, allowing several slit rolls to wind at the same time with individual tension control.

What are the advantages of key type differential shafts?

They transmit higher torque than ball type designs, hold friction stable under heavy load, and keep roll hardness uniform across wide webs and heavy rolls.

What industries use key type differential shafts?

They are widely used in paper, film, foil, flexible packaging, printing, coating, and lithium battery industries.

Can you customize shaft sizes?

Yes. XW Machinery supports customized shaft diameters, lengths, materials, friction ring types and expansion structures according to machine requirements.

What core sizes are available?

Common sizes include 3 inch and 6 inch cores, with 8 inch and other customized specifications available.
