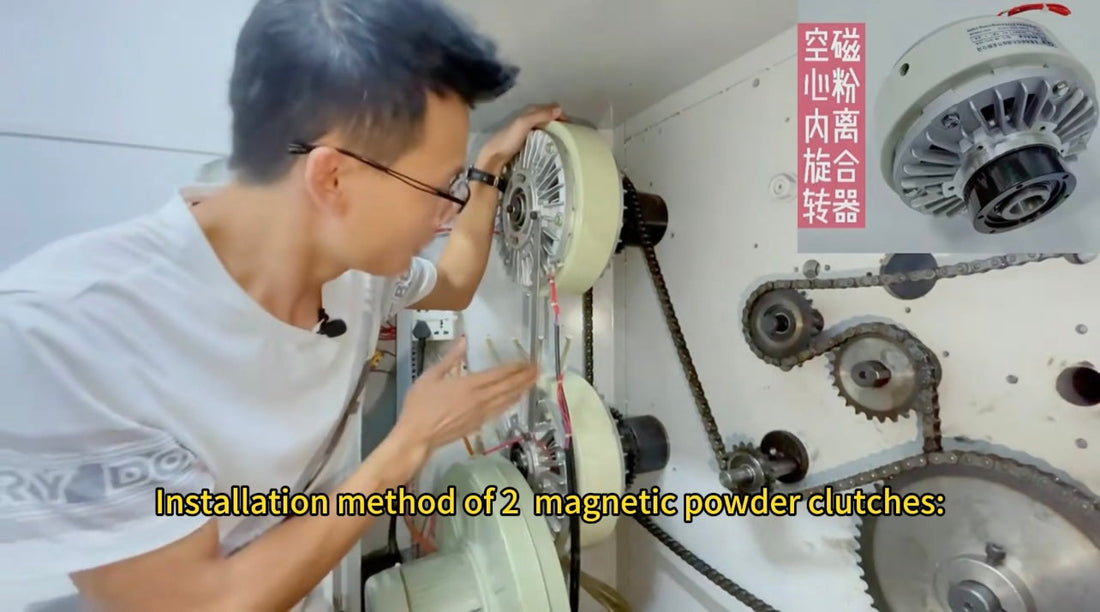

Two magnetic powder clutches installed on one motor for independent torque control

How to Install Two Magnetic Powder Clutches on One Motor? A Complete Engineering Guide

How to Install Two Magnetic Powder Clutches on One Motor?

In modern slitting, rewinding, coating, printing, and roll-to-roll converting machines, a single drive motor often needs to power multiple winding stations while maintaining independent tension control.

One practical solution is installing two Magnetic Powder Clutches on one motor. This configuration enables each rewinding shaft to receive individually adjustable torque, making it ideal for dual rewinding systems and multi-roll converting applications.

In this article, we'll explain how this system works, where it is used, and the key engineering considerations for achieving stable web tension.

Why Use Two Magnetic Powder Clutches on One Motor?

Instead of using two separate motors, manufacturers often use one motor combined with two independent magnetic powder clutches.

This design offers several advantages:

  • Lower equipment cost
  • Reduced machine footprint
  • Simplified maintenance
  • Independent torque adjustment
  • Stable web tension for each winding shaft
  • Improved energy efficiency

Because each clutch is controlled separately, both rewinding shafts can operate with different torque outputs while sharing the same motor.

Working Principle

The motor continuously rotates at a constant speed.

Power is transmitted through two independently controlled magnetic powder clutches mounted on the same drive shaft.

Each clutch transfers adjustable torque to its corresponding rewinding shaft.

The transmitted torque is controlled by the excitation current supplied to each clutch.

As the winding diameter changes, the controller automatically adjusts the clutch current, maintaining constant web tension throughout the production process.

This principle is widely used in:

  • Plastic film slitting
  • Paper converting
  • Aluminum foil processing
  • Copper foil production
  • Nonwoven fabric manufacturing
  • Lithium battery separator production
  • Flexible packaging lines

Typical Mechanical Structure

A common installation arrangement includes:

Motor
   │
Drive Shaft
   │
├── Magnetic Powder Clutch A
│          │
│     Rewind Shaft A
│
└── Magnetic Powder Clutch B
           │
      Rewind Shaft B

Both clutches share the motor while independently transmitting torque to separate rewinding shafts.

Key Design Considerations

1. Motor Torque Capacity

The motor must provide sufficient torque for both clutches simultaneously.

Generally,

Motor Output ≥ Clutch A Torque + Clutch B Torque + Safety Margin

Selecting an undersized motor may cause unstable tension and overheating.

2. Shaft Alignment

Precise shaft alignment minimizes vibration and bearing wear.

Proper concentricity also improves torque transmission and extends clutch service life.

3. Independent Current Control

Each magnetic powder clutch requires its own controller.

Separate current regulation allows each rewinding station to maintain the correct winding tension.

For optimal performance, pair the clutches with an Automatic Tension Controller to automatically compensate for roll diameter changes.

4. Heat Dissipation

Magnetic powder clutches generate heat during continuous slip operation.

For long production runs, consider:

  • Cooling fans
  • Ventilated mounting
  • Water-cooled models for high torque applications

Proper cooling extends clutch lifespan and maintains stable torque output.

5. Matching Rewinding Components

To maximize winding quality, magnetic powder clutches are typically integrated with:

Together, these components provide complete tension control from unwinding to rewinding.

Typical Applications

Installing two magnetic powder clutches on one motor is common in:

Dual Rewinding Slitting Machines

Each rewinding shaft maintains independent tension while sharing the same drive motor.

Roll-to-Roll Converting Equipment

Allows separate winding control for multiple production lanes.

Printing Machines

Maintains stable web tension during continuous printing operations.

Coating Lines

Ensures consistent winding density after coating.

Flexible Packaging Production

Produces high-quality finished rolls with minimal wrinkles and telescoping.

Benefits of This Configuration

Compared with using two independent motors, this design provides:

  • Lower initial investment
  • Reduced maintenance costs
  • Compact machine layout
  • Independent torque adjustment
  • Stable winding tension
  • Higher production efficiency
  • Better roll quality
  • Simplified electrical control

Why Choose XW Machinery Magnetic Powder Clutches?

At XW Machinery, our magnetic powder clutches are engineered for demanding industrial applications.

Features include:

  • Stable and accurate torque transmission
  • Fast response to control signals
  • Smooth torque adjustment
  • High-quality magnetic powder
  • Long service life
  • High-speed performance
  • Custom torque capacities available
  • Compatible with modern web tension control systems

Whether you're designing a new converting line or upgrading an existing slitting machine, our solutions help improve winding consistency and production efficiency.

Conclusion

Installing two magnetic powder clutches on one motor is a proven solution for achieving independent torque control while reducing equipment cost and saving installation space.

When combined with an automatic tension controller, magnetic powder brake, air expanding shaft, differential shaft, and web guiding system, this configuration delivers precise tension control and consistently high-quality winding across a wide range of roll-to-roll manufacturing applications.

If you're planning a dual rewinding system, selecting high-quality magnetic powder clutches and a properly matched tension control system will ensure reliable long-term performance.
