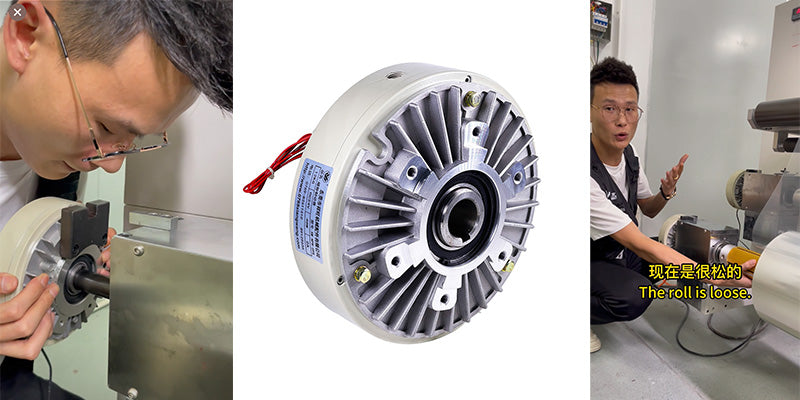

Hollow Shaft Magnetic Powder Brake: Applications & Installation Guide

Introduction

  A hollow shaft magnetic powder brake is a core tension control component widely used in industrial winding and unwinding systems. With a hollow shaft design, it enables direct shaft mounting for easy integration into machinery. It provides smooth, precise, and adjustable torque through magnetic powder, ensuring stable tension during material processing.

What Is a Hollow Shaft Magnetic Powder Brake?

  It is a type of electromagnetic brake that uses magnetic powder as the torque transmission medium. When energized, the magnetic field solidifies the powder, generating braking torque. The hollow shaft structure eliminates the need for complex couplings, saving installation space and simplifying mechanical layout.

Key Applications

1. Film & Foil Processing

  In film production, slitting, and rewinding, consistent tension is critical to avoid wrinkles, stretching, or breakage. The hollow shaft magnetic powder brake delivers precise tension control for thin films, PET, BOPP, and aluminum foil.

For practical reference, watch our film application video:Hollow Shaft Magnetic Powder Brake in Film Applications

2. Textile & Paper Industry

 Used in yarn, fabric, and paper winding systems to maintain uniform tension and improve product quality.

3. Printing & Packaging

 Ideal for label printing, flexible packaging, and coating machines, ensuring stable unwinding tension for high-speed production.

4. Wire & Cable Manufacturing

 Controls tension during wire drawing and cable winding, preventing wire breakage and ensuring consistent winding density.

Product Features of XW Series

Our XW Series Hollow Shaft Magnetic Powder Brake offers:

· Torque range: 6Nm to 400Nm

· Hollow shaft design for direct mounting

· Smooth and stepless torque adjustment

· Fast response and stable performance

· Durable for continuous industrial operation

View full specifications:XW Series Hollow Shaft Magnetic Powder Brake – Official Product Page

Installation Guide

1. Pre-Installation Checks

· Ensure the brake model matches your torque and shaft size requirements.

· Verify the shaft surface is clean, smooth, and free of burrs.

· Check electrical connections and power supply voltage.

2. Mounting Steps

1. Slide the hollow brake onto the machine shaft.

2. Align the keyway and insert the key (if applicable).

3. Tighten the mounting bolts evenly to avoid distortion.

4. Connect the control power cable correctly.

5. Adjust the air gap (if required) per the manual.

3. Quick Installation Reference

For a step-by-step visual guide, watch our quick installation video:Hollow Shaft Magnetic Powder Brake – Quick Installation Guide

4. Post-Installation Testing

· Power on and test torque adjustment.

· Run at low speed to check for noise or vibration.

· Calibrate tension according to production needs.

Maintenance Tips

· Keep the brake dry and dust-free.

· Avoid overheating; ensure proper ventilation.

· Check electrical connections regularly.

· Replace magnetic powder every 2,000–5,000 hours (depending on usage).

Conclusion

 The hollow shaft magnetic powder brake is an indispensable component for modern industrial tension control. Its compact design, easy installation, and reliable performance make it the top choice for film, printing, textile, and wire industries.

 For high-quality XW Series Hollow Shaft Magnetic Powder Brake with competitive pricing, visit:XW Machinery – Hollow Shaft Magnetic Powder Brake

Published by XW Machinery | Industrial Tension Control Solutions
