Single Shaft Magnetic Powder Brake: Advantages & Installation Guide

  In industrial motion control, precision tension control and reliable braking are critical for winding, unwinding, and material processing applications. The single shaft magnetic powder brake stands out as a compact, high-performance solution, widely used in printing, textile, packaging, and wire & cable industries. Below we dive into its core advantages and a step-by-step installation guide, paired with a practical reference video.

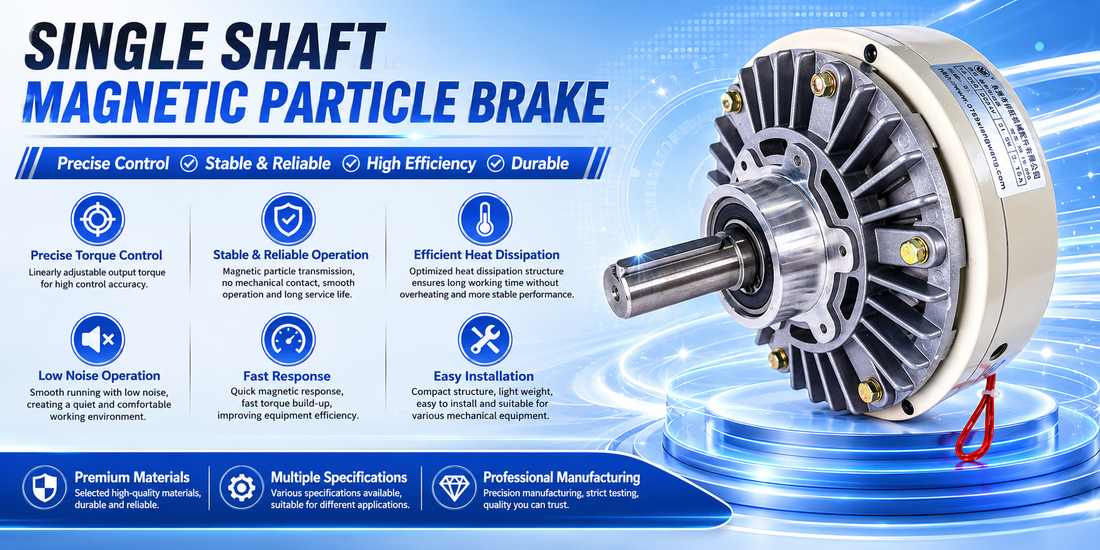

What Is a Single Shaft Magnetic Powder Brake?

  A single shaft magnetic powder brake is an electromagnetic braking device that uses magnetic powder as the torque transmission medium. When energized, the magnetic field solidifies the magnetic powder between the rotor and stator, generating smooth, adjustable braking torque. Its single-shaft design features a compact structure, easy integration, and stable performance—ideal for space-constrained industrial setups.

Key Advantages of Single Shaft Magnetic Powder Brake

1. Precise & Adjustable Torque Control

  Torque can be steplessly adjusted by changing the input DC current (typically 0–24V). It delivers consistent, smooth braking even at low speeds, eliminating sudden jerks. This precision ensures uniform tension control for thin films, fabrics, and wires.

2. Compact Single-Shaft Design

  Unlike dual-shaft brakes, the single-shaft structure reduces overall size and weight. It fits seamlessly into narrow equipment frames, saving installation space and simplifying mechanical layout.

3. Long Service Life & Durability

  Built to DIN industrial standards (as seen in the XW Machinery model), it features high-quality magnetic powder and wear-resistant components. With no mechanical friction between main parts, it minimizes wear and tear, boasting a long lifespan and low maintenance costs.

4. Stable Performance at Low Speeds

  Magnetic powder brakes maintain stable torque output even at near-zero speeds. They avoid the "stick-slip" issue common in mechanical brakes, making them perfect for low-speed, high-precision applications like precision winding.

5. Easy Operation & Low Maintenance

  No complex lubrication or frequent part replacement is needed. Regular checks of magnetic powder condition and electrical connections are sufficient. It operates quietly with minimal vibration, improving the working environment.

6. Wide Compatibility

  Suitable for both continuous and intermittent operation. It works with most standard industrial motors and tension controllers, supporting easy integration into existing production lines.

Step-by-Step Installation Guide

  Proper installation directly impacts brake performance and lifespan. Follow these steps, and refer to the installation reference video for visual guidance:

1. Pre-Installation Preparation

· Inspect the brake for damage: Check the housing, shaft, and wiring terminals for cracks or deformation.

· Verify specifications: Confirm the brake’s voltage, torque range, and shaft size match your equipment requirements.

· Prepare tools: Wrenches, screwdrivers, a torque meter, and insulating tape.

2. Mount the Brake

· Fix the brake’s base to a rigid, flat mounting surface (ensure no vibration during operation).

· Align the single shaft with the driven shaft (e.g., motor shaft or winding roller). Keep coaxiality within 0.1mm to avoid shaft wear and noise.

· Secure the brake with bolts (tighten evenly with a torque wrench to avoid housing distortion).

3. Electrical Wiring

· Use shielded cables for power connections to avoid electromagnetic interference.

· Connect the DC power supply (0–24V) to the brake’s terminals: Positive (+) and Negative (-).

· Link the brake to a tension controller for real-time torque adjustment. Ensure all connections are insulated and secure.

4. Test Operation

· Before full load use: Power on the brake at low current (10–20% of rated current) for 5–10 minutes. Check for abnormal noise, vibration, or overheating.

· Adjust torque: Gradually increase current to test torque response. Confirm smooth tension control without jitter.

· Full-load test: Run the equipment under normal working conditions for 1 hour. Monitor temperature (≤80°C is normal) and stability.

5. Post-Installation Checks

· Re-tighten bolts after initial operation.

· Label wiring terminals for future maintenance.

· Keep the brake housing clean; avoid dust or moisture entering the internal structure.

Recommended Product: XW DIN Standard Magnetic Powder Brake

  For reliable quality and long-term performance, we recommend the XW Magnetic Powder Brake from XW Machinery. It adheres to strict DIN standards, features a durable single-shaft design, and delivers consistent torque for diverse industrial applications.

 Product Link: https://xw-machinery.com/products/xw-magnetic-powder-brake-din-standard-long-lifespan

Final Thoughts

  A single shaft magnetic powder brake is a cost-effective, high-precision solution for industrial braking and tension control. Its compact design, adjustable torque, and long lifespan make it a staple in modern production lines. By following the installation guide and referring to the video, you can ensure smooth installation and optimal performance.

  For more details on specifications or customization, visit the product page or contact our technical team!
