XW Machinery differential air shafts are designed for high-speed slitting and rewinding applications requiring precise tension equalization across multiple cores.

Each friction ring independently slips according to web tension, ensuring stable rewinding performance for films, paper, foil, labels, and lithium battery materials.

Our pneumatic differential shafts support narrow-width slitting, low-tension rewinding, and customized torque control for advanced converting industries.

XW Machinery specializes in precision web handling components for converting industries, including differential shafts, air shafts, tension controllers, web guiding systems, and magnetic powder clutches.

Our solutions are widely used in film, foil, paper, label, and lithium battery production lines worldwide.

Key Features of XW Machinery Differential Shafts

• Precise independent tension control
• Smooth slip adjustment for multiple rolls
• High-speed stable winding performance
• Reduced wrinkles and telescoping
• Excellent winding consistency
• Durable friction components for long service life
• Suitable for narrow web and wide web applications
• Easy maintenance and replacement parts
• Customizable shaft sizes and structures
• Compatible with various slitting and rewinding machines

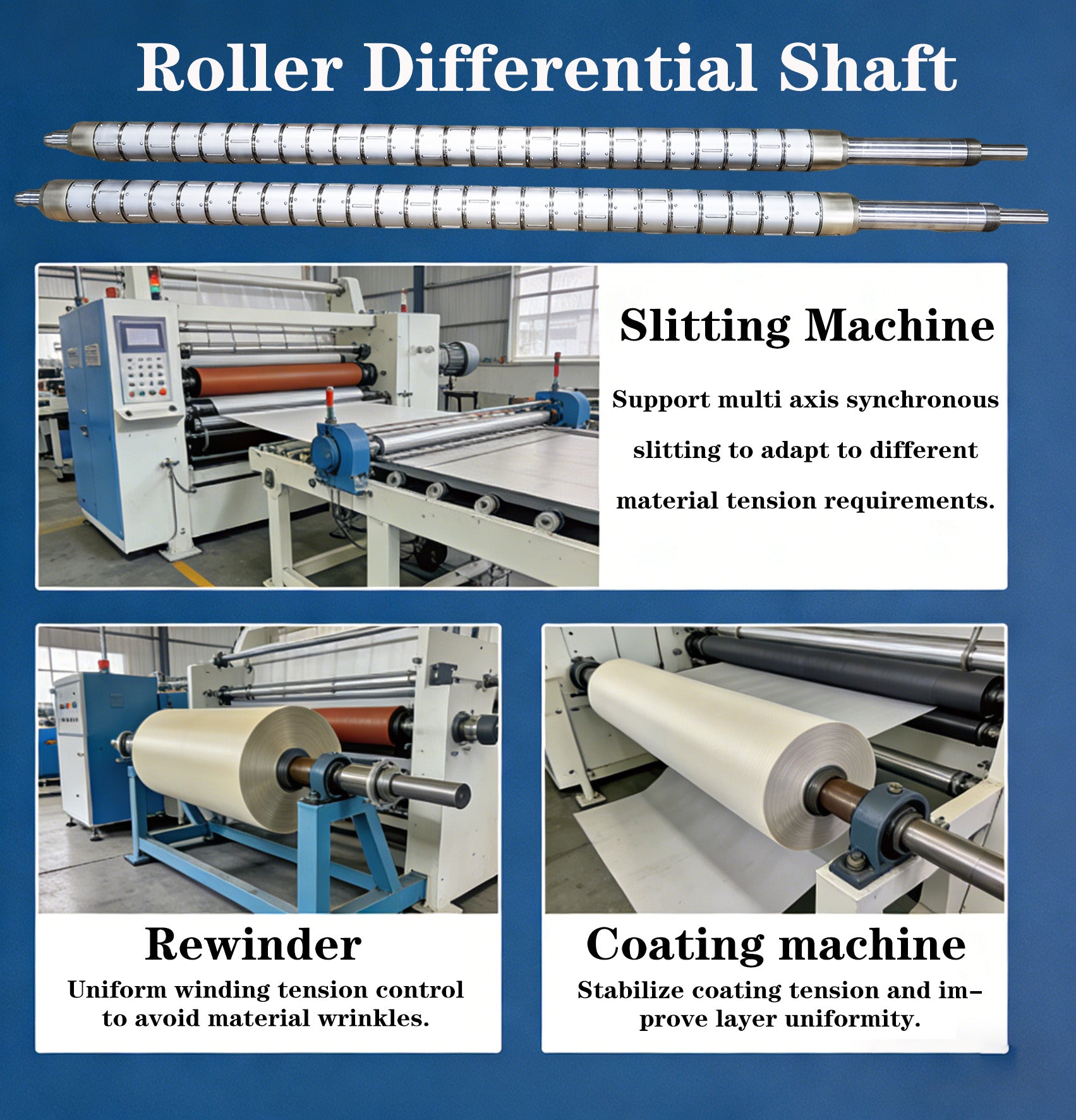

Applications of Differential Air Shafts

XW Machinery differential shafts are widely used in:

• Film slitting machines
• Paper rewinding systems
• Foil converting equipment
• Label slitting machines
• Flexible packaging production lines
• Battery separator film winding
• Nonwoven material processing
• Tape and adhesive converting
• Plastic film rewinding
• High-speed precision slitting applications

These shafts help improve roll quality, reduce material waste, and maintain stable winding tension.

Ball Type vs Lug Type Differential Shaft

Ball Type Differential Shaft

Ball type differential shafts use steel balls or friction ball mechanisms to transmit torque and allow controlled slipping between rolls.

Advantages

• Higher precision tension control
• Smooth differential slipping
• Suitable for high-speed applications
• Excellent for thin film materials
• Stable winding quality

Best For

• Precision film slitting
• Battery film processing
• High-speed converting lines

Lug Type Differential Shaft

Lug type differential shafts use expanding lugs or strips combined with friction mechanisms for torque transmission.

Advantages

• Stronger gripping force
• Higher load capacity
• Durable heavy-duty structure
• Suitable for wider materials

Best For

• Heavy paper rewinding
• Foil processing
• Industrial converting equipment

XW Machinery can customize both ball type and lug type differential shafts according to your production requirements.

Technical Specifications

What Is a Differential Air Shaft?

A differential air shaft, also known as a slip shaft or pneumatic differential shaft, is a specialized winding shaft used in slitting and rewinding machines to maintain independent tension across multiple rolls during winding operations.

Unlike standard air expanding shafts, a differential shaft allows each core or roll to rotate at slightly different speeds through friction slip mechanisms. This compensates for variations in material thickness, roll diameter, and tension distribution, ensuring tighter and more uniform winding quality.

XW Machinery differential air shafts are designed for high-speed converting applications requiring precise tension control and stable rewinding performance.

How Does a Pneumatic Differential Shaft Work?

A pneumatic differential shaft uses compressed air to expand friction elements or slip rings that grip individual cores mounted on the shaft.

During rewinding:

1. Compressed air activates the expansion mechanism
2. Friction rings create adjustable torque on each core
3. Each roll can compensate for speed differences independently
4. Stable tension is maintained across all slit rolls
5. Over-tightening, wrinkling, and uneven winding are reduced

This differential slipping function is especially important in high-speed slitting operations where multiple narrow rolls are wound simultaneously.

XW Mechanical Parts provides a complete solution for uneven tension in coil materials. Perhaps you are still looking for:

• web tension control system
• air expanding shaft
• magnetic powder clutch
• slitter rewinder machine parts

Why Choose XW Machinery?

XW Machinery specializes in industrial tension control and web handling components for slitting and rewinding industries.

Our Advantages

• Professional customization service
• Stable product quality
• Precision CNC machining
• Competitive factory pricing
• Fast delivery support
• OEM & ODM manufacturing
• Technical assistance for selection and installation
• Replacement parts support
• Global export experience

We help customers improve rewinding quality, reduce downtime, and optimize production efficiency.

Ordering Process：
1.    Inquiry: Send us your requirements (Diameter, Length, Material).
2.    Drawing Confirmation: Our engineers provide/confirm technical drawings within 4 hours.
3.    Quotation: Competitive factory-direct pricing based on specs.
4.    Production: 7-15 days lead time (standard parts).
5.    Quality Check: ISO9001 standard inspection before shipping.

1.    Can you customize the shaft length to fit our machine? (Yes, we provide drawings for confirmation.)
   2.    What is the MOQ? (1 piece is supported.)
   3.    How do you handle shipping for long shafts? (Reinforced wooden cases.)

Our factory has passed ISO9001 quality certification, ensuring quality assurance.

What is the difference between an air shaft and a differential shaft?

A standard air shaft grips the core directly, while a differential shaft allows controlled slipping between rolls to maintain independent tension during rewinding.

Why is a differential shaft important in slitting?

It helps compensate for thickness variations and tension differences between slit rolls, improving winding consistency and reducing defects.

What materials can differential shafts process?

They are commonly used for film, paper, foil, tape, labels, nonwoven materials, and flexible packaging products.

Can XW Machinery customize differential shafts?

Yes. We provide customized shaft diameters, lengths, friction structures, torque settings, and mounting configurations.

Which differential shaft is better: ball type or lug type?

Ball type shafts are better for precision and high-speed film applications, while lug type shafts are better for heavy-duty industrial rewinding.

Do you provide spare parts?

Yes. We provide friction rings, bearings, air valves, expanding components, and other replacement parts.

How do I choose the correct differential shaft?

You should consider material type, roll width, rewinding speed, tension requirements, and machine specifications. XW Machinery can help recommend the proper model.

Professional inflatable shaft factory direct sales, welcome to provide drawings or dimensions, we will provide a quotation within 24 hours!
