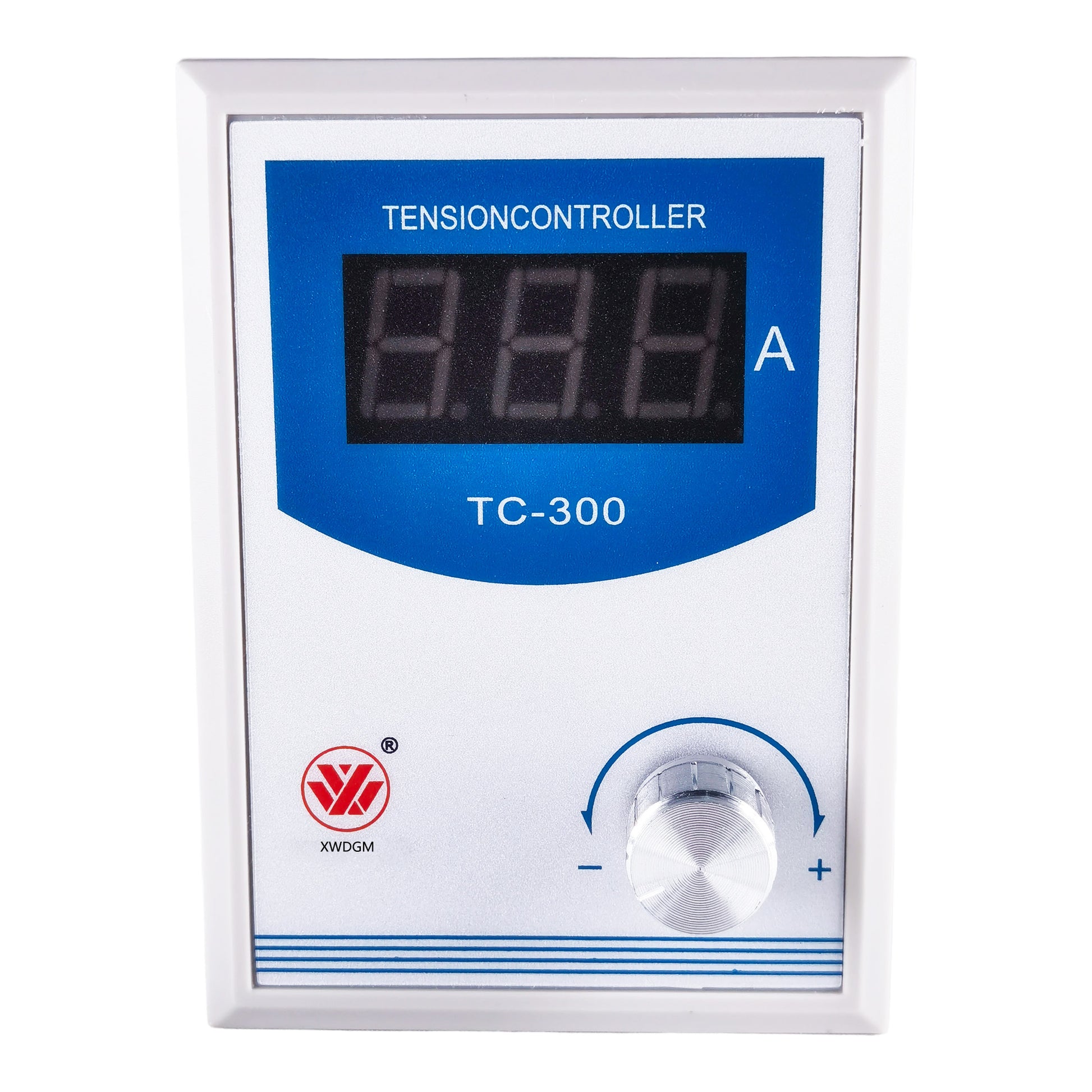

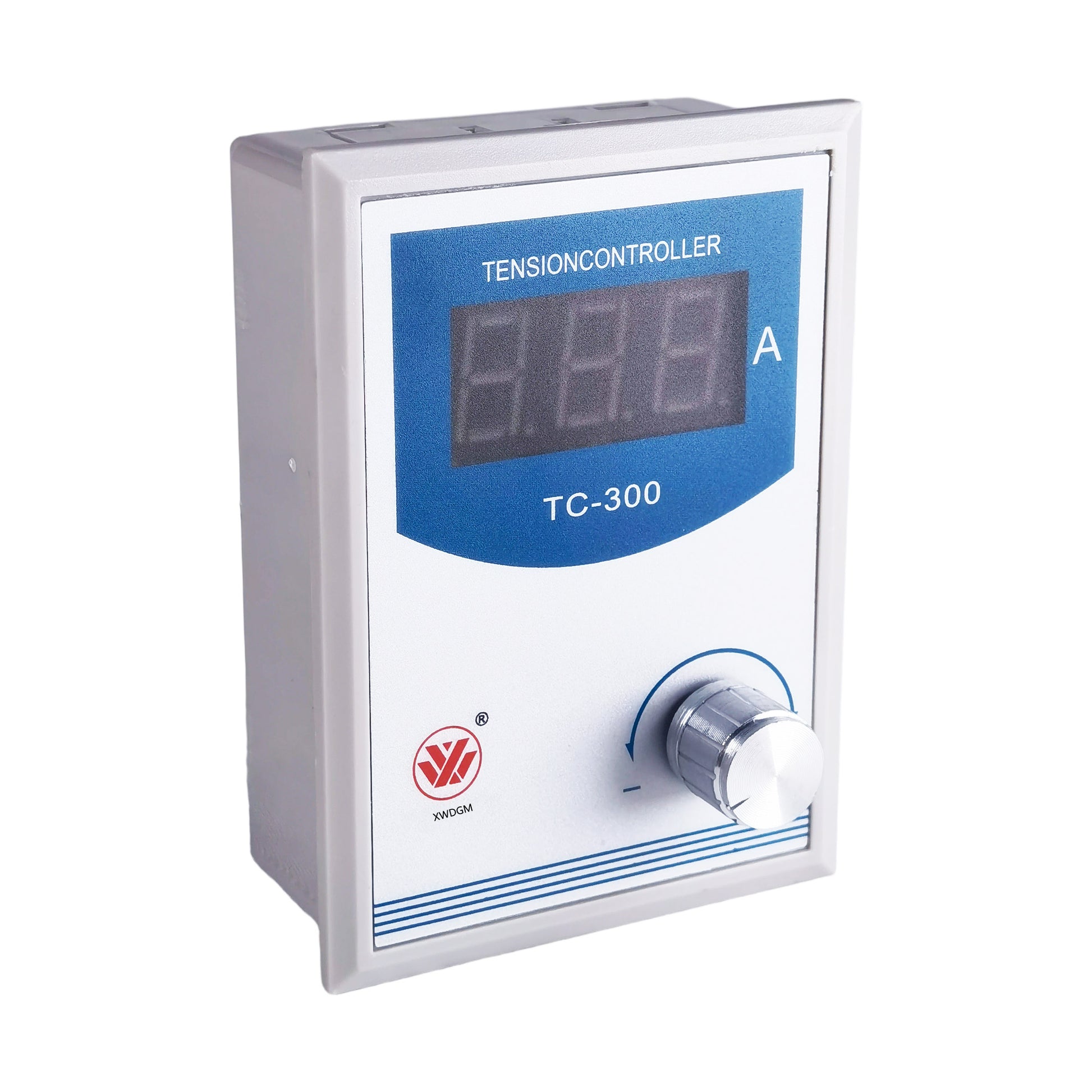

Compact Tension Controller for Accurate Web Handling and Tension Control

The XWDGM Compact Tension Controller is a space-saving and high-performance web tension control solution designed for modern converting, slitting, rewinding, printing, coating, laminating, and packaging machinery. Combining advanced digital control technology with a compact design, this controller delivers precise and stable tension regulation while minimizing installation space requirements.

Designed for closed-loop tension control applications, the Compact Tension Controller continuously receives feedback from load cells and tension sensors, automatically adjusting connected magnetic powder brakes, magnetic powder clutches, pneumatic brakes, servo motors, or inverter drives to maintain consistent web tension throughout production.

Its compact footprint makes it an ideal choice for equipment manufacturers and industrial automation projects where panel space is limited but accurate web tension control remains essential.

Key Features

• Compact and space-saving design
• High-precision Closed-Loop Tension Controller
• Advanced digital control technology
• Fast response and stable tension regulation
• Compatible with load cells and tension sensors
• Supports magnetic powder brakes and clutches
• User-friendly digital display
• Easy parameter setup and calibration
• Reliable industrial-grade performance
• Suitable for unwind, rewind, and process tension zones

Benefits of Using a Compact Tension Controller

Stable web tension is critical for maintaining product quality and reducing production waste. The XWDGM Compact Tension Controller helps manufacturers achieve:

• Consistent web tension control
• Improved slitting accuracy
• Better winding quality
• Reduced wrinkles and material stretching
• Fewer web breaks and tracking issues
• Lower material waste
• Increased production efficiency
• Enhanced product consistency

By integrating with load cells and web tension sensors, the controller creates a highly responsive tension control system capable of adapting to changing roll diameters and operating speeds.

Applications

The XWDGM Compact Tension Controller is widely used in:

• Slitting Machines
• Rewinding Machines
• Flexographic Printing Machines
• Rotogravure Printing Machines
• Coating Machines
• Laminating Machines
• Flexible Packaging Equipment
• Paper Processing Machinery
• Film Converting Lines
• Label Manufacturing Equipment
• Textile Processing Machines
• Lithium Battery Production Lines
• Nonwoven Fabric Machinery

Compact Yet Powerful Performance

Unlike conventional large-format tension controllers, the XWDGM Compact Tension Controller delivers professional-level performance in a smaller enclosure. It is particularly suitable for machine builders seeking compact automation solutions without sacrificing tension control accuracy.

The controller supports both automatic and closed-loop operation modes, providing flexibility for various production requirements.

System Compatibility

The Compact Tension Controller can be integrated with:

[Through-Shaft Tension Sensor]

Provides accurate tension feedback for closed-loop control.

[Automatic Web Tension Controller]

Ideal for complete web tension management solutions.

[Magnetic Powder Brake]

Ensures smooth and precise unwind tension regulation.

[Magnetic Powder Clutch]

Provides accurate torque transmission and rewind control.

[Web Guiding System]

Improves web alignment and tracking accuracy.

[Tension Control System]

Creates a fully integrated web handling solution.

Why Choose XWDGM

XWDGM specializes in manufacturing web tension control systems, tension sensors, magnetic powder brakes, magnetic powder clutches, and web handling components for industrial automation applications worldwide.

Our advantages include:

• Professional engineering support
• OEM and ODM manufacturing
• Competitive factory-direct pricing
• Fast global shipping
• Strict quality control
• Industrial automation integration support
• Long-term technical service
• Multi-language customer assistance

Frequently Asked Questions

What is a Compact Tension Controller?

A Compact Tension Controller is a space-saving digital device used to maintain stable web tension by processing signals from tension sensors or load cells and automatically controlling braking or drive systems.

How does a Compact Tension Controller work?

The controller continuously compares actual web tension with the target value and automatically adjusts connected devices to maintain constant tension throughout production.

What is the advantage of a compact design?

A compact tension controller reduces installation space requirements while providing the same high-precision tension control performance as larger systems.

Which machines use Compact Tension Controllers?

Compact Tension Controllers are commonly used in slitting machines, rewinding machines, printing presses, laminating equipment, coating lines, and flexible packaging machinery.

Can the controller work with load cells and tension sensors?

Yes. The XWDGM Compact Tension Controller is fully compatible with load cells and web tension sensors for accurate closed-loop tension control.

Can it control magnetic powder brakes and clutches?

Yes. The controller can regulate magnetic powder brakes, magnetic powder clutches, pneumatic brakes, servo systems, and inverter-controlled drives for precise tension management.
