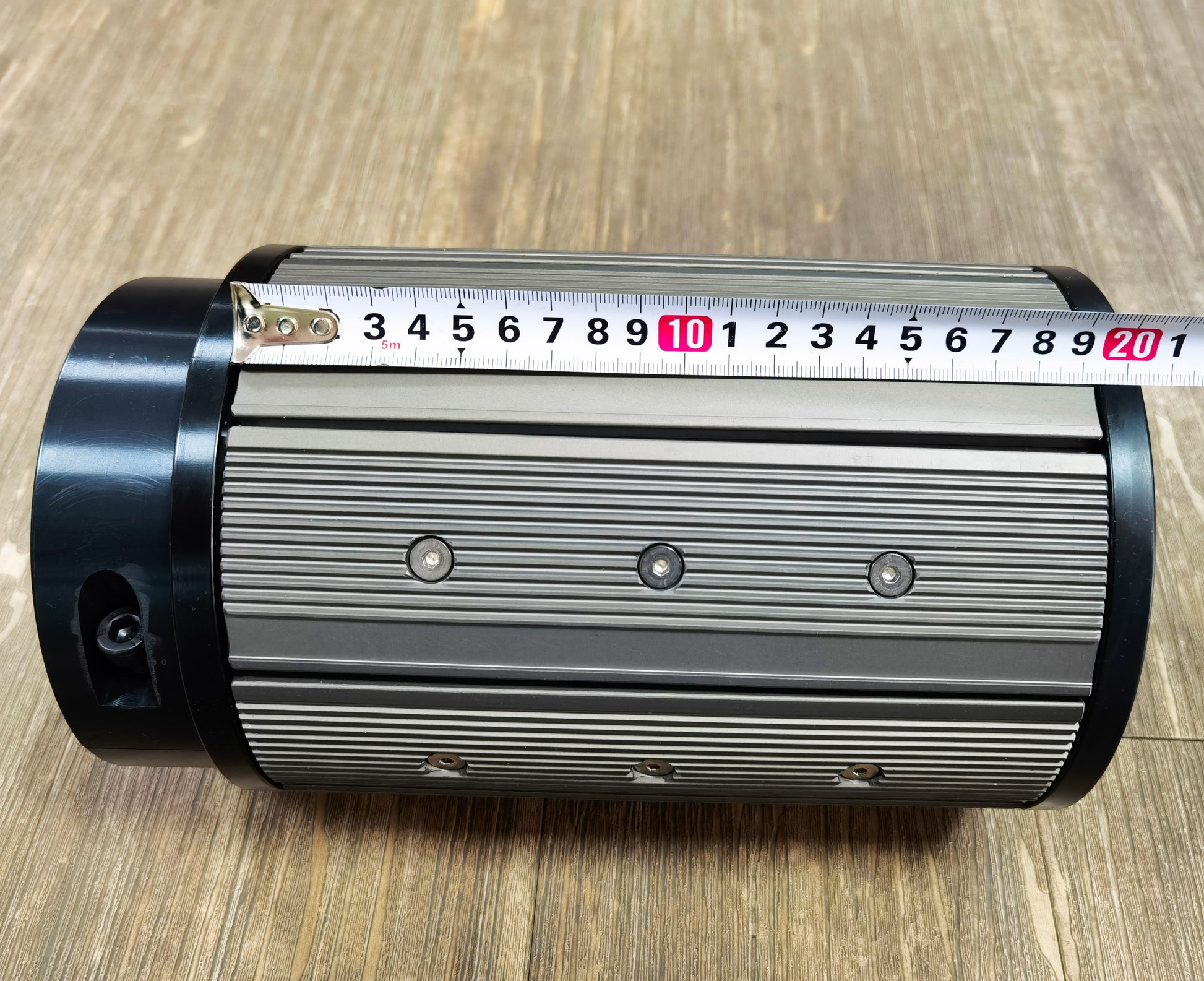

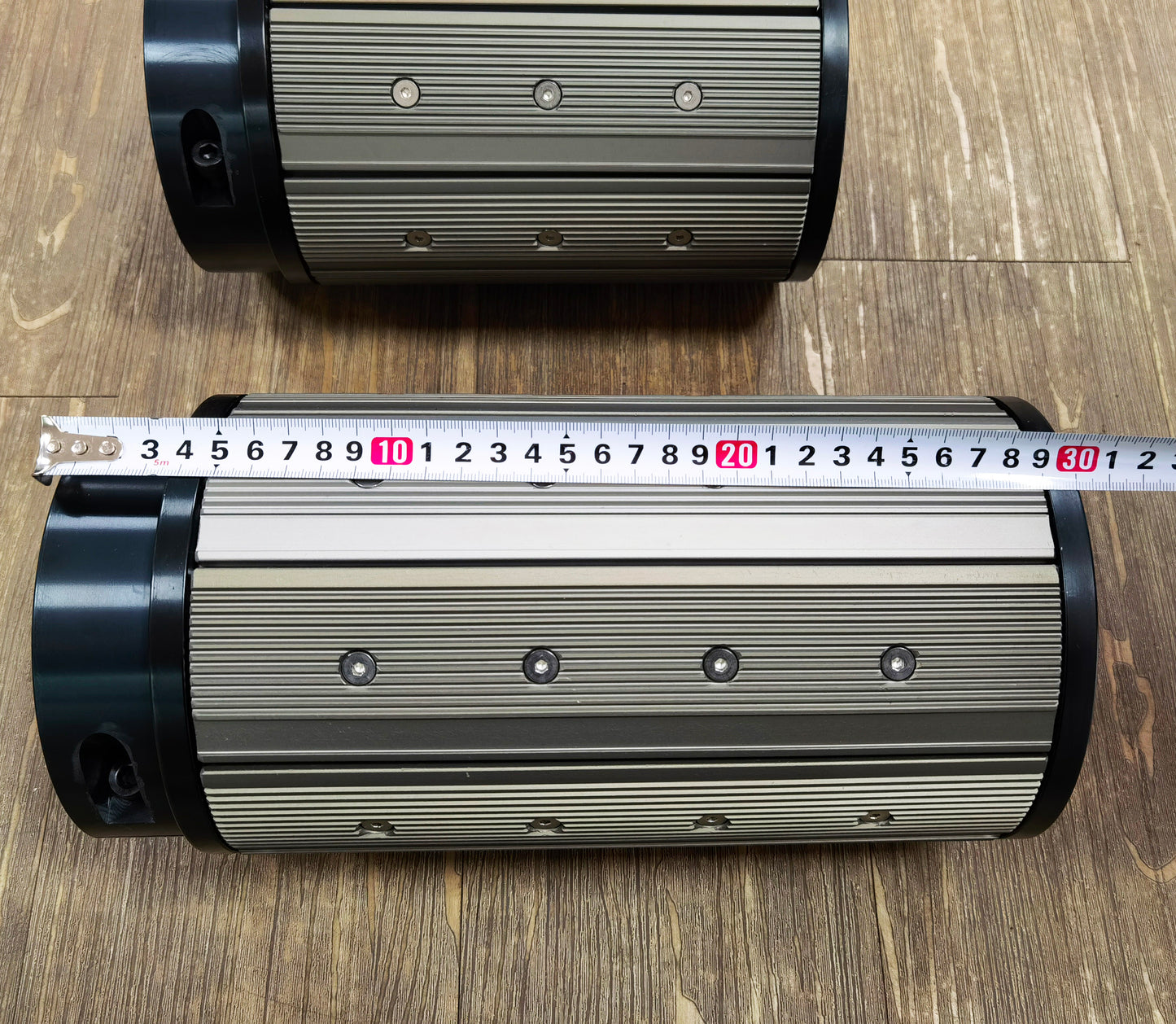

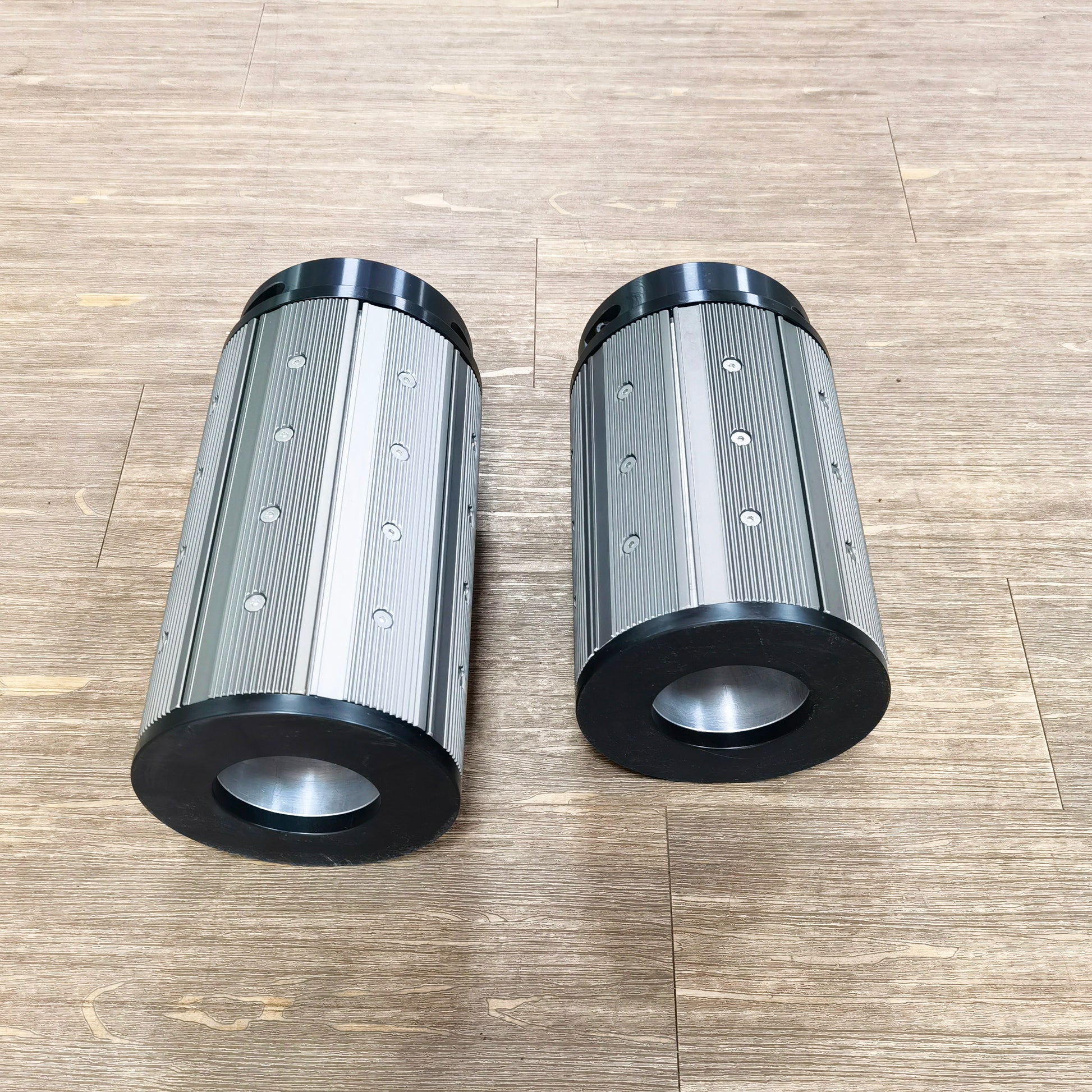

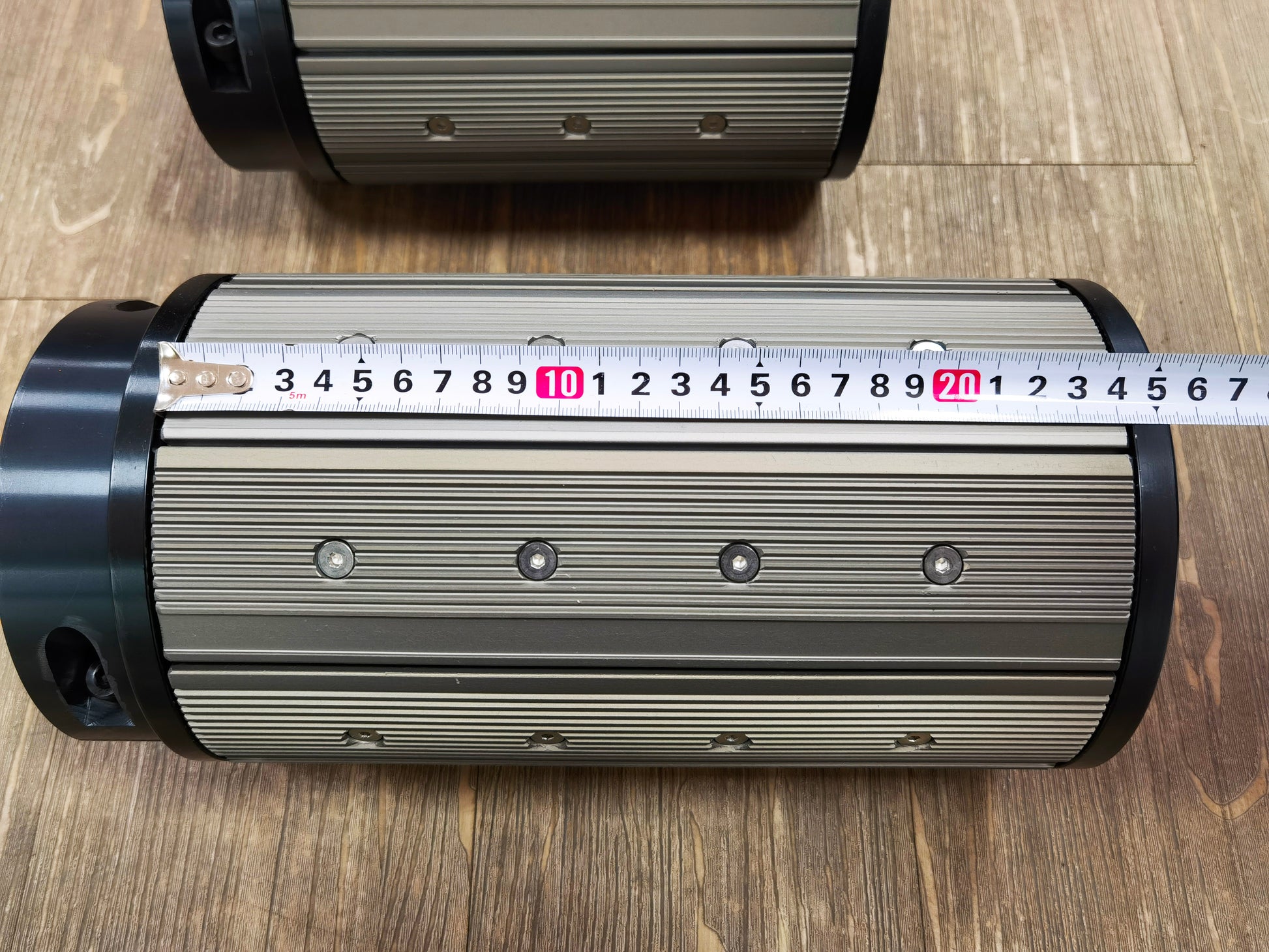

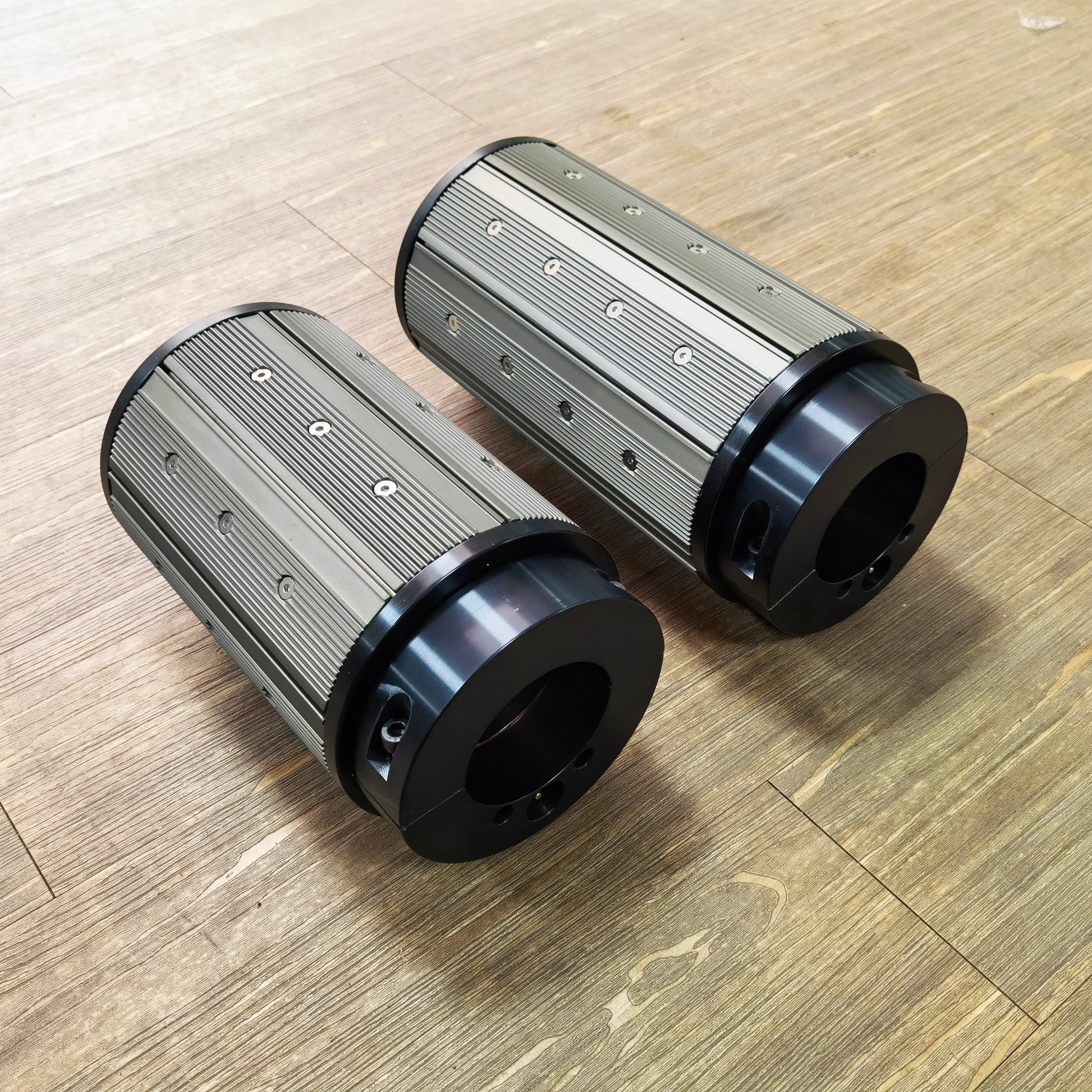

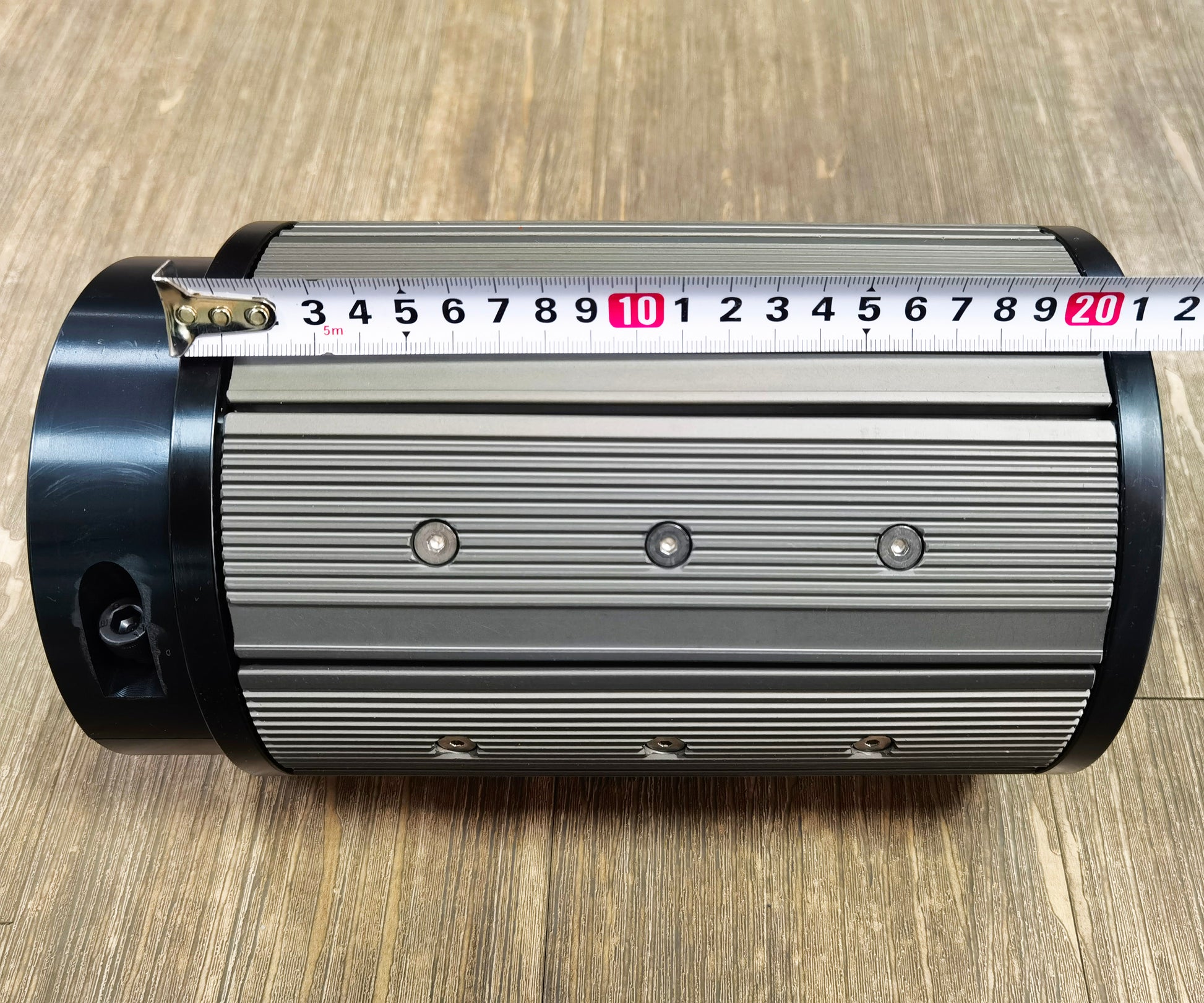

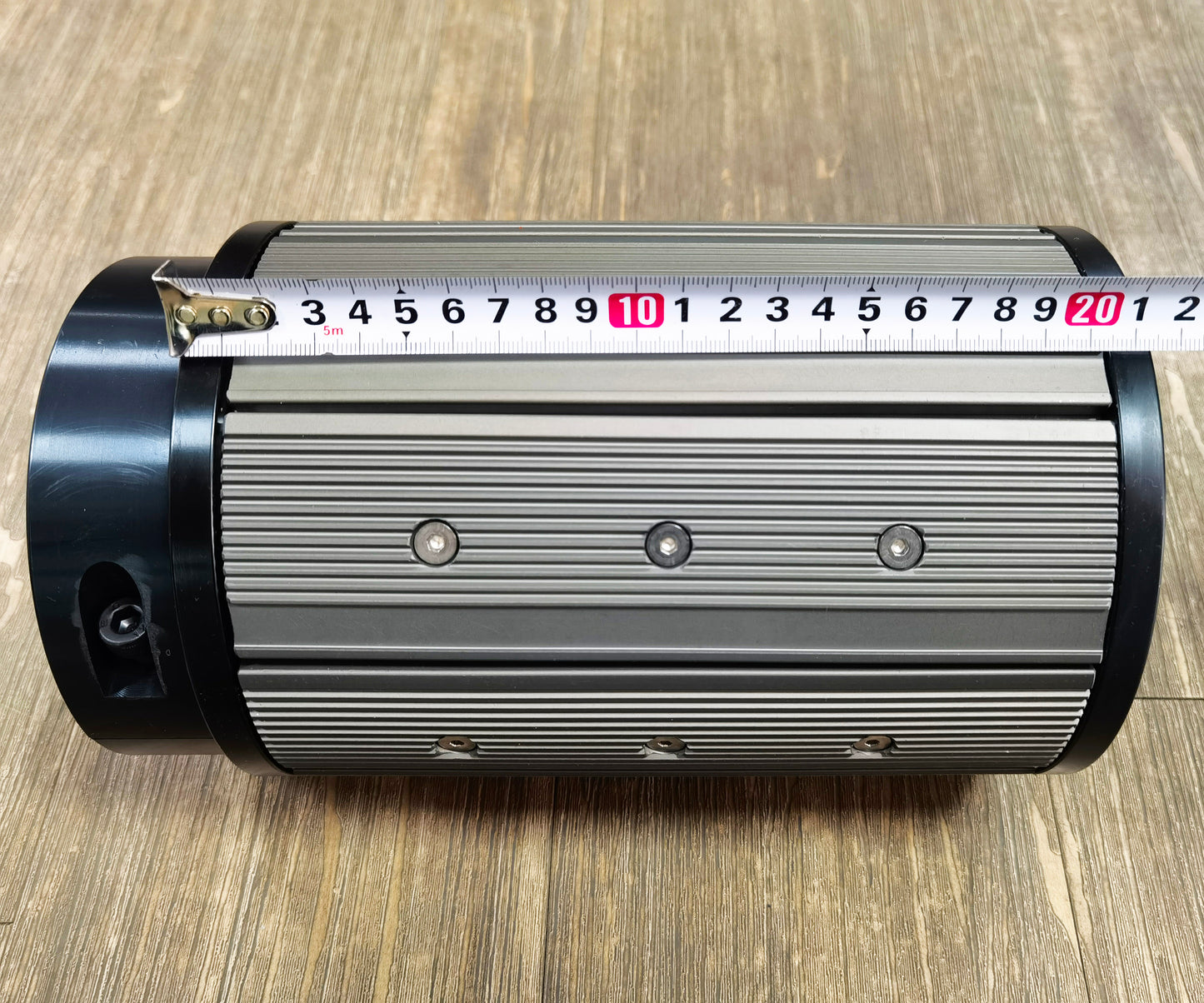

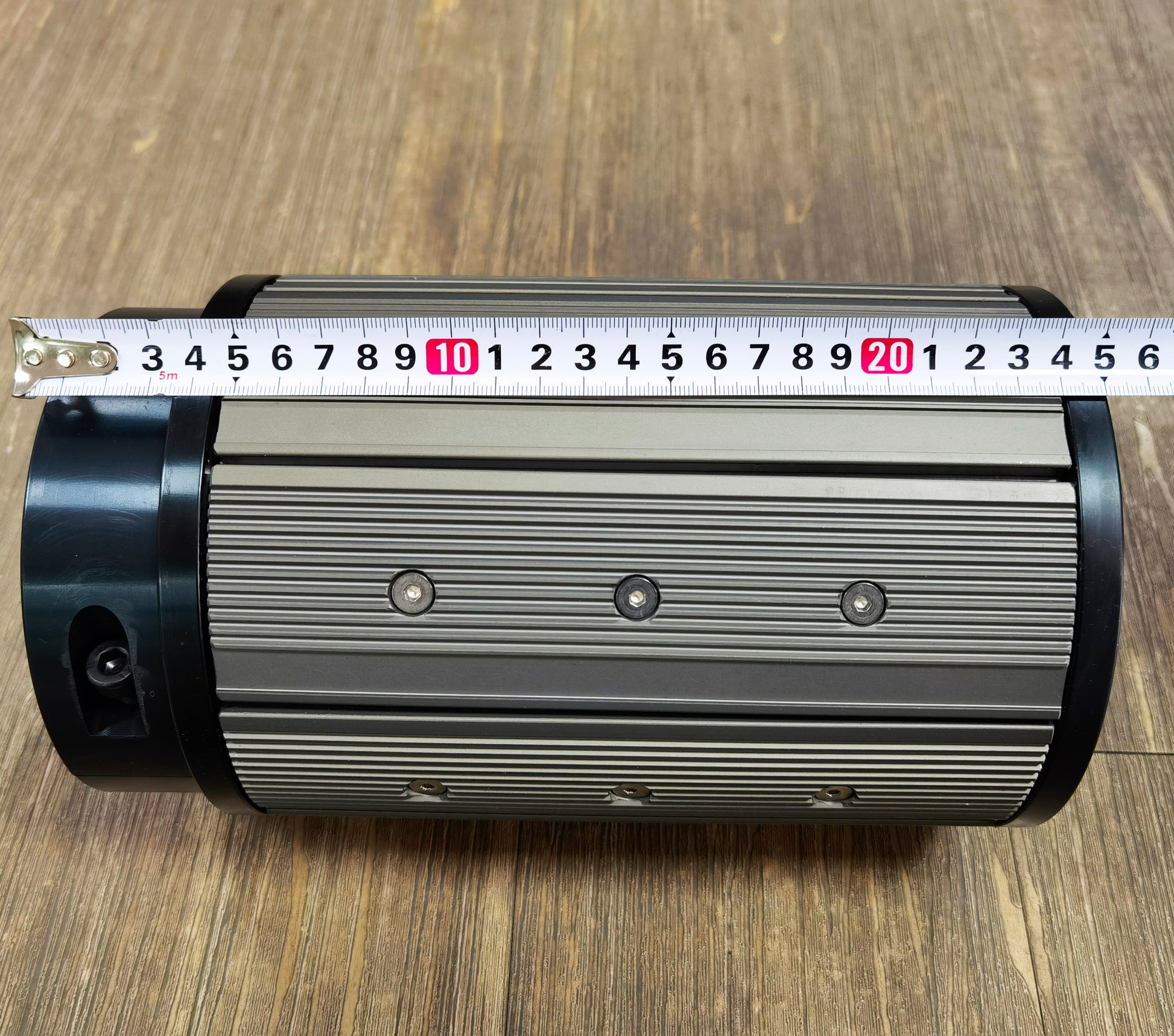

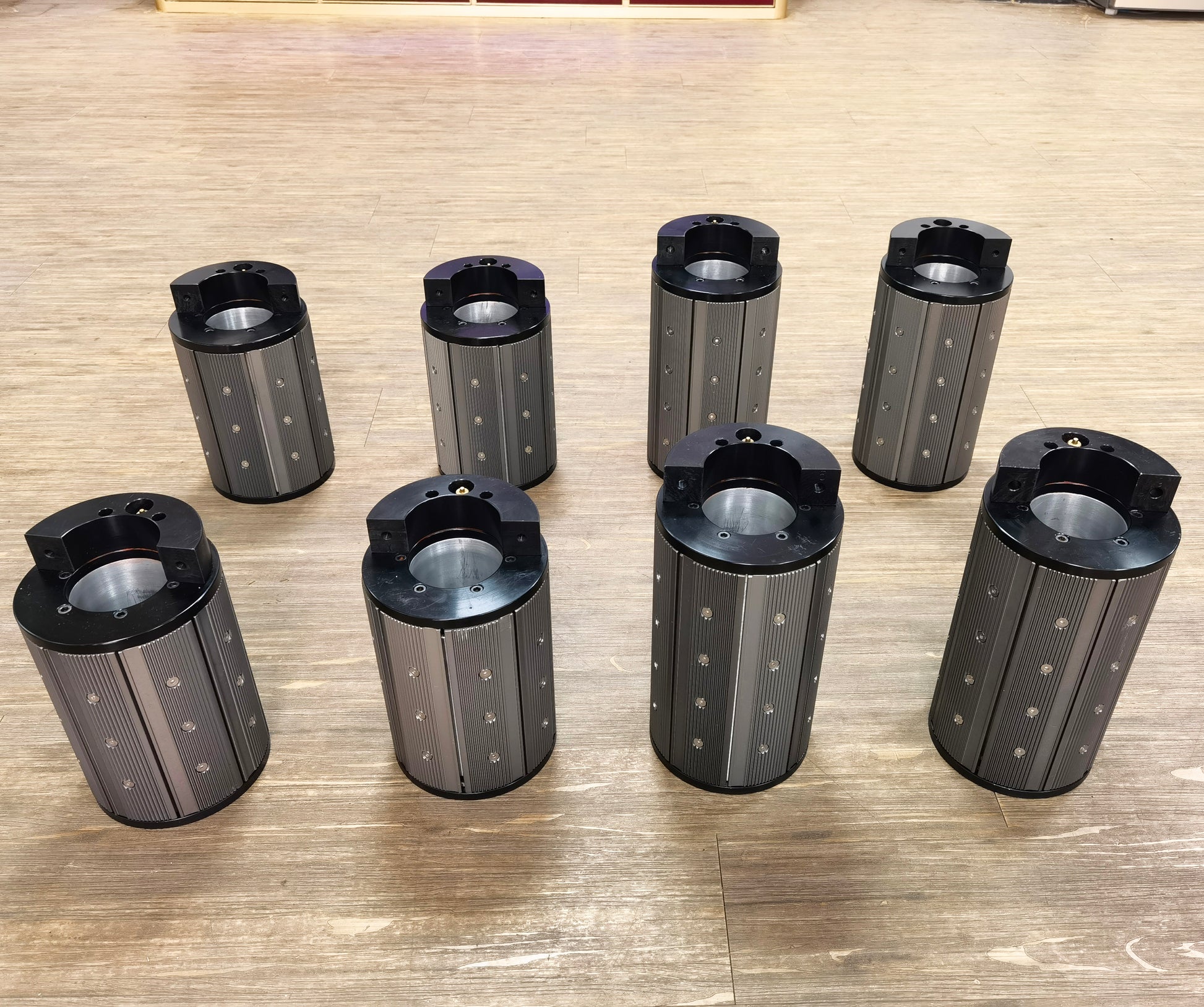

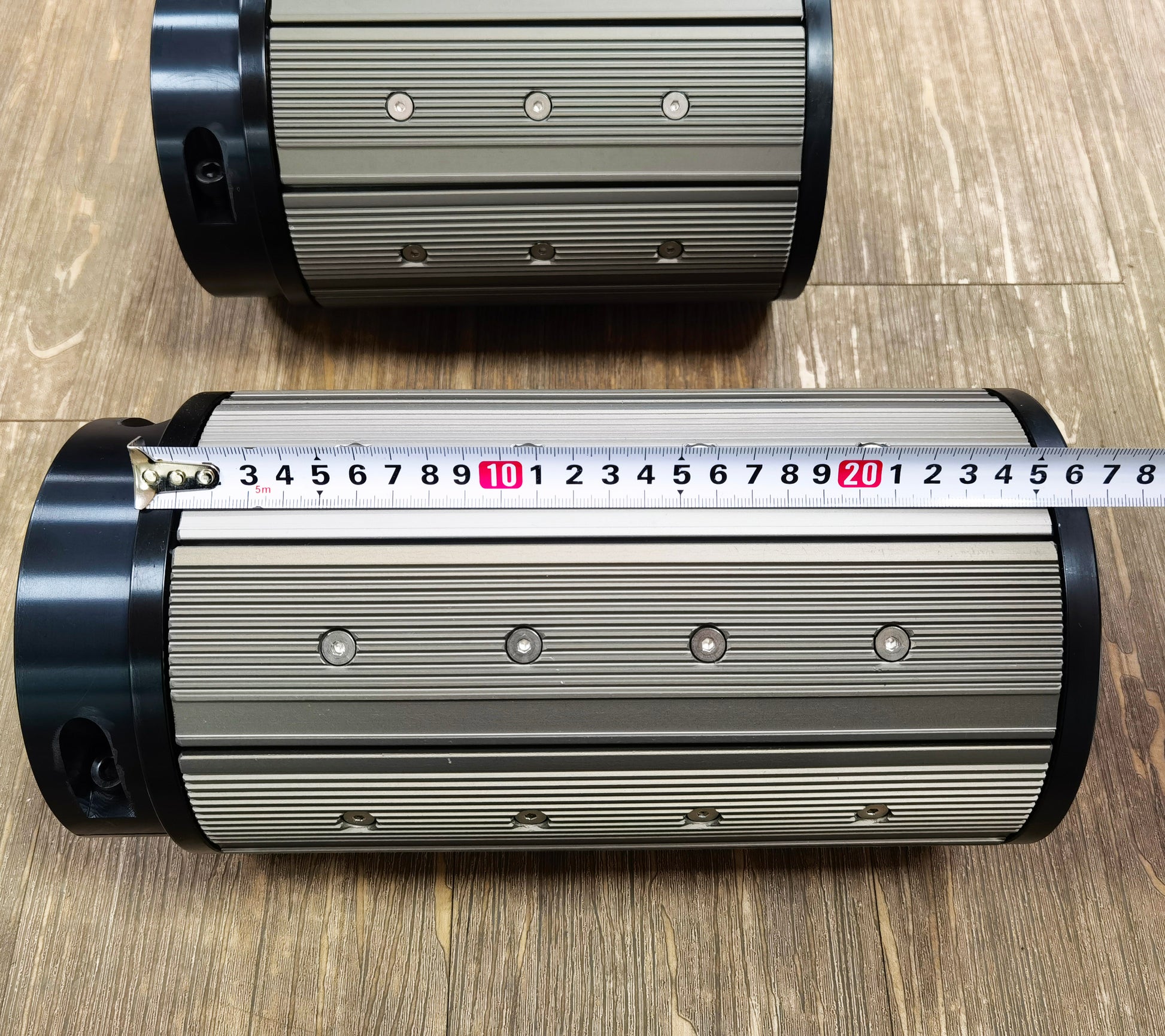

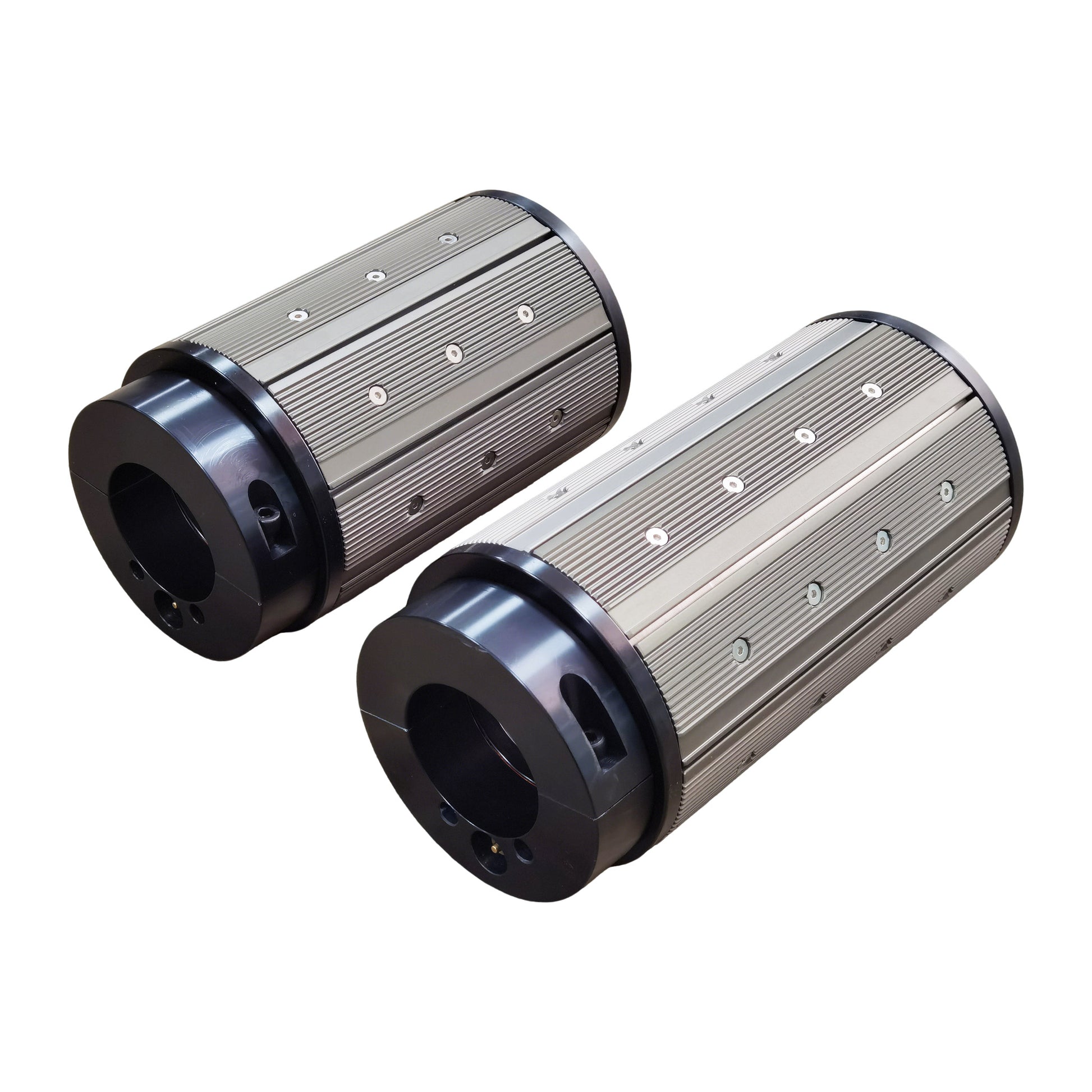

3 Inch to 6 Inch Plate Type Air Shaft Adapter

The XW Machinery Plate Type Air Shaft Adapter is designed to convert standard 3-inch air shafts into 6-inch core winding systems for industrial rewinding and unwinding applications.

Manufactured from high-strength aluminum alloy with precision machining and hard anodized treatment, this pneumatic core adapter provides stable expansion, accurate roll positioning, and reliable torque transmission during high-speed operation.

It is widely used in slitting machines, printing machinery, flexible packaging equipment, coating systems, film converting lines, and paper processing machinery.

What Is a Plate Type Air Shaft Adapter?

A plate type air shaft adapter is a pneumatic sleeve installed over a 3-inch air expanding shaft to allow it to handle 6-inch paper cores or plastic cores.

Instead of purchasing a separate 6-inch air shaft, operators can use a lightweight adapter to achieve the same winding function more economically and efficiently.

This adapter is also known as:

• Pneumatic core adapter
• Air drum
• Air cover
• Rewinding core adapter
• Air shaft sleeve adapter

Key Features

• Converts 3-inch shafts to 6-inch core systems
• Plate type expanding structure
• Lightweight aluminum alloy body
• Stable pneumatic expansion
• Hard anodized surface treatment
• Easy installation and removal
• Reliable torque transmission
• Excellent wear resistance
• Suitable for high-speed rewinding
• Custom sizes available

Applications

This plate type air shaft adapter is widely used in:

• Slitting machines
• Rewinding systems
• Flexographic printing machines
• Rotogravure printing equipment
• Film converting machinery
• Coating machines
• Paper processing systems
• Plastic film production lines
• Foil rewinding equipment
• Flexible packaging machinery

Industry references also show these adapters are commonly used in coating, printing, rewinding, papermaking, plastics, and converting systems.

Advantages of Plate Type Adapters

Compared with traditional heavy 6-inch air shafts, plate type adapters provide:

• Lower equipment cost
• Faster roll changes
• Reduced shaft weight
• Easier handling
• Better production flexibility
• Reduced downtime

Many industrial converting systems use adapters instead of dedicated large shafts to improve operational efficiency.

Why Choose XW Machinery?

At XW Machinery, we specialize in industrial winding and tension control components, including:

• Air expanding shafts
• Differential shafts
• Safety chucks
• Air shaft adapters
• Magnetic powder brakes
• Tension controllers
• Web guide systems

Our air shaft adapters are engineered for:

• Stable industrial performance
• High precision
• Long service life
• Lightweight operation
• OEM compatibility
• High-speed converting systems

We also support customized:

• Lengths
• Diameters
• Expansion structures
• Surface treatments
• Lightweight materials

Frequently Asked Questions

What does a 3-inch to 6-inch air shaft adapter do?

It allows a standard 3-inch air shaft to hold and operate 6-inch paper cores or plastic cores.

Is the adapter lighter than a full 6-inch shaft?

Yes. Air shaft adapters are significantly lighter and more economical than dedicated 6-inch shafts.

What industries use pneumatic core adapters?

They are widely used in:

• Printing
• Slitting
• Packaging
• Film converting
• Coating
• Paper processing

What material is used?

The adapter is typically manufactured from high-strength aluminum alloy with hard anodized surface treatment.

Can the adapter size be customized?

Yes. XW Machinery supports customized diameters, lengths, and expansion structures.
