KDT-C-1000 Automatic Web Tension Controller | XW Machinery China Factory Manufacturer & OEM Supplier

Cost-Effective Dual-Station Automatic Tension Controller for Winding & Unwinding

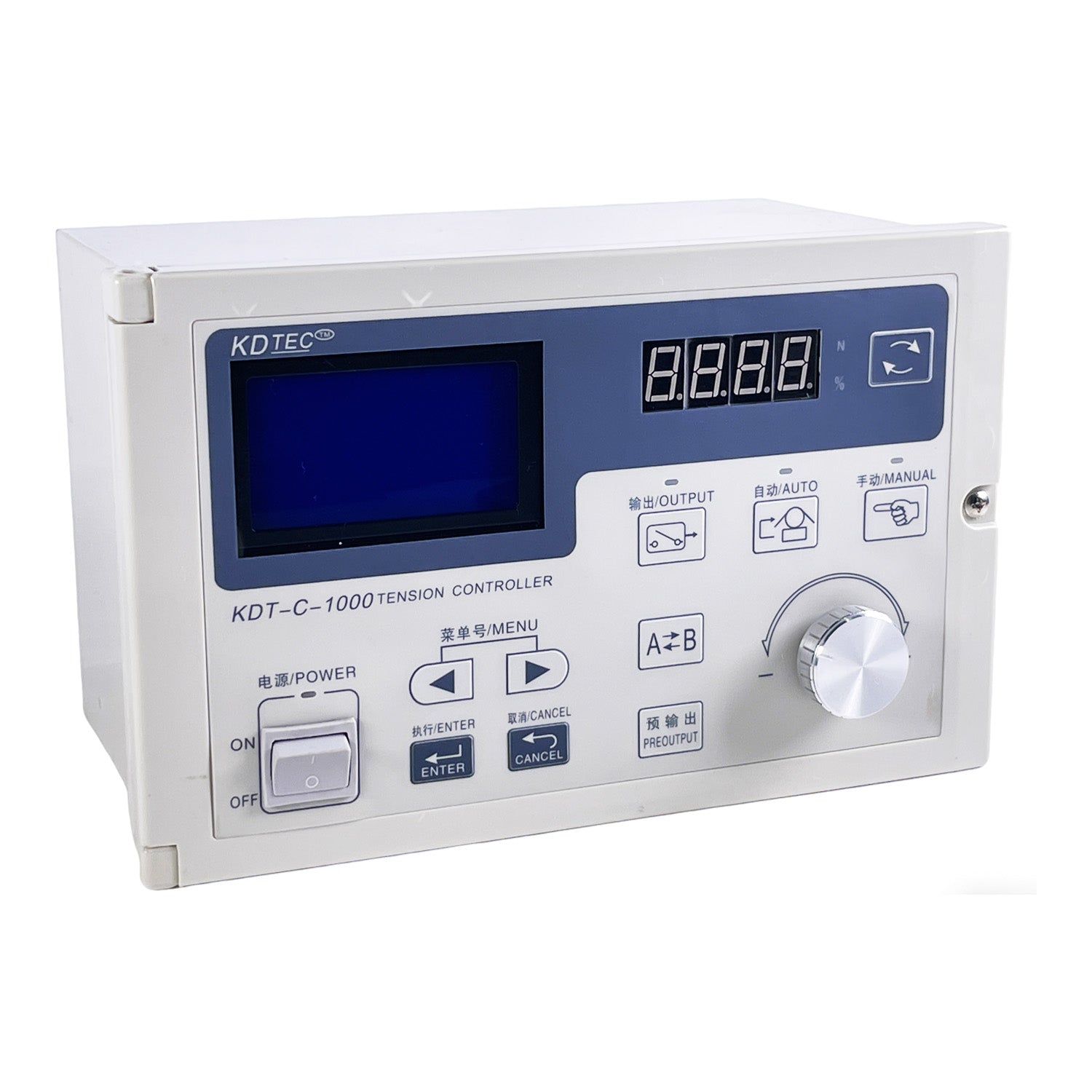

The XW Machinery KDT-C-1000 Automatic Web Tension Controller is the C-type model of the KDT Automatic Tension Controller Series, designed for practical and cost-effective automatic tension control in winding, unwinding, slitting, printing, laminating, coating, and other roll-to-roll processing machinery.

The KDT-C-1000 is positioned as a cost-effective dual-station automatic tension controller, combining automatic tension feedback, adjustable proportional and integral control parameters, dual 24V constant-current outputs, taper tension control, dual-station roll change functions, and RS485 communication.

As a professional China Automatic Web Tension Controller manufacturer, XW Machinery provides factory-direct supply, OEM customization, and wholesale solutions for machinery manufacturers, automation integrators, importers, distributors, and industrial buyers worldwide.

Unlike more function-intensive tension controllers designed around advanced machine integration, the KDT-C-1000 focuses on practical operation, flexible on-site adjustment, reliable dual-station roll change control, and competitive factory pricing.

It is especially suitable for OEM machine builders and production lines requiring stable automatic tension regulation without unnecessary control complexity.

Product Features

• Fully automatic constant tension control
• Designed for tension feedback winding and unwinding applications
• KDT Series C-type model with 1000 N·m range designation
• Adjustable proportional gain
• Adjustable integral time
• Forward and reverse adjustment mode selection
• Two tension detector inputs
• Dual 24V constant-current outputs
• Direct drive for magnetic powder clutches and magnetic powder brakes
• Single 0–5V analog auxiliary output
• Analog output configurable up to 0–10V
• Dual-station roll change control
• Adjustable shaft-change output ratio
• Taper tension control
• Hall switch automatic pause function
• Limit output relay
• RS485 communication
• Configurable communication address and baud rate
• Supports multi-controller synchronized operation
• LCD display with 40-segment digital tension indication
• Menu-based parameter adjustment
• Designed for practical on-site commissioning and operation

Adjustable Automatic Tension Control

The KDT-C-1000 Automatic Tension Controller continuously receives feedback from two tension detectors and automatically adjusts its output according to the measured tension and preset tension value.

Instead of relying on a fixed control response, the KDT-C-1000 allows operators to adjust the proportional gain and integral time through the controller menu.

This makes it possible to tune the controller according to different materials, machine structures, roll diameters, operating speeds, and required tension response.

The controller also supports forward and reverse adjustment direction selection, making installation and commissioning more flexible for different winding and unwinding machine configurations.

This parameter-adjustable control concept makes the KDT-C-1000 particularly suitable for applications where operators or machine builders need convenient on-site tension tuning.

Dual 24V Constant-Current Output

The KDT-C-1000 provides two 24V constant-current output channels designed to drive magnetic powder clutches and magnetic powder brakes directly.

This dual-output configuration makes the controller suitable for winding and unwinding systems using two tension control actuators or dual-station machine configurations.

The controller also provides:

• 1 × 0–5V analog auxiliary output
• Configurable 0–10V analog output

The auxiliary analog signal can be used for compatible external control equipment according to the machine control design.

This combination provides a practical interface for integrating the KDT-C-1000 into industrial winding and converting machinery.

Dual-Station Roll Change Control

One of the main advantages of the KDT-C-1000 is its dedicated dual-station roll change control functionality.

The controller supports a dual-station switching system together with an adjustable shaft-change output ratio.

During roll changeover, the preset output ratio can be restored to help reduce sudden changes in tension when switching between winding or unwinding stations.

This function is especially useful for machines requiring frequent roll replacement or continuous production.

Typical dual-station functions include:

• Dual-station switching
• Shaft-change output ratio setting
• Preset output restoration during roll change
• Automatic tension adjustment after station switching
• Reduced tension fluctuation during roll changeover

For OEM machinery manufacturers, these dedicated functions provide a straightforward way to integrate automatic tension control into dual-station winding and unwinding equipment.

Hall Switch Automatic Pause Function

The KDT-C-1000 includes a practical Hall switch pause function designed for machines where automatic adjustment should stop when the machine is stationary.

When no Hall pulse is detected for approximately one second after the machine stops, the controller can automatically pause tension adjustment.

This helps prevent the controller from continuously increasing output while the machine is stopped, reducing the possibility of excessive tension when the machine restarts.

The function is especially useful in winding, unwinding, printing, slitting, and converting equipment that frequently starts and stops during normal production.

Taper Tension Control

The KDT-C-1000 supports taper tension control for winding applications.

As the roll diameter changes during winding, taper control can be used to modify the tension characteristics according to the machine and material requirements.

This function is useful when processing materials where maintaining exactly the same winding force throughout the entire roll can affect roll quality.

By adjusting the tension characteristics during roll buildup, the KDT-C-1000 provides machine builders with additional flexibility for different winding processes.

RS485 Communication and Multi-Controller Synchronization

The KDT-C-1000 supports RS485 communication for integration with industrial control systems.

Communication parameters including the controller address and baud rate can be configured according to the machine control requirements.

The KDT Series also supports multiple-controller synchronized operation, making the system suitable for machinery using several coordinated tension control points.

This provides greater flexibility for OEM equipment manufacturers designing multi-station winding, unwinding, printing, laminating, and converting systems.

Easy On-Site Operation

The KDT-C-1000 is designed around straightforward menu-based operation.

Operators can use the menu selection and adjustment controls to configure important tension control parameters directly on the controller.

The display combines an LCD interface with a 40-segment digital indication system for monitoring measured tension and preset tension values.

Important operating parameters can be adjusted directly during machine commissioning, making the KDT-C-1000 suitable for production environments where operators need convenient access to tension settings without a complicated programming interface.

Typical Applications

The XW Machinery KDT-C-1000 Automatic Web Tension Controller is suitable for:

• Dual-Station Unwinding Machines
• Dual-Station Rewinding Machines
• Slitting Machines
• Rewinding Machines
• Printing Machines
• Flexible Packaging Equipment
• Paper Converting Machinery
• Plastic Film Processing Lines
• Laminating Machines
• Coating Machines
• Textile Machinery
• Label Production Systems
• Roll-to-Roll Processing Equipment
• Nonwoven Production Lines
• Lithium Battery Material Processing Equipment

Its combination of automatic tension feedback, dual output control, taper adjustment, roll-change functions, and simple parameter tuning makes it especially suitable for practical industrial winding and unwinding applications.

Complete Web Handling Solutions

XW Machinery provides a complete range of web handling and tension control products, including:

• Magnetic Powder Clutches
• Magnetic Powder Brakes
• Air Expanding Shafts
• Differential Shafts
• Web Guiding Systems
• Tension Sensors
• Split Type Tension Controllers
• Automatic Tension Controllers

The KDT-C-1000 can be combined with these components to build a complete tension control solution for winding, unwinding, slitting, printing, coating, laminating, and other roll-to-roll processing machinery.

For example, tension sensors provide real-time tension feedback, while the controller automatically regulates the output of a magnetic powder brake or magnetic powder clutch to maintain the required operating tension.

Quality Manufacturing

XW Machinery focuses on manufacturing reliable web handling and tension control components for industrial machinery.

Each KDT-C-1000 Automatic Web Tension Controller is inspected and tested before shipment to verify its main operating functions and output performance.

XW Machinery provides factory-direct supply for machinery manufacturers, automation companies, distributors, importers, and industrial buyers requiring stable product quality and long-term supply support.

Global OEM & Wholesale Supply

As a China Automatic Web Tension Controller manufacturer and wholesale supplier, XW Machinery supplies the KDT Series to OEM machinery manufacturers, industrial automation companies, distributors, importers, maintenance companies, and other B2B customers worldwide.

We support both standard product supply and OEM requirements according to different machine designs and production applications.

OEM support can include:

• Panel branding and labeling
• Display and interface requirements
• Input and output configuration
• Communication requirements
• Machine-specific tension control integration
• Complete tension control system matching

For machine manufacturers requiring magnetic powder brakes, magnetic powder clutches, tension sensors, air shafts, differential shafts, or web guiding components together with the controller, XW Machinery can also provide matched web handling solutions.

  A reliable Web Tension Control System is essential for achieving consistent winding quality and efficient production in roll-to-roll processing operations. The XW Machinery Automatic Web Tension Controller functions as a highly responsive Tension Control System that continuously monitors and adjusts web tension to prevent material defects, reduce waste, and improve productivity.

  As part of a complete Web Handling Solution, it can be integrated with a Differential Shaft for multi-roll slitting applications, an Air Expanding Shaft for secure core gripping, a Magnetic Powder Brake for accurate unwinding control, and a Magnetic Powder Clutch for smooth torque transmission. Together with an intelligent Web Guiding System, the controller ensures precise web tracking and stable material flow throughout the production line. This combination provides dependable performance for advanced Slitting & Rewinding Machine Solutions, as well as coating, laminating, printing, packaging, paper converting, and battery electrode manufacturing processes.

Why Choose XW Machinery?

Professional China Manufacturer

XW Machinery specializes in manufacturing and supplying web handling and tension control equipment for winding, unwinding, slitting, printing, converting, and roll-to-roll machinery.

The KDT-C-1000 provides a practical automatic tension control solution for OEM machine builders requiring reliable operation, straightforward parameter adjustment, and stable industrial supply.

Cost-Effective Dual-Station Solution

The KDT-C-1000 is positioned as the cost-effective dual-station model in XW Machinery's automatic tension control product range.

Its key advantages include:

• Dual-station roll change control
• Adjustable shaft-change output ratio
• Dual 24V constant-current outputs
• Taper tension control
• Hall switch pause function
• RS485 communication
• Multi-controller synchronization
• Simple on-site parameter adjustment

This makes it particularly suitable for machine builders that require practical automatic tension control while maintaining competitive equipment costs.

Factory Direct OEM Supply

XW Machinery provides direct factory supply for OEM machinery manufacturers, automation companies, distributors, importers, and wholesale buyers.

Factory-direct sourcing helps B2B customers maintain consistent product specifications, stable supply, and competitive procurement costs.

Flexible OEM Customization

We support customized solutions based on machine and customer requirements, including:

• Panel branding and labeling
• Communication configuration
• Input and output requirements
• Machine-specific integration
• Tension sensor matching
• Magnetic powder brake and clutch matching
• Complete winding and unwinding tension control solutions

Practical On-Site Adjustment

The KDT-C-1000 allows operators to adjust proportional gain, integral time, direction settings, taper control, and other operating parameters through the controller menu.

This makes the controller particularly suitable for OEM machine commissioning and production environments where different materials or winding conditions require flexible adjustment.

Cost-Effective Industrial Tension Control

The KDT-C-1000 combines automatic tension feedback with practical dual-station functions and straightforward operation.

For customers who prioritize dual-station roll change, taper tension control, easy on-site adjustment, and competitive factory pricing, the KDT-C-1000 provides a cost-effective automatic tension control solution for industrial winding and unwinding machinery.

Frequently Asked Questions

What is an Automatic Web Tension Controller?

An Automatic Web Tension Controller is a digital control device that automatically regulates web tension by receiving feedback from tension sensors and adjusting connected actuators such as magnetic powder clutches or brakes.

What industries use Automatic Web Tension Controllers?

They are widely used in printing, packaging, paper converting, film processing, laminating, textile manufacturing, nonwoven production, lithium battery manufacturing, and other roll-to-roll industries.

Can XW Machinery provide OEM customization?

Yes. We provide OEM and private label manufacturing, including customized interfaces, communication protocols, control functions, panel design, and branding.

Is the controller compatible with existing tension control systems?

Yes. The controller is compatible with most industrial tension sensors, magnetic powder clutches, magnetic powder brakes, and integrated web handling systems.

Why choose XW Machinery?

XW Machinery is a professional China manufacturer specializing in web handling and tension control equipment. We provide factory-direct pricing, OEM manufacturing, reliable quality, technical support, and worldwide export services for industrial customers.
