In modern converting industries, even a small material deviation can lead to wrinkles, poor slitting accuracy, unstable winding, and production waste. A reliable web guiding system automatically keeps materials aligned during high-speed production.

  At XW Machinery web guiding systems， we provide complete EPC guiding solutions including controllers, guide sensors, actuators, correction frames, and installation support for industrial automation equipment.

---



What Is a Web Guiding System?

A web guiding system (also called an EPC system) is designed to automatically correct the position of moving materials such as:

· Film

· Paper

· Aluminum foil

· Nonwoven fabric

· Labels

· Flexible packaging materials

The system continuously detects material deviation and adjusts the guide frame in real time to maintain accurate alignment.

Web guiding systems are widely used in:

· Slitting machines

· rewinding machines

· Printing equipment

· Laminating lines

· Coating machines

· Packaging systems



---



Main Components of an EPC Guiding System

A standard EPC web guiding system usually includes the following parts:

1. Guide Sensor

The sensor detects the edge position of the moving material and sends correction signals to the controller.

2. EPC Controller

The controller analyzes the sensor signal and controls the actuator movement automatically.

3. Actuator / Servo Motor

The actuator drives the correction frame left or right to maintain web alignment.

4. Guide Frame

The guide frame physically adjusts the roller position to correct material tracking errors.

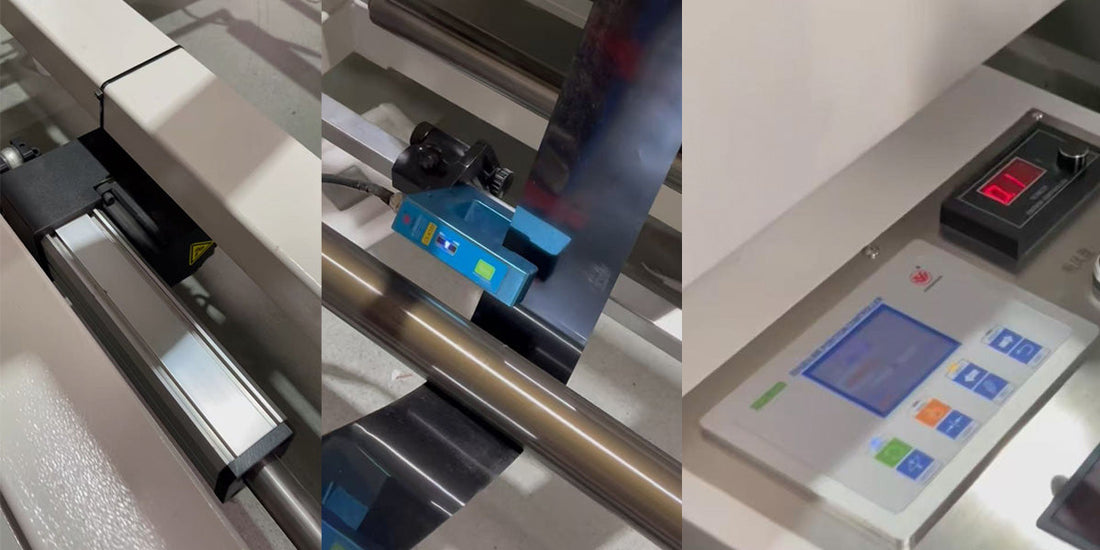

To better understand the installation positions of each component, watch this reference video:

 Component Layout Reference:
EPC Guiding System Component Installation Video



---



Common Problems Solved by Web Guiding Systems

A properly configured EPC system can effectively solve:

· Material wandering

· Uneven winding

· Edge deviation

· Wrinkles during rewinding

· Slitting alignment problems

· Excessive material waste

For high-speed production lines, combining a guiding system with a tension control system can greatly improve winding stability and finished product quality.



---

Installation Tips for Better EPC Performance

Correct installation is critical for stable guiding performance.

Here are several important recommendations:

· Install the sensor close to the correction point

· Keep guide rollers parallel

· Reduce vibration around the guide frame

· Calibrate the sensor before operation

· Confirm actuator movement direction carefully

XW Machinery also provides installation guidance and technical support for machine manufacturers and maintenance teams.



---



Why Choose XW Machinery?

At XW Machinery, we supply:

· EPC web guiding systems

· Guide sensors

· Servo correction systems

· Tension controllers

· Pneumatic shafts

· Magnetic powder clutches & brakes

· Slitting machine accessories

We also provide:

· Technical selection support

· Installation assistance

· OEM customization

· Fast global shipping

Explore more industrial automation components from XW Machinery.



---



FAQ About Web Guiding Systems

What is the purpose of a web guiding system?

A web guiding system automatically corrects material deviation during production to improve alignment accuracy and reduce waste.

Where are EPC systems commonly used?

They are widely used in slitting, rewinding, printing, laminating, coating, and flexible packaging industries.

What causes material wandering?

Common causes include uneven tension, roller misalignment, improper loading, and unstable winding conditions.

Can a web guiding system improve slitting accuracy?

Yes. Proper web alignment helps improve slitting precision and winding quality significantly.

Does XW Machinery provide installation support?

Yes. XW Machinery provides installation guidance, component layout references, and technical support for industrial automation systems.



---



Conclusion

A stable web guiding system is essential for modern converting equipment. Whether you operate slitting machines, rewinding systems, or printing lines, accurate web alignment directly affects production efficiency and product quality.

Choosing the right EPC system helps reduce waste, improve winding precision, and increase machine stability over the long term.
