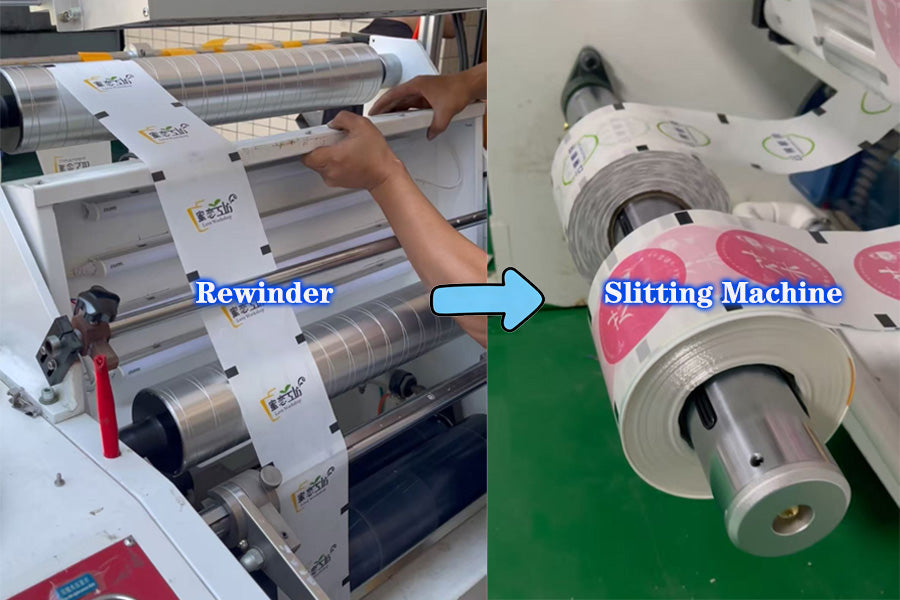

How to Convert a Rewinder into a Slitting Machine (Complete Engineering Guide + Solution Design)
Share
In modern web handling industries, manufacturers are constantly looking for cost-effective ways to upgrade existing equipment. One of the most practical solutions is converting a rewinder into a slitting machine.
This approach allows you to reduce investment costs while improving production flexibility—especially in industries like film, paper, foil, and label converting.
In this guide, we’ll walk through the engineering principles, system configuration, and key components required for a successful conversion.
👉 Need a customized slitting solution? Contact XW Machinery engineers for a free consultation.
What’s the Difference Between a Rewinder and a Slitting Machine?
A rewinder is designed to rewind material rolls with controlled tension, while a slitting machine performs precise cutting (slitting) and rewinding simultaneously.
Key Differences:
- Slitting unit (blades or knives)
* Multi-roll winding capability
* Higher precision tension control
* Web guiding system integration
👉 Without these modules, a rewinder cannot perform accurate slitting operations.
Is It Feasible to Convert a Rewinder?
Yes—but only if the machine meets certain structural and control requirements.
✔ Suitable Conditions:
* Stable frame structure
* Upgradeable tension control system
* Space for slitting section installation
* Compatible drive system
⚠️ Not Recommended If:
* Machine lacks rigidity
* No tension feedback system
* Limited control integration capability
👉 Not sure if your machine is suitable? Send us your machine specs for evaluation.
Core Components Required for Conversion
1. Slitting Section (Critical Upgrade)
* Razor slitting (thin films)
* Shear slitting (paper, foil)
* Crush cutting (nonwoven)
⸻
2. Tension Control System (Most Important)
Stable tension ensures clean cuts and uniform rolls.
Includes:
* Tension controller
* Load cells
* Magnetic powder brake/clutch
👉 Poor tension = poor slitting quality.
⸻
3. Air Shaft / Differential Shaft
Used for rewinding multiple rolls with consistent tension.
* Air expanding shafts
* Differential (slip) shafts for uneven thickness materials
⸻
Ensures material alignment during slitting.
* Edge position control (EPC)
* Automatic correction system
⸻
5. Automation & Control System
* PLC control
* HMI interface
* Speed synchronization
👉 This determines ease of operation and efficiency.
Step-by-Step Conversion Process
1. Evaluate existing rewinder structure
2. Design slitting module layout
3. Upgrade tension control system
4. Install air shafts / differential shafts
5. Integrate EPC system
6. Configure PLC + control system
7. Testing & calibration
⸻
Common Challenges (And How to Solve Them)
❌ Uneven Roll Tension
✔ Solution: Upgrade to closed-loop tension control
❌ Poor Slitting Quality
✔ Solution: Choose correct slitting method (razor/shear)
❌ Material Deviation
✔ Solution: Install EPC web guiding system
⸻
Cost vs Benefit Analysis
Benefits:
* Lower investment than new machine
* Faster implementation
* Flexible production upgrade
Costs:
* Engineering modification
* Component upgrades
* Integration time
👉 In most cases, conversion costs are 30–60% lower than buying a new slitting machine.
⸻
Why Choose XW Machinery for Your Conversion Project?
With 13+ years of experience in web handling systems, XW Machinery provides:
✔ Magnetic powder clutch & brake systems
✔ Air shafts and differential shafts
✔ Tension controllers and load cells
✔ EPC web guiding systems
✔ Full slitting machine solution support
👉 We don’t just supply parts—we provide complete engineering solutions.
🔧 Get a Custom Slitting Solution for Your Machine
Whether you’re upgrading an old rewinder or building a new slitting line, our engineers can help you design the optimal system.
👉 Contact us now for:
- Free technical consultation
* Machine upgrade evaluation
* Component selection support
* Custom system design
📩 Email: xgmrlee@gmail.com
🌐 Website: https://xw-machinery.com
Q1: Can any rewinder be converted into a slitting machine?
Not all rewinders are suitable. Structural strength and control system compatibility are key factors.
Q2: What is the most critical component in slitting conversion?
The tension control system is the most important factor for ensuring product quality.
Q3: How much does it cost to convert a rewinder?
Costs vary depending on upgrades, but typically 30–60% less than a new slitting machine.
