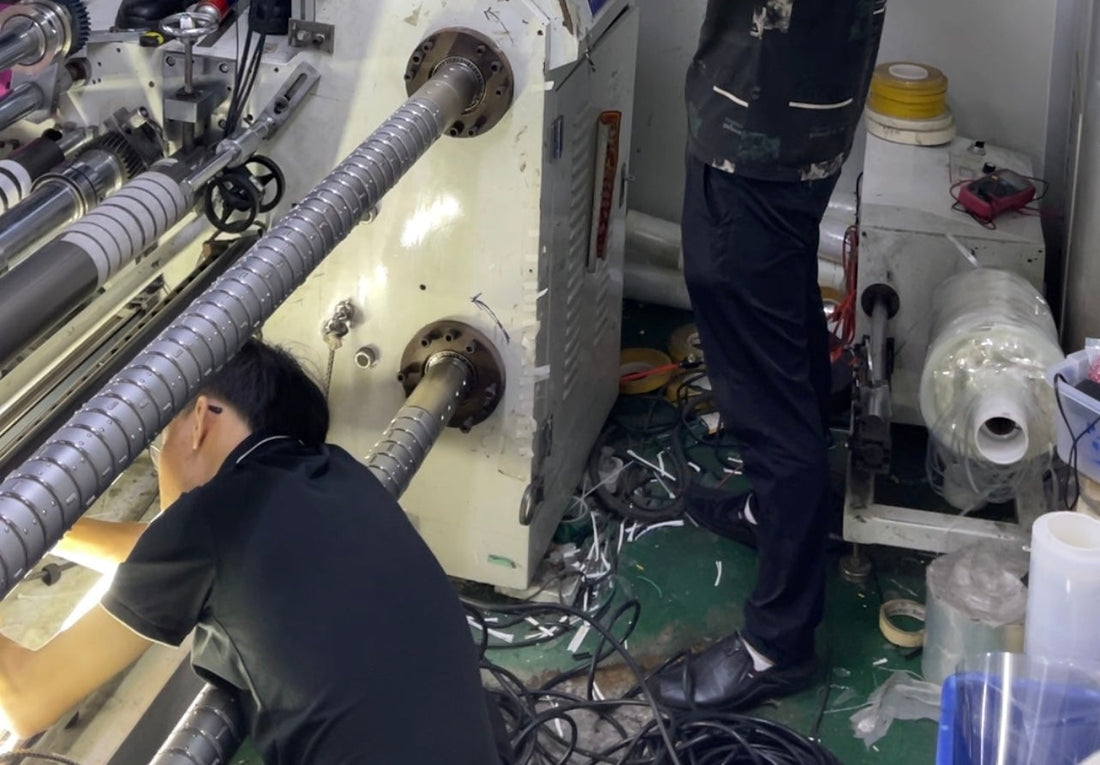

How to Replace an Air Shaft with a Slip Shaft: A Step-by-Step Guide

  In the world of industrial converting—including printing, slitting, and lithium battery manufacturing—choosing the right winding and unwinding shaft is critical to ensuring product quality and production efficiency. While air shafts (also known as inflatable shafts) are widely used for general-purpose winding due to their simplicity and low cost, many businesses are upgrading to slip shafts to solve tension control issues in high-precision, multi-station slitting scenarios.

  If you’re struggling with uneven winding, material deformation, or inefficient multi-roll processing with your current air shaft, replacing it with a slip shaft could be the solution. This guide will walk you through the entire replacement process, from preparation to post-installation testing, to ensure a smooth and successful transition.

1. Understand the Key Differences Between Air Shafts and Slip Shafts

  Before starting the replacement, it’s essential to grasp why a slip shaft is a better fit for your needs—and how it differs from your existing air shaft. An air shaft works by inflating an internal bladder to expand key bars or tiles, which grip the core of the material and drive it as a single unit. It’s ideal for single-station winding with no special precision requirements but lacks independent tension control for multiple rolls.

  On the other hand, a slip shaft features multiple independent slip rings, each with its own friction or magnetic control system, allowing for precise, individual tension adjustment for each roll during multi-station slitting. This eliminates issues like uneven winding, material stretching, or loose rolls, making it perfect for high-precision applications like lithium battery pole pieces, optical films, and metal foils.

2. Prepare for Replacement: Gather Tools and Select the Right Slip Shaft

Proper preparation is the foundation of a successful replacement. Here’s what you need to do:

· Choose the Correct Slip Shaft Model: Match the slip shaft to your equipment’s specifications (length, diameter, and load capacity) and your production needs. For general slitting, a key-type or bead-type slip shaft is sufficient; for high-end industries like lithium batteries, opt for a high-precision Nishimura-type slip shaft or Kataoka-type slip shaft. Ensure the slip shaft’s core diameter matches your material cores—slip shafts require standard cores with an inner diameter deviation of ±0.5mm or less, unlike air shafts which can tolerate ±2mm deviations.

· Gather Essential Tools: You’ll need a socket set, torque wrench, hydraulic jack (for heavy-duty shafts), shaft puller, cleaning rags, lubricant, and a digital caliper for precision measurements. For safety, prepare wheel chocks, gloves, and eye protection to prevent accidents during disassembly and installation.

· Inspect Equipment and Workspace: Clear the area around the winding/unwinding station to ensure ample space for operation. Inspect the bearing housings, drive system, and mounting brackets for wear or damage—any issues here should be repaired before installing the new slip shaft to avoid misalignment.

3. Step-by-Step Replacement Process

Step 1: Safety First – Shut Down and Secure Equipment

  Before any disassembly, turn off the power to the entire machine and lock out the power source to prevent accidental startup. Secure the machine with wheel chocks (if applicable) and ensure the existing air shaft is not under tension. Wear protective gloves and goggles to protect against sharp edges and debris.

Step 2: Remove the Old Air Shaft

1.Deflate the air shaft completely by releasing air from the air valve—this retracts the key bars or tiles, allowing the shaft to be easily removed from the material core.

2. Use a socket set to remove the bolts or fasteners that secure the air shaft to the bearing housings and drive system. Mark the position of the old shaft with a marker to reference during installation.

3. If the air shaft is heavy, use a hydraulic jack or lifting equipment to support it. Gently slide the shaft out of the bearing housings, taking care not to damage the bearings or surrounding components.

4. Clean the bearing housings and mounting surfaces with a clean rag to remove dust, grease, or debris that could affect the new slip shaft’s alignment.

Step 3: Prepare the New Slip Shaft

1.Inspect the new slip shaft for any damage (e.g., bent slip rings, worn friction components) before installation. Use a digital caliper to verify that the shaft’s dimensions match your equipment’s specifications.

2.Apply a thin layer of lubricant to the slip shaft’s bearings and mounting surfaces to ensure smooth rotation and reduce wear.

3. Familiarize yourself with the slip shaft’s components, including the slip rings, air valve (for pneumatic models), and tension adjustment controls. Refer to the manufacturer’s manual for specific setup instructions.

Step 4: Install the New Slip Shaft

1.Align the slip shaft with the bearing housings, using the marks made earlier to ensure proper orientation. Gently slide the shaft into place, taking care not to misalign the bearings or damage the slip rings.

2.Secure the slip shaft with the bolts or fasteners, tightening them to the manufacturer’s recommended torque using a torque wrench. Avoid over-tightening, as this can cause deformation or restrict rotation.

3. Connect the slip shaft to the drive system, ensuring a secure and aligned connection. For pneumatic slip shafts, connect the air supply to the air valve and test for leaks.

Step 5: Adjust Tension and Test the System

1.Set the tension for each slip ring according to your material’s specifications (thickness, material type, and winding speed). Most slip shafts allow tension adjustment via air pressure or friction controls—refer to the slip shaft tension adjustment guide for detailed instructions.

2.Run a test cycle with a small amount of material to verify the slip shaft’s performance. Check for even winding, consistent tension across all rolls, and smooth rotation. Adjust the tension settings as needed to eliminate any issues (e.g., loose rolls, material stretching) .

3. Monitor the system during the test run for unusual noise, vibration, or overheating—these could indicate misalignment or incorrect tension settings.

4. Post-Replacement Tips and Maintenance

To maximize the lifespan of your new slip shaft and ensure long-term performance, follow these tips:

· Regular Cleaning: Clean the slip rings and friction components regularly to remove dust and debris, which can affect tension control.

· Lubrication: Reapply lubricant to the bearings and slip rings every 2–4 weeks (or as recommended by the manufacturer) to reduce friction and wear.

· Core Inspection: Use only standard material cores that meet the slip shaft’s requirements (±0.5mm inner diameter deviation) to avoid damaging the slip rings.

· Operator Training: Ensure your team is trained to adjust tension settings and perform basic maintenance, as slip shafts require more precise operation than air shafts.

5. When to Consider Professional Help

  If you’re working with heavy-duty equipment, high-precision slip shafts (e.g.,西村式 slip shafts), or if you’re unsure about any step in the replacement process, it’s best to consult a professional slip shaft installation service. Improper installation can lead to equipment damage, poor product quality, or safety hazards.

Conclusion

  Replacing an air shaft with a slip shaft is a worthwhile investment for businesses looking to improve winding precision, reduce material waste, and handle multi-station slitting more efficiently. By following this step-by-step guide, you can ensure a smooth replacement process and unlock the full benefits of a slip shaft—from independent tension control to consistent, high-quality winding. Remember to choose the right slip shaft model, prioritize safety, and follow proper maintenance practices to get the most out of your new equipment.

  For more information on slip shafts, air shafts, and industrial converting equipment, visit our industrial shaft resource center or contact our team of experts for personalized advice.

  For a clearer and more intuitive understanding of the replacement process, you can refer to the practical operation video from the XWbro technical team: https://youtube.com/shorts/1leoqmIYlkA?si=5GUZeqrG-he4e2GV. It shows the whole process from disassembly of the old air shaft to installation and debugging of the new slip shaft, helping you quickly grasp key steps and avoid common mistakes.
