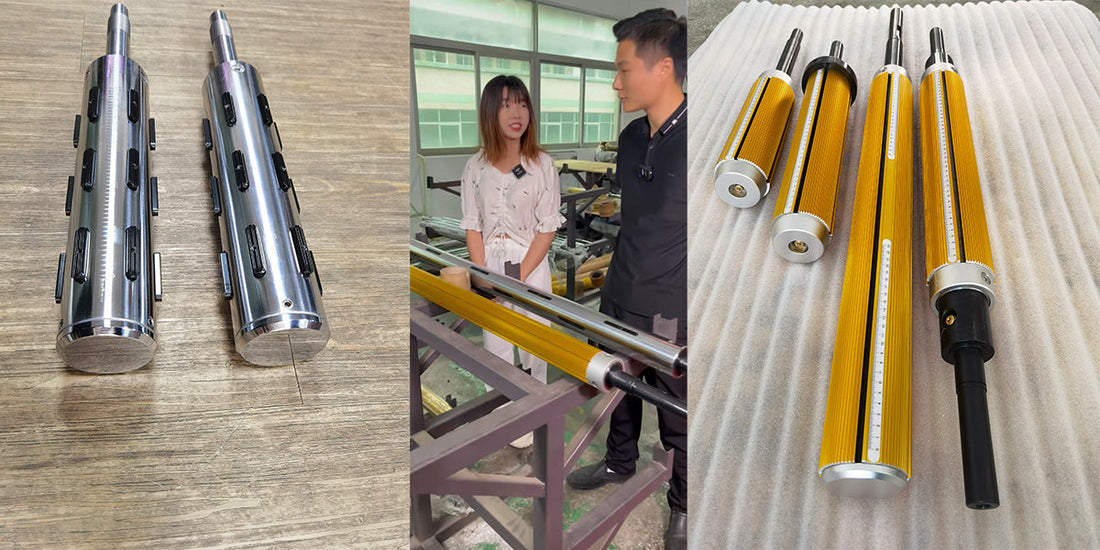

Lug Type vs Leaf Type Air Shaft: Which One Fits Your Industrial Needs?
Share
In the converting, printing, packaging, and textile industries, air expanding shafts (also known as air shafts) are indispensable core-holding components for winding and unwinding rolls of paper, plastic film, foil, and fabrics. Among all mainstream models, lug type air shaft and leaf type air shaft are the two most widely adopted designs. While both rely on pneumatic expansion to grip roll cores, their structural designs, working performance, applicable scenarios and maintenance characteristics differ greatly. Today we will make a detailed comparison to help you pick the optimal air shaft for your production line.
Watch the practical comparison of two classic air shaft designs in the video below to see their working differences intuitively:lug type vs leaf type air shaft video
1. Basic Structure & Working Principle
Lug Type Air Shaft
A typical lug type air shaft features a sturdy metal shaft body embedded with multiple independent protruding lugs (keys) arranged in separate rows around the circumference. Inside the shaft lies a durable rubber air bladder. When compressed air is injected, the bladder inflates and pushes these discrete lugs outward to firmly clamp the inner wall of the roll core. Once deflated, the lugs retract back into the shaft body for easy core removal.
The lugs can be made of steel, aluminum or polyurethane to adapt to different working conditions. Its expansion is segmented, with force concentrated on several contact points rather than full-surface contact. You can learn more about its structural details and customization options from the product page: lug type air shaft.
Leaf Type Air Shaft
Also called slat-type or plate-type air expanding shaft, the leaf type design replaces individual lugs with a set of continuous, flexible metal leaf plates running along the entire shaft length. Driven by the internal inflatable bladder, these leaf plates expand outward synchronously to form a 360° full-surface contact with the core inner wall.
This structure achieves uniform expansion across the whole shaft. Most leaf type air shafts support standard specifications like 3-inch and 6-inch inner diameter cores, which are highly versatile for common industrial cores. Check the standard 3-inch & 6-inch model here: leaf type air expanding shaft.
2. Core Performance Comparison
Grip Force & Torque Transmission
- Lug Type Air Shaft: Delivers strong, concentrated gripping force. The point-contact structure enables it to transmit high torque stably, with almost no slippage during high-load operation. It performs excellently in heavy-duty production lines that need to handle large, heavy rolls. Even under continuous high-speed operation, its lugs can lock the core tightly to ensure stable material winding and unwinding.
- Leaf Type Air Shaft: Features dispersed and balanced pressure distribution. Its overall grip force is lower than the lug type, so the torque transmission capacity is relatively limited. However, the 360° full contact avoids local stress concentration, which is its core advantage for precision production.
Core Protection & Compatibility
This is the most obvious difference between the two air shafts and the key factor for selection:
- Lug Type Air Shaft: Suitable for thick fiber cores, solid metal cores and rigid heavy-duty cores. Concentrated pressure is acceptable for these sturdy cores, and the firm grip can fully meet the demands of heavy rolls. It is not recommended for thin-walled paper cores or fragile plastic cores, as the point pressure may crush or deform the core.
- Leaf Type Air Shaft: The first choice for thin-walled paper cores, lightweight cardboard cores and delicate thin tubes. The uniform surface pressure eliminates local extrusion damage and effectively prevents core deformation. It also supports coreless winding in some special processes, which is ideal for products with strict requirements on core integrity and appearance.
Operation Stability & Concentricity
- Lug type air shafts work well in conventional winding and unwinding processes. Staggered lug arrangement can reduce partial vibration, but segmented expansion may cause slight concentricity deviation in ultra-high-precision winding.
- Leaf type air shafts maintain superior concentricity thanks to integral expansion. The smooth expansion surface greatly reduces running vibration, making it perfect for high-precision processes such as gravure printing, flexographic printing and thin film slitting.
3. Application Scenarios
Lug Type Air Shaft (Best For)
- Heavy-duty production: Slitting machines, rewinding machines for thick paper, thick plastic film, and textile rolls with large weight and large outer diameter.
- Rigid core matching: Production lines using metal cores and thick industrial fiber cores.
- High-load & high-speed unwinding: Unwinding stations that require strong anti-slip performance and high torque support.
- General industrial scenarios: Cost-effective universal choice for most traditional converting equipment due to its strong versatility and low maintenance difficulty.
Leaf Type Air Shaft (Best For)
- Precision processing: High-end printing machines, coating machines, and embossing machines that require high winding roundness and low vibration.
- Fragile core processing: All production lines using thin paper tubes, ultra-thin plastic cores, and disposable lightweight cores.
- High-quality winding: Rewinding processes with strict requirements on roll surface flatness and core integrity.
- Special processes: Equipment that needs coreless winding or narrow-width core processing.
4. Maintenance & Service Life
- Lug Type Air Shaft: The structure is simple and robust. Floating lugs are not easy to jam or damage, and the internal bladder is protected well. Worn individual lugs can be replaced separately without changing the whole shaft, which lowers later maintenance costs and downtime. It has a long service life and is suitable for long-time continuous industrial operation.
- Leaf Type Air Shaft: The continuous leaf plates have higher requirements on processing precision. Long-term heavy load may cause slight deformation of leaf plates, affecting expansion uniformity. The overall structure is more integrated; partial damage usually requires overall inspection and replacement of components. Daily use needs to avoid overload to prolong service life.
5. Quick Selection Guide
| Comparison Item | Lug Type Air Shaft | Leaf Type Air Shaft |
|---|---|---|
| Contact Mode | Segmented point contact | 360° full surface contact |
| Grip & Torque | High grip, strong torque | Moderate grip, uniform torque |
| Core Adaptation | Thick/rigid/metal cores | Thin-walled/fragile paper/plastic cores |
| Core Protection | Average (easy to crush thin cores) | Excellent (no deformation) |
| Running Stability | Good for heavy load | Excellent for high precision |
| Maintenance | Simple, low cost | Slightly complex, need anti-overload |
| Recommended Position | Unwinding station, heavy rewinding | Precision rewinding, thin material processing |
Final Conclusion
Choose a lug type air shaft if your production focuses on heavy loads, rigid cores, and cost-effective stable operation — it is the most reliable universal solution for traditional converting industries.
If you are engaged in precision printing, thin film processing, or use a large number of thin-walled paper cores, a leaf type air expanding shaft will better protect your cores and finished products, and improve the overall yield of precision processes.
Both types of air shafts have their irreplaceable value. You can select the corresponding model according to your core specifications, material types, load requirements and production precision, or configure both two air shafts for different stations to maximize production efficiency.
