Air Shaft: Working Principle and Advantages

  In printing, packaging, paper converting, textile and many roll-to-roll industries, air shafts (pneumatic shafts) play a key role in winding and unwinding rolls quickly and reliably. Compared with traditional mechanical shafts, they are simpler, faster and easier to operate. In this post, we explain how an air shaft works and why it is widely used in modern production lines.

How Does an Air Shaft Work?

  An air shaft is a hollow shaft with an internal air chamber and expandable elements (rubber lugs, keys or bladders) on the surface. Its operation is based on inflation and deflation, which makes the shaft expand or contract.

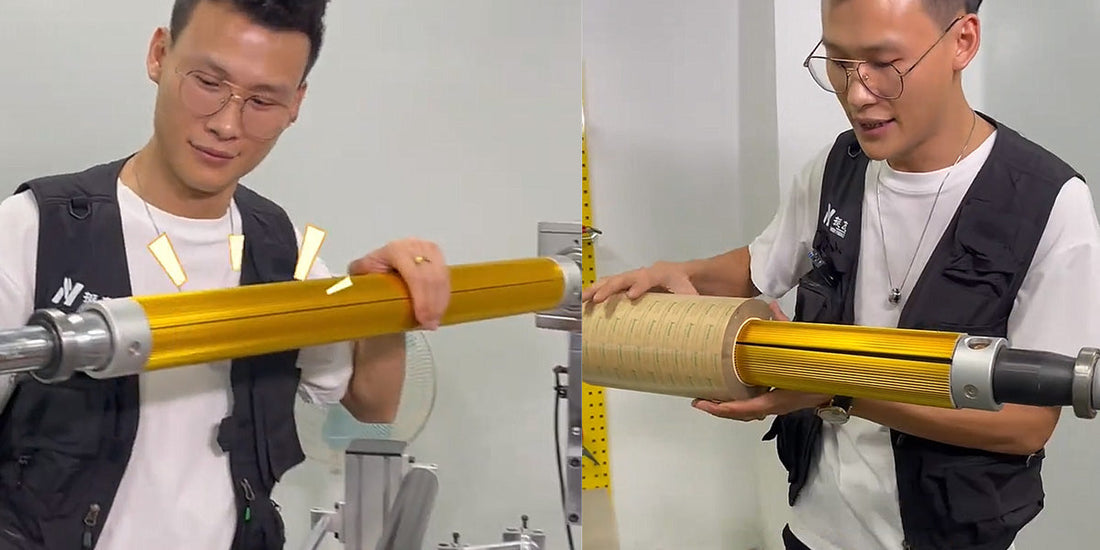

  You can see the whole process clearly in this air shaft working principle video：air shaft working principle

· Deflated state (loading)

  When there is no air pressure inside, the expandable parts retract. The outer diameter becomes smaller, so you can easily slide paper, film or fabric cores onto the shaft.

· Inflated state (gripping)

  Connect the air nozzle to an air pump and inflate the shaft. Internal air pressure pushes the rubber lugs outward, making the shaft expand evenly. The expanded surface firmly grips the inner wall of the core, preventing slipping during high-speed running.

· Deflate and release (unloading)

  After production, just release the air. The rubber parts retract automatically, the shaft shrinks again, and you can pull the finished roll off quickly.

  The whole process is tool-free and very user-friendly. This convenient air shaft design is shown here：convenient air shaft design

Main Advantages of Air Shafts

1.Fast loading and unloading

  Inflate/deflate in 1–3 seconds. No screws, no wrenches. Roll change time is greatly reduced, which improves production efficiency.

2.Strong and uniform gripping force

  Expansion is even around the circumference. It holds the core tightly without damaging thin film, paper or soft materials. No slipping, no core deformation.

3.Wide compatibility

  One air shaft fits most standard core sizes (3 inch, 6 inch, etc.). Suitable for paper, plastic film, aluminum foil, fabric, non-woven fabric and more.

4. Durable and low maintenance

  Made of high-strength steel and wear-resistant rubber. Pneumatic structure has fewer wearing parts, so maintenance cost is low and service life is long.

5. Stable tension control

  It keeps consistent tension during winding/unwinding, which helps produce neat, wrinkle-free rolls and improves product quality.

6. Safe and easy to operate

  No heavy manual force required. Operators can load/unload rolls comfortably, reducing fatigue and safety risks.

Final Thoughts

  Air shafts rely on a simple pneumatic expansion principle to solve the pain points of traditional shafts: slow changeover, unstable gripping and easy core damage. With fast operation, universal compatibility, reliable grip and low maintenance, they have become a standard part in roll processing lines worldwide.

  If you are looking to upgrade your winding/unwinding system or improve production efficiency, an air shaft is definitely a practical and cost-effective choice.
