Introduction

Air shafts (also called pneumatic expanding shafts) are core components for winding, unwinding and slitting across roll-to-roll industrial production. Proper selection of air shaft structure and shaft raw material directly cuts material waste, improves line speed and reduces frequent downtime caused by core slipping or shaft deformation. Many factory operators struggle with wrong model/material picks leading to crushed paper/plastic cores or unstable tension control. This guide breaks down step-by-step selection logic from structural styles and core raw materials, with targeted tips for aluminum alloy air shafts.

Part 1: Choose Air Shaft Structure Based on Your Production Material & Working Condition

Air shafts are categorized by expansion structure; pick types matching your roll’s weight, thickness, hardness and production speed first. The three mainstream industrial pneumatic air shaft structures are detailed below:

1. Key-bar (Lug-type) Air Shaft

Features: Hard metal keys pop out after air inflation; strong gripping force, outstanding anti-slip performance, large expansion allowance (3–8mm) to tolerate core inner diameter tolerance ±2mm.

Best For: Heavy, rigid rolls (thick aluminum foil, heavy paper, industrial plastic), roll weight over 500kg, wide-width slitting & rewinding lines in steel processing and heavy packaging.

Not Recommended: Ultra-thin flexible films or fragile cores (easy to crack core due to concentrated key pressure).

2. Slab/Leaf-type Air Shaft

Features: Continuous full rubber/aluminum slabs expand uniformly; contact area is 3–5 times larger than key-bar type, distributed low clamping pressure (≤0.2MPa) to avoid core damage.

Best For: Ultra-thin delicate materials: 0.01μm electronic film, lithium battery separator, nonwoven fabric, optical PET film; small core diameter (76mm standard), lightweight rolls under 300kg, high-precision high-speed production lines.

3. Cantilever Air Shaft

Features: Single-end support design, quick roll loading/unloading, low rotational inertia for ultra-high running speed.

Best For: Narrow small-diameter coils, small-batch frequent changeover, lab pilot production lines.

Part 2: Core Raw Material Selection Guide for Air Shaft Body (Steel / Aluminum Alloy / Carbon Fiber / Stainless Steel)

Material choice decides shaft weight, load limit, anti-corrosion ability and long-term operating cost. We compared four mainstream air shaft manufacturing materials, with in-depth analysis of aluminum alloy air shafts corresponding to the dedicated reference video theme.

1. Carbon Steel (45# / 40Cr Alloy Steel)

Pros: Low procurement cost, ultra-high structural strength, max load over 1 ton, strong anti-deformation under heavy load, easy maintenance and spare part replacement.

Cons: Heavy self-weight (1m standard shaft ≈15kg), high rotary inertia which limits ultra-high-speed operation; needs surface chrome plating for rust prevention in humid workshops.

Application: Heavy-duty low-to-medium speed production, bulk thick coil processing, general dry printing/packaging factories with cost control priority.

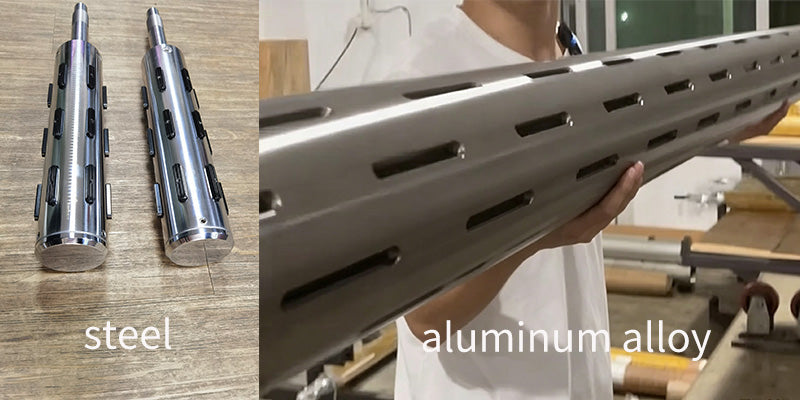

2. Aluminum Alloy (6061 / 7075 aviation-grade aluminum, core topic of the second reference video)

Core Advantages (Summarized from aluminum-focused reference video):

1. Ultra-light weight: Only ~50% weight of equal-size steel shaft (1m aluminum shaft ≈8kg), drastically cuts machine load and operator labor during frequent roll replacement; low inertia enables stable high-speed rotation, less vibration during continuous running.

2. Surface durability: Hard anodizing treatment boosts wear & corrosion resistance, suitable for moderately humid or weakly corrosive production workshops; uniform tube wall ensures synchronous expansion of internal rubber bladder, consistent core clamping around full circumference.

3. Moderate load capacity: Rated max load around 300kg, perfectly matches medium-light roll weight in film, paper and textile industries.

Limitations: Lower ultimate load vs carbon steel, not fit for over-500kg heavy coils; unit cost higher than regular carbon steel.

Best Scenarios: High-speed converting, frequent roll change (≥20 times/hour), precision thin-film production, the most widely used lightweight aluminum air shaft option globally.

3. Carbon Fiber Air Shaft

Pros: Lightest among all common options (1m shaft ≈5.5kg), ultra-high strength-to-weight ratio, minimal thermal deformation under long-time high-speed running.

Cons: Premium price, highest procurement cost, limited aftermarket repair channels.

Application: Top-tier precision electronic film, aerospace composite material winding, ultra-long wide-width high-speed production lines with strict lightweight requirements.

4. Stainless Steel (304 / 316)

Pros: Excellent acid & alkali resistance, zero rust in damp, chemical-corrosive environment (pharmaceutical, food processing, coastal humid factories).

Cons: High raw material cost, medium self-weight.

Application: Food-grade packaging, medical film, coastal chemical coating production with strict anti-corrosion standards.

Part 3: Auxiliary Selection Parameters You Cannot Ignore

Besides structure type and body material, these key parameters determine the matching degree of air shafts and production lines:

1. Working Air Pressure: Standard inflation pressure ranges 0.3–0.8MPa (6–8 kg/cm²); insufficient air causes core slipping while over-pressure ruptures internal rubber bladder.

2. Core Inner Diameter: Match shaft nominal diameter to core size (common 3-inch/76.2mm, 6-inch/152.4mm); confirm actual expansion range to avoid loose fitting or forced core breakage.

3. Working Environment Adjustment: Chemical/oily workshops pick fluororubber bladder instead of standard nitrile rubber; high-temperature production requires heat-resistant modified shaft surface coating.

Part 4: Quick Selection Cheat Sheet for Factory Operators

Use this table to quickly match air shaft structure and shaft material for different production scenarios:

Production Scenario	Preferred Shaft Structure	Recommended Material
Heavy thick paper/foil (>500kg)	Key-bar type	Carbon steel
Thin PET/Nonwoven/Li-battery film	Slab/Leaf type	Aluminum Alloy
High-speed frequent changeover packaging	Slab/Key-bar	Aluminum Alloy
Food/Medical anti-corrosion production	Custom slab type	304 Stainless Steel
Ultra-precision aerospace film	Custom cantilever	Carbon Fiber

Conclusion

Air shaft selection follows a core logic: match structure by your material’s physical property → select shaft raw material based on roll weight, speed and workshop environment. Aluminum alloy air shafts remain the most cost-effective middle-ground choice for over 70% of standard converting factories, which is the core content covered in the dedicated aluminum air shaft reference short video. Always consult professional manufacturers for non-standard customized shafts if your core size or working condition is out of standard specifications.
