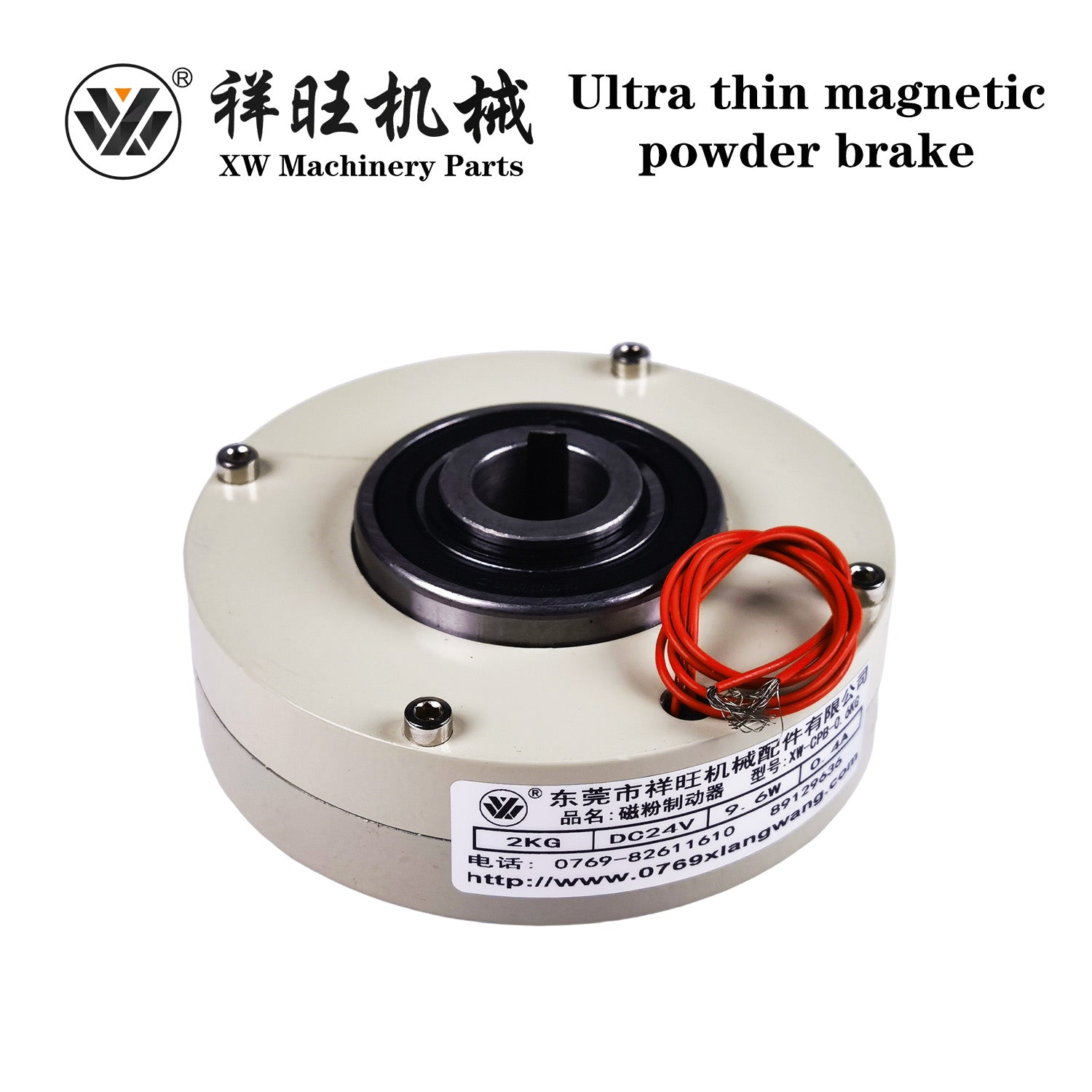

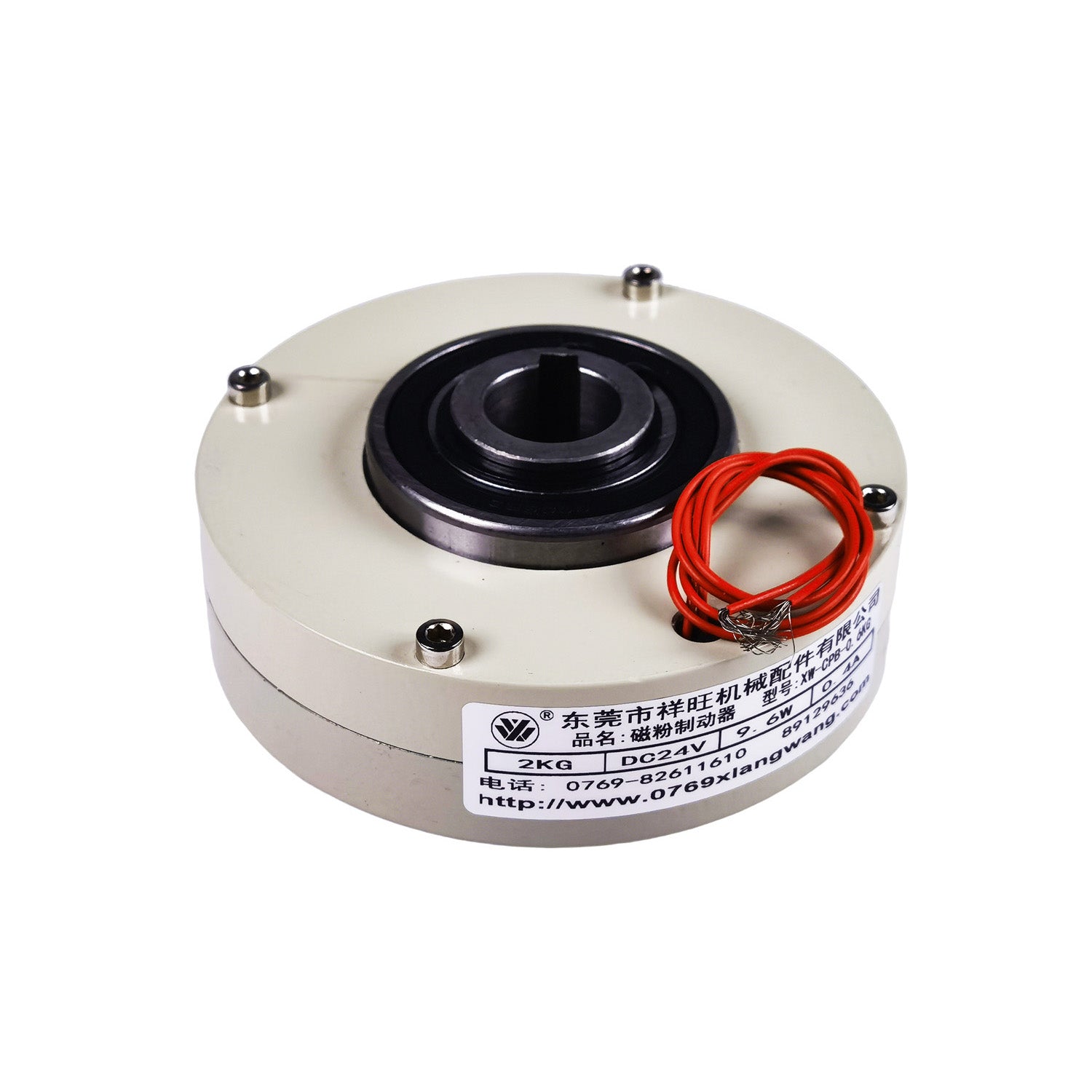

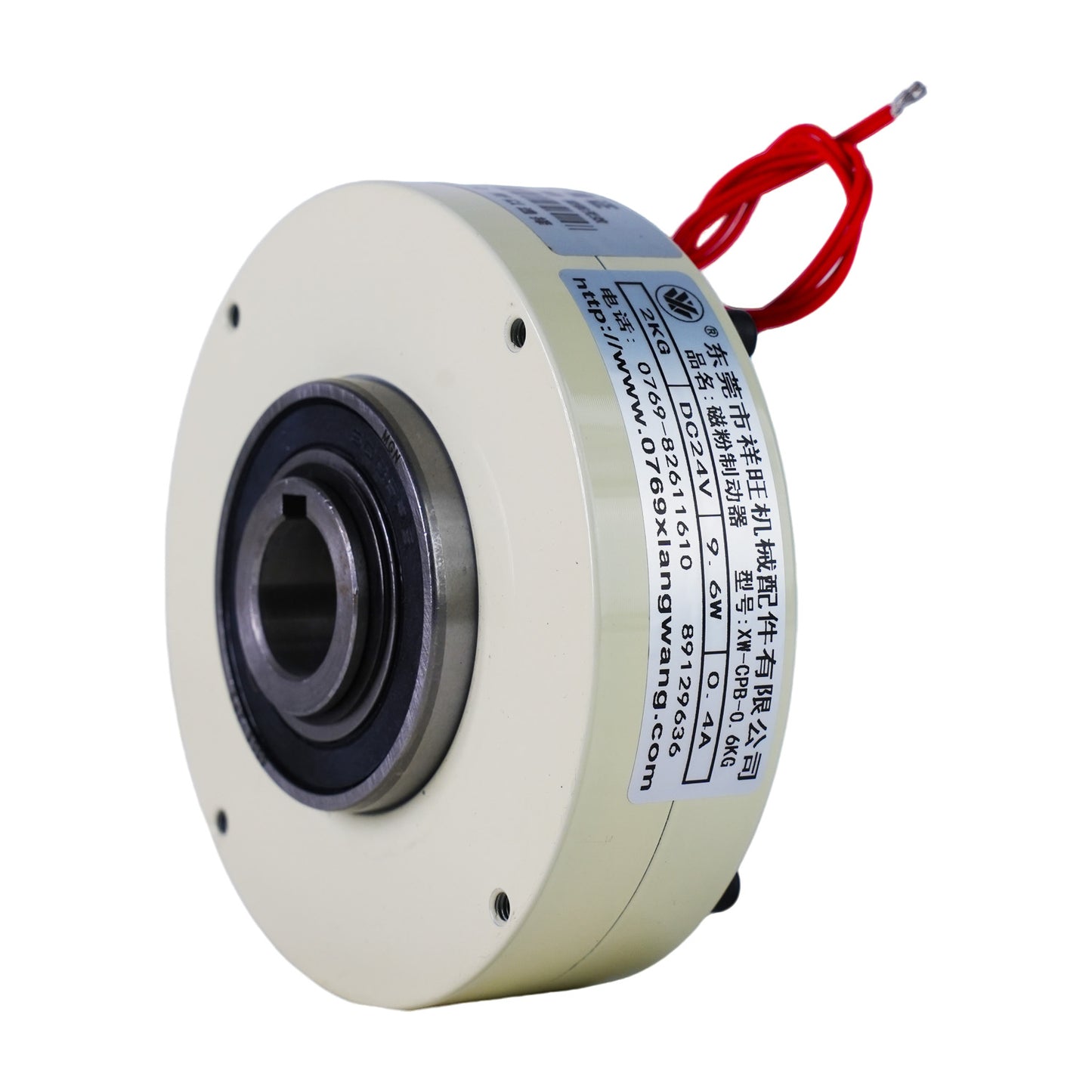

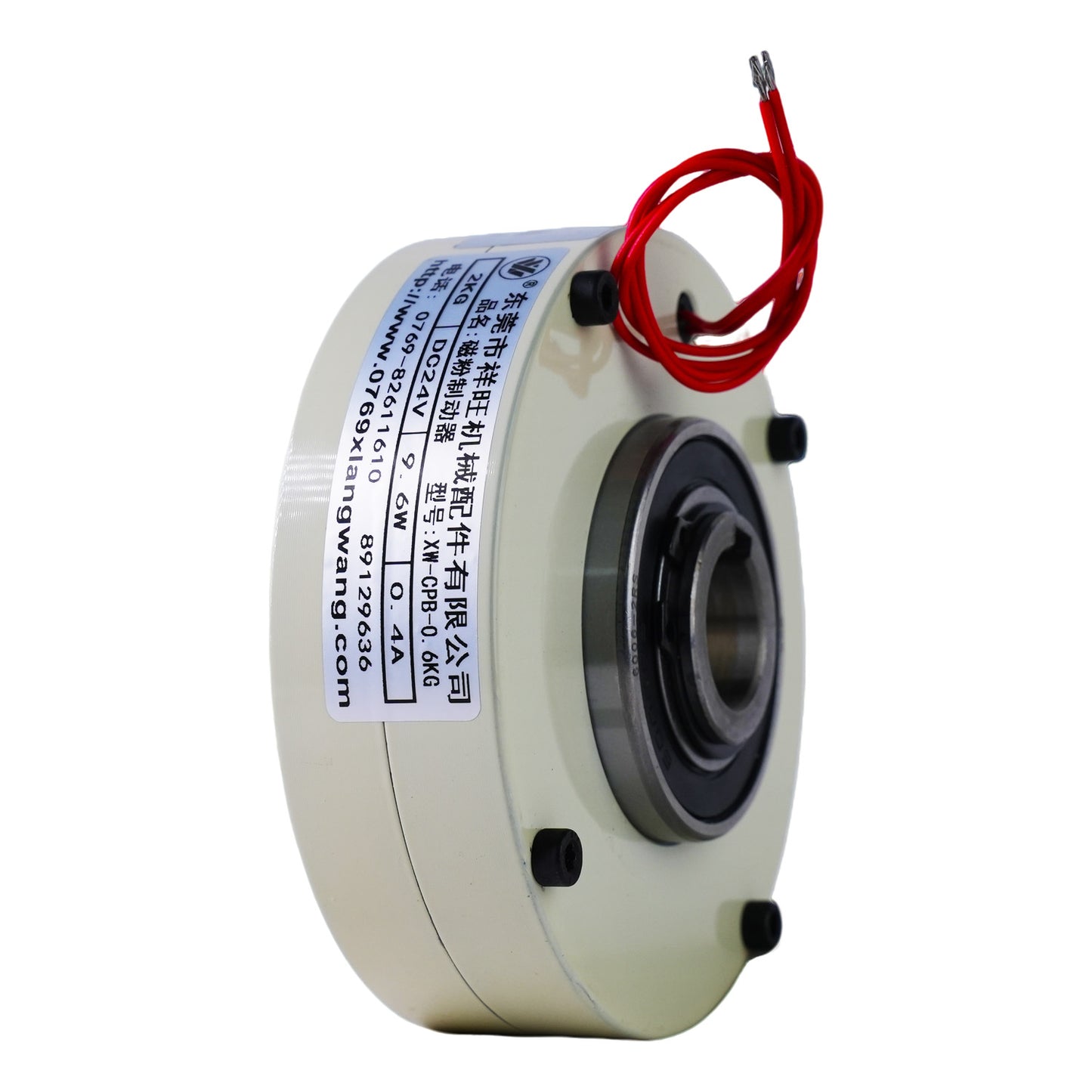

XW Series Ultra-Thin Magnetic Powder Brake for Offset & Digital Printers

Why Ultra Thin Design Matters

• Saves installation space in compact machines
• Ideal for modern high-density equipment layout
• Reduces machine footprint
• Easier integration into modular systems
• Suitable for high-speed automation lines
• Improves system design flexibility

High-Precision Tension Control in a Compact Design
  The XW Series Ultra-Thin Magnetic Powder Brake is specifically engineered for space-constrained printing environments. Whether you are using offset printing machines, UV ink systems, or eco-solvent printers, the XW Series ensures smooth unwinding and superior tension stability.

Typical Applications

• Slitting machines
• Rewinding machines
• Printing equipment
• Coating machines
• Laminating systems
• Packaging machinery
• Film converting systems
• Compact automation equipment

Key Features

• Ultra thin compact structure
• Precise torque control
• Stable web tension regulation
• Fast electromagnetic response
• Smooth continuous operation
• Low vibration and noise
• Easy integration into tight spaces
• Long service life

Technical Specifications

How Does an Ultra Thin Magnetic Powder Brake Work?

• Magnetic powder is activated by electromagnetic coil
• Torque is generated through magnetic chain formation
• Output torque is proportional to current
• Ensures stable and adjustable tension control

This ultra thin brake works with our magnetic powder clutches and tension controllers for complete web handling systems.

• magnetic powder clutch
• hollow shaft magnetic brake
• external rotation clutch
• tension controller
• EPC web guide system
• air shaft

Our factory has passed ISO9001 quality certification, ensuring quality assurance.

FAQ

What is an ultra thin magnetic powder brake?

An ultra thin magnetic powder brake is a compact torque control device designed for space-saving industrial applications. It provides precise and stable braking force in web handling systems such as slitting, rewinding, printing, coating, and packaging machines where installation space is limited and high performance is required.

How does a magnetic powder brake work?

A magnetic powder brake works by applying DC current to an electromagnetic coil, which generates a magnetic field inside the brake chamber. The magnetic powder inside forms chain-like structures under the magnetic field, transmitting controlled torque. The output torque is proportional to the excitation current, enabling smooth and precise tension control.

What are the advantages of ultra thin design?

The ultra thin design offers several key advantages:

• Space-saving structure for compact machines
• Easy integration into limited installation spaces
• Reduced machine footprint
• Flexible system design for automation equipment
• Suitable for high-density mechanical layouts
• Stable performance in continuous operation

It is especially suitable for modern compact slitting and converting machines.

How do I choose the correct torque?

To select the correct torque rating, consider:

• Material type and thickness
• Required web tension level
• Roll diameter variation
• Machine speed
• Continuous or intermittent operation
• Safety margin for load fluctuations

Proper torque selection ensures stable tension control, prevents material damage, and improves production efficiency. XW Machinery can assist in selecting the appropriate model based on your application.

Can it be used in slitting machines?

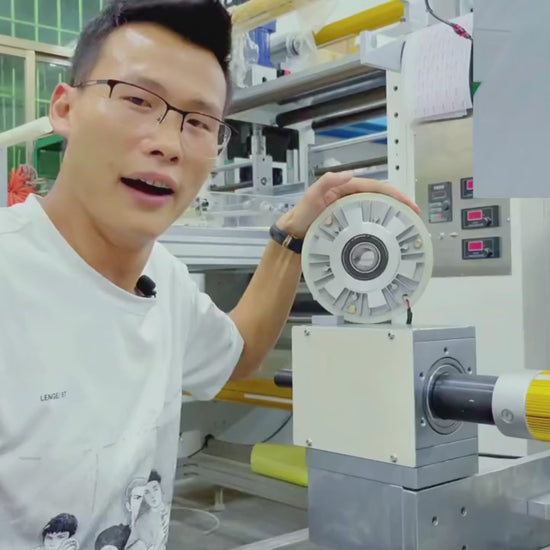

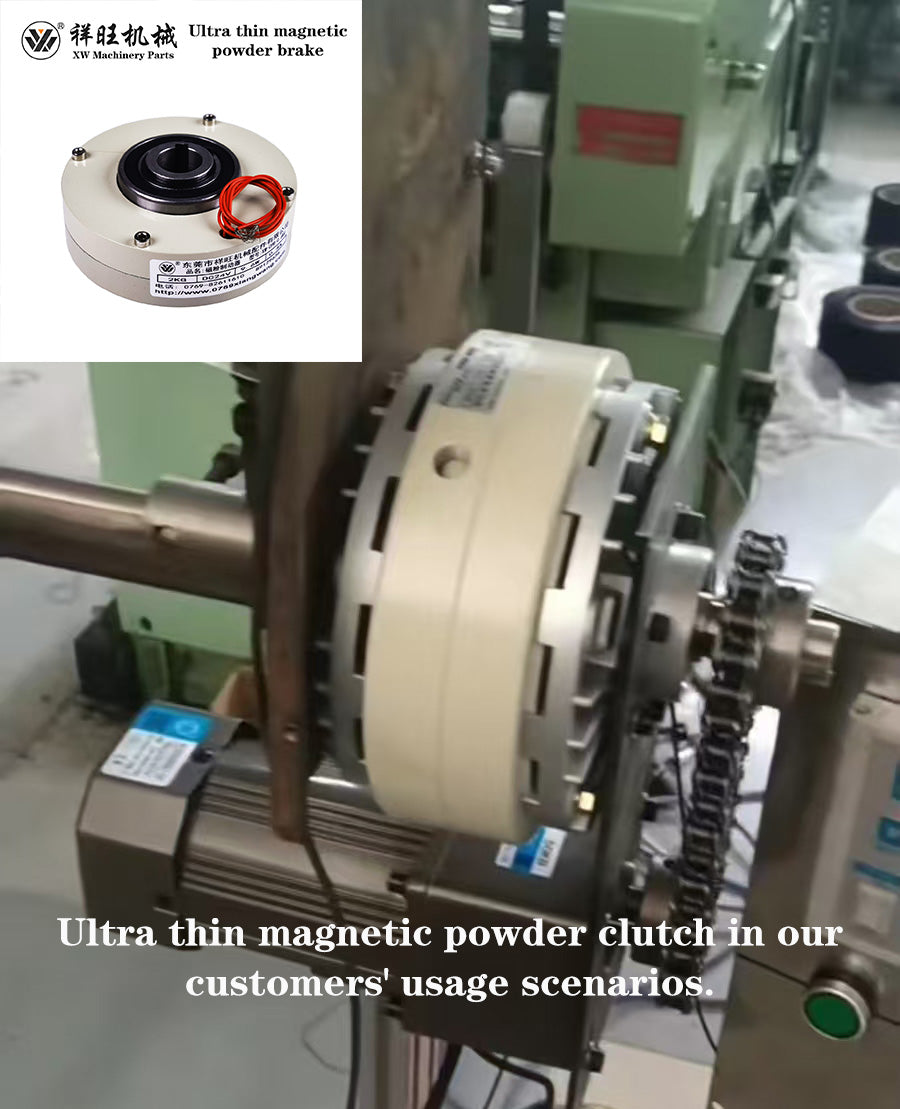

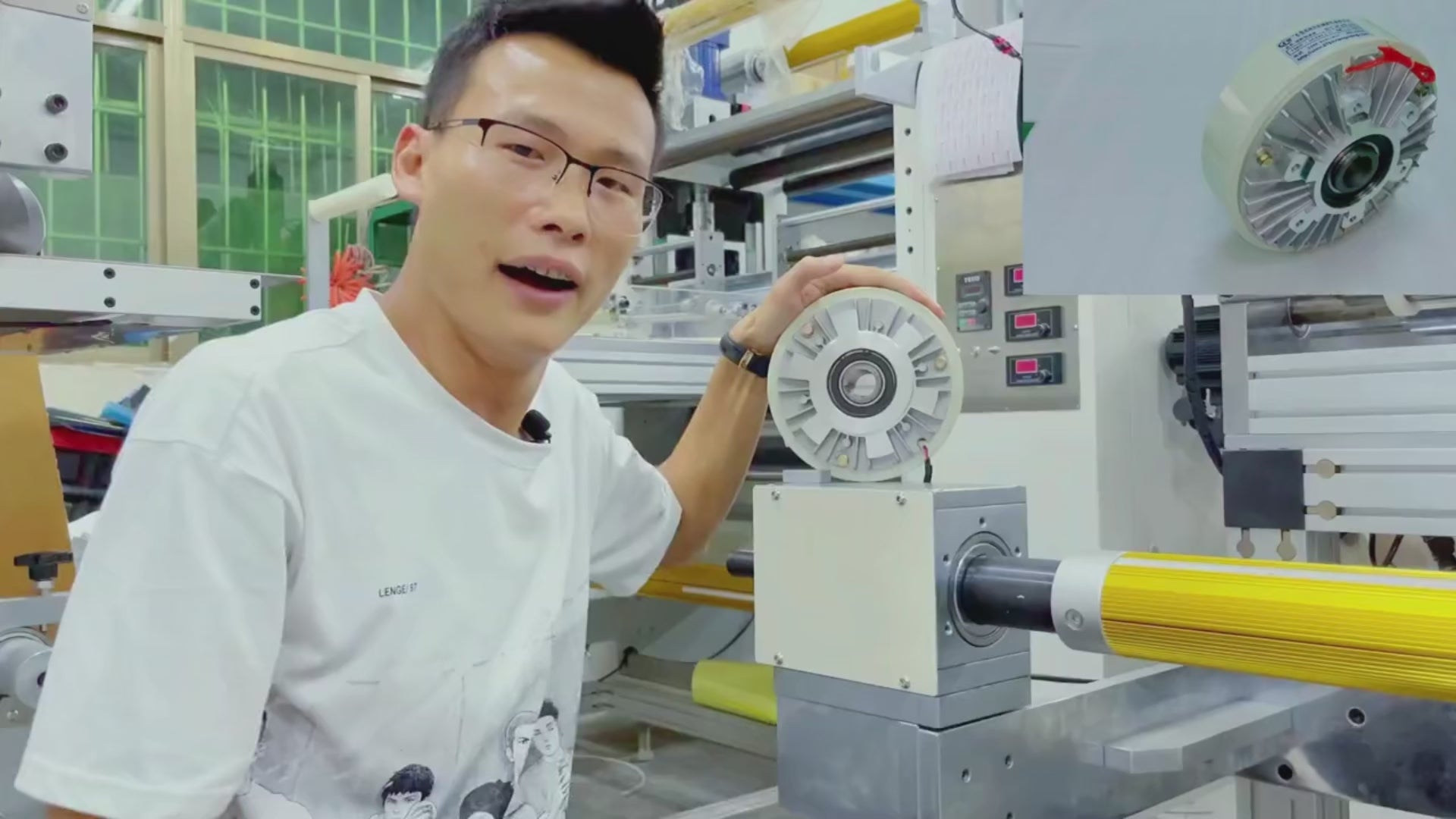

Yes. Ultra thin magnetic powder brakes are widely used in slitting machines to control unwinding tension. They help maintain stable web tension, improve cutting accuracy, reduce material deformation, and ensure consistent winding quality during high-speed operation.

What materials are processed?

Ultra thin magnetic powder brakes are suitable for a wide range of web materials, including:

• Plastic film
• Paper
• Aluminum foil
• Copper foil
• Nonwoven fabric
• Labels and adhesive tapes
• Flexible packaging materials
• Wire and cable materials

They are commonly used in printing, laminating, coating, and converting industries.

Does XW Machinery support OEM customization?

Yes. XW Machinery provides OEM and customized manufacturing services for ultra thin magnetic powder brakes, including customized torque ranges, installation dimensions, voltage specifications, mounting structures, and application-specific designs. Technical support is available to meet different industrial equipment requirements.
