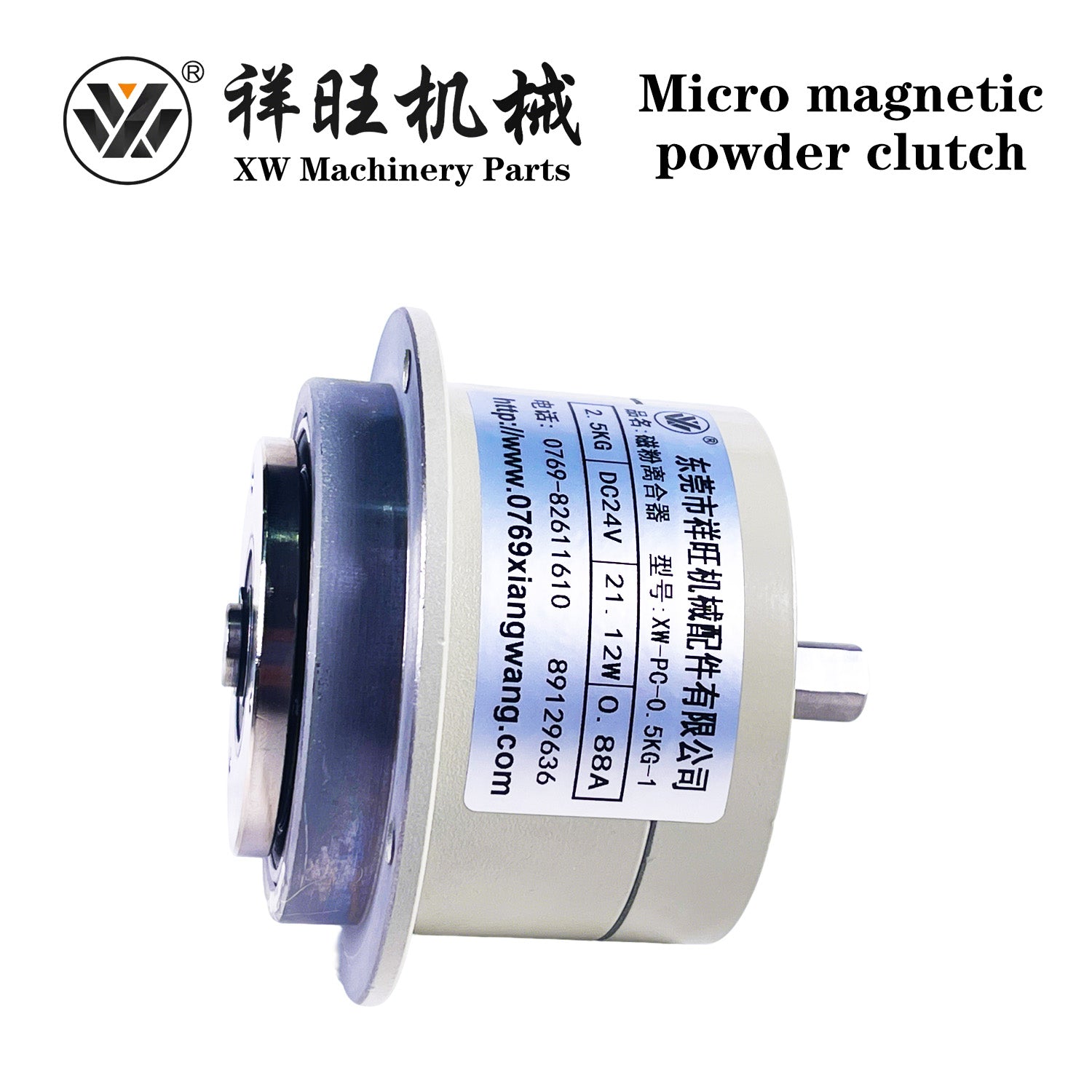

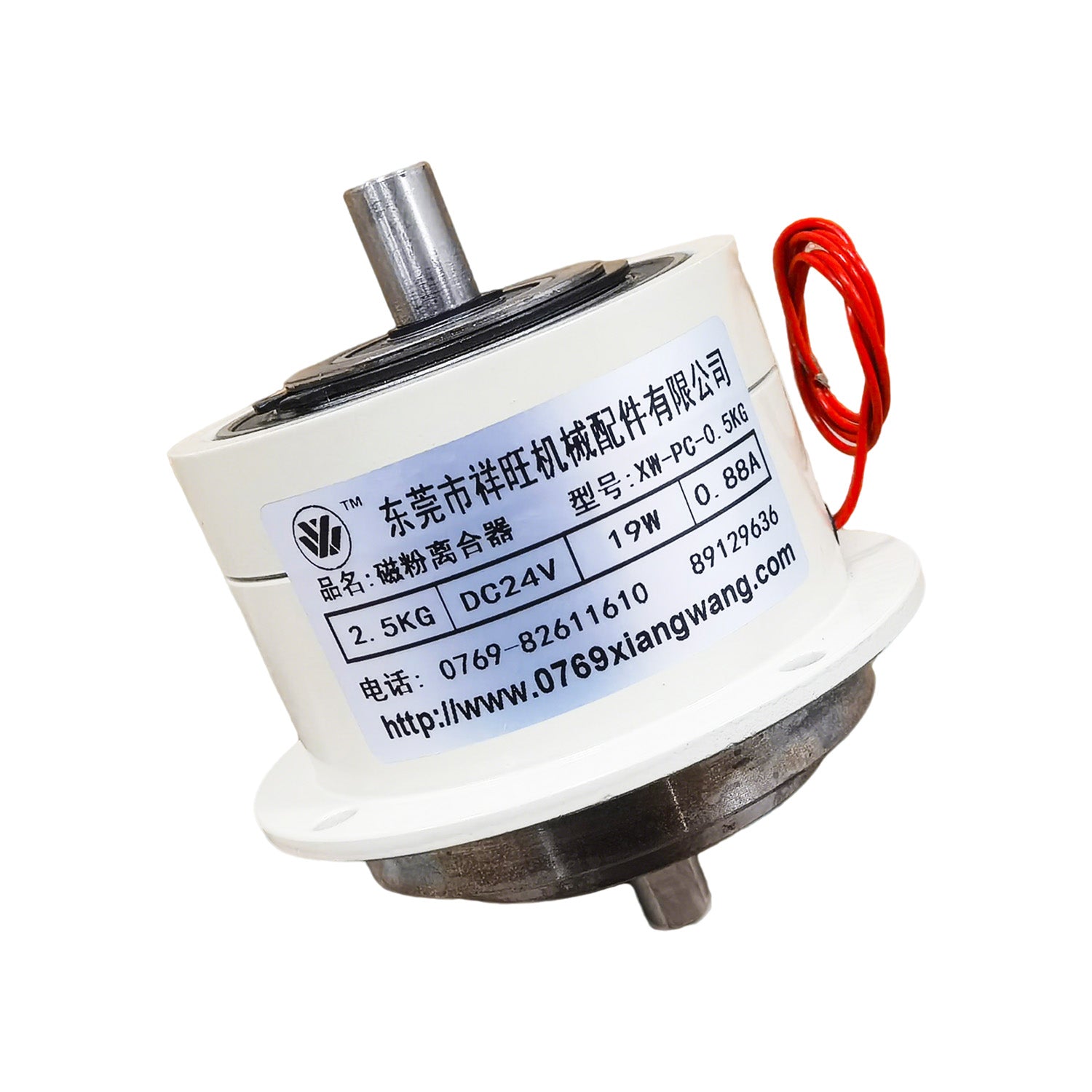

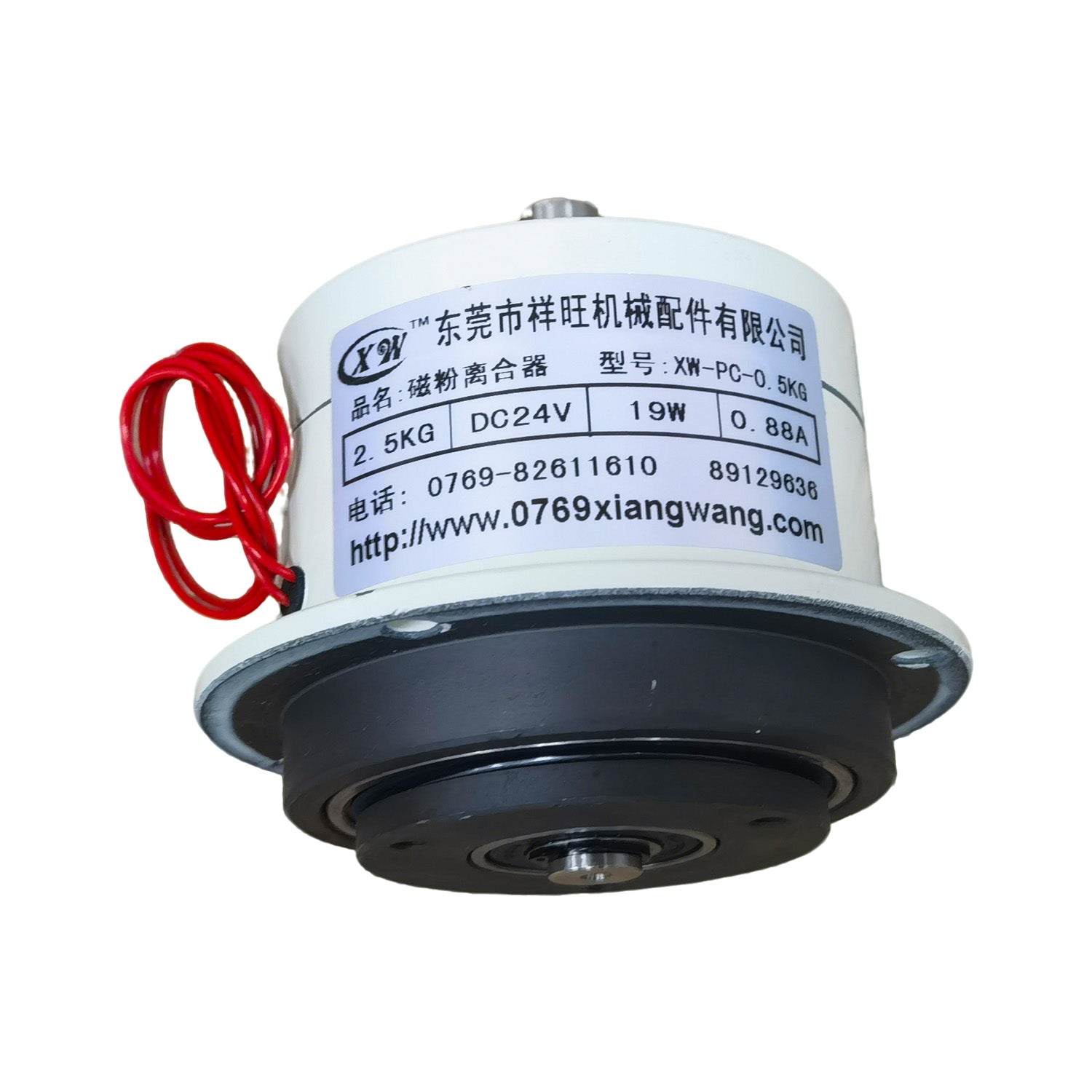

XW Micro Uniaxial Magnetic Powder Clutch - 12V DC Tension Control (1Nm-5Nm)

Advantages of Micro Magnetic Powder Clutch

• Compact space-saving structure
• Suitable for precision automation systems
• Stable low-torque transmission
• Fast electromagnetic response
• Precise tension control
• Lightweight and easy installation
• Suitable for small winding equipment

Typical Applications

• Small slitting machines
• Label rewinding machines
• Laboratory winding equipment
• Precision printing machinery
• Wire and cable winding systems
• Medical automation equipment
• Compact packaging machines
• Electronic material processing systems

Key Features

• 12V low voltage design
• Micro compact structure
• Precise torque adjustment
• Stable continuous slipping
• Fast response speed
• Low vibration and low noise
• Suitable for precision automation systems
• Long service life

Technical Specifications:

How Does a Micro Magnetic Powder Clutch Work?

• Electromagnetic coil generates magnetic field
• Magnetic powder forms torque transmission chains
• Torque output changes proportionally with current
• Enables precise low-torque control for compact equipment

This micro clutch can work with our tension controllers for complete compact web handling systems.

• ultra thin magnetic powder brake
• magnetic powder brake
• tension controller
• air shaft
• EPC web guide system
• slitting machine parts

High-Precision Tension Control for Small-Scale Machinery
  The XW Series Micro Uniaxial Magnetic Powder Clutch is engineered for applications requiring delicate torque management. With a compact 12V DC design, it provides smooth, constant torque ranging from 1Nm to 5Nm, making it perfect for film, wire, and paper tensioning systems.

Our factory has passed ISO9001 quality certification, ensuring quality assurance.

FAQ

What is a micro magnetic powder clutch?

A micro magnetic powder clutch is a compact torque transmission device designed for precise low-torque control in small industrial and automation equipment. It uses magnetic powder and electromagnetic force to provide smooth and adjustable torque transmission, making it suitable for precision winding, rewinding, printing, and compact automation systems.

How does a magnetic powder clutch work?

A magnetic powder clutch works by applying electrical current to an excitation coil, which creates a magnetic field inside the clutch. The magnetic powder inside forms magnetic chains between the input and output components, transmitting torque smoothly. The transmitted torque changes proportionally with the excitation current, enabling precise tension and torque control.

What are the advantages of 12V design?

The 12V design offers several important advantages:

• Suitable for low-voltage automation systems
• Safer operation in compact equipment
• Lower power consumption
• Easy integration with small control systems
• Stable and precise low-torque control
• Compact and lightweight structure

It is widely used in precision industrial and laboratory equipment requiring compact drive solutions.

How do I choose the correct torque range?

To select the correct torque range, consider:

• Material type and thickness
• Required tension level
• Roll diameter
• Machine operating speed
• Continuous or intermittent operation
• Required control precision

Choosing the proper torque range helps maintain stable operation, improve product quality, and prevent slipping or overload. XW Machinery can recommend suitable models based on your application requirements.

Can it be used in compact automation machines?

Yes. Micro magnetic powder clutches are widely used in compact automation machines where precise low-torque control and limited installation space are important. Typical applications include label rewinding equipment, small winding machines, laboratory systems, precision printing equipment, and electronic material processing machinery.

What materials are processed?

Micro magnetic powder clutches are suitable for processing various lightweight and precision materials, including:

• Plastic film
• Paper
• Labels and adhesive tape
• Thin foil materials
• Wire and cable
• Electronic materials
• Flexible packaging materials

They are commonly used in precision converting, printing, packaging, and automation industries.

Does XW Machinery support OEM customization?

Yes. XW Machinery provides OEM and custom manufacturing services for micro magnetic powder clutches, including customized torque ranges, voltage specifications, shaft dimensions, installation structures, and application-specific designs. Technical support is available to meet different compact automation and industrial equipment requirements.
