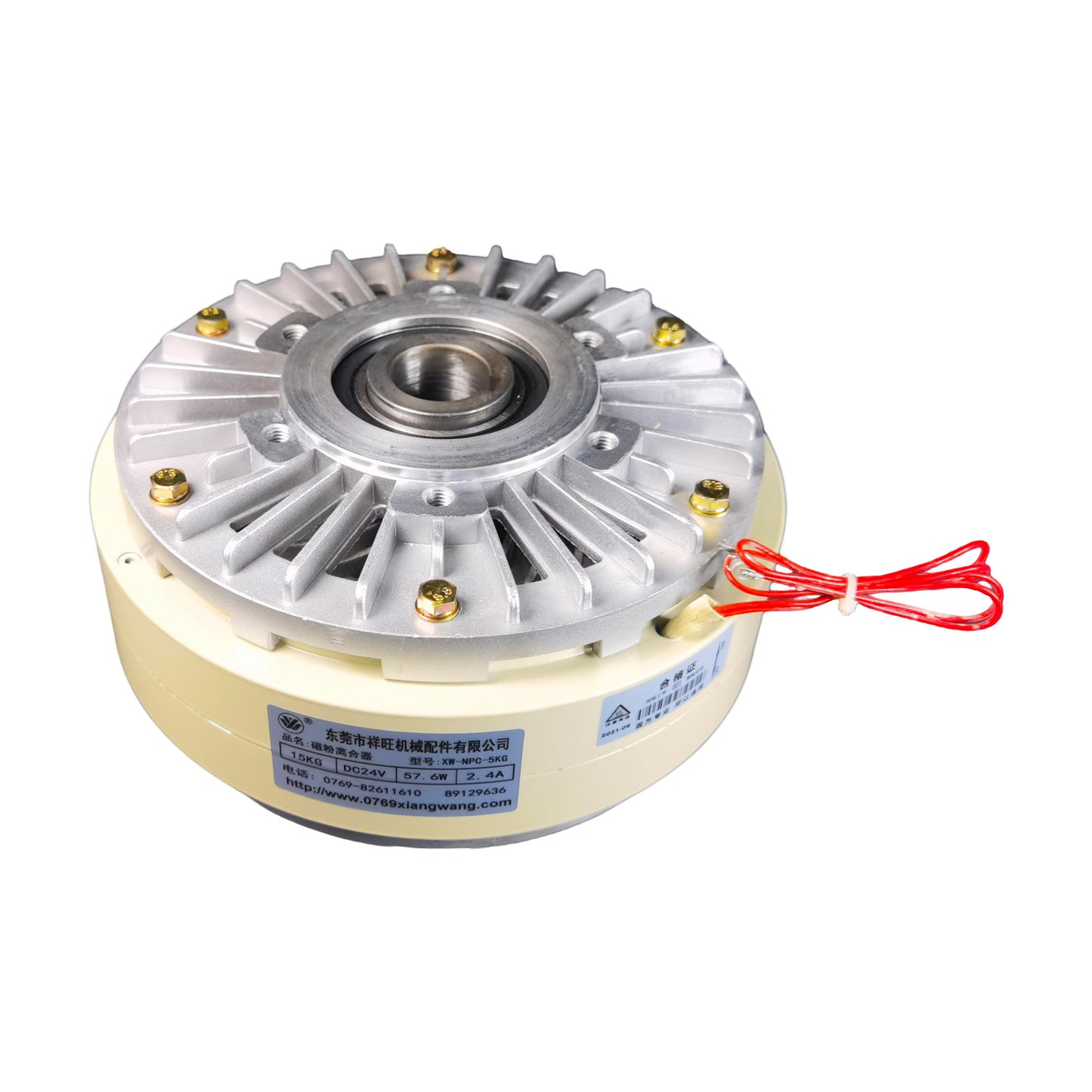

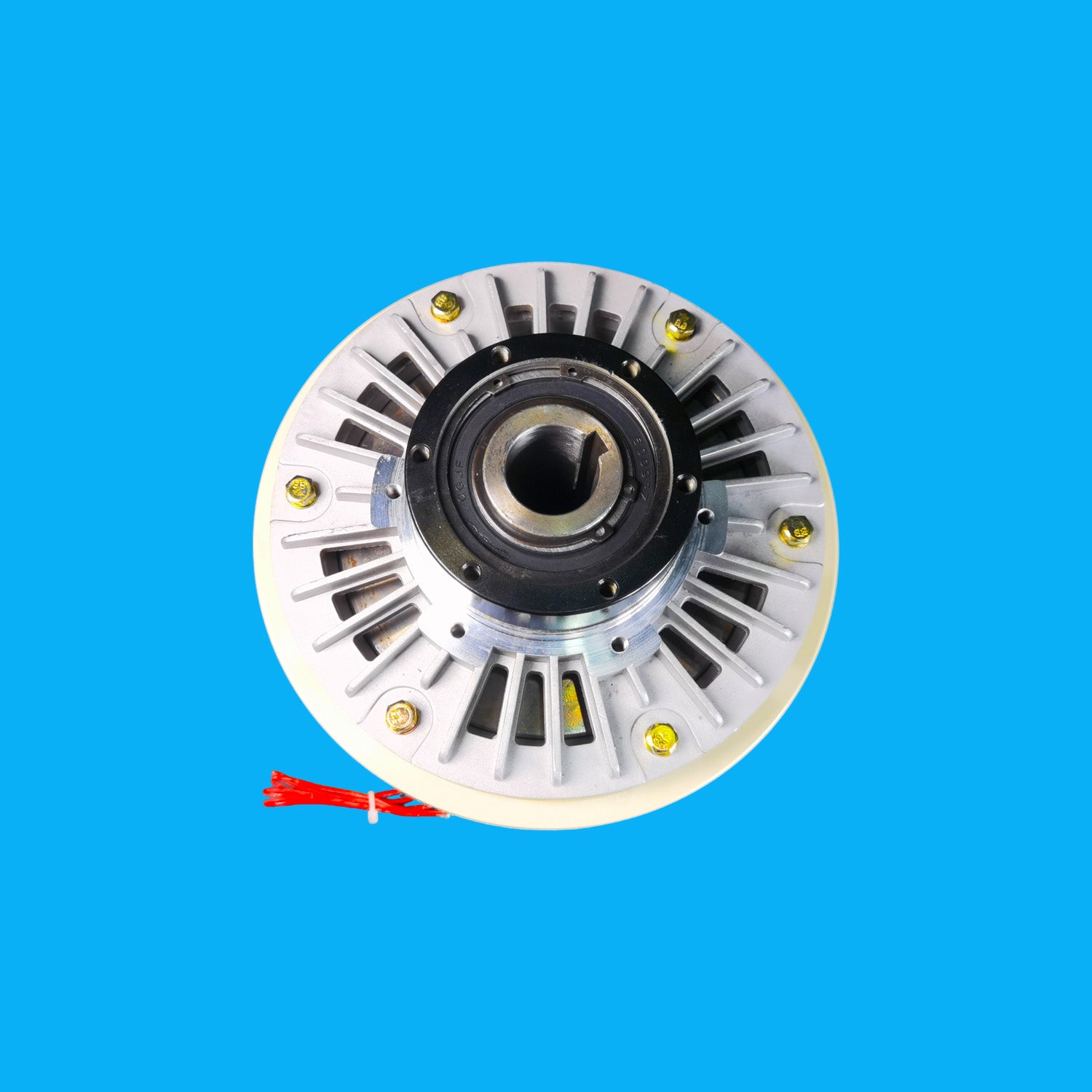

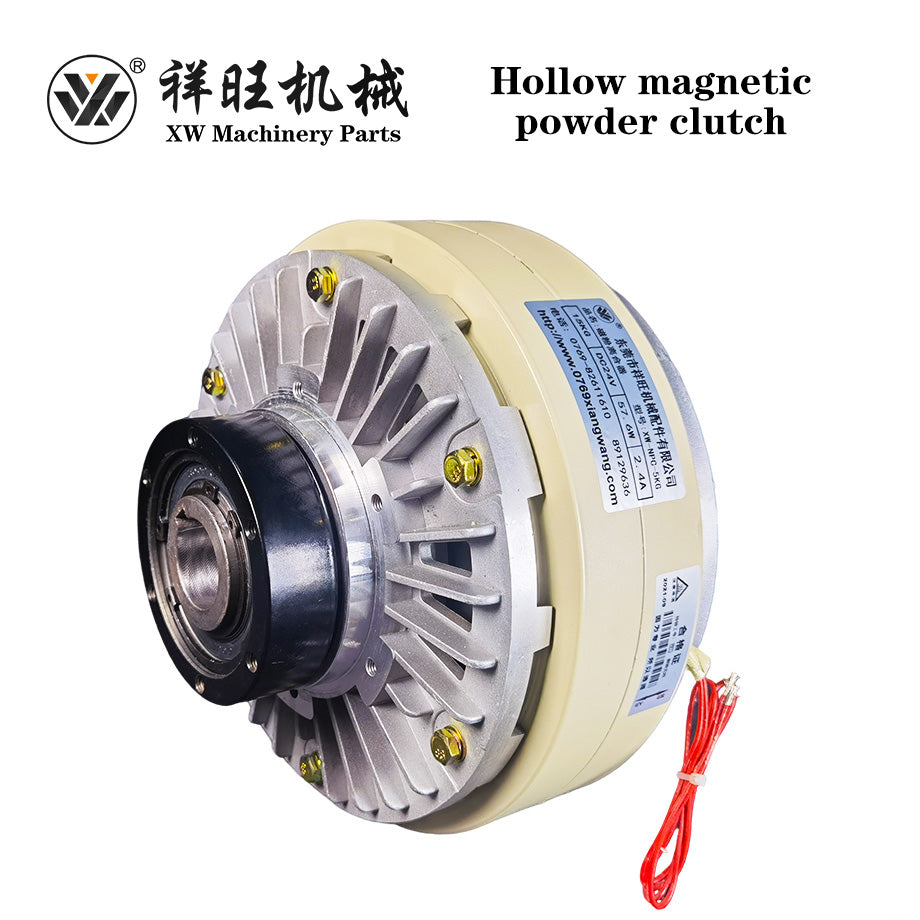

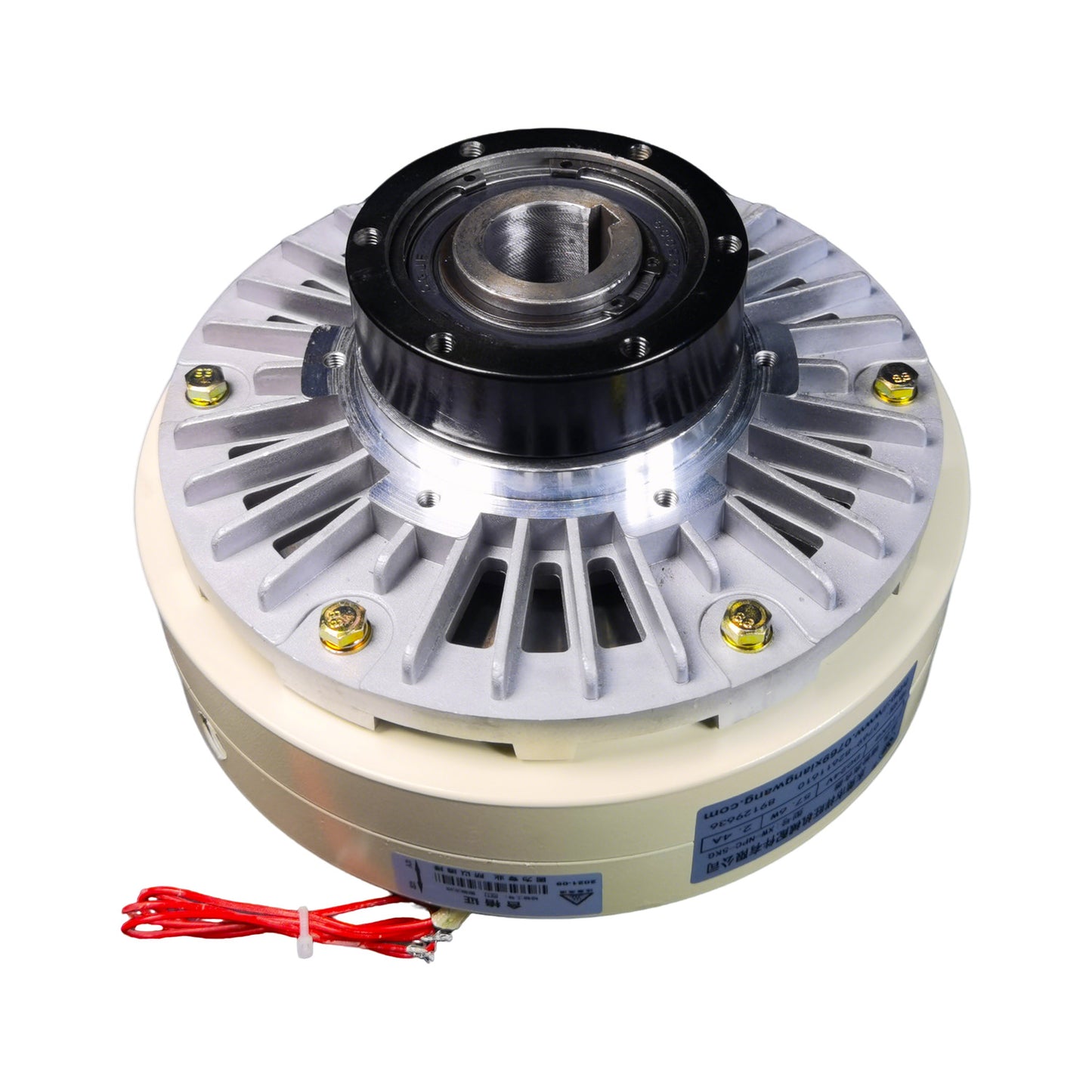

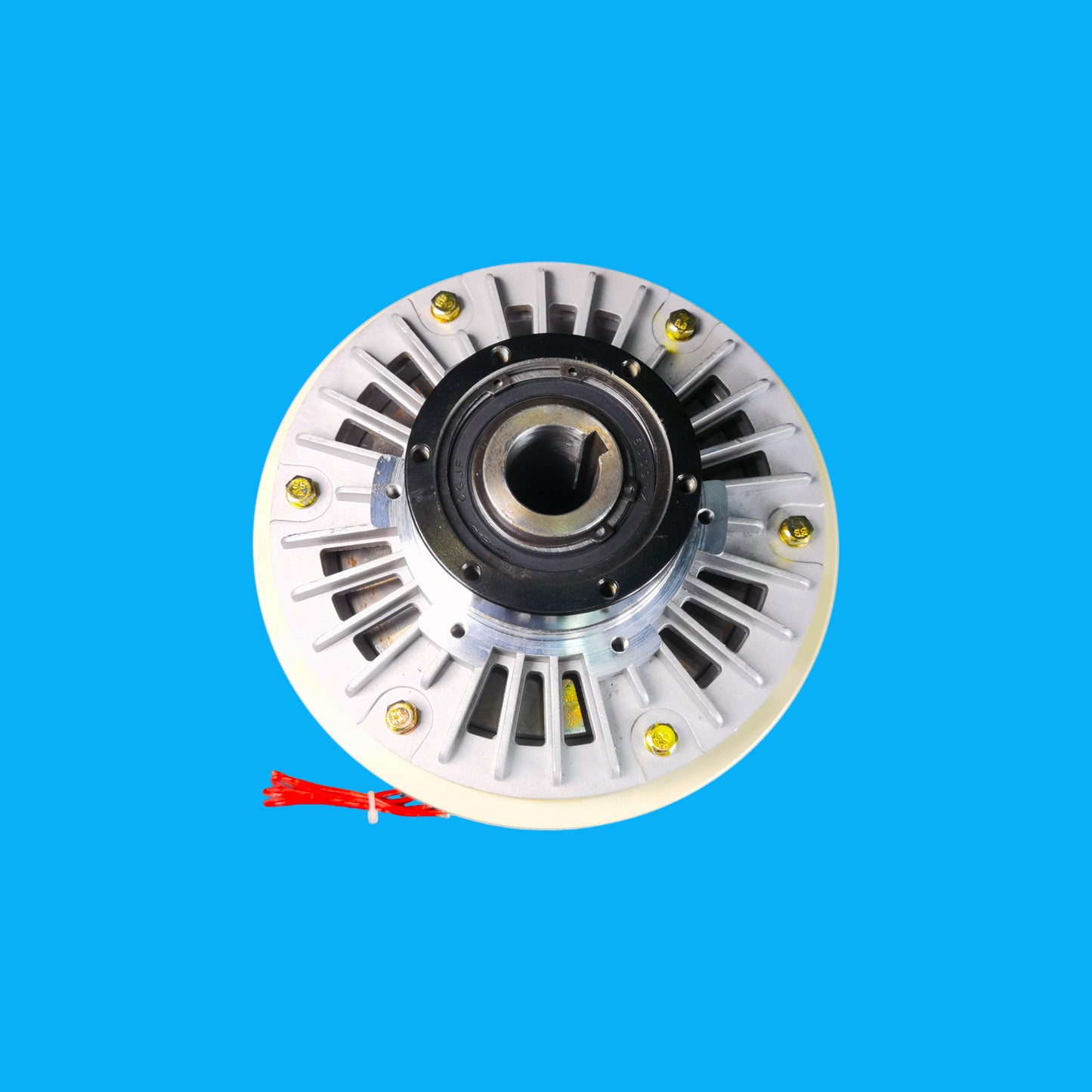

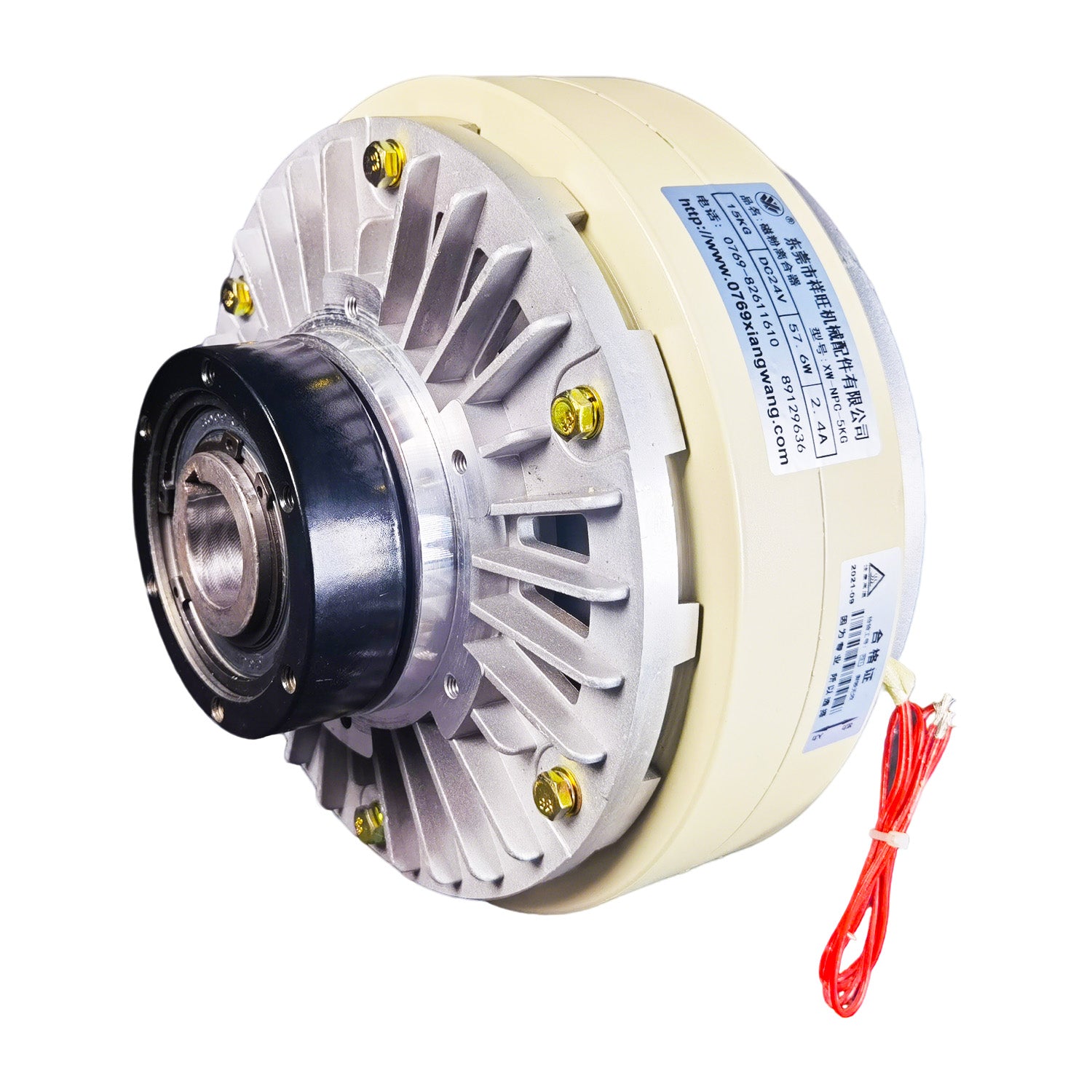

The XW Machinery Hollow Shaft Magnetic Powder Clutch is designed for precision torque transmission and constant tension regulation in winding and unwinding applications.

For complete tension management, this clutch can be paired with a [Magnetic Powder Brake] to create a highly efficient closed-loop tension control solution. The combination ensures smooth material handling and stable roll quality throughout production.

When integrated with a [Tension Control System], the clutch automatically adjusts torque according to changing roll diameters, helping manufacturers maintain consistent tension from start to finish.

Its fast response characteristics make it especially suitable for demanding [Web Tension Control] applications involving film, paper, foil, textile, nonwoven fabric, copper foil, and lithium battery materials.

In multi-roll slitting operations, the clutch is frequently used together with a [Differential Shaft] to ensure even winding tension across each finished roll and minimize wrinkles or telescoping issues.

For faster core loading and unloading, many manufacturers combine the clutch with an [Air Expanding Shaft], improving production efficiency while reducing machine downtime.

Customers looking for complete converting equipment can also explore our [Slitting Machine Solutions], which integrate advanced tension control technologies for high-speed and high-precision production lines.

Key Features

Precise Torque Control

Linear torque output provides accurate and repeatable tension regulation.

Hollow Shaft Design

Easy installation and integration with modern converting machinery.

Wide Torque Range

Available from 6Nm to 400Nm for diverse industrial applications.

Fast Dynamic Response

Rapid torque adjustment improves winding quality and machine efficiency.

Stable Continuous Slip Operation

Maintains constant tension during rewinding and unwinding processes.

Long Service Life

High-quality magnetic powder and optimized cooling structure ensure reliable operation.

Why Choose Hollow Shaft?
• Compact Structure: Ideal for machine designs with limited axial space.
• Easy Integration: Designed for direct mounting on the drive shaft, reducing coupling needs.
• Faster Response: Optimized internal design for rapid torque engagement and disengagement.

How to Choose a Hollow Shaft Magnetic Powder Clutch

• Required torque
• Shaft diameter
• Machine speed
• Continuous operation time
• Cooling requirements
• Material type
• Installation method

Advantages of Hollow Shaft Magnetic Powder Clutch

• Easy shaft installation
• Compact machine integration
• Better alignment performance
• Reduced transmission vibration
• Suitable for space-limited equipment
• Simplified maintenance and assembly

Typical Applications

• Slitting machines
• Rewinding machines
• Printing machinery
• Film converting systems
• Paper processing equipment
• Wire and cable winding
• Textile machinery
• Packaging machines

Technical Advantages
• Premium Magnetic Powder: High-grade imported powder ensures a longer lifespan and stable torque output.
• Heat Dissipation: Specialized hollow design enhances airflow, preventing overheating during continuous slip.
• XW® Precision: Manufactured under strict ISO standards to meet the demands of high-speed printing lines.

Technical Specifications:

How Does a Hollow Shaft Magnetic Powder Clutch Work?

• Magnetic powder becomes magnetized under DC current
• Torque changes linearly with excitation current
• Stable tension control during winding and unwinding
• Suitable for continuous slipping operation

Why Choose XW Machinery

• Factory direct supply
• OEM customization
• Stable industrial quality
• Fast technical support
• Export experience
• Worldwide shipping

  Choosing the right torque is critical. Our series covers from 6Nm (small labels/films) up to 400Nm (heavy-duty paper/foil). If you are unsure which size fits your slitting or rewinding machine, our engineers are ready to assist.

Our factory has passed ISO9001 quality certification, ensuring quality assurance.

FAQ

What is a hollow shaft magnetic powder clutch?

A hollow shaft magnetic powder clutch is a torque transmission device designed for precise tension and torque control in industrial winding and unwinding systems. The hollow shaft structure allows easy installation directly onto machine shafts, making it ideal for compact equipment layouts and high-efficiency web handling applications such as slitting, rewinding, printing, and film processing machines.

How does a magnetic powder clutch work?

A magnetic powder clutch works by magnetizing internal magnetic powder through an electromagnetic coil. When DC current is applied, the magnetic powder forms magnetic chains between the input and output sections, transmitting adjustable torque. The transmitted torque changes proportionally with the excitation current, enabling accurate web tension control and smooth continuous slipping operation.

What are the advantages of hollow shaft design?

Hollow shaft magnetic powder clutches offer several advantages:

• Easy direct shaft installation
• Compact machine integration
• Reduced alignment errors
• Stable torque transmission
• Lower vibration and smoother operation
• Simplified maintenance and assembly
• Suitable for space-limited industrial equipment

The hollow shaft structure is especially useful for modern slitting and rewinding machinery requiring compact layouts and stable tension control.

How do I choose the correct torque?

To select the correct magnetic powder clutch torque, consider:

• Material width and thickness
• Required web tension
• Roll diameter
• Machine operating speed
• Continuous or intermittent operation
• Safety margin requirements

Using insufficient torque may result in unstable tension or slipping, while excessive torque may reduce control precision. XW Machinery can recommend suitable models according to your machine specifications and application requirements.

Can it be used for slitting machines?

Yes. Hollow shaft magnetic powder clutches are widely used in slitting machines for precise unwinding and rewinding tension control. They help maintain stable web tension, improve roll quality, reduce wrinkles, and minimize material breakage during high-speed operation.

What materials are processed?

Hollow shaft magnetic powder clutches are suitable for processing various web materials, including:

• Plastic film
• Paper
• Aluminum foil
• Copper foil
• Labels and adhesive tape
• Nonwoven fabric
• Flexible packaging materials
• Wire and cable

These clutches are commonly used in printing, coating, laminating, converting, and packaging industries.

Does XW Machinery support OEM customization?

Yes. XW Machinery supports OEM and custom manufacturing services for hollow shaft magnetic powder clutches, including customized torque ranges, shaft sizes, mounting structures, voltage specifications, and machine-specific designs. Technical support is available to help match your industrial application requirements.
