3 Types of Magnetic Powder Clutches: A Detailed Introduction

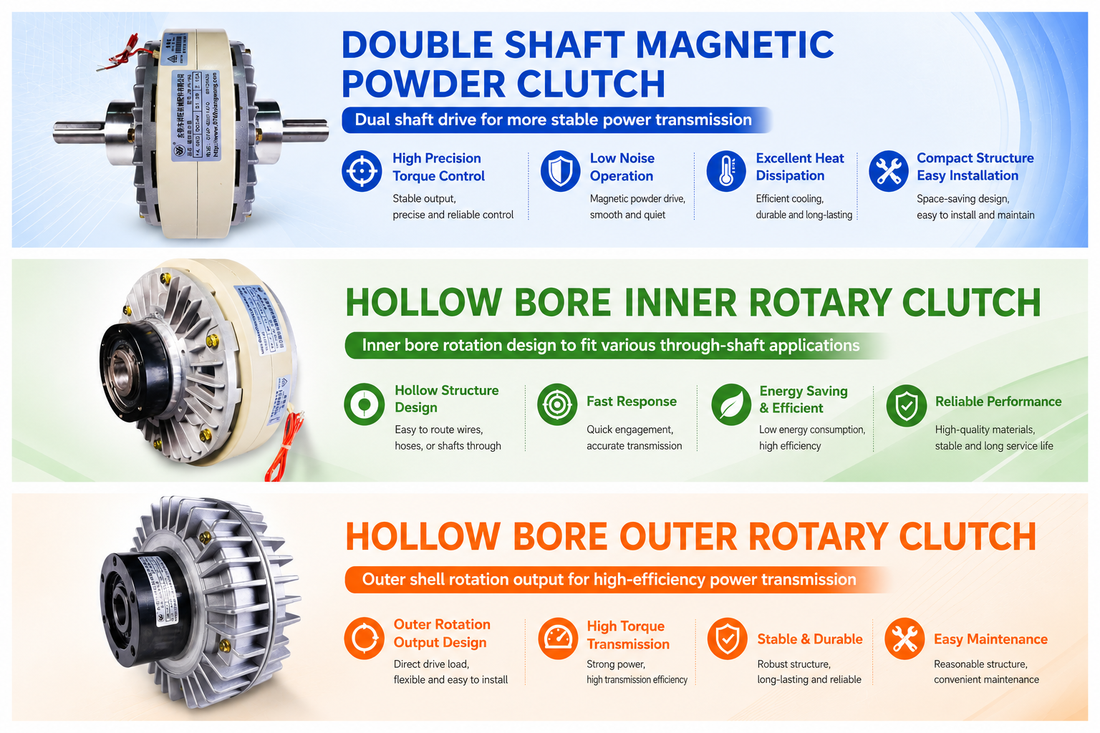

  Clutches are indispensable mechanical components in power transmission systems, widely applied in industrial machinery, printing presses, packaging equipment, and more. They govern the engagement and disengagement of rotational power, enabling precise speed regulation, stable tension control, and seamless equipment operation. Today, we will delve into three practical and commonly used clutches: Dual-Shaft Magnetic Powder Clutch, Hollow Inner Rotation Clutch, and Hollow Outer Rotation Clutch.

1. Dual-Shaft Magnetic Powder Clutch

  The dual-shaft magnetic powder clutch is a core torque-transmission component that relies on magnetic powder, equipped with two independent shafts for power input and output.

Working Principle

  When energized, the built-in coil generates a magnetic field, magnetizing the magnetic powder between the driving and driven rotors. The magnetic powder forms a rigid chain under magnetic force, transferring torque from the input shaft to the output shaft. When de-energized, the magnetic powder returns to a loose state, cutting off power transmission instantly.

Key Features

· Precise Stepless Torque Control: Torque can be adjusted smoothly by changing the excitation current.

· Smooth & Impact-Free Operation: No vibration or jolting during engagement or disengagement, ideal for high-precision scenarios.

· Wide Compatibility: Suitable for low to medium-speed applications, especially for tension control in winding and rewinding systems.

Video Introduction

To visualize its internal structure and working process, watch the video: Dual-Shaft Magnetic Powder Clutch.

2. Hollow Inner Rotation Clutch

  The hollow inner rotation clutch is a compact, space-efficient clutch with a hollow core, where the inner rotor rotates while the outer stator remains stationary.

Working Principle

  Like magnetic powder clutches, it uses magnetic powder as the torque transmission medium. The hollow central design allows a shaft to pass through directly, minimizing installation space. When energized, the magnetic field locks the inner rotor and stator via magnetic powder to transmit power; when de-energized, the inner rotor rotates freely without resistance.

Key Features

· Ultra-Compact Design: The hollow core simplifies installation in equipment with limited space.

· High Coaxiality: Concentric rotation ensures stable power transmission with minimal runout.

· Easy Installation & Maintenance: Direct shaft penetration reduces assembly steps and maintenance complexity.

Video Introduction

For a clear view of its structural advantages and real-time operation, check the video: Hollow Inner Rotation Clutch.

3. Hollow Outer Rotation Clutch

  The hollow outer rotation clutch is a specialized hollow clutch variant, featuring a rotating outer rotor and a fixed inner stator, tailored for unique power transmission layouts.

Working Principle

  The inner stator is fixed to the equipment frame, while the outer rotor connects to the load. When energized, the magnetic powder in the gap is magnetized, bonding the outer rotor and inner stator to transmit torque. The hollow center accommodates shafts or other components, supporting flexible system design.

Key Features

· Special Layout Adaptability: The outer rotation design meets the transmission needs of unique equipment structures.

· High Load Capacity: Optimized magnetic circuit design delivers stable torque output for heavy-load scenarios.

· Efficient Heat Dissipation: The open outer rotor structure enhances heat dissipation, extending the clutch’s service life.

Video Introduction

To explore its application scenarios and detailed working mechanism, watch the video: Hollow Outer Rotation Clutch.

Summary

Each of the three clutches boasts distinct structural and performance strengths:

· The dual-shaft magnetic powder clutch stands out for precise torque control and smooth operation.

· The hollow inner rotation clutch excels in compact size and easy installation.

· The hollow outer rotation clutch is ideal for special layout requirements and heavy-load applications.

The optimal clutch choice depends on your equipment’s power transmission demands, installation space constraints, and load conditions. For detailed technical parameters or customized solutions, feel free to reach out!
