XWDGM Miniature Powder Brake for Precision Low-Torque Tension Control

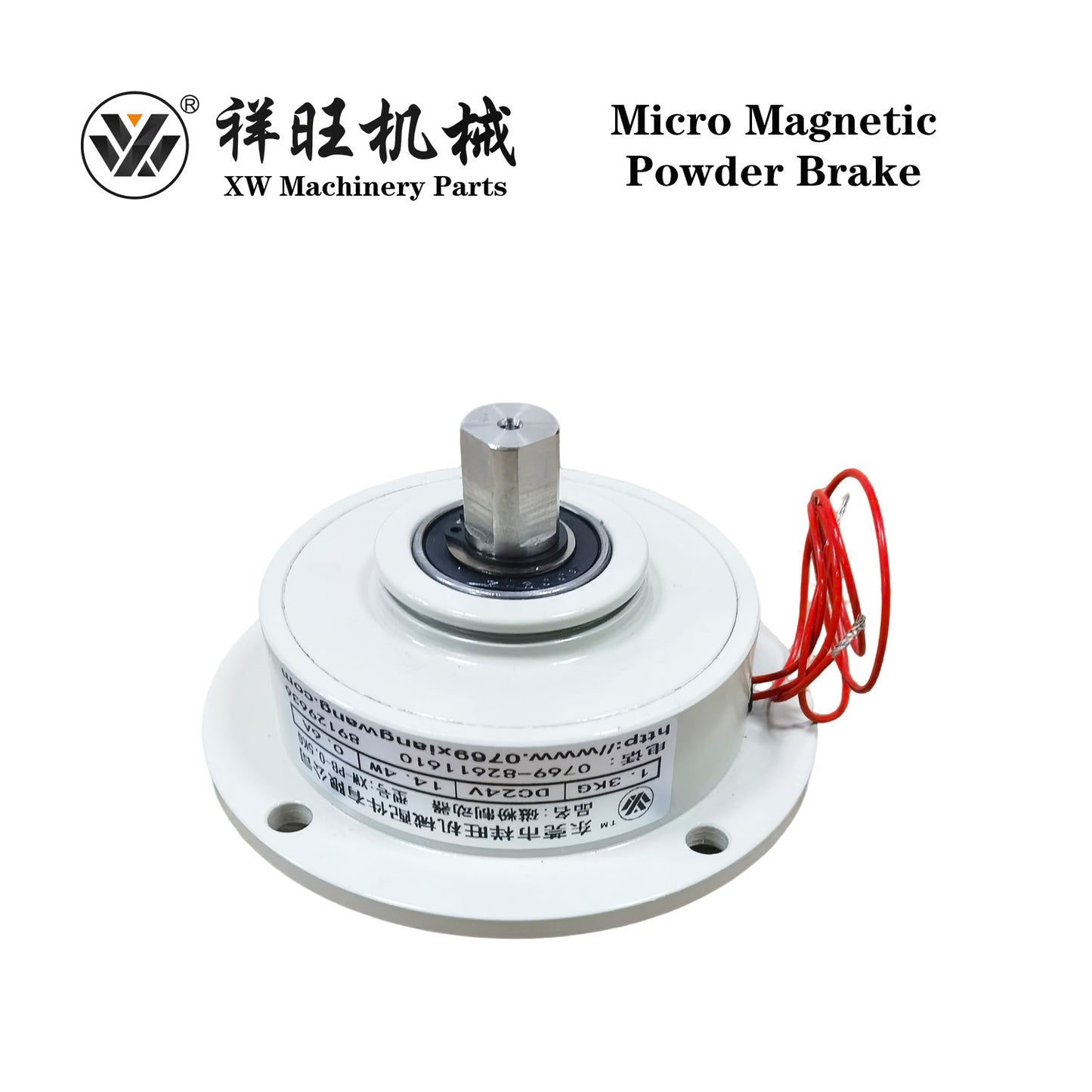

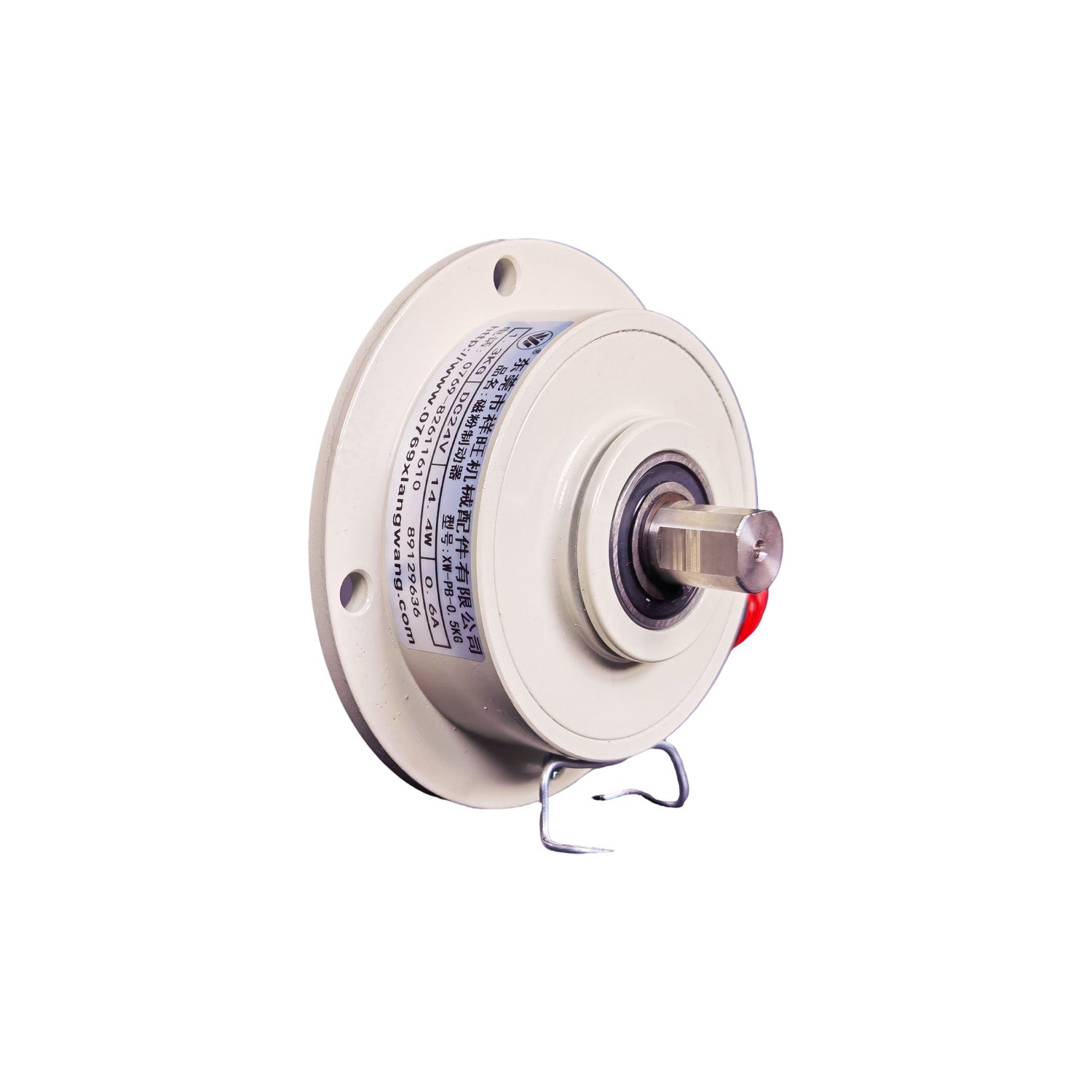

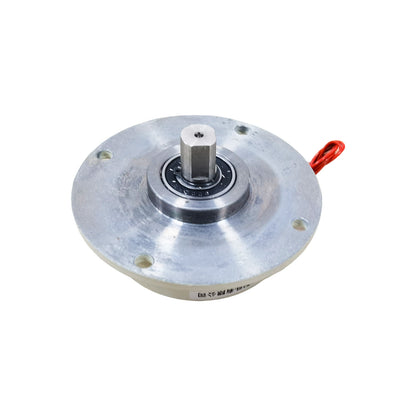

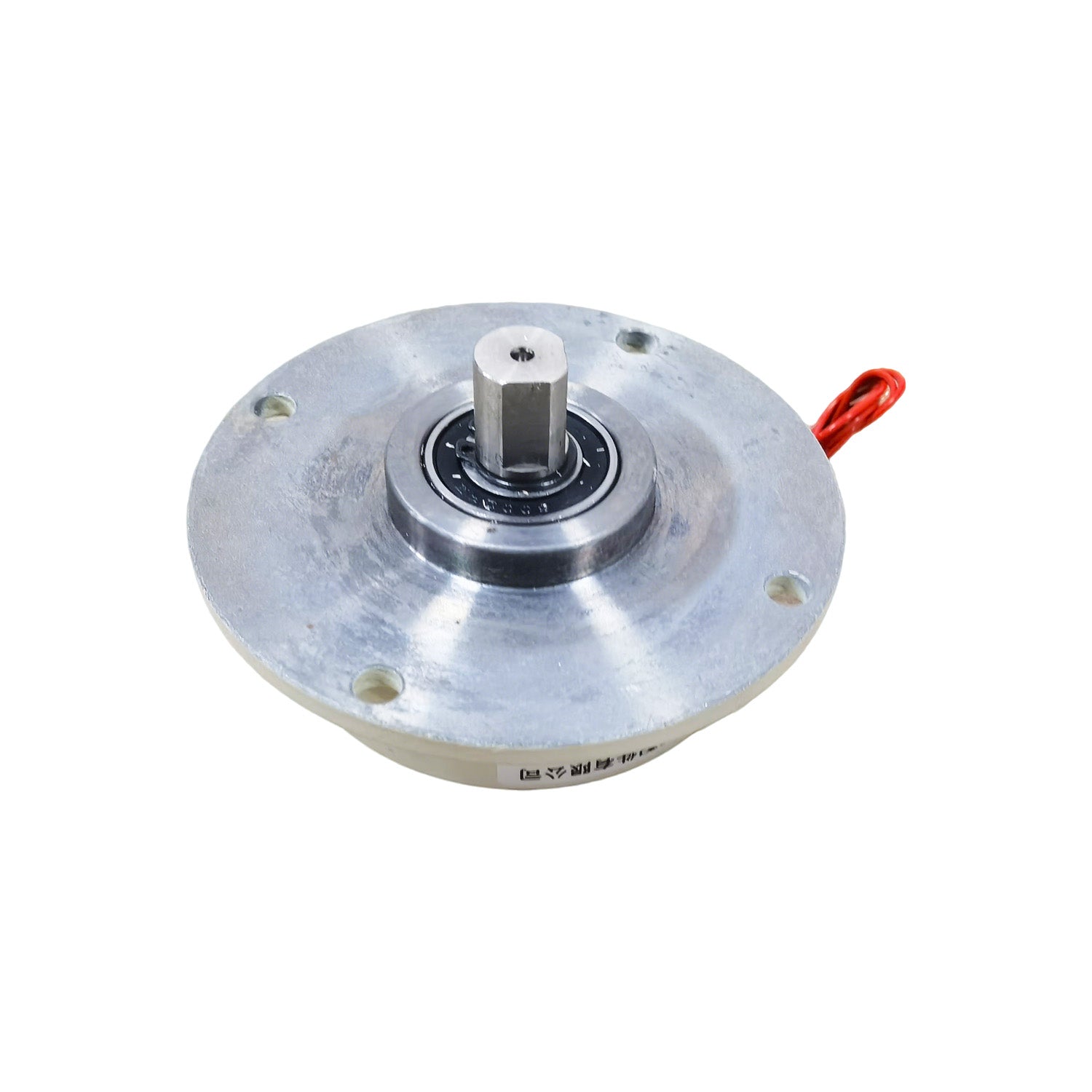

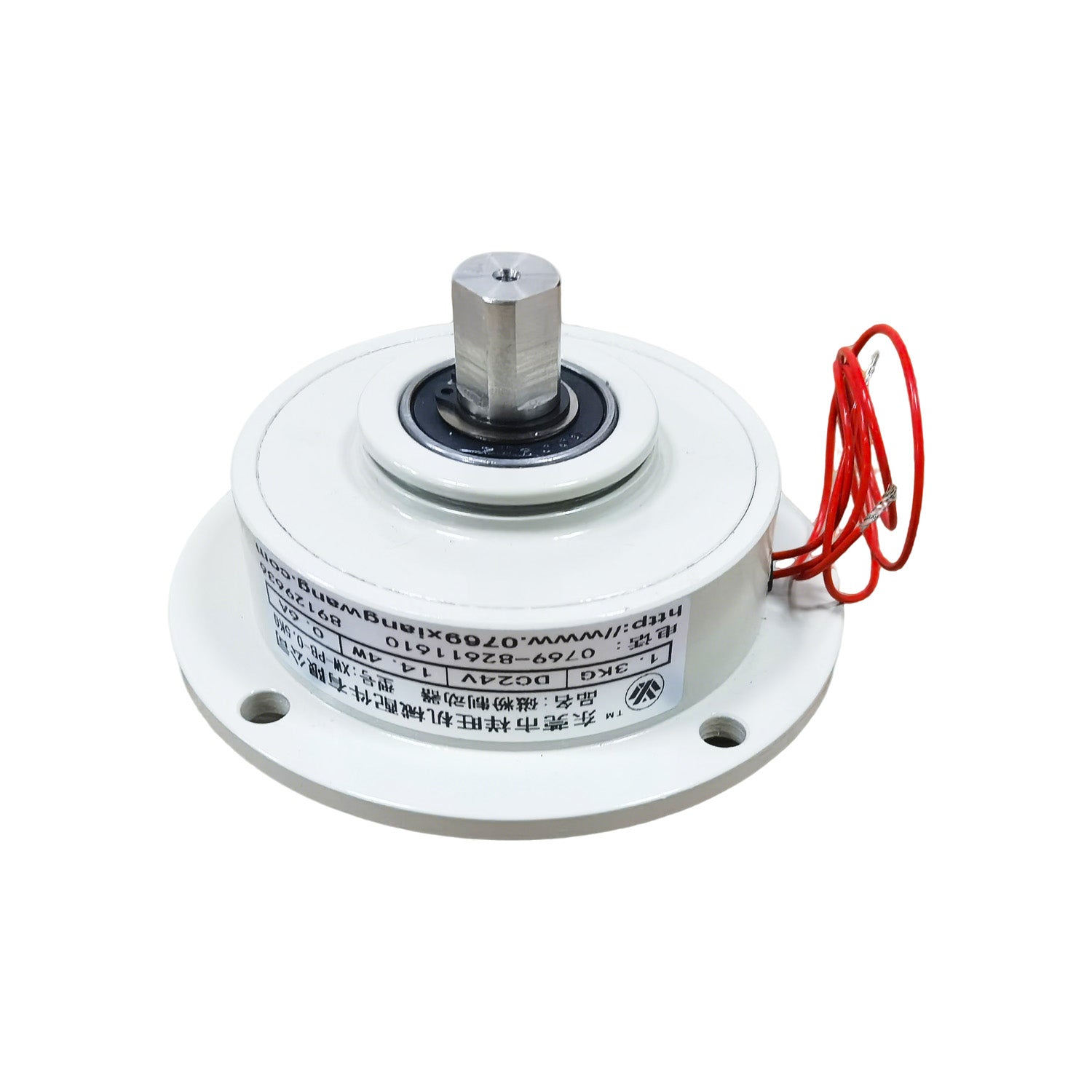

XWDGM Miniature Powder Brake

The XWDGM Miniature Powder Brake is a compact, high-precision torque control device designed for low-torque tension control applications in precision automation equipment. Featuring a lightweight structure, fast electromagnetic response, and stable torque output, this miniature powder brake is ideal for small winding systems, label converting equipment, laboratory machinery, electronic material processing, and compact industrial automation applications.

Engineered for applications requiring precise braking force and minimal installation space, the XWDGM Miniature Powder Brake delivers smooth and adjustable torque transmission while maintaining excellent control accuracy. The compact 12V DC design makes integration simple for modern low-voltage automation systems.

This miniature powder brake is widely used in label rewinding machines, small slitting machines, wire and cable winding equipment, medical automation devices, precision printing machinery, and electronic material processing systems where reliable low-torque control is essential.

For complete compact web handling solutions, the brake can be integrated with an

[Ultra Thin Magnetic Powder Brake], [Magnetic Powder Brake], and [Tension Controller] to achieve accurate closed-loop tension control.

The system also works efficiently with an [Air Shaft], [EPC Web Guide System], and other [Slitting Machine Parts] for precision roll-to-roll processing applications.

High-Precision Tension Control for Small-Scale Machinery

The XWDGM Miniature Powder Brake is specifically engineered for applications that require delicate torque regulation and highly stable tension control.

With torque ranges optimized for light-duty materials and compact machinery, the brake provides:

• Smooth torque transmission
• Precise low-torque adjustment
• Fast response speed
• Stable continuous operation
• Compact installation
• Long-term reliability

Its compact footprint makes it especially suitable for equipment manufacturers seeking space-saving torque control solutions without sacrificing performance.

Advantages of Miniature Powder Brake Design

Compact Space-Saving Structure

Designed for installations where available space is extremely limited.

Precise Low-Torque Control

Provides highly accurate braking force for delicate materials and precision processes.

Fast Electromagnetic Response

Torque changes rapidly with input current, ensuring responsive tension regulation.

Lightweight Construction

Easy installation and integration into compact equipment.

Stable Continuous Operation

Maintains reliable braking performance during long production cycles.

Low Noise and Low Vibration

Improves equipment stability and finished product quality.

Automation-Friendly Design

Compatible with modern PLC systems and intelligent automation equipment.

Key Features

12V Low Voltage Design

Ideal for low-voltage industrial automation and laboratory systems.

Compact Miniature Structure

Reduces machine footprint while maintaining excellent torque performance.

Precise Torque Adjustment

Provides repeatable and highly controllable braking force.

Stable Continuous Slipping

Supports long-term operation in tension control applications.

Fast Response Speed

Quick torque regulation improves production consistency.

Long Service Life

Premium magnetic powder and precision components ensure long operational lifespan.

Easy System Integration

Compatible with a wide range of tension control and automation systems.

How Does a Miniature Powder Brake Work?

The brake uses electromagnetic powder transmission technology to generate adjustable braking torque.

Working Principle

1. Electrical current energizes the electromagnetic coil.
2. Magnetic powder becomes magnetized.
3. Magnetic chains form inside the brake chamber.
4. Braking torque is generated between rotating components.
5. Torque output changes proportionally with excitation current.
6. Stable tension control is maintained throughout operation.

This technology allows highly precise torque control even in compact equipment with limited installation space.

Typical Applications

Small Slitting Machines

Controls unwinding tension and improves cutting accuracy.

Label Rewinding Machines

Provides stable tension for label and adhesive tape processing.

Laboratory Winding Equipment

Suitable for research, testing, and pilot production systems.

Precision Printing Machinery

Maintains accurate web tension for high-quality printing results.

Wire & Cable Winding Systems

Provides smooth tension control during winding and testing operations.

Medical Automation Equipment

Ideal for compact medical devices requiring precise motion control.

Compact Packaging Machines

Supports small-scale packaging and converting applications.

Electronic Material Processing Systems

Used for precision handling of thin films, foils, and electronic materials.

Suitable Materials

The XWDGM Miniature Powder Brake is suitable for processing:

• Plastic Film
• PET Film
• Thin Paper
• Labels
• Adhesive Tapes
• Thin Aluminum Foil
• Copper Foil
• Electronic Materials
• Flexible Packaging Materials
• Wire and Cable Materials

These materials require accurate low-torque tension control to ensure product quality and processing consistency.

Technical Advantages

Stable Low-Speed Performance

Maintains consistent braking force at low operating speeds.

High Torque Accuracy

Provides repeatable braking performance for precision applications.

Low Power Consumption

12V design reduces energy consumption and simplifies system integration.

Compact Installation

Perfect for space-constrained automation equipment.

Continuous Duty Capability

Suitable for long production cycles and continuous operation.

OEM Customization Available

Custom torque ranges, shaft dimensions, voltage specifications, and mounting configurations available.

Selection Guide

When selecting a Miniature Powder Brake, consider:

• Material type
• Material thickness
• Required tension level
• Roll diameter
• Machine speed
• Continuous or intermittent operation
• Installation space limitations
• Required control precision

Proper selection helps maximize tension stability, improve product quality, and extend equipment lifespan.

Why Choose XWDGM?

ISO9001 Certified Manufacturing

Strict quality control ensures reliable performance and product consistency.

Precision Low-Torque Expertise

Designed specifically for compact automation and precision machinery.

OEM & Custom Manufacturing

Customized solutions for unique equipment requirements.

Fast Technical Support

Professional engineering assistance and application guidance.

Global Export Experience

Trusted by customers in automation, converting, printing, electronics, and medical equipment industries worldwide.

Worldwide Delivery

Reliable international shipping and responsive customer support.

Whether you need a compact torque control solution for a label rewinder, laboratory winding machine, medical automation system, or precision electronic material processing line, the XWDGM Miniature Powder Brake provides exceptional accuracy, reliability, and long-term performance.
