XW® Magnetic Powder Brake | DIN Standard Long-Life Torque & Tension Control Solution

Product Overview

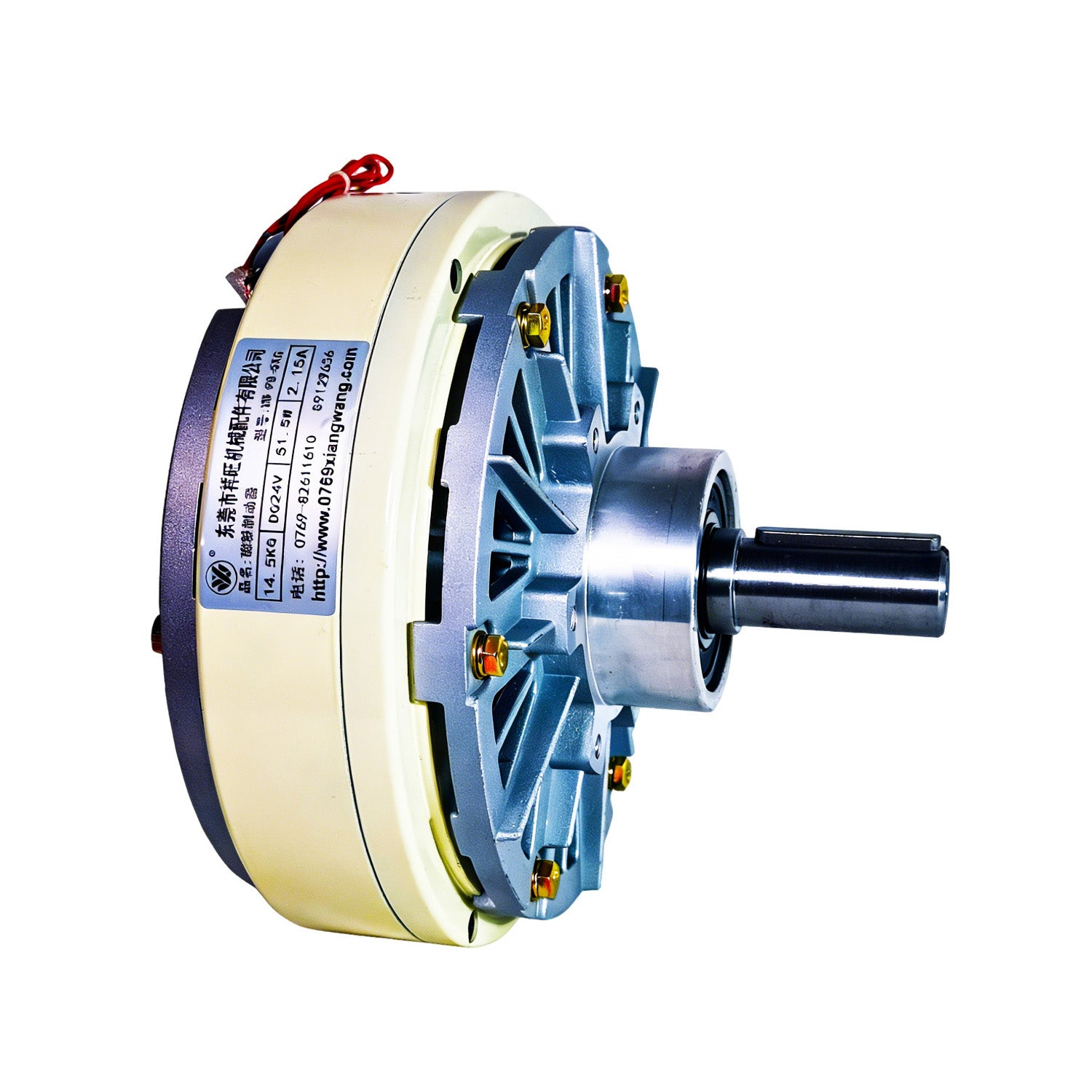

The XW Machinery Magnetic Powder Brake is a high-performance DIN-standard torque control brake engineered for precision tension control applications. Designed for continuous industrial operation, it delivers smooth and stable braking torque with fast response speed, making it ideal for winding, unwinding, slitting, printing, coating, laminating, paper converting, textile processing, and battery manufacturing equipment.

Using premium magnetic powder and precision bearings, this magnetic particle brake provides excellent torque linearity, long service life, and reliable performance under demanding production conditions. The braking torque can be accurately adjusted through excitation current, ensuring stable web tension throughout the production process.

What is DIN Standard Magnetic Powder Brake?

• Standardized mounting dimensions
• Easy machine integration
• High interchangeability
• Stable industrial performance
• Compatible with European machinery systems

Key Features

DIN Standard Industrial Design

Manufactured according to DIN standards for superior compatibility with global machinery systems and industrial automation equipment.

Precise Torque Control

Braking torque is directly proportional to excitation current, enabling accurate and repeatable torque adjustment for high-precision tension control applications.

Stable Tension Control

Maintains consistent web tension regardless of roll diameter changes, reducing wrinkles, telescoping, and material waste during winding and unwinding processes.

Long Lifespan Magnetic Powder

Utilizes high-quality magnetic powder with excellent wear resistance and thermal stability for extended service life and reduced maintenance costs.

Fast Dynamic Response

Instant torque adjustment allows precise control during acceleration, deceleration, and speed fluctuations.

Smooth and Low-Noise Operation

Provides vibration-free braking performance, helping improve product quality and machine reliability.

Excellent Heat Dissipation

Optimized housing design improves cooling efficiency and supports continuous-duty industrial applications.

Typical Applications

Printing Machines

Maintain constant web tension for improved print registration accuracy and reduced material waste.

Slitting Rewinding Machines

Ensure uniform winding tension and consistent roll quality throughout the entire production cycle.

Packaging Equipment

Provide stable braking torque during film unwinding and rewinding operations.

Paper Converting Industry

Control tension precisely during coating, laminating, embossing, and converting processes.

Textile Machinery

Support stable tension management for fabric processing and winding systems.

Lithium Battery Production

Suitable for electrode coating, separator winding, and high-precision roll-to-roll manufacturing lines.

Wire and Cable Processing

Enable smooth tension control during wire drawing, winding, and testing operations.

Industry Applications
• Printing: Flexo, Gravure, and Offset printing presses.
• Packaging: Bag making machines, laminators, and coating equipment.
• Textile & Paper: Unwinding stations for consistent material tension.

Technical Advantages

• High torque accuracy
• Stable low-speed performance
• Continuous slip capability
• Low maintenance requirements
• Long operational lifespan
• Compact structure
• Easy installation
• Compatible with automatic tension controllers
• Suitable for closed-loop tension control systems
• Reliable operation in 24/7 production environments

Technical Edge
• DIN Standard Excellence: Manufactured to international DIN standards, ensuring seamless replacement and integration with global machinery brands.
• Extended Service Life: We use high-purity, heat-resistant magnetic powder and optimized internal seals to minimize wear and extend maintenance cycles.
• Linear Torque Control: Provides smooth, repeatable braking torque, essential for high-quality printing and slitting results.

Technical Specifications:

Parameter	Value
Type	Magnetic Powder Brake
Standard	DIN Standard
Torque Range	Customizable
Voltage	DC24V
Operation	Continuous
Application	Slitting / Rewinding
Lifespan	Long Service Life





How Does a Magnetic Powder Brake Work?

• Electromagnetic coil generates magnetic field
• Magnetic powder forms chain structure
• Torque is transmitted proportionally to current
• Provides stable and adjustable braking force

Selection Guide

Available in various torque capacities to suit different machine scales. As a Famous Trademark in China, XW offers customized mounting solutions for bulk OEM orders. Contact our engineers for the CAD drawings.

This brake works with our magnetic powder clutches and tension controllers for complete web handling systems.

• Magnetic Particle Brake
• Tension Control System
• Magnetic Powder Clutch
• Slitting Machine Solutions
• Web Tension Control
• Differential Shaft
• Air Expanding Shaft

Why Choose XW Machinery Magnetic Powder Brake?

XW Machinery focuses on industrial tension control and web handling solutions. Our magnetic powder brakes are manufactured using premium-grade magnetic powder, precision-machined components, and high-quality bearings to ensure:

✔ Stable torque output

✔ Long service life

✔ Low maintenance costs

✔ Excellent heat resistance

✔ DIN-standard compatibility

✔ Fast delivery worldwide

✔ OEM & custom solutions available

 Whether you need a brake for a compact slitting machine or a heavy-duty converting line, XW Machinery provides dependable torque control solutions designed for industrial productivity and long-term reliability.

Our factory has passed ISO9001 quality certification, ensuring quality assurance.

FAQ

What is a magnetic powder brake?

A magnetic powder brake is an industrial torque control device used to provide adjustable braking force in web handling systems. It is widely used in slitting, rewinding, printing, coating, and packaging machinery to maintain stable tension and improve production quality.

---

How does a magnetic powder brake work?

A magnetic powder brake works by applying an electrical current to an excitation coil, which generates a magnetic field inside the brake. This magnetic field causes the internal magnetic powder to form chain-like structures, transmitting braking torque smoothly. The torque is proportional to the excitation current, allowing precise and stable tension control.

---

What is DIN standard in magnetic brakes?

DIN standard refers to standardized mechanical and installation dimensions defined by German industrial norms (Deutsches Institut für Normung). A DIN standard magnetic powder brake ensures:

• Consistent mounting dimensions
• Easy interchangeability with other DIN-compatible equipment
• Reliable integration into European industrial machinery
• Improved installation efficiency and compatibility

---

How to choose torque rating?

To select the correct torque rating for a magnetic powder brake, consider:

• Web material type and thickness
• Required tension level
• Roll diameter
• Machine speed
• Continuous or intermittent operation
• Safety margin for load variations

Choosing the correct torque ensures stable tension control, prevents material breakage, and improves overall system performance.

---

Can it be used in slitting machines?

Yes. Magnetic powder brakes are widely used in slitting machines to control unwinding tension. They help maintain consistent web tension, reduce material deformation, and improve winding quality during high-speed slitting operations.

---

What materials are processed?

Magnetic powder brakes are suitable for a wide range of web materials, including:

• Plastic film
• Paper
• Aluminum foil
• Copper foil
• Nonwoven fabric
• Adhesive labels and tapes
• Flexible packaging materials
• Wire and cable materials

They are commonly used in printing, laminating, coating, converting, and packaging industries.

---

Does XW Machinery support OEM customization?

Yes. XW Machinery provides OEM and custom manufacturing services for magnetic powder brakes, including customized torque ranges, mounting dimensions, voltage specifications, shaft configurations, and application-specific designs. Technical support is available to match different industrial machinery requirements.
